URZ1A220MCD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> URZ1A220MCD

Preview

URZ1A220MCD: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size53KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

URZ1A220MCD Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED

URZ1A220MCD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0066 mA
Manufacturer's serial number	RZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	40 mA
surface mount	NO
Delta tangent	0.24
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

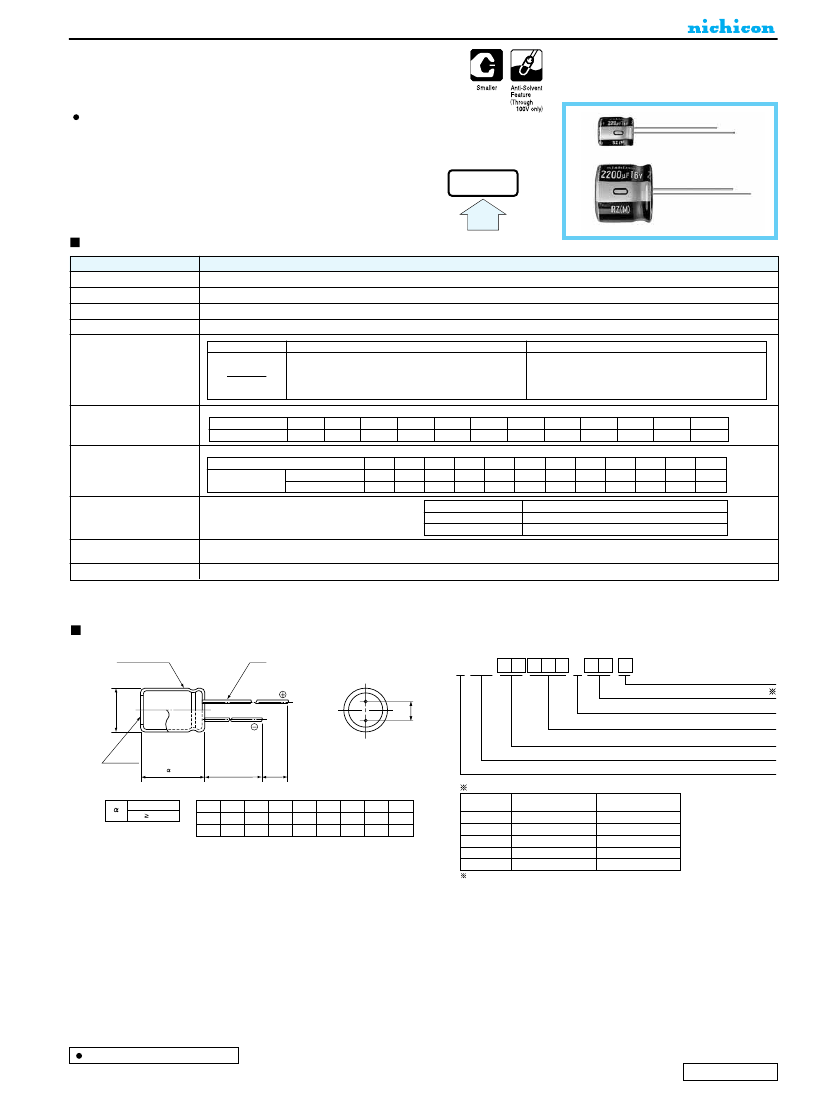

ALUMINUM ELECTROLYTIC CAPACITORS

RZ

Compact & Low-Profile Sized, Wide Temperature Range

series

Very small case sizes same as RS series, but operating over wide

temperature range of – 55 (– 40) ~ +105˚C.

(Through 100V only)

RZ

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

RS

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V) , – 40 ~ +105˚C (160 ~ 400V)

6.3 ~ 400V

0.1 ~ 10000µF

± 20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

160 ~ 400

After 1 minute's application of rated voltage,

I

= 0.04CV+100 (µA) or less

Leakage Current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20˚C

tan

δ

Rated voltage (V)

tan

δ

(

MAX.

)

6.3

0.28

10

0.24

16

0.20

6.3

5

10

25

0.16

10

4

8

35

0.14

16

3

6

25

2

4

50

0.12

35

2

3

63

0.10

50

2

3

100

0.08

63

2

3

160

0.20

100

2

3

200

0.20

160

3

4

200

3

4

250

0.20

250

3

6

400

0.25

400

6

10

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

After 1000 hours' application of rated voltage

at 105˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

δ

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified

value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

φ

d

1

2

3

4

5

6

7

8

9 10 11

12

Size code

UR Z 1 A 3 3 1 MND

Configuration

P

±

0.5

φD

+

0.5 MAX

Capacitance tolerance (±20%)

Rated Capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

L

+

MAX

15

MIN

4

MIN

Type

Configuration

(mm)

(φD < 20) 1.5

(φD 20) 2.0

φD

P

φd

5

2.0

0.5

6.3

2.5

0.5

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

20

10.0

1.0

φ

D

5 · 6.3

8 · 10

×

9

10

×

12.5

12.5 ~ 18

20

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

CD

ND

PD

HD

RD

CH

NH

PH

HH

RH

Please contact to us if other configurations are required.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100T
