URZOJ331MCD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> URZOJ331MCD

URZOJ331MCD: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size52KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

URZOJ331MCD Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED

URZOJ331MCD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
JESD-609 code	e3
leakage current	0.06237 mA
Manufacturer's serial number	RZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	180 mA
surface mount	NO
Delta tangent	0.28
Terminal surface	MATTE TIN (472) OVER COPPER
Terminal shape	WIRE

Preview

Download Datasheet

View All

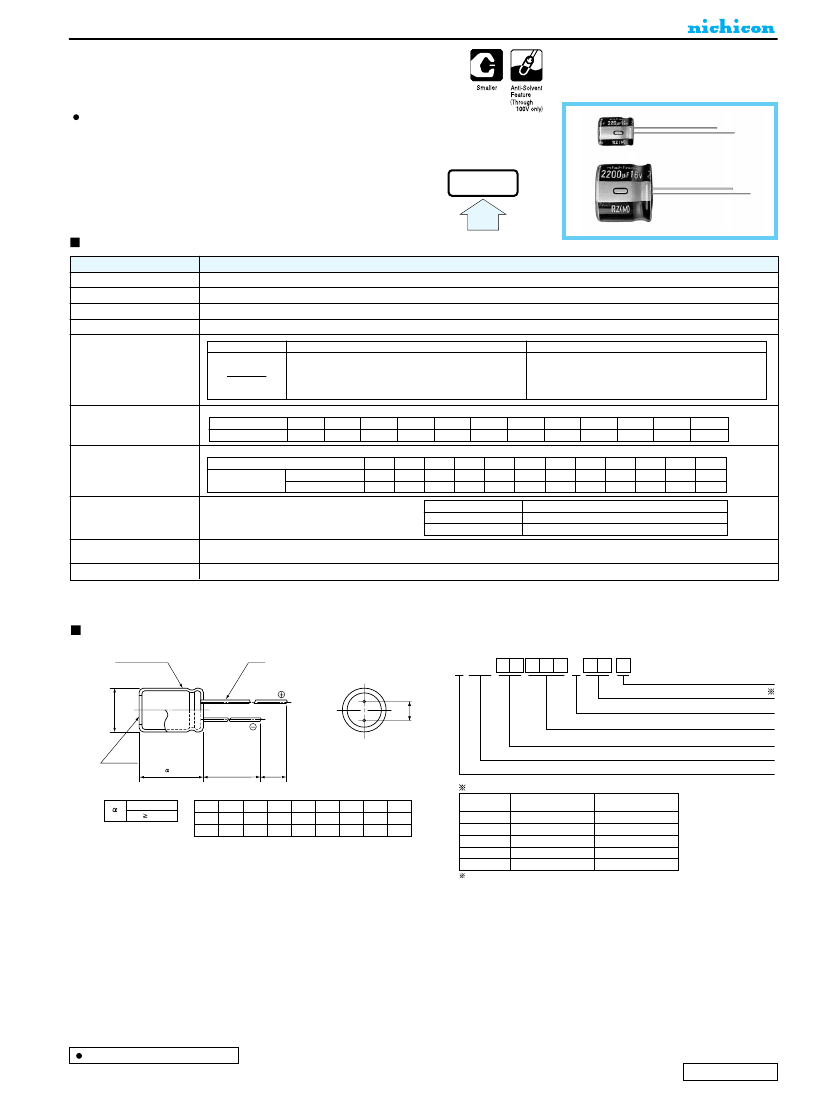

ALUMINUM ELECTROLYTIC CAPACITORS

Compact & Low-Profile Sized, Wide Temperature Range

series

Very small case sizes same as RS series, but operating over wide

temperature range of – 55 (– 40) ~ +105˚C.

(Through 100V only)

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V) , – 40 ~ +105˚C (160 ~ 400V)

6.3 ~ 400V

0.1 ~ 10000µF

± 20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

160 ~ 400

After 1 minute's application of rated voltage,

= 0.04CV+100 (µA) or less

Leakage Current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20˚C

tan

Rated voltage (V)

tan

(

MAX.

)

6.3

0.28

0.24

0.20

6.3

0.16

0.14

0.12

0.10

100

0.08

160

0.20

100

200

0.20

160

200

250

0.20

250

400

0.25

400

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

After 1000 hours' application of rated voltage

at 105˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified

value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

9 10 11

Case size

UR Z 1 A 3 3 1 MND

Configuration

0.5

φD

0.5 MAX

Capacitance tolerance (±20%)

Rated Capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

MAX

MIN

Type

Configuration

(φD < 20) 1.5

(φD 20) 2.0

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

10.0

1.0

5 · 6.3

8 · 10

12.5

12.5 ~ 18

Pb free lead finishing

Pb free PET sleeve

Sn-Pb lead finishing

PVC sleeve contain Pb

Please contact to us if other configurations are required.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100S

URZOJ331MCD Related Products

	URZOJ331MCD	URZ2A10MCD
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it Rohs certified?	conform to	conform to
Maker	Nichicon	Nichicon
Reach Compliance Code	unknow	unknown
capacitance	330 µF	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
JESD-609 code	e3	e3
leakage current	0.06237 mA	0.003 mA
Manufacturer's serial number	RZ	RZ
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	6.3 V	100 V
ripple current	180 mA	12 mA
surface mount	NO	NO
Delta tangent	0.28	0.08
Terminal surface	MATTE TIN (472) OVER COPPER	TIN (472) OVER COPPER
Terminal shape	WIRE	WIRE
