Aluminum Cased Connectorized Components
Model 250125
Mixers
Image Rejection
Applications
• PSK Demodulators
• Quadrature Phase
Detectors
• Doppler Systems/Radar
Altimeters
• Image Rejection Mixers
• Error Sensors in Adaptive
Systems
Features
• Good Phase and
Amplitude Balance
• Low Conversion Loss
• Octave RF Bandwidths
• Small Size
• Connectors Per MIL-C-39012
Electrical Specifications
Frequency
GHz
Isolation
LO-RF
dB Min/Typ
Convers. Loss
dB Max/Typ
RF
VSWR
Max/Typ : 1
1.0-2.0
LO
VSWR
Max/Typ : 1
19/25
IF Freq.*
MHz
12/10
IF Amp. Bal.
dB
1.67/1.40
IF
ø
Bal.
±10
degrees
1.50/1.20
DC-250
±1.0

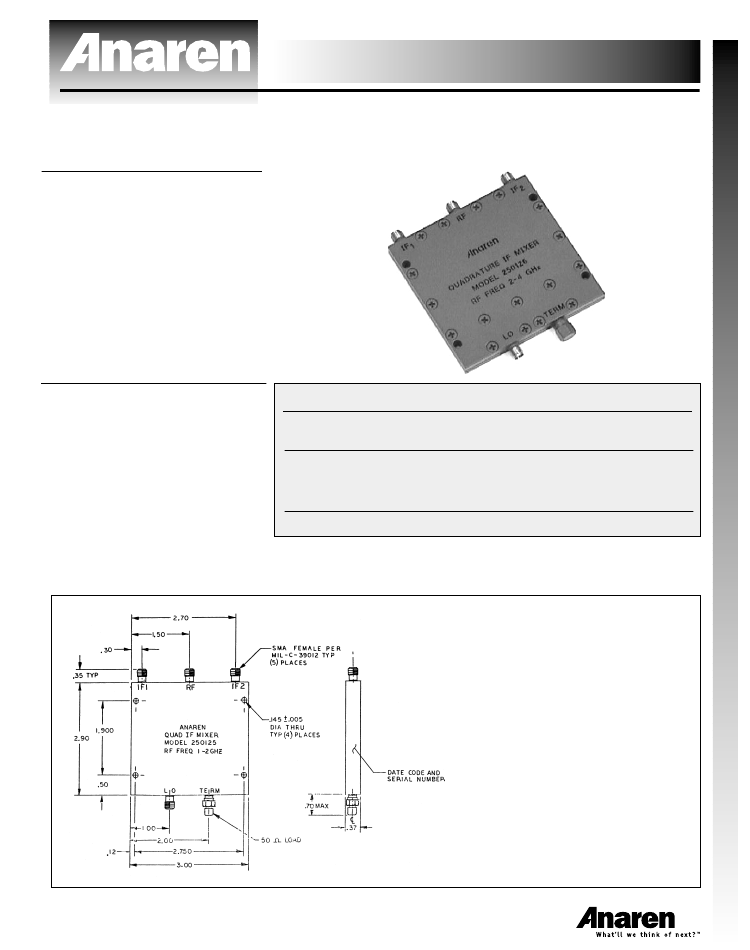

Outline Drawing
Notes:
Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available
for military and space applications.
Electrical and Mechanical Specifications subject to change
without notice.
1
Specifications are for 60 MHz IF center frequency. Other IF center frequencies are avialable
from 30 to 240 MHz. LO Power: +7 dBm typical. Biased versions also available.
NOTES:
1 Marking:
2 Dimensions:
3 Finish:
Marking shall be in accordance with MIL-STD-130
Inches
Primer (A160-16123-G001)
Paint Blue (A160-16123-G001)
