3EZ4.3D5 datasheet, PDF - EEWORLD Datasheet

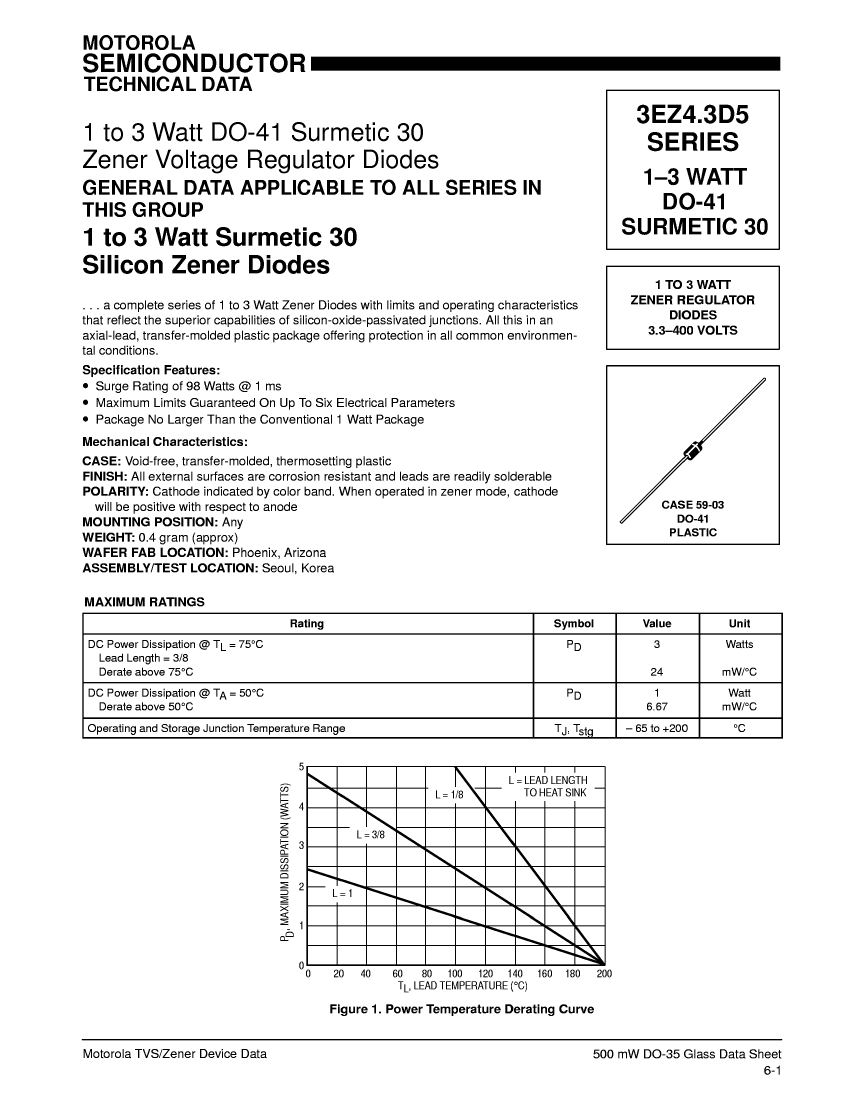

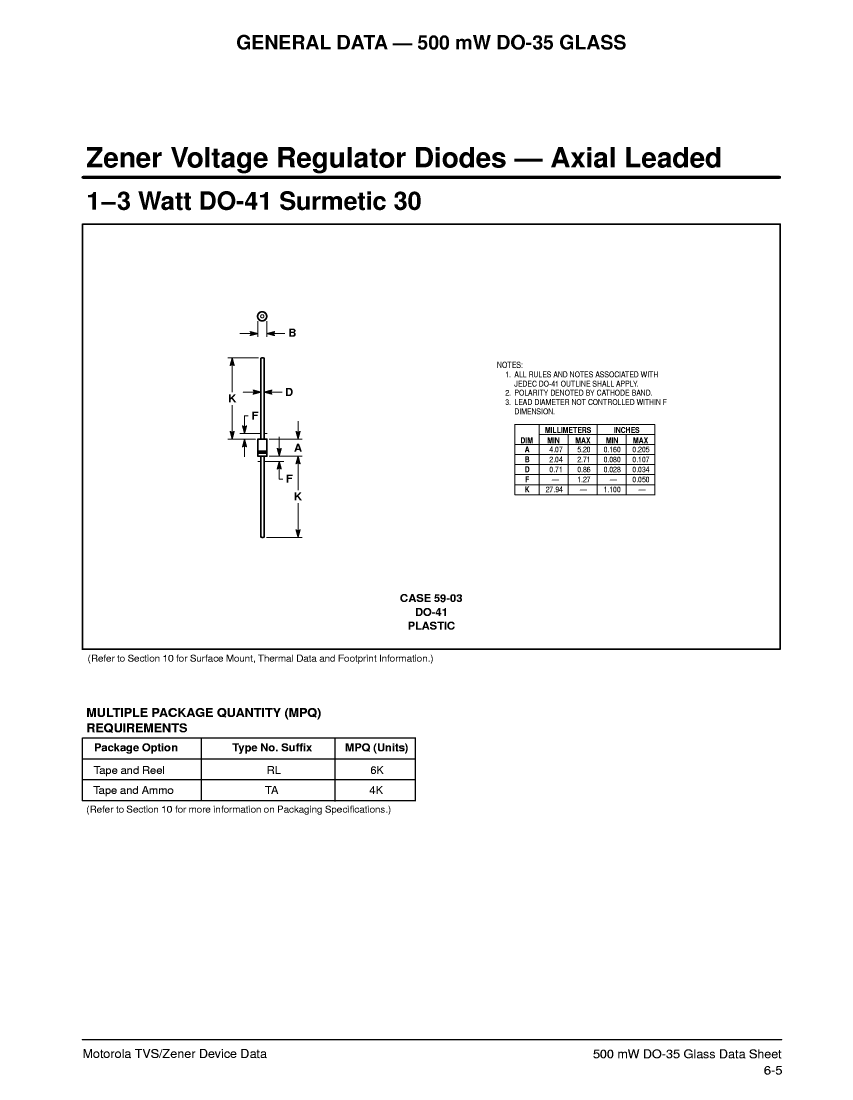

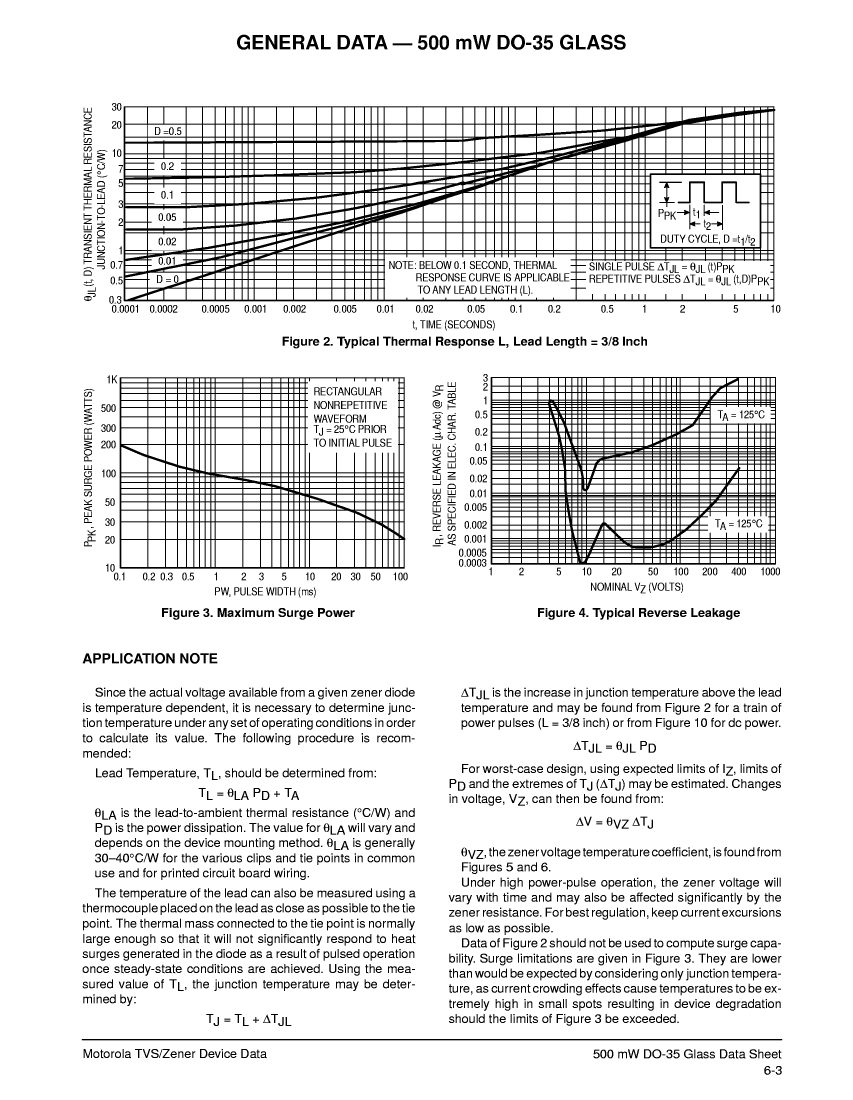

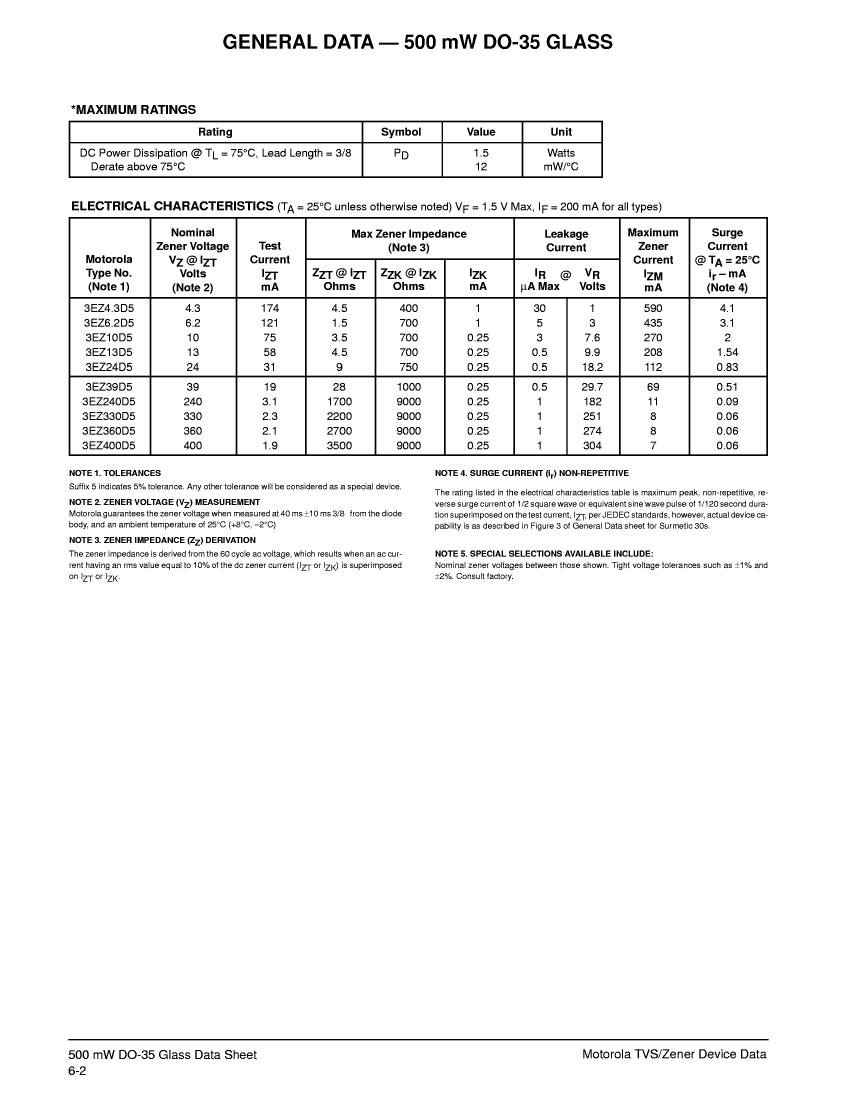

3EZ4.3D5: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,4.3V V(Z),5%,DO-204AL; CategoryDiscrete semiconductor diode; File Size310KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

3EZ4.3D5 Overview

ZENER DIODE,SINGLE, TWO TERMINAL,4.3V V(Z),5%,DO-204AL

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
Reach Compliance Code	unknow
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	4.5 Ω
JESD-609 code	e0
Number of components	1
Maximum operating temperature	175 °C
Maximum power dissipation	1 W
Nominal reference voltage	4.3 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%
Working test current	174 mA

	3EZ4.3D5	3EZ330D5	3EZ400D5	3EZ6.2D5	3EZ10D5
Description	ZENER DIODE,SINGLE, TWO TERMINAL,4.3V V(Z),5%,DO-204AL	ZENER DIODE,SINGLE, TWO TERMINAL,330V V(Z),5%,DO-41	ZENER DIODE,SINGLE, TWO TERMINAL,400V V(Z),5%,DO-41	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-204AL	ZENER DIODE,SINGLE, TWO TERMINAL,10V V(Z),5%,DO-204AL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	4.5 Ω	2200 Ω	3500 Ω	1.5 Ω	3.5 Ω
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Maximum operating temperature	175 °C	150 °C	150 °C	175 °C	175 °C
Maximum power dissipation	1 W	3 W	3 W	1 W	1 W
Nominal reference voltage	4.3 V	330 V	400 V	6.2 V	10 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	174 mA	2.3 mA	1.9 mA	121 mA	75 mA
Base Number Matches	-	1	1	1	-
