MC2907LM datasheet, PDF - EEWORLD Datasheet

MC2907LM: DescriptionIC,BUS TRANSCEIVER,SINGLE,4-BIT,ALS-TTL,DIP,20PIN,CERAMIC; Categorylogic logic; File Size335KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

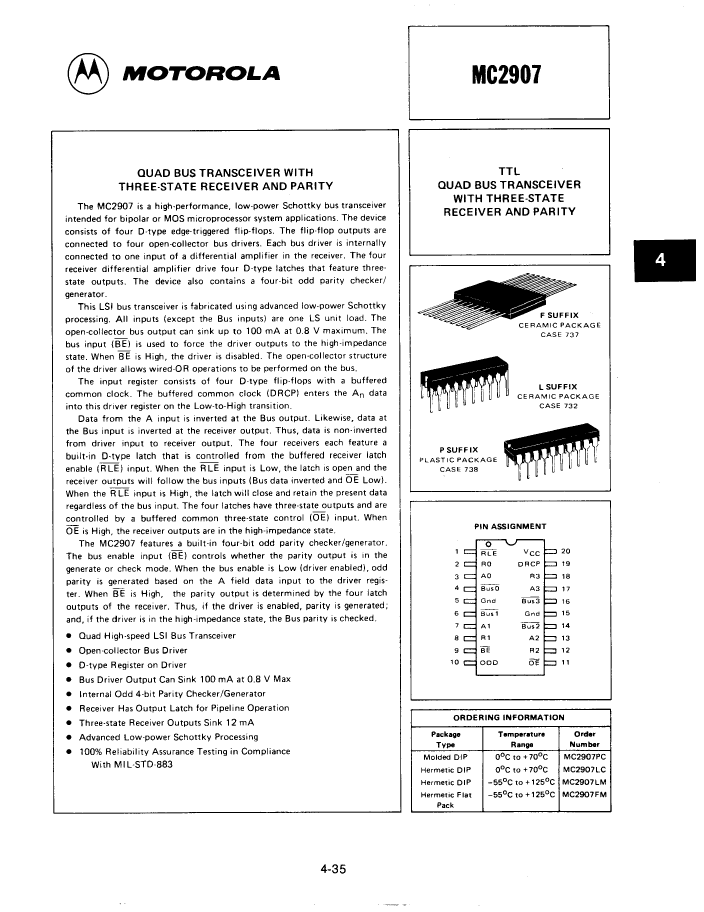

MC2907LM Overview

IC,BUS TRANSCEIVER,SINGLE,4-BIT,ALS-TTL,DIP,20PIN,CERAMIC

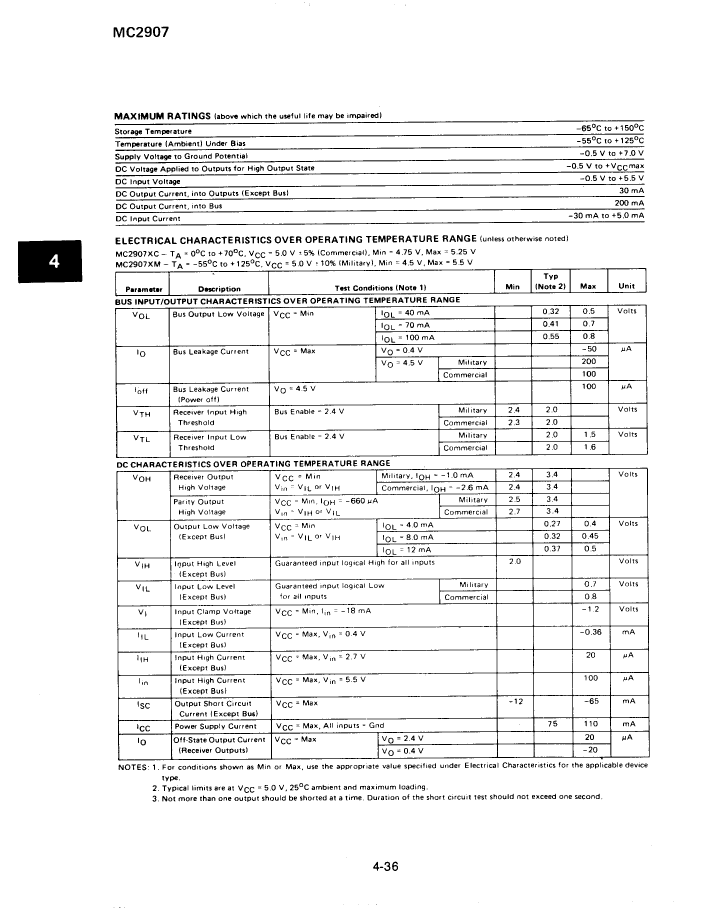

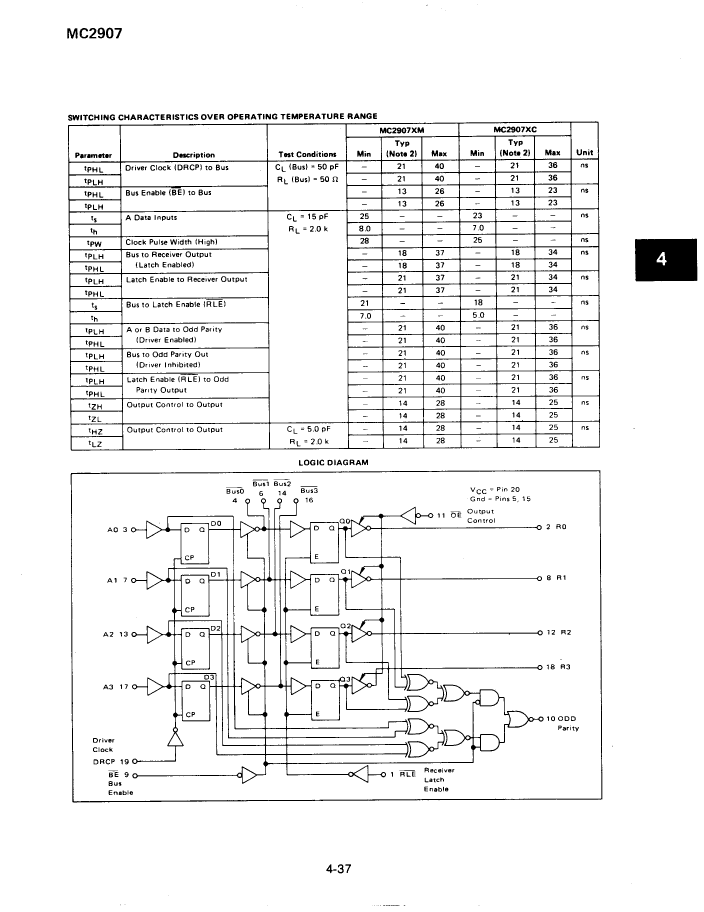

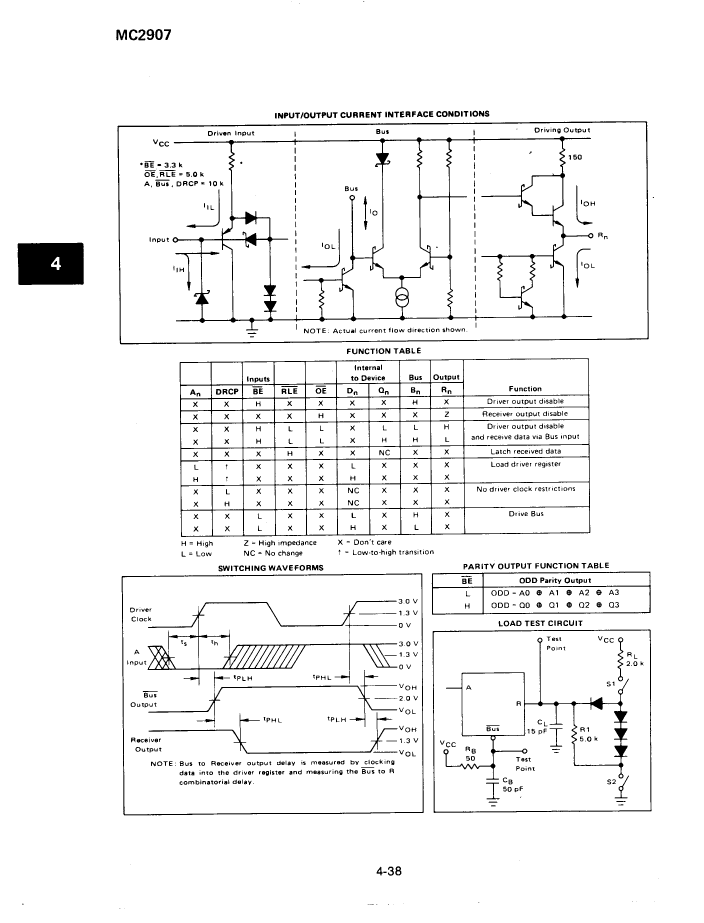

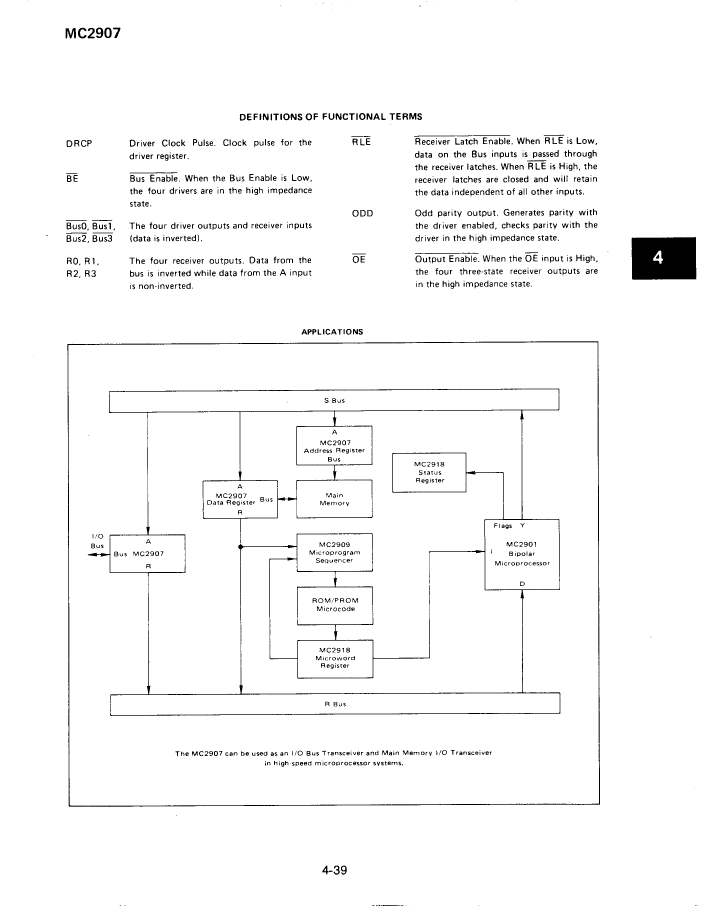

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknow
Control type	INDEPENDENT CONTROL
Counting direction	UNIDIRECTIONAL
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	MC2907LM
Description	IC,BUS TRANSCEIVER,SINGLE,4-BIT,ALS-TTL,DIP,20PIN,CERAMIC
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknow
Control type	INDEPENDENT CONTROL
Counting direction	UNIDIRECTIONAL
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
