MSC23109B-10DS3 datasheet, PDF

Datasheet> All Categories > storage> storage> MSC23109B-10DS3

MSC23109B-10DS3: DescriptionFast Page DRAM Module, 1MX9, 100ns, CMOS, SIMM-30; Categorystorage storage; File Size163KB，7 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSC23109B-10DS3 Overview

Fast Page DRAM Module, 1MX9, 100ns, CMOS, SIMM-30

MSC23109B-10DS3 Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	SIMM
package instruction	,
Contacts	30
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-XSMA-N30
memory density	9437184 bi
Memory IC Type	FAST PAGE DRAM MODULE
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	30
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX9
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

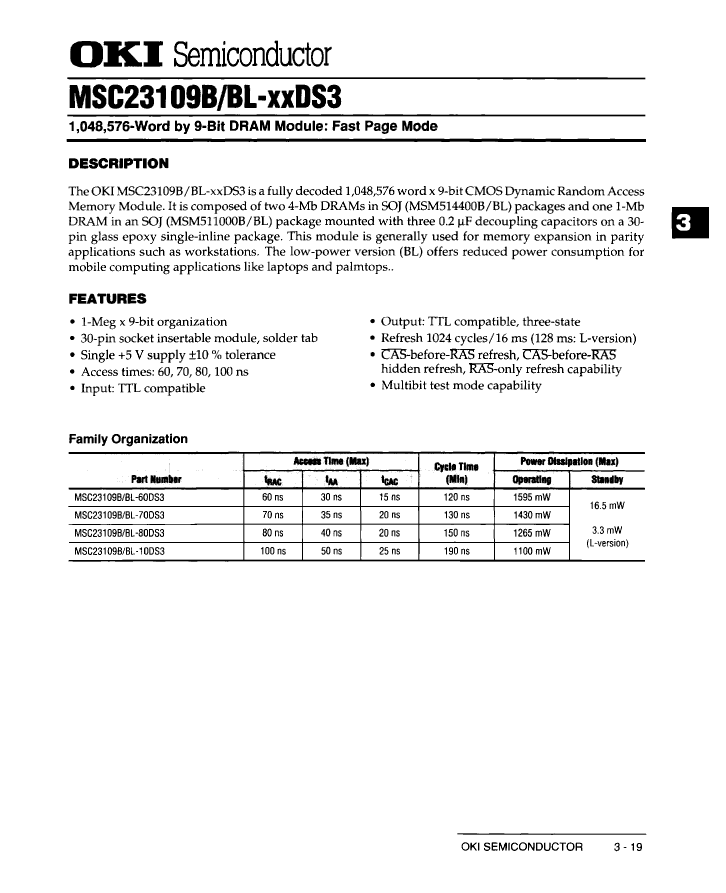

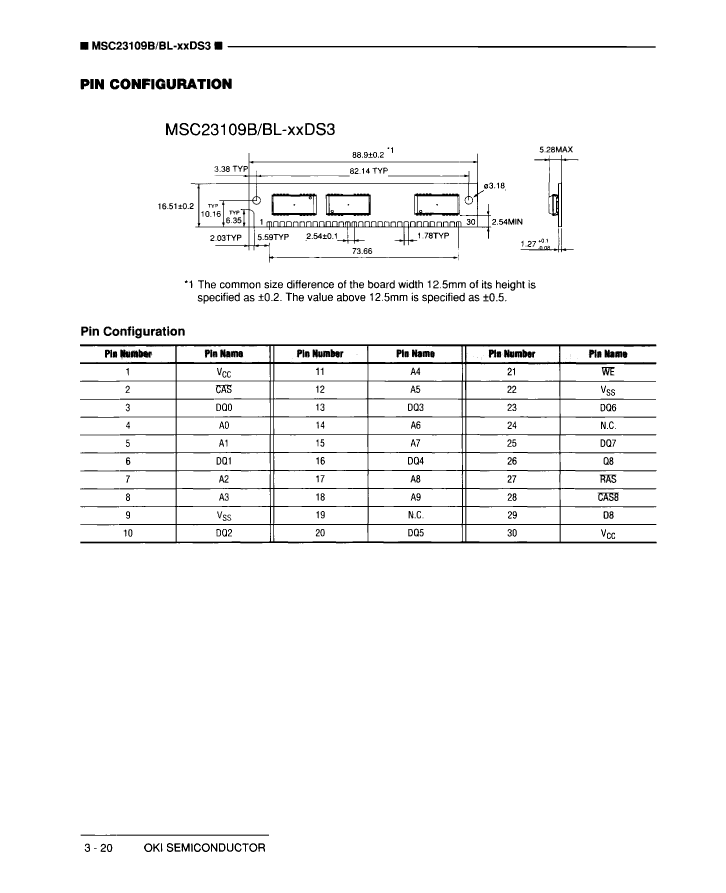

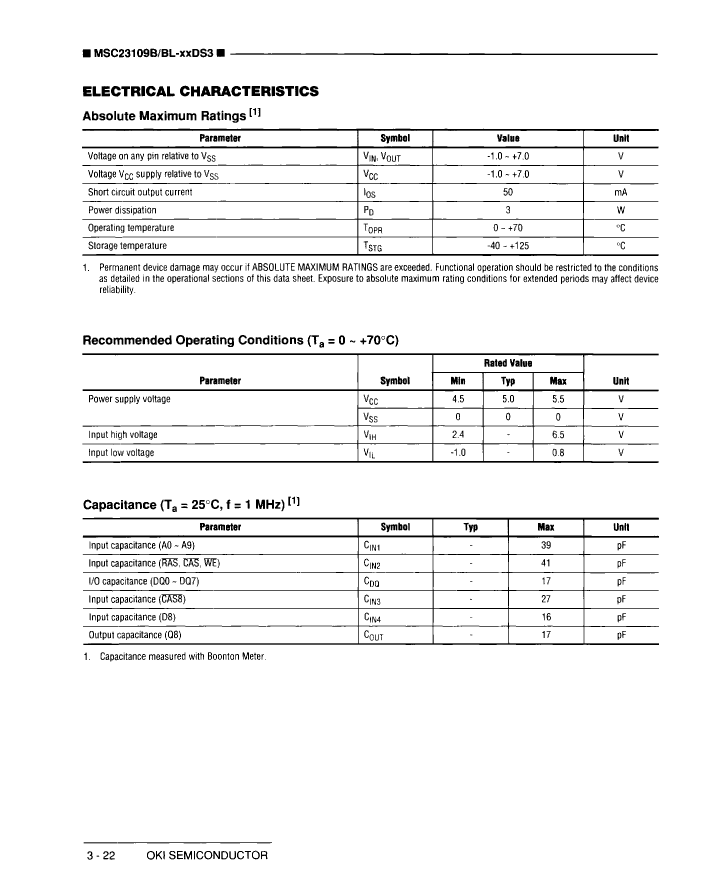

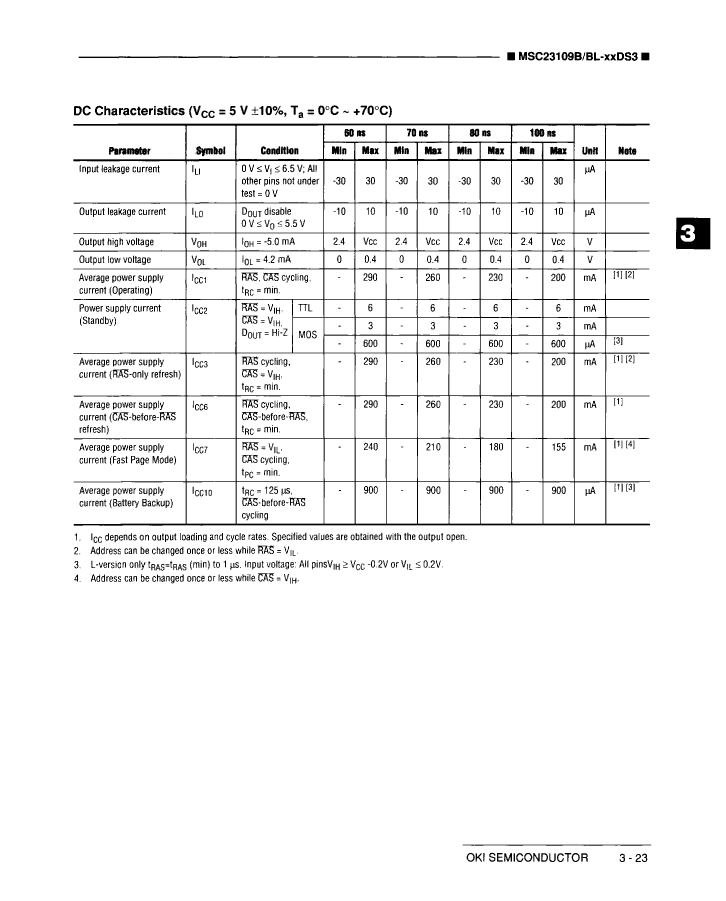

Preview

Download Datasheet

View All

MSC23109B-10DS3 Related Products

	MSC23109B-10DS3	MSC23109BL-80DS3	MSC23109BL-70DS3	MSC23109B-60DS3	MSC23109BL-10DS3	MSC23109B-80DS3
Description	Fast Page DRAM Module, 1MX9, 100ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 100ns, CMOS, SIMM-30	Fast Page DRAM Module, 1MX9, 80ns, CMOS, SIMM-30
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Contacts	30	30	30	30	30	30
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	80 ns	70 ns	60 ns	100 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30
memory density	9437184 bi	9437184 bit	9437184 bit	9437184 bit	9437184 bit	9437184 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	30	30	30	30	30	30
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX9	1MX9	1MX9	1MX9	1MX9	1MX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	OKI	-	OKI	OKI	OKI	OKI
