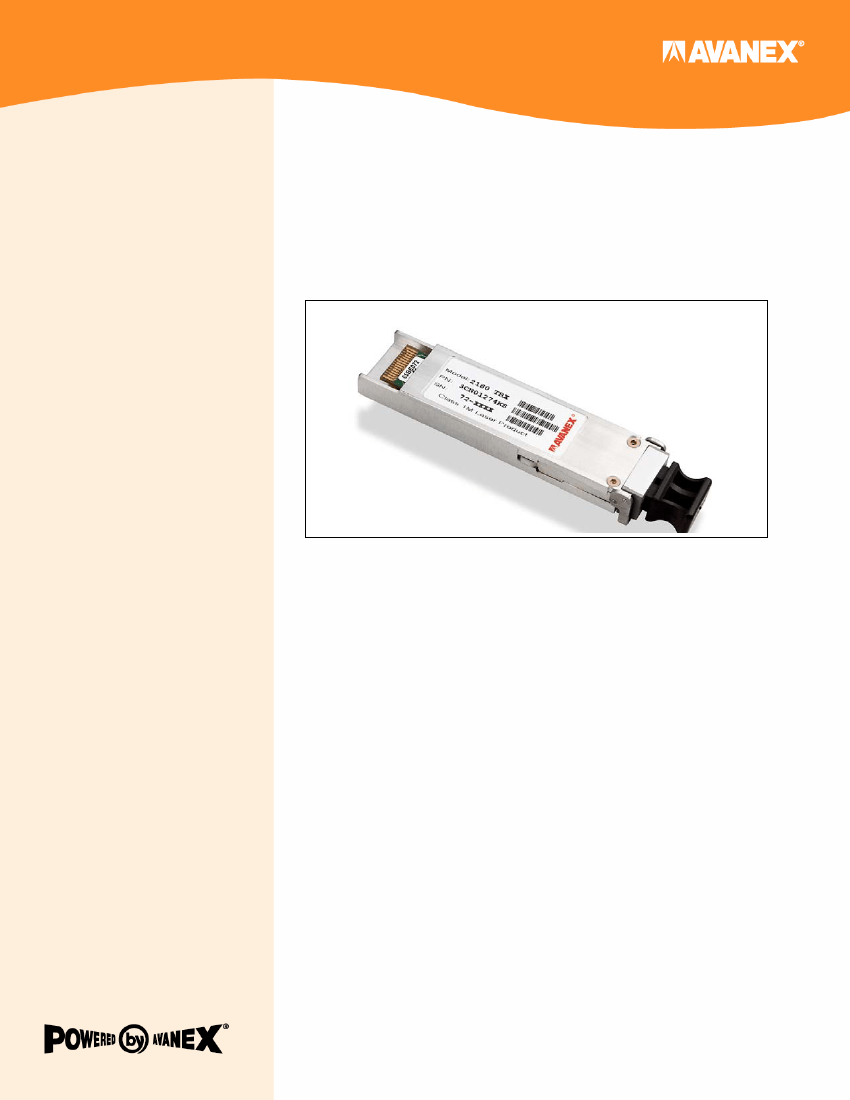

PowerPort
TM
2080/2180 TRX
10 Gb/s XFP Transceiver for 80km TDM & DWDM Applications
FEATURES
•
XFP MSA compliant
•
Low power dissipation
•
Only 3 Power supplies: +1.8V,
+5.0V, +3.3V
•
Extended operating case
temperature from -5 to +70°C
•
Up to 80km link
•
100 GHz grid DWDM
•
Full C-band
•
Hot pluggable
•
Digital Diagnostics through 2 wire
serial interface
•
XFI & lineside loopback
•
Multi-rate: 9.9 Gb/s to 11.3 Gb/s
DESCRIPTION
As part of the Avanex XFP MSA transceiver family, the PowerPort™ 2080 TRX
or 2180 TRX provides convenient and flexible optical interfaces for SONET /
SDH, 10 GbE and 10 Gb/s Fibre Channel systems operating with or without
FEC. It meets or exceeds the applicable ITU-T G.691, ITU-T G.709, Telcordia
GR-253 and XFP MSA standards.
The transmitter is based on a cooled ILM laser operating at 1.5µm. The receiver
is an APD-Preamp detector.
BENEFITS
•
Board Density: 8-16 cages
•
Each cage can be used for DWDM
APPLICATIONS
Used in transmission systems for high-speed, metro and regional/long-reach
applications, the PowerPort™ 2080 TRX or 2180 TRX transceiver operates at
Multi Protocol, Multi-rate from 9.9 to 11.3 Gb/s. All Avanex XFP MSA
transceivers are suitable for DWDM or TDM black & white line systems, Add/
Drop Multiplexers and digital cross-connects as well as ATM or IP switches and
routers. These modules ensure ease of use and offer new flexibility for
designers of 10 Gb/s optical links.
CONTENTS
•
Features ................................................................................................... 1
•
Applications.............................................................................................. 1
•
Description ............................................................................................... 1
•
Applications.............................................................................................. 1
•
Content..................................................................................................... 1
•
Absolute Maximum Ratings ..................................................................... 2
•
Recommended Operating Conditions...................................................... 2
•
Optical Characteristics ............................................................................. 2
•
Module Pin Definitions ............................................................................. 3
•
Connector Block Pin Numbers and Names ............................................. 3
•
Digital Diagnostic Functions..................................................................... 4
•
Outline Drawing ....................................................................................... 5
•
Thermal Interface ..................................................................................... 6
•
Ordering information ................................................................................ 7
AVB2X800408
1
PowerPort
TM
2080/2180 TRX
10 Gb/s XFP Transceiver for 80km TDM & DWDM Applications
1
ABSOLUTE MAXIMUM RATINGS
Parameter
Optical input Power Damage Threshold
Supply Voltages
Symbol
V
cc5
V
cc3
V
cc2
Tx+, Tx-
TSTG
Min
0
0
0
0
0
-40
Data AC Voltage Differential
Control Input Voltage
Storage Temperature
Max
+3
+6.0
+ 3.6
+2.0
+2.0
V
cc3
+85
Unit
dBm
V
V
V
Vpp
V
°C
Note 1: Exposing the device to stresses above those listed in absolute maximum rating could cause permanent damage.
The device is not meant to operate under conditions outside the limits described in the operational sections of this specification.
Exposure to absolute maximum rating conditions for extended periods may adversely affect device reliability.
RECOMENDED OPERATING CONDITIONS
Parameter
Bit Rate
Supply Voltage +5V
Supply Voltage +3.3V
Supply Voltage 1.8V
Total Power Dissipation
Operating Case Temperature
Symbol
Min
9.9
4.75
3.13
1.7
-5
Typ
5.0
3.3
1.8
Max
11.3
5.25
3.47
1.89
3.5
+70
Units
Gb/s
V
V
V
W
°C
V
cc5
V
cc3
V
cc2
T
op
OPTICAL CHARACTERISTICS
Parameters
1
Conditions
Min
Typ
Max
Unit
Target Distance
Optical Path Penalty
Optical Return Loss (ORL)
Transmitter
Signal Wavelength Range
Over-Lifetime Wavelength Stability
Output Power
Side Mode Suppression Ratio
Extinction Ratio
Return loss
Jitter Generation
Receiver
Receiver Sensitivity
Receiver Overload
Reflectance
80
Note 2
2
-27
1529
-100
-1
30
9
24
Compliant with
GR 253 Issue 3
-26
-6
-27
1563
+100
+3
km
dB
dB
nm
pm
dB
dB
dB
dB
Note 3
Note 4
Note 5
-24
dB
dB
dB
Note 1: Minimum and maximum parameters are specified End-of-Life within the overall relevant operating temperature range
unless otherwise stated. Typical values are referenced to +25 °C, nominal power supply, beginning of life. Optical
characteristics are guaranteed with up to –24dB line optical return loss.
Note 2: For Tx/Rx pair, penalty includes chromatic dispersion, PMD, reflections, and jitter effects and an OSNR >30dB. There
is an additional penalty for lower OSNR.
Note 3: Measured @BER 10
-12
and under modulation conditions NRZ at 10.709 Gb/s and PRBS 2
31
-1.
Note 4: Measured in accordance with the XFP MSA Rev. 4.5.
-12
31
Note 5: Measured @BER 10 and under modulation conditions NRZ at 10.709 Gb/s and PRBS 2 -1.
AVB2X800408
2
PowerPort
TM
2080/2180 TRX
10 Gb/s XFP Transceiver for 80km TDM & DWDM Applications
MODULE PIN DEFINITIONS
Pin
Logic
Symbol
Name/Description
Note
1, 7, 15 , 16, 19,
23, 26, 27, 30
3
4
5
6
8,9
10
11
12
13
14
17
18
20,22
GND
Mod_DeSel
Interrupt
TX_DIS
V
cc5
V
cc3
SCL
SDA
Mod_Abs
Mod_NR
RX_LOS
RD-
RD+
V
cc2
P_Down/RST
Module Ground
Module De-select; When jeld low allows module to respond to 2-
wire interface
Interrupt; Indicates presence of an important condition which can
be read over the 2-wire serial interface
Transmitter Disable; Turns off transmitter laser output
+ 5V power supply
+ 3.3V power supply
2-Wire Serial Interface Clock
2-Wire Serial Interface Data Line
Indicates Module is not present. Grounded in the Module
Nodule Not Ready; Indicating Module Operational Fault
Receiver Loss of Signal Indicator
Receiver Inverted Data Output
Receiver Non-Inverted Data Output
+ 1.8V power supply
Power down; When high, requires the module to limit power
consumption to 1.5W or below. 2-Wire serial interface must be
functional in the low power mode.
Reset; The falling edge initiates a complete reset of the moduel
including the 2-wire serial interface, equivalent to a power cycle.
Reference Clock Non-Inverted Input, AC coupled on the host
board
Reference Clock Inverted Input, AC coupled on the host board
Transmitter Inverted Data Input
Transmitter Non-Inverted Data Input
1
3
2
LVTTL-I
LVTTL-O
LVTTL-I
LVTTL-I/O
LVTTL-I/O
LVTTL-O
LVTTL-O
LVTTL-O
CML-0
CML-0
2
2
2
2
2
21
LVTTL-I
24
25
28
29
PECL-I
PECL-I
CML-I
CML-I
RefCLK+
RefCLK-
TD-
TD+
4
4
Note 1. Module ground pins Gnd are isolated from the module case and chassis ground within the module
Note 2. Pulled up with 4.7 – 10Kohms to a voltage between 3.15V and 3.45V on the host board
Note 3. The negative power supply (–5.2V) is not required
Note 4. Reference clock is required
CONNECTOR BLOCK PIN NAMES
GND
16
17
18
19
20
21
22
Toward
ASIC
23
24
25
26
27
28
29
30
GND
GND
REFCLK+
VCC5
REFCLK-
TX_DIS
GND
INTERRUPT
GND
MOD_DESEL
TD-
VEE5
TD+
GND
GND
1
2
3
4
5
6
7
GND
RX_LOS
RD-
MOD_NR
RD+
MOD_ABS
GND
SDA
VCC2
SCL
P_DOWN / RST
VCC3
VCC2
VCC3
8
Toward
Bezel
9
10
11
12
13
14
15
AVB2X800408
3
PowerPort
TM
2080/2180 TRX
10 Gb/s XFP Transceiver for 80km TDM & DWDM Applications
DIGITAL DIAGNOSTIC FUNCTIONS
The Avanex XFP module provides a management interface as described in the XFP standard (MSA Rev 4.5). There are
3 control input signals, 3 status output signals, and a 2-wire serial interface. The signals are described in section 2.4 of the
XFP standard. The control signals allow the module to be placed in a low-power state, to be reset, to enable/disable the
serial interface, and to turn-off the transmitter. The status signals indicate loss of received signal, detection of an invalid
condition, and the presence of additional status information via the serial interface.
The serial interface provides access to the more detailed identification and diagnostic monitoring information. It provides
access to a 256-byte register space. This interface runs at up to 400 kHz (with occasional clock stretching not exceeding
500µs), and the module supports a packet error checking protocol to verify transfer integrity. Full details are described in
chapter 4 of the XFP standard.
The register space is divided into upper and lower 128-byte spaces, as described in chapter 5 of the standard. The lower
128-bytes provides access to the more frequently accessed information, including readout of optical signal and laser
levels, alarm and warning flags, and read/write of control and status signals. The upper 128-bytes contain one of a
number of pages of information. The desired page is selected by writing a byte in the lower 128-half. Page 1 contains
extended module identification information, and page 2 provides a space of 128-bytes of non-volatile storage for the host
system.
DATA RATE
In order to accommodate the signal conditioner device used in the Avanex XFP module, the host system can either
- Forward no information. In this case, the XFP will find the datarate and lock on the incoming data stream through an
internal algorithm
-
Inform the XFP module of the data rate. The data rate is written into the upper 4 bits [7-4] of Byte 01h. The value to
be entered is given by:
Byte 01h [bits 7-4] = INT(Data rate[Gbps) – 9.5 ) /0.2))
Table below gives Byte 01h [bits 7-4] depending on the data rate used:
Percentage
Bandwidth
Error Correcting Capapility Expansion
STS-192, 0 bytes
10 Gigabit Ethernet
10 Gigabit Ethernet 64/66B
encoded
10 G Fiber Channel
STS-192, Reed Solomon -
255/238
STS-192, Reed Solomon -
255/237
10 Gigabit Ethernet 64/66B
encoded - 255/238
10 Gigabit Ethernet 64/66B
encoded - 255/237
10 G Fiber Channel, Reed
Solomon -255/238
10 G Fiber Channel, Reed
Solomon -255/237
0%
0%
3,125%
0%
7,14%
7,59%
7,14%
7,59%
7,14%
7,59%
Data Rate
9.953 Gbps
10 Gbps
Required
REFCLK
Frequency
155.52 MHz
156.25 MHz
Byte
01h[bits7-4]
0010xxxx
0010xxxx
0100xxxx
0101xxxx
0101xxxx
0110xxxx
0111xxxx
0111xxxx
1000xxxx
1001xxxx
10.3125 Gbps 161.13 MHz
10.5187 Gbps 164.35 MHz
10.66 Gbps
10.709 Gbps
166.63 MHz
167.33 MHz
11.0491 Gbps 172.642 MHz
11.0957 Gbps 173.37 MHz
11.27 Gbps
11.318 Gbps
176.095 MHz
176.84 MHz
AVB2X800408
4
PowerPort
TM
2080/2180 TRX
10 Gb/s XFP Transceiver for 80km TDM & DWDM Applications

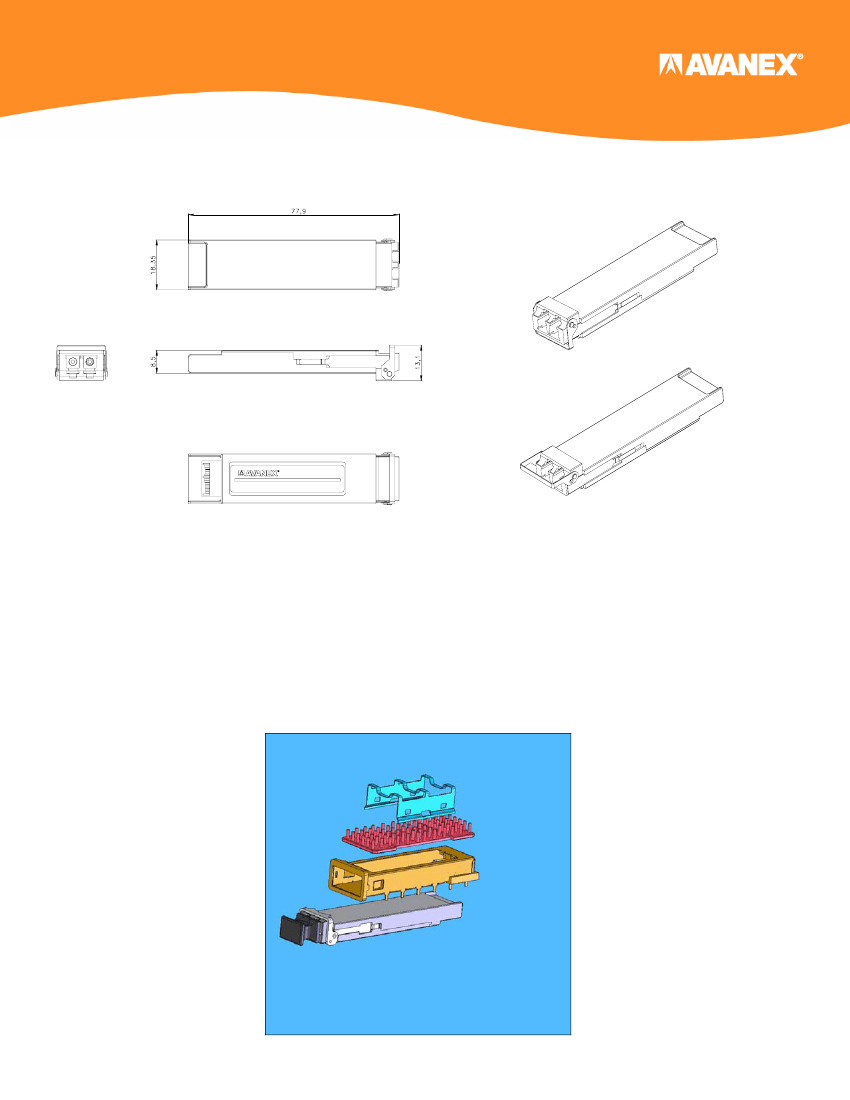

OUTLINE DRAWING
LATCHED
UNLATCHED
THERMAL INTERFACE
The XFP module cage is designed to accommodate a clip-on thermal heat sink, as shown below, to enhance the
cooling of the module. Thus the equipment manufacturer can select a heat sink that is optimized for the particular
environmental conditions of space-above-module, air flow rate & direction. For an example reference of the heat sink,
see Tyco, ref. 1542706-2.
AVB2X800408
8
7
6
5
