SOLERIQ S 13
Datasheet
Version 1.0
GW KAGJB2.EM

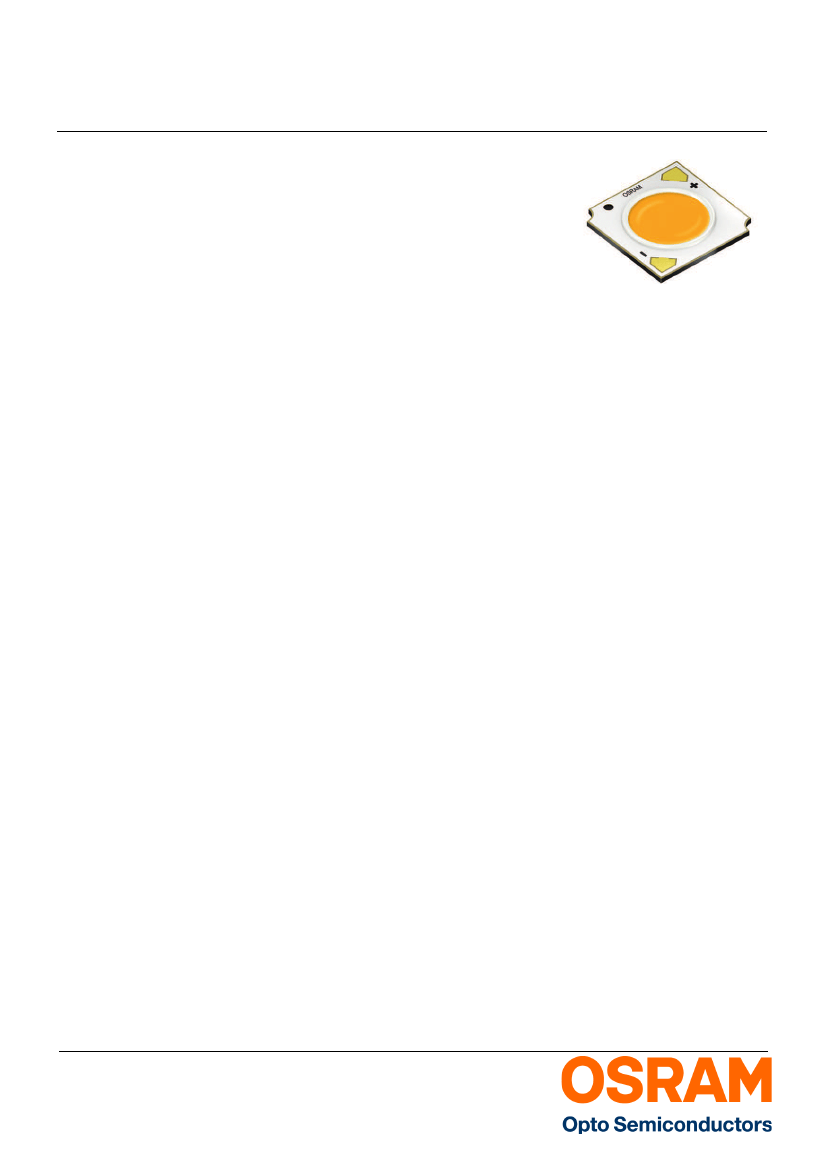

The SOLERIQ
®
S products were specifically designed
for applications requiring large flux packages out of a
compact area.
Die SOLERIQ
®
S Produkte wurden speziell für
Anwendungen entwickelt, die großen Lichtstrom aus
einer kompakten Fläche benötigen.
Features:
•
Package:
Chip-on-Board
•
Viewing angle at 50 % I
V
:
120°
•
Color:
2700 K - 6500 K (white)
•
CRI:
min. 80
•
Luminous Flux:
typ. 2150 lm @ 3000 K, 85 °C
•
Luminous efficacy:
typ. 124 lm/W @ 3000 K,
85 °C
Applications
•
Spot lights
•
Indoor General Lighting
•
Professional downlights
Besondere Merkmale:
•
Gehäusetyp:
Chip-on-Board
•
Abstrahlwinkel bei 50 % I
V
:
120°
•
Farbe:
2700 K - 6500 K (weiß)
•
CRI:
min. 80
•
Lichtstrom:
typ. 2150 lm @ 3000 K, 85 °C
•
Lichtausbeute:
typ. 124 lm/W @ 3000 K, 85 °C
Anwendungen
•
Spot-Leuchten
•
Innen-Allgemeinbeleuchtung
•
Professionelle Downlights
2015-06-22
1
Version 1.0
Ordering Information
Bestellinformation
Type:
Typ:
Color
Temperature
Farbtemperatur
Luminous Flux
1)
page 17
GW KAGJB2.EM
Ordering Code
Bestellnummer
Lichtstrom
1)
Seite 17
I
F
= 500 mA,
T
S
= 85 °C
[K]
GW KAGJB2.EM-SPSQ-27S3
GW KAGJB2.EM-SQSR-27S3
GW KAGJB2.EM-SQSR-30S3
GW KAGJB2.EM-SRSS-30S3
GW KAGJB2.EM-SQSR-35S3
GW KAGJB2.EM-SRSS-35S3
GW KAGJB2.EM-SQSR-40S3
GW KAGJB2.EM-SRSS-40S3
GW KAGJB2.EM-SQSR-50S3
GW KAGJB2.EM-SRSS-50S3
GW KAGJB2.EM-SQSR-57S3
GW KAGJB2.EM-SRSS-57S3
GW KAGJB2.EM-SQSR-65S3
GW KAGJB2.EM-SRSS-65S3
Note:
Φ
V
[lm]
1800 ... 2100
1940 ... 2240
1940 ... 2240
2100 ... 2400
1940 ... 2240
2100 ... 2400
1940 ... 2240
2100 ... 2400
1940 ... 2240
2100 ... 2400
1940 ... 2240
2100 ... 2400
1940 ... 2240
2100 ... 2400
Q65111A7963
Q65111A7964
Q65111A7965
Q65111A7966
Q65111A7967
Q65111A7968
Q65111A7969
Q65111A7970
Q65111A7971
Q65111A7972
Q65111A7974
Q65111A7975
Q65111A7976
Q65111A7962
2700
2700
3000
3000
3500
3500
4000
4000
5000
5000
5700
5700
6500
6500
The above Type Numbers represent the order groups which include only a few brightness groups (see page 5). Only one group will
be shipped on each packing unit (there will be no mixing of two groups on each packing unit). E. g. GW KAGJB2.EM-SQSR-27S3
means that only one group SQ, SR will be shippable for any packing unit.
Die oben genannten Typbezeichnungen umfassen die bestellbaren Selektionen. Diese bestehen aus wenigen Helligkeitsgruppen
(siehe Seite 5). Es wird nur eine einzige Helligkeitsgruppe pro Verpackungseinheit geliefert. Z. B. GW KAGJB2.EM-SQSR-27S3
bedeutet, dass in einer Verpackungseinheit nur eine der Helligkeitsgruppen SQ, SR enhalten ist.
Anm.:
2015-06-22
2
Version 1.0
Maximum Ratings
Grenzwerte
Parameter
Bezeichnung
Operating temperature range
Betriebstemperatur
Storage temperature range
Lagertemperatur
Junction temperature
Sperrschichttemperatur
Forward current
Durchlassstrom
(T
S
= 85 °C)
ESD withstand voltage
ESD Festigkeit
(acc. to ANSI/ESDA/JEDEC JS-001 - HBM)
Symbol
Symbol
T
op
T
stg
T
j
I
F
Values
Werte
GW KAGJB2.EM
Unit
Einheit
°C
°C
°C
mA
-40 ... 105
-40 ... 100
125
50 ... 1200
V
ESD
up to 2
kV
2015-06-22
3
Version 1.0
Characteristics
(T
S
= 85 °C; I
F
= 500 mA)
Kennwerte
Parameter
Bezeichnung
Viewing angle at 50 % I
V
Abstrahlwinkel bei 50 % I
V
Forward voltage
2)
page 17
, 3)
page 17
Durchlassspannung
2)
Seite 17
, 3)
Seite 17
Color rendering index
4)
page 17
Farbwiedergabe Index
4)
Seite 17
Real thermal resistance junction / solder point
5)
page 17
GW KAGJB2.EM
Symbol
Symbol
(typ.)
(min.)
(typ.)
(max.)
(min.)
(typ.)
(max.)
2ϕ
V
F
V
F
V
F
R
a
R
th JS real
R
th JS real
Values
Werte
120
Unit
Einheit
°
V
V
V
-
K/W
K/W
33
3
4.6
37
80
0.84
1.26
Realer Wärmewiderstand Sperrschicht / Lötpad
5)
Seite 17
"Electrical" thermal resistance junction / solder point (typ.)
5)
page 17
(max.)
"Elektrischer" Wärmewiderstand Sperrschicht /
Lötpad
5)
Seite 17
(with efficiency η
e
= 40 %)
R
th JS el
R
th JS el
0.5
0.8
K/W
K/W
2015-06-22
4
Version 1.0
Brightness Groups
Helligkeitsgruppen
Group
Gruppe
SP
SQ
SR
SS
Luminous Flux
1)
page 17
Lichtstrom
1)
Seite 17
(min.) Φ
V
[lm]
1800
1940
2100
2240
Luminous Flux
1)
page 17
Lichtstrom
1)
Seite 17
(max.) Φ
V
[lm]
1940
2100
2240
2400
GW KAGJB2.EM
Luminous Intensity
6)
page 17
Lichtstärke
6)
Seite 17
(typ.) I
V
[cd]
595.2
642.9
690.6
738.4
2015-06-22
