Circuit Breakers
DIN rail-mounted equipment protection
© 2008 PHOENIX CONTACT
L002030d:07.08

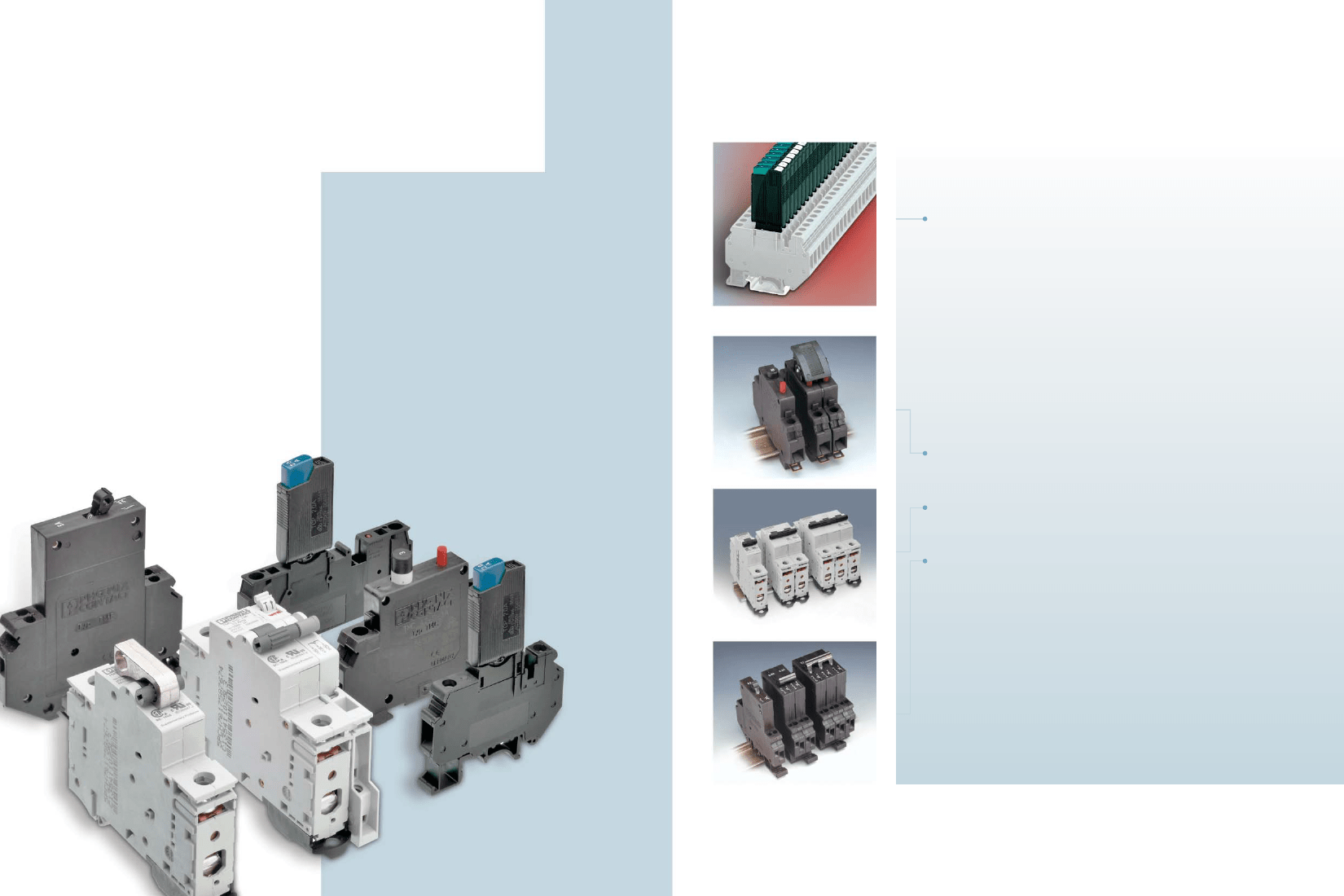

To choose a circuit breaker,
determine the following:
The normal current load (nominal current)
Specify the size of the breaker in amps based on the normal
current load.
Possible types of failure
Match the short-circuit and overload protection requirements
to the performance characteristics of the breaker.
Rupture capacity
Specify the breaker, knowing the maximum fault current that
can be repeatedly (3x minimum) interrupted without failure
of the breaker.
Maximum interrupting capacity
Choose the breaker, knowing the maximum current at a
given voltage that the breaker can interrupt safely without
damage to surrounding components.
The wire size the breaker must accommodate
Determine if the breaker can accept the wire sizes required.
DIN rail-mounted
Thermal Miniature and Thermal Magnetic Circuit Breakers
Thermal Miniature Circuit Protection (TCP)
Thermal circuit proctectors use heat-sensitive bimetallic elements that respond to
overload electrical currents.
How fast the circuit breaker must react
to a fault condition
Specify a breaker by selecting a speed that avoids
nuisance tripping but protects against component damage.
How many poles are needed
Determine the number of poles needed that are
connected electrically and structurally.
Functional requirements of the breaker
Define the requirements for visual inspection, switching,
auxiliary circuits or space.
Environmental factors –
temperature, moisture, vibration
Determine if there are unusual conditions in which the
breaker must operate.
Thermal Miniature Circuit Protectors
are compact protectors designed to
interrupt an electric current under overload conditions. The protector can accommodate
ten nominal currents ranging from 0.10 A to 10 A.
After an overload has occurred, TCP breakers are easily reset by pushing the reset button.
The breakers can be plugged into UK 6-FSI/C (screw) or ST 4-FSI/C (spring) terminal
blocks for convenient DIN rail mounting.

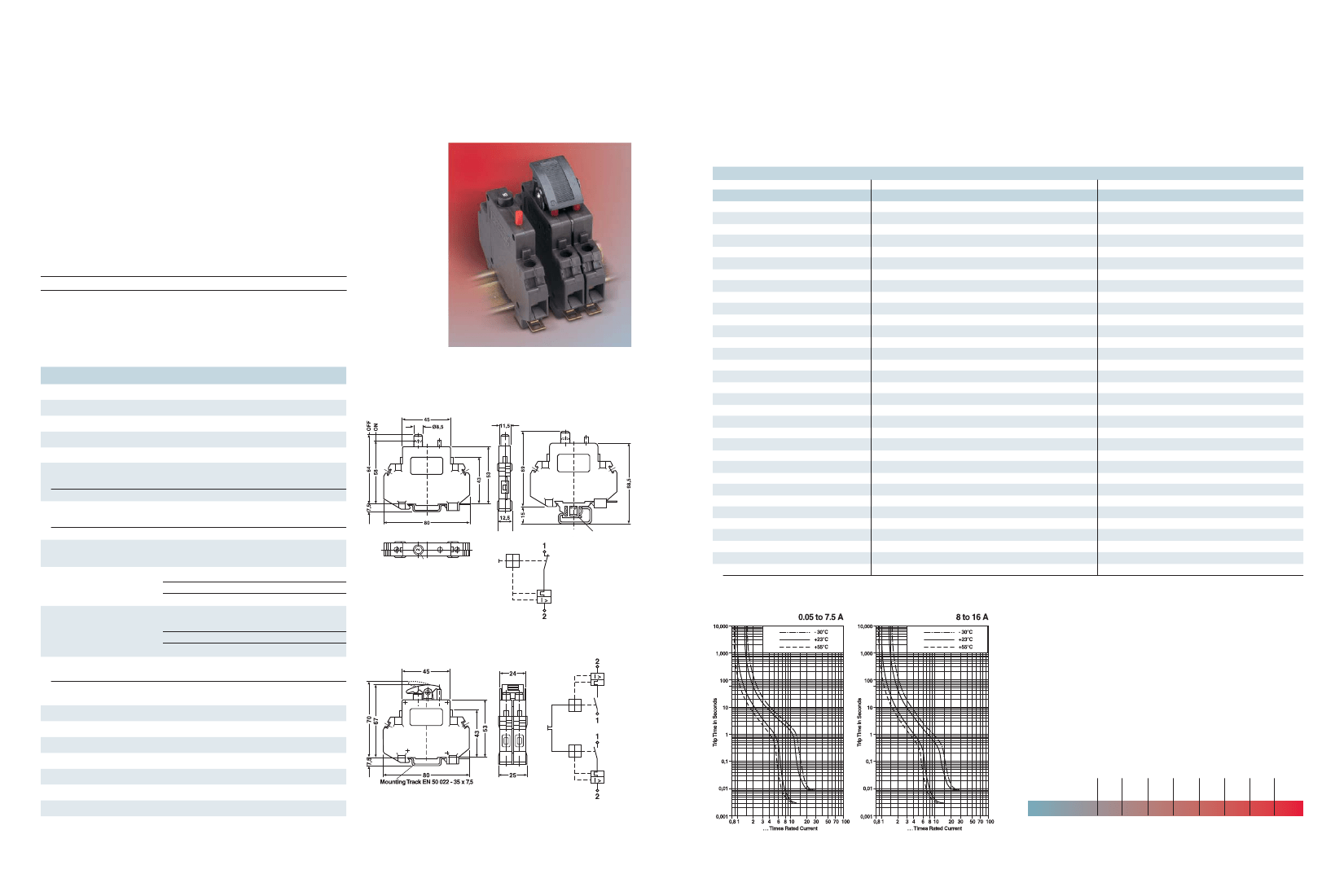

Thermal Magnetic Circuit Breakers (TMC)
Thermal Magnetic circuit breakers interrupt an electrical current under overload
or short-circuit conditions. They have both thermal circuit interruption and magnetic
interruption functions. The thermal function uses heat-sensitive bimetallic elements that
respond to overload currents. The magnetic function responds to very high current
overloads such as those that might occur during short-circuit conditions.
TMC 42
breakers are available in one- or two-pole configuration for currents ranging
from 0.10 to 16 amps. TMC 42 breakers can be snapped directly on a DIN rail. They are
reset by pushing a red reset button.
TMC 60
breakers are available in one-, two-, or three-pole configurations for currents
ranging from 0.5 to 63 amps. TMC 60-Series breakers can be snapped directly on a DIN
rail. They are reset by moving the toggle switch to the green (activation) position.
TMC 1
breakers are available in one-, two- or three-pole configurations for currents
ranging from 0.1 to 32 amps. This high-density breaker has built-in auxiliary contacts.
TMC 1 breakers can be snapped directly on a DIN rail. They are reset by moving the
toggle switch to the I (activation) position.
1

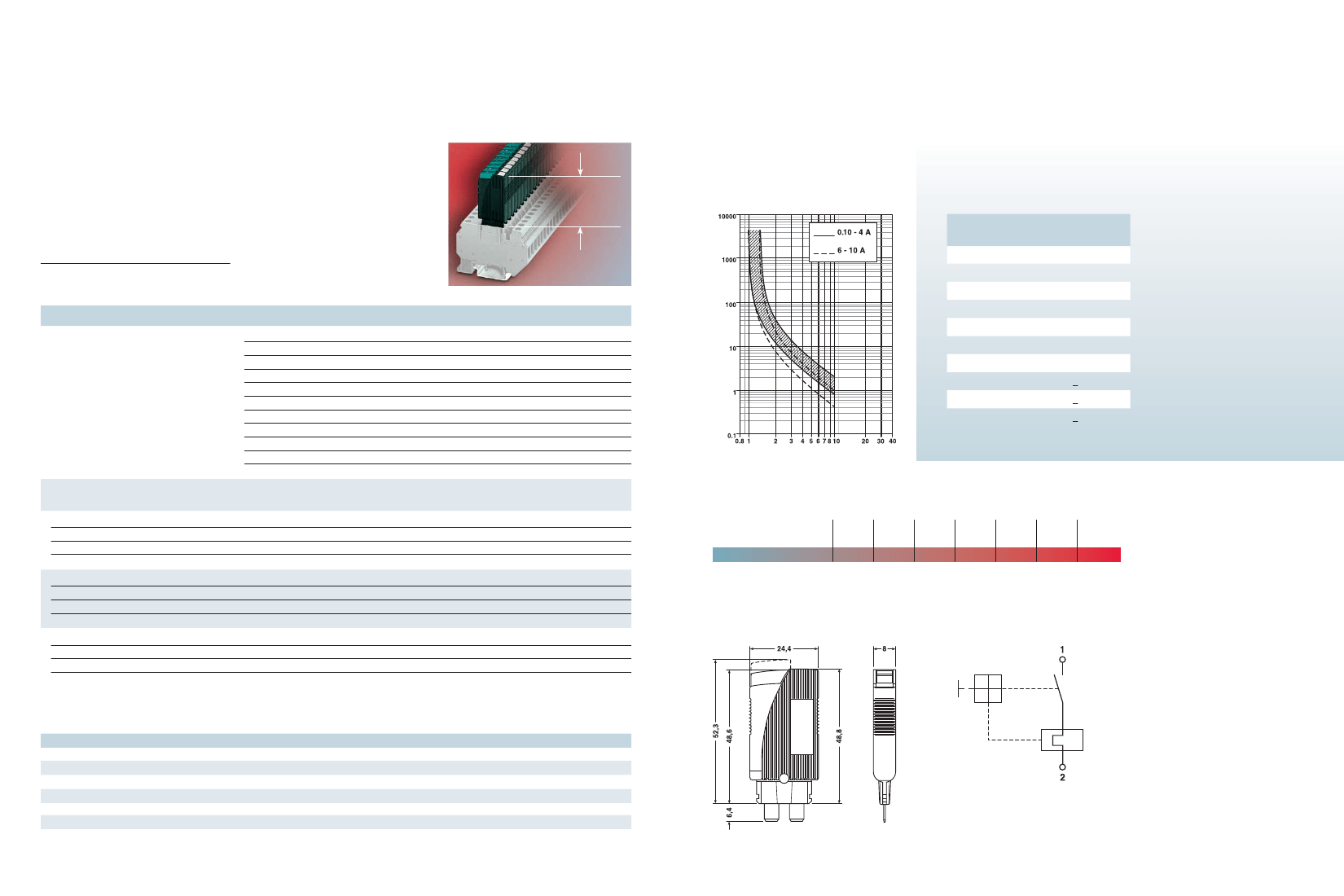

Thermal (Miniature) Circuit Protectors (TCP)
TCPs are compact circuit protectors designed to interrupt an electric current under
overload conditions. There are ten nominal current ratings available, ranging from 0.10 A
to 10 A.
TCP protectors are trip-free and reset easily after a current interruption by pushing the
reset button. The protector can be plugged into UK 6-FSI/C or ST 4-FSI/C fuse base
terminal blocks for convenient DIN rail-mounting.
[V AC]
Nominal Voltage
250
[V DC]
72
Screw: 48.11 mm, 1.89 in.
Spring: 45.31 mm, 1.78 in.
(breaker button up)
Technical data for TCP
Time/current characteristic curve
Ambient temperature 23 C
Nominal currents and internal
resistances
Nominal current
[A]
0.1
0.25
Trip time in seconds
.5
1
2
3
4
6
8
10
Internal resistance
[W]
81
14
3.4
0.9
0.25
0.11
0.07
< 0.05
< 0.05
< 0.05
Technical Data
Thermal Circuit Breaker
plugged into UK 6-FSI/C or ST 4-FSI/C base
terminal blocks
Nominal current [A]
0.10
0.25
0.50
1.00
2.00
3.00
4.00
6.00
8.00
10.00
(1) Flat Zack strip,
unprinted, 10-section for
labeling the upper marker grooves
Technical data in accordance with IEC/DIN VDE
Nominal voltage
Nominal current
Ambient temperature
Interrupting capacity
for nominal currents of 0.10 - 4 A
for nominal currents of 6 - 10 A
for short circuit
Insulating material
Inflammability class in accordance with UL 94
Approval data (UL and c/UL)
* If fault current exceeds 6 times I
N
, TCP may require replacing.
** If fault current exceeds 8 times I
N
, TCP may require replacing.
Type
TCP 0.10
TCP 0.25
TCP 0.5
TCP 1
TCP 2
TCP 3
TCP 4
TCP 6
TCP 8
TCP 10
ZBF 5: WH:
Unprinted
Order No.
07 12 10 7
07 12 12 3
07 12 15 2
07 12 19 4
07 12 21 7
07 12 23 3
07 12 25 9
07 12 27 5
07 12 29 1
07 12 31 4
Pcs./Pkt.
1
1
1
1
1
1
1
1
1
1
...times rated current
The time/current characteristic curve depends on the ambient temperatures. To avoid a premature or late
08 08 64 2
10
switch-off, the nominal current of the circuit breaker must be multiplied with a temperature factor.
Ambient temperature
°F
°C
Temperature factor
-4
-20
0.76
14
-10
0.84
32
0
0.92
73.4
23
1
104
40
1.08
122
50
1.16
140
60
1.24
[V AC] / [V DC]
[A]
°C
250 / 72
0.10-10
-20...+60
[A]
[A]
6x rated current *
8x rated current **
2,000 Amps
Polymide (PA), non-reinforced
V0
NOTE: If the TCP circuit protectors are mounted side-by-side with less than the minimum of 1 mm of space for air
movement, then do not exceed 80 percent of their rating.
Dimensional drawing
Switching diagram
[V AC] / [V DC] / [A]
250 / 72 / 0.1-10
Thermal Miniature Circuit Breaker TCP compared to glass fuses
TCP Feature
Convenience
Deterioration
Life expectancy
Interruption detection
ON / OFF capability
Hot-swappable
Controlled trip
2
TCP
Reset with reset button when overload is resolved
Virtually no aging
3,000 operations at current rating, 500 operations at 2x current rating
Visual identification
Switch duty actuator allows product to operate as an electrical switch
May be removed or replaced under load
Avoids nuisance trips due to high in-rush currents
Glass Fuses
Storing, ordering and locating issues
Age with eventual failure at normal loads
Unknown
Status not determined until fuse is removed from its holder
Not applicable
Not applicable
Not applicable
3
Thermal Miniature Circuit Protector Base
Thermal Miniature Circuit Protector Base
Base terminal block with screw connection for
accommodating the TCP circuit breaker UK 6-FSI/C
(IEC)
[mm
2
]
Connection data
rigid
solid
0.2 - 10
flexible
stranded
0.2 - 6
AWG
24 - 8
[A]
*
[V]
250*
92 mm / 3.62 in.
(breaker button up)
Base terminal block with spring-cage connection for
accommodating the TCP circuit breaker ST 4-FSI/C
(IEC)
[mm
2
]
Connection data
rigid
solid
0.2 - 6
flexible
stranded
0.2 - 4
AWG
24 - 10
[A]
*
[V]
400*
89.7 mm / 3.53 in.
(breaker button up)
* The current and voltage are determined by the thermal circuit breaker
* The current and voltage are determined by the thermal circuit breaker

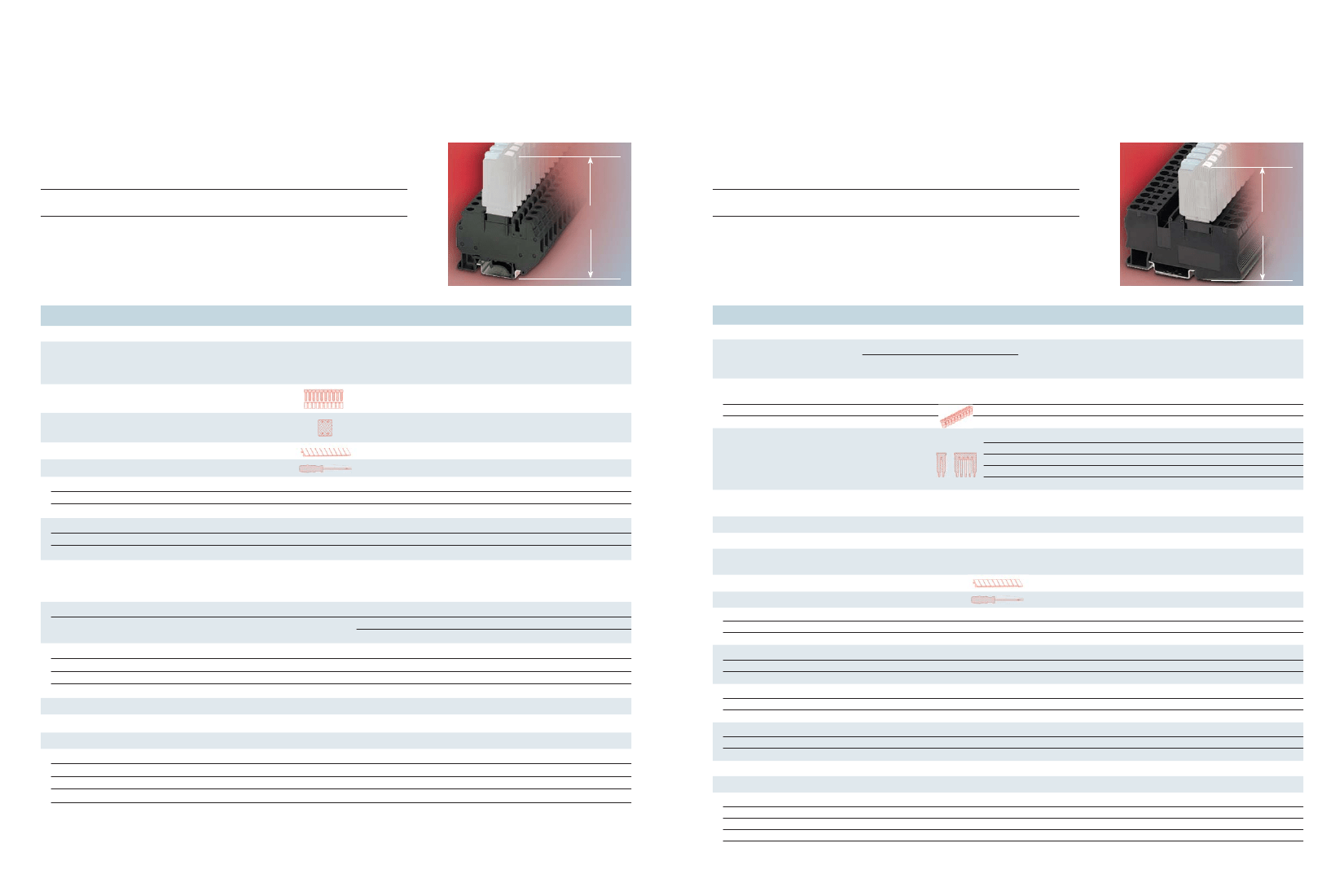

Technical Data
Fuse Terminal Block
with universal foot for mounting on NS 32 or NS 35 DIN rails
Fuse Terminal Block
as shown above with light indicator
Light indicator / voltage [V DC]
LED red / 12
LED red / 24
Current [mA]
2.0
2.0
Type
UK 6-FSI/C
Order No.
31 18 20 3
Pcs./Pkt.
50
Technical Data
Fuse Terminal Block
with universal foot for mounting on 35 DIN rail
Fuse Terminal Block,
1
)
as shown above with light indicator
Light indicator / voltage [V DC]
LED red / 12
LED red / 24
Current [mA]
2.0
2.0
Type
ST 4-FSI / C
ST 4-FSI / C-LED12
ST 4-FSI / C-LED 24
Order No.
30 36 37 2
30 36 49 5
30 36 50 5
Pcs./Pkt.
50
50
50
UK 6-FSI/C-LED 12
UK 6-FSI/C-LED 24
30 01 92 5
30 01 93 8
50
50
(1) Fixed Bridge
for cross connections in the terminal center, screw
heads with insulating collar, 10-position, divisible, with 10 screws
(2) Separating Plate
for electrical separation of neighboring bridges,
can be fitted later, no loss of pitch
(3) Zack Strip, 10-section,
white
(4) Screwdriver
Dimensions
Width / length
Height (NS 35:7.5/NS 35:15/NS 32)
Technical data in accordance with IEC/DIN VDE
Fuse type ISO/DIS 8820/DIN 72-581-3
Maximum current with single arrangement
1
)
Maximum power dissipation
Rated surge voltage / contamination class
Surge voltage category / insulation material group
Connection capacity
Stranded with ferrule without/with plastic sleeve [mm
2
/ in.
2
]
FBI 10-8
i
max
:34 A
02 03 26 3
50
(1) Insulating stop sleeve,
prevents unintentional clamping of the insulation in the
case of smaller cross sections
Cross section range 0.25-0.5 mm
2
/ 0.0039-0.0077 in.
2
Gray
2
2
0.75-1 mm / 0.00116-0.00155 in.
Black
(2) Plug-in bridge,
for cross connections in the terminal center
2-position
3-position
4-position
5-position
10-position
ISH 4 / 0.5
ISH 4 / 1
FBS 2-8
FBS 3-8
FBS 4-8
FBS 5-8
FBS 10-8
PAI 4
MPS-RD
PS 8
ZBFM 8/WH:
UNPRINTED
ZB 8: UNPRINTED
SZF 1 - 0.6x3.5
i
max
:41 A
41A
41A
41A
41A
30 02 88 5
30 02 89 8
30 30 28 4
30 30 29 7
30 30 30 7
30 30 31 0
30 30 32 3
30 30 92 5
02 01 55 3
30 31 00 5
08 00 73 4
10 52 00 2
12 04 51 7
50
50
10
10
10
10
10
10
10
10
10
10
10
TS-KK 3
ZB 8: UNPRINTED
SZS 1.0 x 4.0
27 70 21 5
10 52 00 2
12 05 06 6
100
10
10
[mm / in.]
[mm / in.]
Width: 8.2 mm / 0.32 in.; Length: 64 mm / 2.52 in.
NS 35:7.5: 7.5 mm / 0.30 in.; NS 35:15: 15 mm / 0.60 in.
(3) Test adapter,
for 4 mm Ø test adapter PS and 4 mm safety
test plugs, making contact in the bridge shaft
(4)
2.3 mm Ø test plus
2
,
consisting of a metal part and a red insulating sleeve
-
[A]
C
30
(5) Modular test plug,
can be labeled with ZBFM 8
(6) Zack marker sheet,
flat, 50-section, for labeling in the outer marker grooves
(7) Zack strip,
10-section, for labeling in the terminal center
(8) Screwdriver,
for actuating the spring cage
Dimensions
Width / length
Height (NS 35:7.5/NS 35:15)
Technical data in accordance with IEC/DIN VDE
Fuse type ISO/DIS 8820/DIN 72 581-3
Maximum current with single arrangement
Maximum power dissipation
Rated surge voltage / contamination class
Surge voltage category / insulation material group
Connection capacity
Stranded with ferrule without / with plastic sleeve
Stranded with TWIN ferrule with plastic sleeve
Stripping length
Internal cylindrical gauge (IEC 60 947-1)
Insulation material
Inflammability class in accordance with UL 94
Approval data (UL and cUL)
Nominal voltage/nominal current/conduc. sizes
1
2
[k V] / -
-
|
/ -
4/3
lll / l
Without: 0.25-6 mm
2
/ 0.00039-0.00930 in.
2
;
With: 0.25-4 mm
2
/ 0.00039-0.00620 in.
2
[mm / in.]
[mm / in.]
-
[A]
[kV] / -
-/-
[mm
2
] / AWG
[mm
2
] / AWG
[mm / in.]
Width 8.2 mm / 0.32 in. / Length 86.5 mm / 3.4 in.
7.5 mm / 0.30 in. / 15 mm / 0.60 in.
C
30
6/3
lll / l
0.25-4 mm
2
/ 24-12
0.5-1 mm
2
/ 20-18
10 / 0.39
A4
Polyamide (PA), non-reinforced
V0
300 / 30 / 24 - 10
300 / 30 / 24 - 10
5
Multi-conductor connection (2 cond. with same cross section)
Solid / stranded
Stranded with ferrule without plastic sleeve
Stranded with TWIN ferrule with plastic sleeve
Stripping length
Internal cylindrical gauge (IEC 60 947-1)
Screw thread/torque
Insulation material
Inflammability class in accordance with UL 94
Approval data (UL and cUL)
2
)
Nom. voltage / nom. current / conduc. sizes
1
2
[mm ]
[mm
2
]
[mm
2
]
[mm]
2
Solid: 0.2-2.5; Stranded: 0.2-2.5
0.25 - 2.5
0.5 - 4
10
A5
- / [Nm] / in. lbs
M 4 / 1.5-1.6 / M 4 / 13.3-14.2
Polyamide (PA), non-reinforced
V0
300 / 30 / 26 - 8
300 / 30 / 26 - 8
UL: [V] / [A] / AWG
cUL: [V] / [A] / AWG
) Special arrangement on request
) File number E 140459
UL: [V] / [A] / AWG
cUL: [V] / [A] / AWG
4
) If the fuse is defective, the downstream circuit is not off-load
) Additional colors are available on request
Thermal Magnetic Circuit Breaker
TMC 42-01/42-02
One- and two-pole thermal magnetic circuit breaker with tease-free, trip-free, snap action
mechanism and two-button operation (M-type TMCBE to IEC 934). The one-pole features
a narrow profile housing, recessed terminals, standard DIN rail-mounting and precision
CBE performance.
Typical Applications
Circuit protection for process control systems, equipment manufacturers and instrumentation.
Approvals
Authority
VDE, Demko
UL 1077, CSA
Voltage Ratings
AC 250 V, DC 65 V
AC 250 V, DC 80 V
Current Ratings
0.10 to 16 A
0.10 to 16 A
Standard current ratings and typical internal resistance values
Thermal Magnetic Circuit Breakers
Ohms
447.00
131.00
40.00
19.30
10.40
7.10
4.30
3.30
2.50
1.67
1.22
0.61
0.55
0.38
0.24
0.19
0.16
0.09
0.09
0.06
0.07
0.04
0.04
0.03
0.02
0.02
<0.02
<0.02
<0.02
<0.02
<0.02
<0.02
<0.02
Current Rating
0.05
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
1.00
1.22
1.50
1.80
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
TMC 42-01 One-Pole
Type
Part#
TMC42-01-0.05 A
5600509*
TMC42-01-0.1 A
5530915
TMC42-01-0.2 A
5650102*
TMC42-01-0.3 A
5650103*
TMC42-01-0.4 A
5530944
TMC42-01-0.5 A
5650106*
TMC42-01-0.6 A
5530960*
N/A
N/A
TMC42-01-0.8 A
5530986*
TMC42-01-1.0 A
5650108
TMC42-01-1.2 A
5531008*
TMC42-01-1.5 A
5650109
TMC42-01-1.8 A
5650110*
TMC42-01-2.0 A
5600314
TMC42-01-2.5 A
5650113*
TMC42-01-3.0 A
5650114
TMC42-01-3.5 A
5531053*
TMC42-01-4.0 A
5531066
TMC42-01-4.5 A
5650115*
TMC42-01-5.0 A
5531082
TMC42-01-5.5 A
5531095*
TMC42-01-6.0 A
5531105
TMC42-01-6.5 A
5650116*
TMC42-01-7.0 A
5650117*
TMC42-01-8.0 A
5650120
TMC42-01-9.0 A
5531147*
TMC42-01-10 A
5650121
TMC42-01-11 A
5531163*
TMC42-01-12 A
5650122*
TMC42-01-13 A
5531189*
TMC42-01-14 A
5531192*
TMC42-01-15 A
5600310
TMC42-01-16 A
5531202
TMC 42-02 Two-Pole
Type
N/A
TMC42-02-0.1 A
TMC42-02-0.2 A
TMC42-02-0.3 A
TMC42-02-0.4 A
TMC42-02-0.5 A
TMC42-02-0.6 A
TMC42-02-0.7 A
TMC42-02-0.8 A
TMC42-02-1.0 A
TMC42-02-1.2 A
TMC42-02-1.5 A
TMC42-02-1.8 A
TMC42-02-2.0 A
TMC42-02-2.5 A
TMC42-02-3.0 A
TMC42-02-3.5 A
TMC42-02-4.0 A
TMC42-02-4.5 A
TMC42-02-5.0 A
TMC42-02-5.5 A
TMC42-02-6.0 A
TMC42-02-6.5 A
TMC42-02-7.0 A
TMC42-02-8.0 A
TMC42-02-9.0 A
TMC42-02-10 A
TMC42-02-11 A
TMC42-02-12 A
TMC42-02-13 A
TMC42-02-14 A
TMC42-02-15 A
TMC42-02-16 A
Part #
N/A
5650123*
5650124*
5650127*
5531244*
5531257*
5531260*
5650128*
5531286*
5531299
5531309*
5650129*
5531325*
5531338
5650130*
5650131
5531367*
5650134*
5650135*
5651396
5531406*
5650136*
5650137*
5531435*
5650138*
5531451*
5531464
5531477*
5650141*
5531493*
5531503*
5600309
5650142*
Label Slot
Technical Data
Maximum Voltage Rating
Current Rating Range
Typical Life
Temperature Range
Creepage Resistance
Insulation Coordination
(IEC 664 and 664A)
Operating Area
Dielectric Strength
(IEC 664 and 664A)
Operating Area
Insulation Resistance
Interrupting Capacity
(VDE 0660, Part 101, P-2)
250 V AC, 50 / 60 Hz; 80 V DC
42-01 : 0.10...16 A
5,000 operations at 2 x l
N
0° to 55° C (32° to 131° F)
PTI 600 to IEC 112
Rated Impulse Withstand Voltage Pollution Degree
4k V
3
Test Voltage
AC 4,000 V (double insulation)
Dimension
One-Pole
Internal Wiring
Adapter x20040901
Socket-Magnetic
can
be snapped
on from
both sides
>100 MΩ (DC 500 V)
0.05 to 0.8 A
1 to 2 A
2.5 to 16 A
I
N
0.05 to 16 A
0.05 to 16 A
Self Limiting
200 A
400 A
U
N
250 V AC
80 V DC
Self Limiting
1,000 A
1,000 A
Two-Pole
Operating Area IP 40, Terminal Area IP 20
5g (57-50 Hz), +0.38 mm (10-57 Hz) to IEC 68-2-6,
Test Fc 10 frequency cycles/axis
25g (11ms) to IEC 68-2-27, Test Ea
96 hours at 5% saltspray to IEC 68-2-11, Test Ka
240 hours at 95% RH to IEC 68-2-3, Test Ca
Approx. 60g
0.5-6mm
2
(AWG 20-AWG 10)
0.8 Nm max
5650505 (TMC 42 C-Rail Adapter)
Internal Wiring
* Indicates breakers that are made-to-order and may require an 8 to 10 week lead time.
Typical time / current characteristics at 23 degrees Celsius
Direct Current – Magnetic tripping
currents are increased by 30 percent in
DC circuits with the effect of shifting the
magnetic trip range 30 percent to the
right of AC trip curves.
Interrupting Capacity
(UL 1077/EN60934 PC1)
Environmental Protection
(IEC 529/DIN 40050)
Vibration
Shock
Corrosion
Humidity
Weight
Conductor Size
Recommended Torque
Mounting Adapter
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, multiply the circuit breaker
current ratings by the derating factor shown below.
Ambient temperature
°F
°C
-22
-30
-4
-20
0.79
14
-10
0.83
32
0
0.88
73.4
23
1
104
40
1.08
122
50
1.16
140
60
1.24
Derating factor 0.76
6
7
京公网安备 11010802033920号
EEWORLD
