943C12P22K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 943C12P22K-F

943C12P22K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 600 V, 2.5 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size223KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric View All

943C12P22K-F Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 600 V, 2.5 uF, THROUGH HOLE MOUNT

943C12P22K-F Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	600 V
Processing package description	AXIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	943C
capacitance	2.5 uF
packaging shape	TUBULAR PACKAGE
Capacitor type	METALLIZED FILM
Terminal shape	WIRE
dielectric materials	POLYPROPYLENE

Preview

Download Datasheet

View All

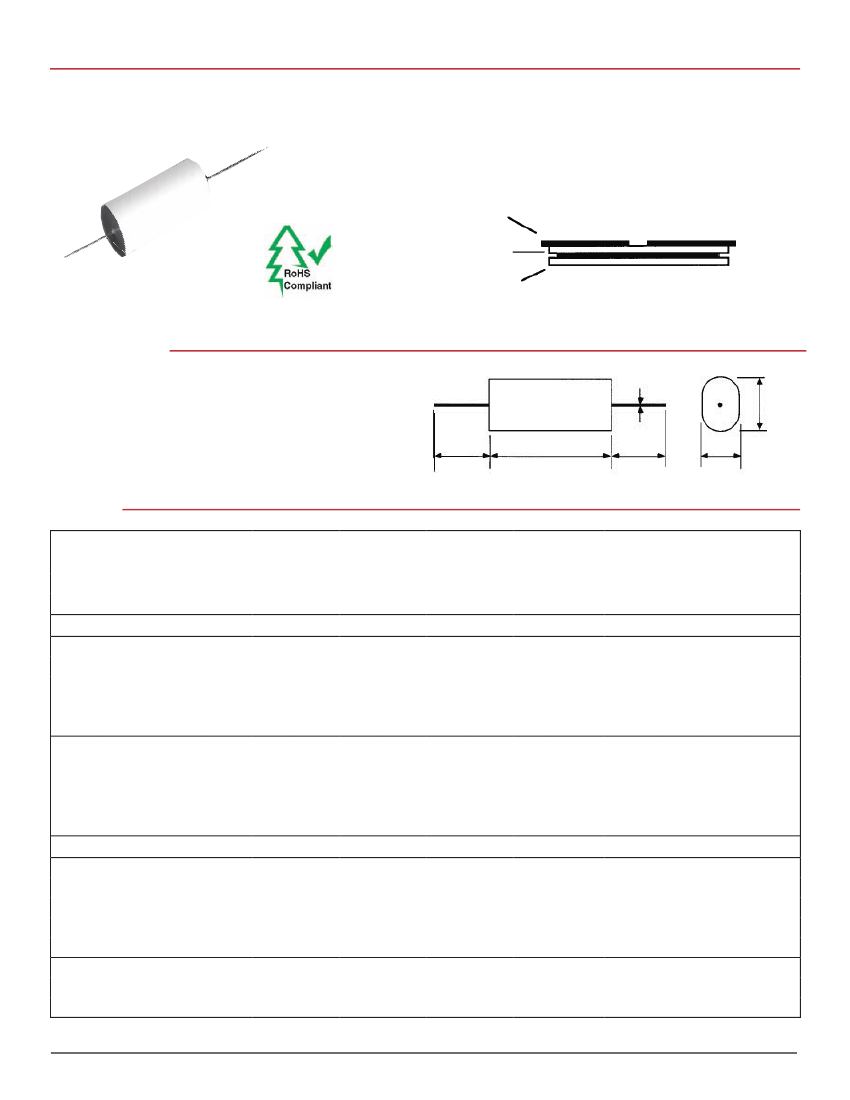

Type 943C

Very High dV/dt, Oval Polypropylene Film Capacitors

Oval, Foil/Metallized Hybrid, Axial Leaded

Type 943C

oval, axial ﬁlm capacitors utilize a hybrid section design of polypropylene

ﬁlm, metal foils and metallized polypropylene dielectric to achieve both high peak

current as well as superior rms current ratings. This series is ideal for high pulse

operation and high peak current circuits.

Foil

Polypropylene

Metallized Polypropylene

Complies with the EU Directive 2002/95/EC requirement restricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).

600 Vdc and Higher

Construction

Speciﬁcations

Capacitance Range:

0.01 to 2.5 µF

Voltage Range:

600 to 2000 Vdc,

(300 to 500 Vac, 60 Hz)

Capacitance Tolerance:

±10%

Operating Temp. Range:

–55°C to 105 °C*

*Full-rated voltage at 85°C, derate linearly to 50% rated voltage at 105°C

W MAX.

1.625"

(41mm)

MIN

L MAX.

1.625"

(41mm)

MIN

Ratings

RMS

Catalog

Cap.

(µF)

.15

.22

.33

.47

.68

1.00

1.50

2.00

2.20

2.50

.15

.22

.33

.47

.68

1.00

1.50

2.00

943C6P15K-F

943C6P22K-F

943C6P33K-F

943C6P47K-F

943C6P68K-F

943C6W1K-F

943C6W1P5K-F

943C6W2K-F

943C6W2P2K-F

943C6W2P5K-F

943C8P15K-F

943C8P22K-F

943C8P33K-F

943C8P47K-F

943C8P68K-F

943C8W1K-F

943C8W1P5K-F

943C8W2K-F

Part Number

600 Vdc (300 Vac)

0.483(12.3)

0.565(14.3)

0.672(17.1)

0.785(19.9)

0.927(23.5)

0.758(19.2)

0.926(23.5)

0.947(24.0)

0.993(25.2)

1.063(27.0)

0.548(13.9)

0.644(16.4)

0.769(19.5)

0.902(22.9)

1.068(27.1)

0.882(22.4)

0.956(24.3)

0.972(24.7)

0.669(17.0)

0.750(19.0)

0.857(21.8)

0.970(24.6)

1.113(28.3)

1.128(28.6)

1.296(32.9)

1.318(33.5)

1.364(34.6)

1.437(36.5)

0.733(18.6)

0.829(21.0)

0.954(24.2)

1.087(27.6)

1.254(31.8)

1.252(31.8)

1.327(33.7)

1.346(34.2)

1.339(34.0)

1.811(46.0)

2.126(54.0)

1.339(34.0)

1.811(46.0)

2.126(54.0)

2.520(64.0)

0.040(1.0)

0.047(1.2)

0.040(1.0)

0.047(1.2)

1427

800

628

1712

960

754

574

214

314

471

671

970

800

1200

1256

1382

1570

257

377

565

805

1164

960

1131

1147

8.9

8.1

9.6

11.4

14.1

13.4

16.6

20.6

21.1

21.9

9.4

8.7

10.3

12.4

15.3

14.5

18.0

22.4

Inches(mm) Inches(mm) Inches(mm) Inches(mm)

Typical Typical

ESR

(mΩ)

ESL

(nH)

(V/ms)

(A)

70 ºC

dV/dt I peak 100 kHz

(A)

850 Vdc (360 Vac)

NOTE:

Other capacitance values, sizes and performance speciﬁcations are available. Contact us.

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02740•Phone: (508)996-8561•Fax: (508)996-3830 www.cde.com
