P4C164-20SNMB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> P4C164-20SNMB

P4C164-20SNMB: DescriptionStandard SRAM, 8KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, ROHS COMPLIANT, SOP-28; Categorystorage storage; File Size1MB，16 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

P4C164-20SNMB Overview

Standard SRAM, 8KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, ROHS COMPLIANT, SOP-28

P4C164-20SNMB Parametric

Parameter Name	Attribute value
Maker	Pyramid Semiconductor Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	compli
ECCN code	3A001.A.2.C
Maximum access time	20 ns
JESD-30 code	R-PDSO-G28
length	17.9832 mm
memory density	65536 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.493 mm

Preview

Download Datasheet

View All

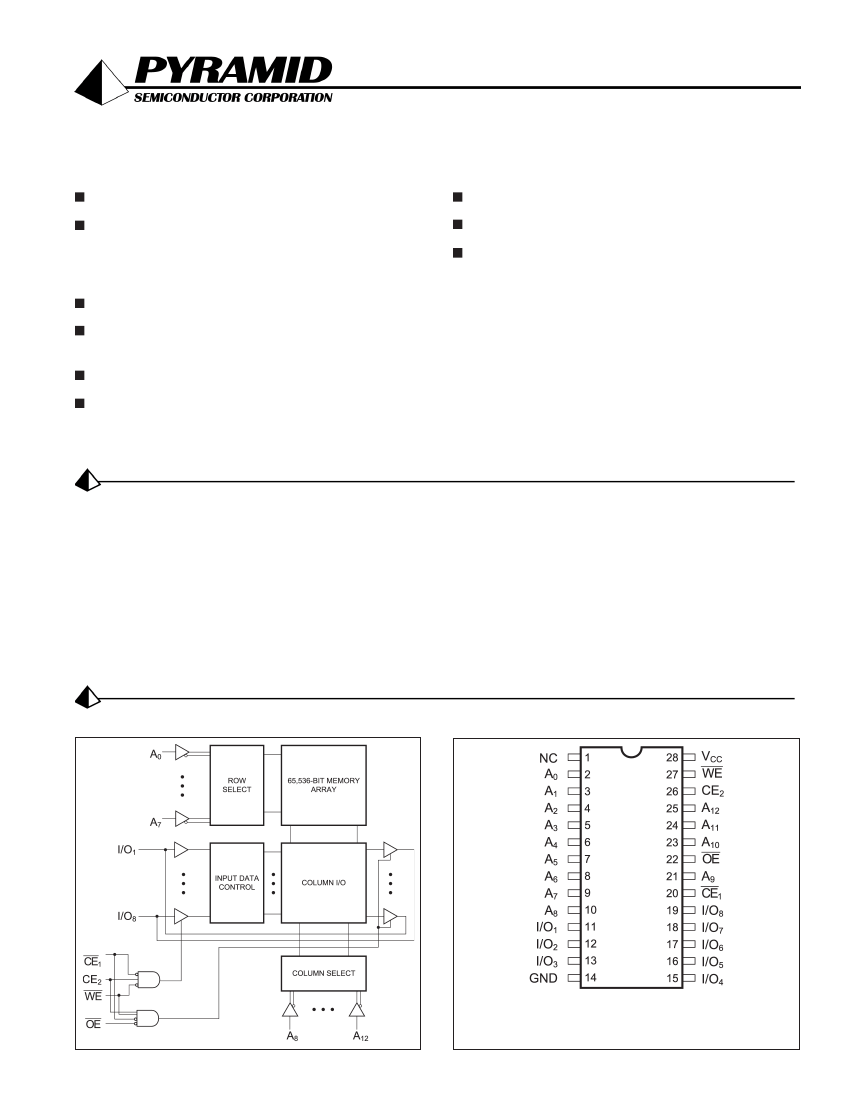

P4C164

ULTRA HIGH SPEED 8K X 8

STATIC CMOS RAMS

FEATURES

Full CMOS, 6T Cell

High Speed (Equal Access and Cycle Times)

– 8/10/12/15/20/25/35/70/100 ns (Commercial)

– 10/12/15/20/25/35/70/100 ns(Industrial)

– 12/15/20/25/35/45/70/100 ns (Military)

Low Power Operation

Output Enable and Dual Chip Enable Control

Functions

Single 5V±10% Power Supply

Data Retention with 2.0V Supply, 10 µA Typical

Current (P4C164L Military)

Common Data I/O

Fully TTL Compatible Inputs and Outputs

Standard Pinout (JEDEC Approved)

– 28-Pin 300 mil Plastic DIP, SOJ

– 28-Pin 600 mil Plastic DIP

– 28-Pin 300 mil SOP (70 & 100ns)

– 28-Pin 300 mil Ceramic DIP

– 28-Pin 600 mil Ceramic DIP

– 28-Pin 350 x 550 mil LCC

– 32-Pin 450 x 550 mil LCC

– 28-Pin CERPACK

DESCRIPTIOn

The P4C164 is a 65,536-bit ultra high-speed static RAM

organized as 8K x 8. The CMOS memory requires no clocks

or refreshing and has equal access and cycle times. Inputs

are fully TTL-compatible. The RAM operates from a single

5V±10% tolerance power supply. With battery backup, data

integrity is maintained with supply voltages down to 2.0V.

Current drain is typically 10 µA from a 2.0V supply.

Access times as fast as 8 nanoseconds are available,

permitting greatly enhanced system operating speeds.

The P4C164 is available in 28-pin 300 mil DIP and SOJ,

28-pin 600 mil plastic and ceramic DIP, 28-pin 350 x 550 mil

LCC, 32-pin 450 x 550 mil LCC, and 28-pin CERPACK.

FUnCTIOnAL BLOCK DIAgRAM

PIn COnFIgURATIOnS

DIP (P5, P6, C5, C5-1, D5-1, D5-2),

SOJ (J5), CERPACK (F4), SOP (S6)

SEE PAGE 8 FOR LCC PIN CONFIGURATIONS
