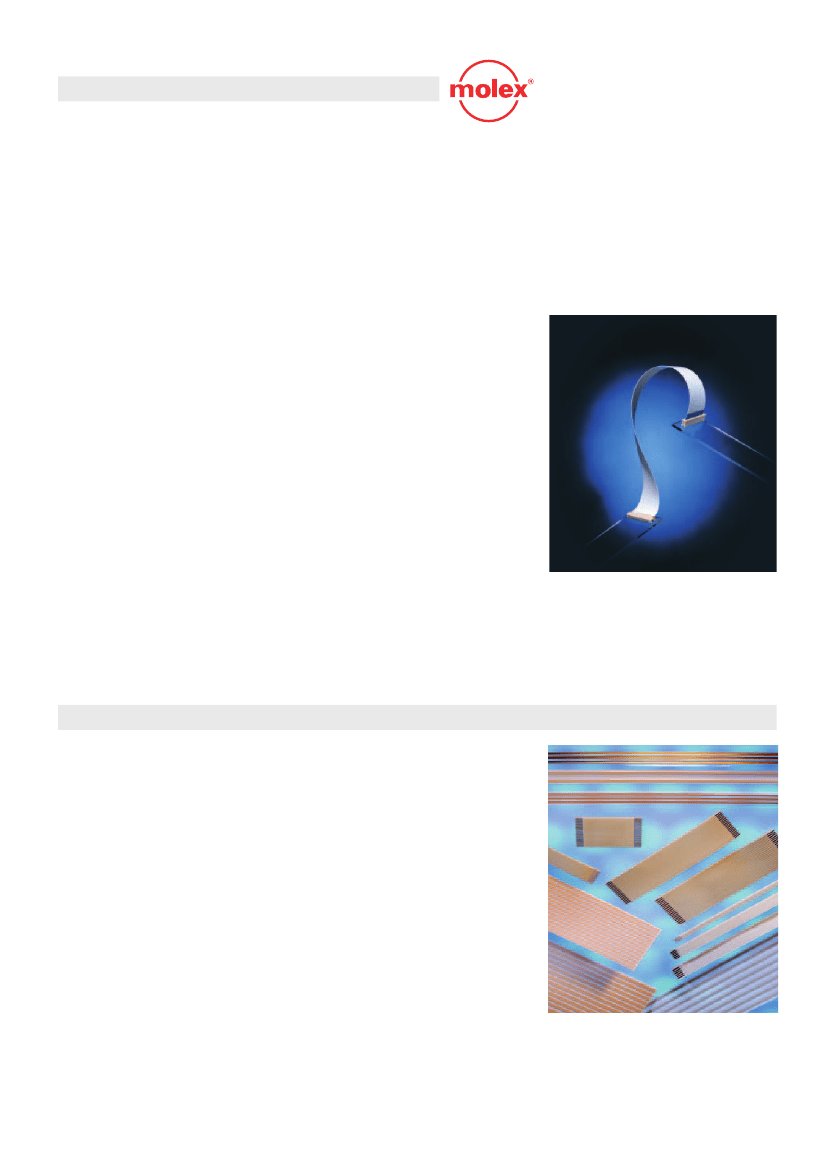

FEATURES AND SPECIFICATIONS

0.50, 1.00 and 1.25 mm

Pitch Premo-Flex

™

98266, 98267, 98268

Flat Flex Cable Jumpers

for ZIF and non-ZIF FFC

connectors

FFC Jumpers Provide High Density Interconnects in a Wide Variety of Standard and Custom

Lengths and Circuit Sizes (Even and Odd Circuit Sizes).

The complete line of 0.50 mm (98266), 1.00 mm

(98267) and 1.25 mm (98268) pitch Flat Flex Cable

jumpers offers custom length and circuit size.

The FFC Jumpers are terminated to either Zero

Insertion Force (ZIF) or non-ZIF FFC Pick-and-Place

Surface Mount Connectors.

Molex offers also an extensive range of FFC

connectors and is able to design customized FFC

connectors due to customer requirements.

FFC designs are also available for Automotive Bus

System wiring, enabling proper Impedance Continuity

between 83-150 Ohm and optionally screening

against EMI/RFI inﬂuences.

Features and Beneﬁts

■

FFC Jumpers allow a light and small planar

structure to accommodate a high density wiring

solution.

■

All products are available in different circuit sizes

(up to 50) at dedicated custom lengths to meet

customers’ most stringent demand.

■

Available with contacting area on same or

opposite sides to mirror signal layout between

Printed Circuit Boards.

■

FFC products allow a high temperature

environment up to 105 °C to meet Industry

Standard requirements. Higher Speciﬁcation

available upon request.

■

FFC Jumpers are very suitable for Movable

extension of Printed Circuit Boards and/or

Displays units etc. to enable easy assembly

processes.

■

FFC Jumpers are used in many industries and

applications where the total installed cost is

considered important.

■

Molex Jumpers are complementary to the

extensive Molex range of FFC connectors securing

perfect conductor alignment.

■

Molex Package offerings of FFC Jumpers and

Connectors enable attractive pricing and support

supplier reduction programs.

SPECIFICATIONS

Reference Information

Packaging: Box (1000 pcs)

FFC Tape: UL94 VTM-0

Mates With: Standard FFC Connectors or custom

developed connectors

Designed In: mm

Electrical

Voltage: 60 V

Current: 0.50 mm (98266): 0.5 A

1.00 mm (98267): 1.2 A

1.25 mm (98268): 1.4 A

Conductor Resistance:

0.50 mm (98266): max. 730 Ohms/km

1,00 mm (98267): max. 310 Ohms/km

1.25 mm (98268): max. 270 Ohms/km

Insulation Resistance: 10 MOhms

Mechanical

Abrasion: min. 10,000 cycles

Bending Radius: min. 5 mm

Physical

FFC Tape:

Material: Polyester + Flame retardant adhesive

Thickness: 0.067 mm nominal

Color: white

Reinforcement Tape:

Material: Polyester + adhesive

Thickness: 0.175 mm nominal

Color:

transparent/yellow

FFC Conductor:

Material: Tin plated copper

Width:

0.30 mm (98266)

0.70 mm (98267)

0.80 mm (98268)

Thickness: 0.10 mm

Plating: tin min 1 µm

Operating Temperature: –40 to 105 °C
