NSCC Female Wire-to-Board Housing, with Bridges, 6 Circuits
NSCC stands for New Standard Casing Contact

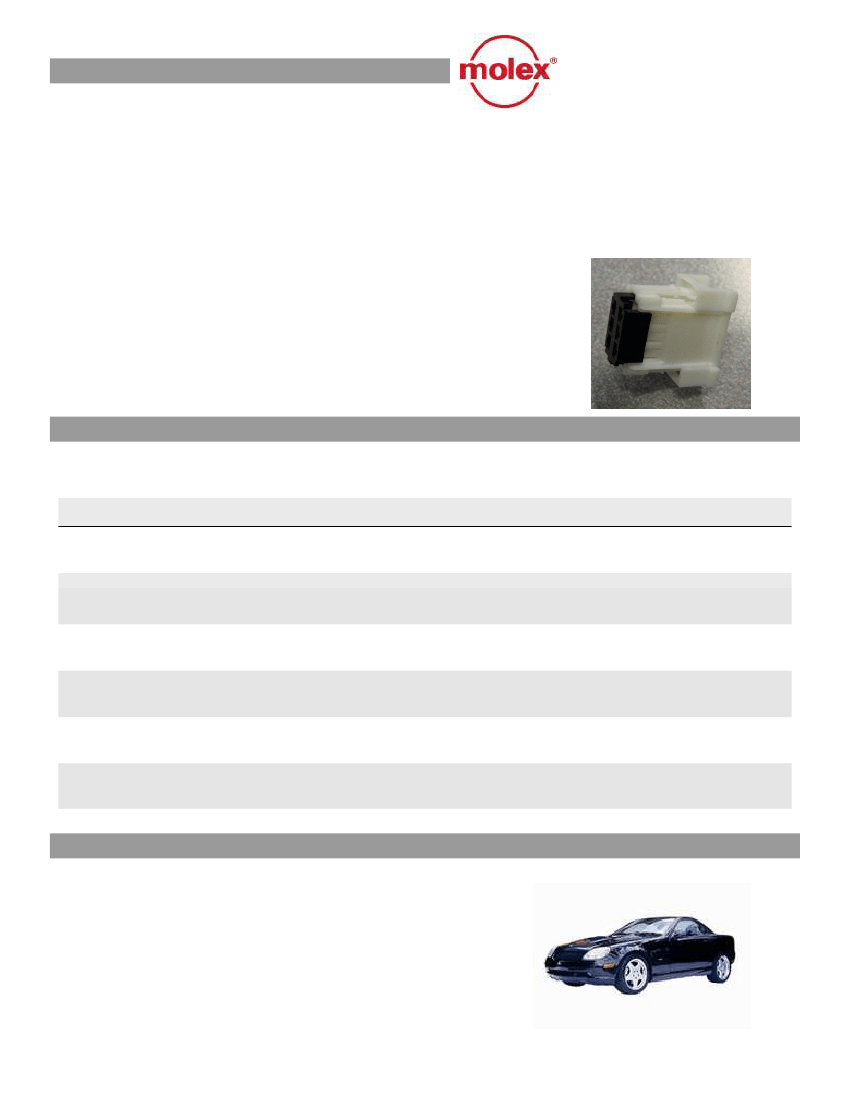

The 6-Way Female W-t-B connector 98438 has been designed based on the
existing design of NSCC/ SICMA series 98172 but with bridges as an additional
protection feature for the locking latches.
5.00mm (.197”) Pitch
NSCC/SICMA Female
Wire-to-Board Housing
98438
for 2.80mm Tab, with
Bridges, Dual Row, 6
Circuits

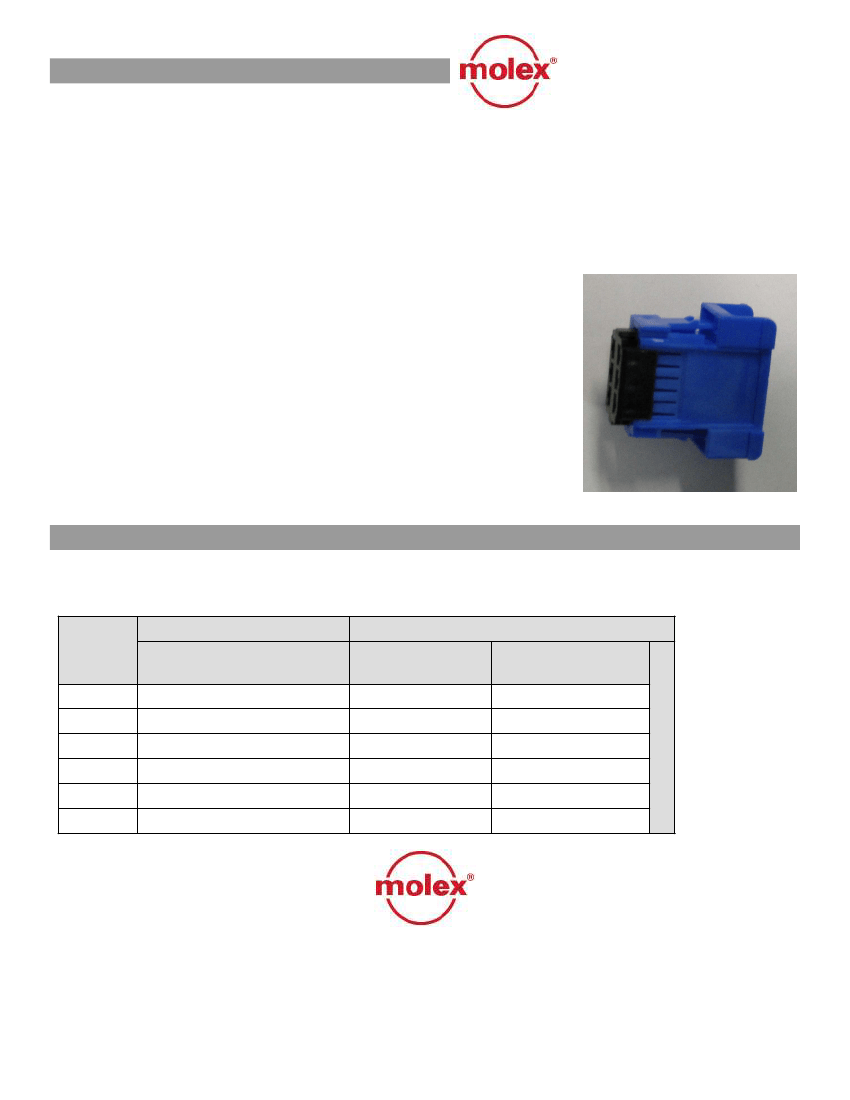

This product is available with 6 mechanical codings in 6 colors.
The connector is unsealed and can receive up to 6 UCC 2.8mm terminals (SICMA
compatible), series 98898.
Molex is able to supply 2.8mm UCC terminals with P/N 98898-xxxx.
Actually it will be inserted into the application of an electrical window lift.
The NSCC family offers a lot of products in different circuit sizes and with various
different features.
Features and Benefits
Features
• Two lateral bridges
• Fits to existing SICMA interface from FCI
Benefits
• Protection for the locking latch
• Designed for 2.8mm Sicma terminals from FCI and for Molex’
2.8mm UCC terminals (98898-xxxx)
• Will be delivered with pre-assembled TPA
• 6 mechanical codings correlating with 6 housing colors
• Dual row 5.00 x 5.00mm pitch
• Terminal System with high market acceptance
• Customer saves time during assembly process
• Avoids mismatching
Markets and Applications
Automotive
Electrical window lift
Specifications
Reference Information
Packaging: Cardboard Box
UL File No.:
CSA File No.:
Mates With:
Designed In: mm
Electrical
Voltage:
Current: 18 A / 23 °C
Contact Resistance: < 2mς
Dielectric Withstanding Voltage:
Insulation Resistance:
Mechanical
Contact Insertion Force: 10N
Contact Retention to Housing: 80N
Insertion Force to PCB:
Mating Force: 60N
Unmating Force: 150N
Durability:
Physical
Housing: PBT
Spacer: PBT GF15
Operating Temperature: -40 to 105 °C
5.00mm (.197”) Pitch
NSCC/SICMA Female
Wire-to-Board Housing
98438
for 2.80mm Tab, with
Bridges, Dual Row, 6
Circuits
Ordering Information
Color
Order No.
A
(Overall Length)
Natural
Black
Gray
Blue
Brown
Red
98438-1001
98438-1002
98438-1003
98438-1004
98438-1005
98438-1006
30.00mm (1.181")
30.00mm (1.181")
30.00mm (1.181")
30.00mm (1.181")
30.00mm (1.181")
30.00mm (1.181")
Dimension
B
(First-to-Last Circuit)
10.00mm (.394 ")
10.00mm (.394 ")
10.00mm (.394 ")
10.00mm (.394 ")
10.00mm (.394 ")
10.00mm (.394 ")
