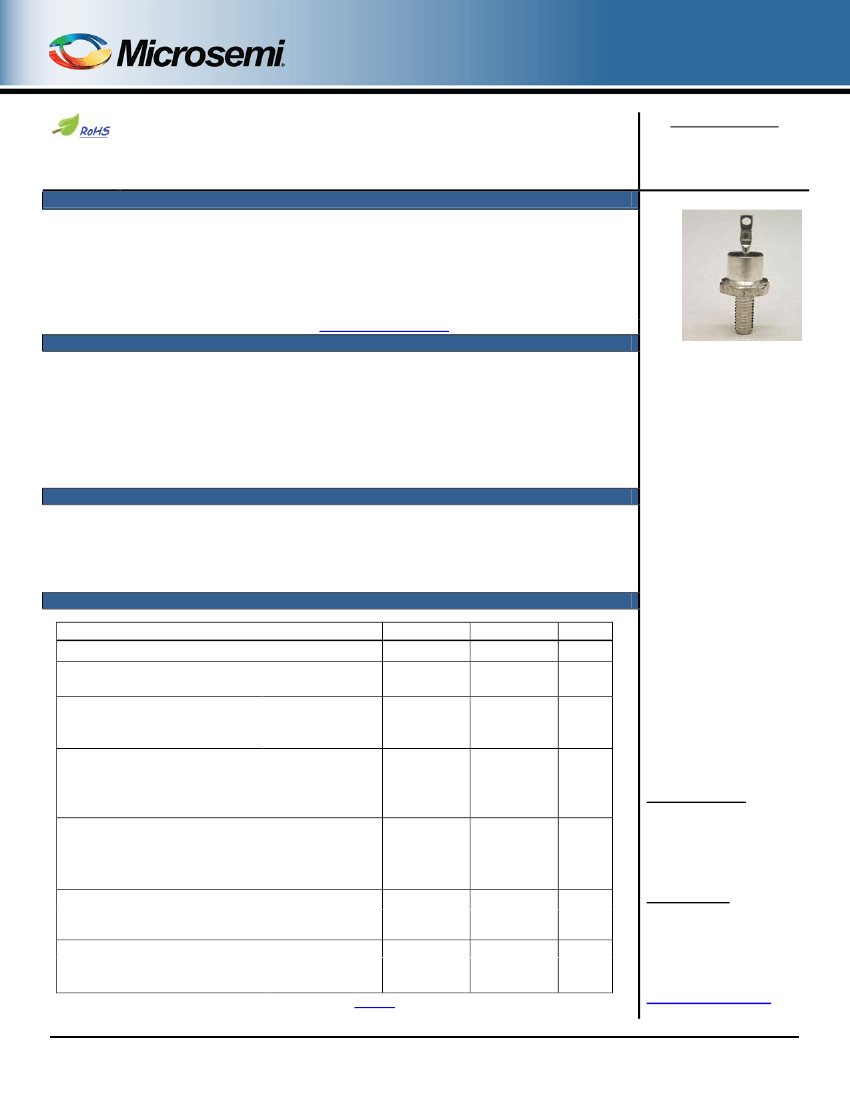

1N3889 – 1N3891, 1N3893
Qualified Levels*:
JAN, JANTX, and
JANTXV
Available on
commercial
versions
FAST RECOVERY RECTIFIERS
Qualified per MIL-PRF-19500/304*
DESCRIPTION
This 1N3889 – 1N3891 and 1N3893 family of rectifier devices are suitable for applications in
DC power supplies, inverters, converters, choppers and ultrasonic systems as well as other
applications. It can also be used as a free-wheeling diode. They are military qualified up to a
JANTXV level on select part numbers and they are available in both standard and reverse
polarities. Microsemi also offers numerous other products to meet higher and lower power
voltage regulation applications.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
•
Very low forward voltage.
Fast recovery time.
Low thermal resistance.
Both polarities available.
JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/304.
*(Excludes part number 1N3889.)
RoHS compliant devices available by adding “e3” suffix.
DO-203AA
(DO-4)
Package
APPLICATIONS / BENEFITS
•
•
•
•
Available in 12 or 20 amp current ratings.
Short reverse recovery time.
High surge capability.
Hermetically sealed.
MAXIMUM RATINGS
@
T
C
= 25 ºC unless otherwise noted
Parameters/Test Conditions
Junction and Storage Temperature
non “A”
“A”
Reverse Voltage
1N3890 A/R/AR
1N3891 A/R/AR
1N3893 A/R/AR
Working Peak Reverse Voltage
1N3889 A/R/AR
1N3890 A/R/AR
1N3891 A/R/AR
1N3893 A/R/AR
Repetitive Peak Reverse Voltage
1N3889 A/R/AR
1N3890 A/R/AR
1N3891 A/R/AR
1N3893 A/R/AR
Average Forward Current, 180 degrees conduction
angle, 60 Hz, half sine wave
non “A”
@ T
C
= 100 ºC
“A”
Maximum Non-Repetitive Sinusoidal Surge Current
@ T
C
= 100 ºC (8.3 ms, half sine)
non “A”
“A”
NOTES:
1. Derate linearly 2 % of I
O
/ºC for T
C
> 100 ºC, see
Figure 5.
Symbol
T
J
& T
STG
R
ӨJC
V
R
Value
-65 to +175
2.0
1.5
100
200
400
50
100
200
400
50
100
200
400
12
20
175
250
Unit
o
o
C
Thermal Resistance Junction-to-Case
C/W
V
V
RWM
V (pk)
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
V
RRM
V
I
O
A
I
FSM
A (pk)
T4-LDS-0143, Rev. 2 (120861)
©2012 Microsemi Corporation
Page 1 of 7
1N3889 – 1N3891, 1N3893
MECHANICAL and PACKAGING
•
•
•
•
•
•
CASE: Hermetically sealed metal and glass case body with 10-32 UNF3A threaded stud.
TERMINALS: Tin-lead plated or RoHS compliant matte-tin plating on nickel. Solder dipped eyelet.
MARKING: Manufacturer's ID, part number, date code, polarity symbol.
WEIGHT: 5 grams (approximate).
Maximum Stud Torque: 10-15 inch pounds.
See
Package Dimensions
on last page.
PART NOMENCLATURE
Applicable to 1N3889 only:
1N3889
JEDEC Registered Number
(see
Electrical Characteristics
table)
Current Rating
A = 20 Amps
Blank = 12 Amps
A
R
(e3)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Polarity
R = Anode to Stud
Blank = Cathode to Stud
Applicable to 1N3890, 1N3891 and 1N3893 only:
JAN
Reliability Level
JAN = JAN level
JANTX = JANTX level
JANTXV = JANTXV level
Blank = Commercial
JEDEC Registered Number
(see
Electrical Characteristics
table)
Current Rating
A = 20 Amps
Blank = 12 Amps
1N3890
A
R (e3)
RoHS Compliance
e3 = RoHS compliant (on
commercial grade only)
Blank = non-RoHS compliant
Polarity
R = Anode to Stud
Blank = Cathode to Stud
T4-LDS-0143, Rev. 2 (120861)
©2012 Microsemi Corporation
Page 2 of 7
1N3889 – 1N3891, 1N3893
SYMBOLS & DEFINITIONS
Definition
Junction Capacitance: The junction capacitance in pF at a specified frequency.
Average Forward Current: The average forward current dc value, no alternating component.
Maximum Forward Surge Current: The forward current, surge peak or rated forward surge current.
Maximum Reverse Current: The maximum reverse (leakage) current that will flow at the specified voltage and
temperature.
Reverse Recovery Time: The time interval between the instant the current passes through zero when changing from
the forward direction to the reverse direction and a specified decay point after a peak reverse current occurs.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified current.
Repetitive Peak Reverse Voltage: The peak reverse voltage including all repetitive transient voltages but excluding all
non-repetitive transient voltages.
Working Peak Reverse Voltage: The maximum peak voltage that can be applied over the operating temperature range
excluding all transient voltages (ref JESD282-B). Also sometimes known as PIV.
Symbol
C
J
I
F(AV)
I
FSM
I
RM
t
rr
V
FM
V
RRM
V
RWM
ELECTRICAL CHARACTERISTICS
@
T
A
= 25 ºC unless otherwise noted
Typical
Junction
Capacitance
C
J
Average
Forward
Current
I
F(AV)
T
C
= 100 ºC
Maximum
Forward
Voltage
V
FM
T
C
= 25
o
C
1.5 V
@
I
FM
= 20 A
(2)
10
µA
@
V
RRM
Maximum
Reverse
Current
I
RM
T
C
= 25
o
C
T
C
= 150
o
C
2 mA
@
V
RRM
Maximum
Reverse
Recovery
Time
t
rr
200 ns
(3)
Type
1N3889(R)
115 pF
(1)
12 A
NOTES:
1. V
R
= 10 V, f = 1 Mhz, T
J
= 25 ºC.
2. I
FM
= 38 A, T
J
= 25 ºC. Pulse test: pulse width 300
µsec,
duty cycle 2%.
3. I
F
= 1 A, V
R
= 30 A, di/dt = 25 A/µs, T
C
= 55 ºC.
Parameters / Test Conditions
Forward Voltage
I
FM
= 38 A, T
C
= 25 °C*
Forward Voltage
I
FM
= 250 A, T
C
= 150 °C**
Reverse Current
V
RM
= 100 V, T
C
= 25 °C
V
RM
= 200 V, T
C
= 25 °C
V
RM
= 400 V, T
C
= 25 °C
Reverse Current
V
RM
= 100 V, T
C
= 150 °C
V
RM
= 200 V, T
C
= 150 °C
V
RM
= 400 V, T
C
= 150 °C
Reverse Recovery Time
V
RM
= 30 V, I
F
= 1A, T
C
= 55 °C*
1N3890 / A / R / AR
1N3891 / A / R / AR
1N3893 / A / R / AR
1N3890 / A / R / AR
1N3891 / A / R / AR
1N3893 / A / R / AR
1N3890, 1N3891, 1N3893
1N3890A, 1N3891A,1N3893A / AR
Symbol
V
FM
V
FM
Min.
Max.
1.5
2.75
Unit
V
V
I
RM
10
µA
I
RM
2
mA
T
rr
200
150
ns
* Pulse test: Pulse width 300 µsec, duty cycle 2%.
** Pulse test: Pulse width 800 µsec.
T4-LDS-0143, Rev. 2 (120861)
©2012 Microsemi Corporation
Page 3 of 7
1N3889 – 1N3891, 1N3893
GRAPHS
Instantaneous Forward Current - Amperes
Instantaneous Forward Voltage – Volts

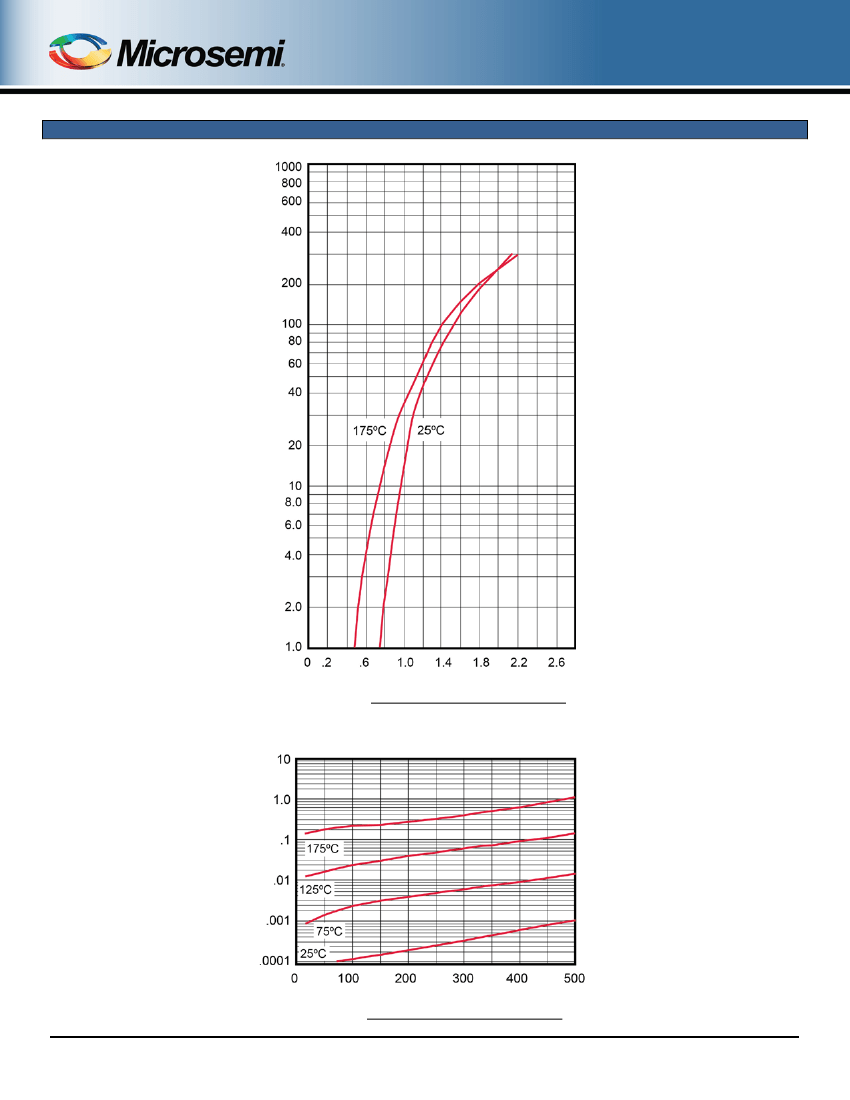

FIGURE 1 –
Typical Forward Characteristics
Typical Reverse Current - mA
Reverse Voltage – Volts
FIGURE 2 –
Typical Reverse Characteristics
T4-LDS-0143, Rev. 2 (120861)
©2012 Microsemi Corporation
Page 4 of 7
1N3889 – 1N3891, 1N3893
GRAPHS
(continued)
Junction Capacitance - pF
Reverse Voltage – Volts

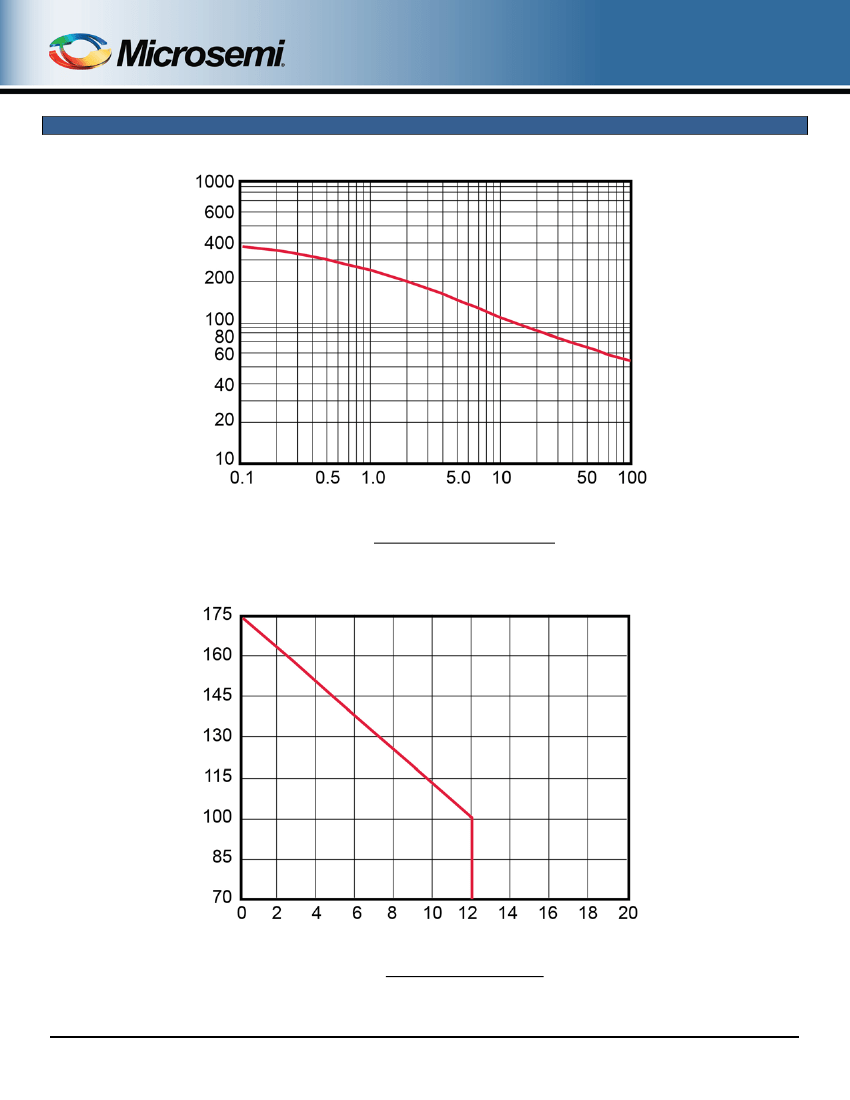

FIGURE 3 –
Typical Junction Capacitance
Maximum Allowable Case Temperature - ºC
Average Forward Current – Amperes
FIGURE 4 –
Forward Current Derating
T4-LDS-0143, Rev. 2 (120861)
©2012 Microsemi Corporation
Page 5 of 7
