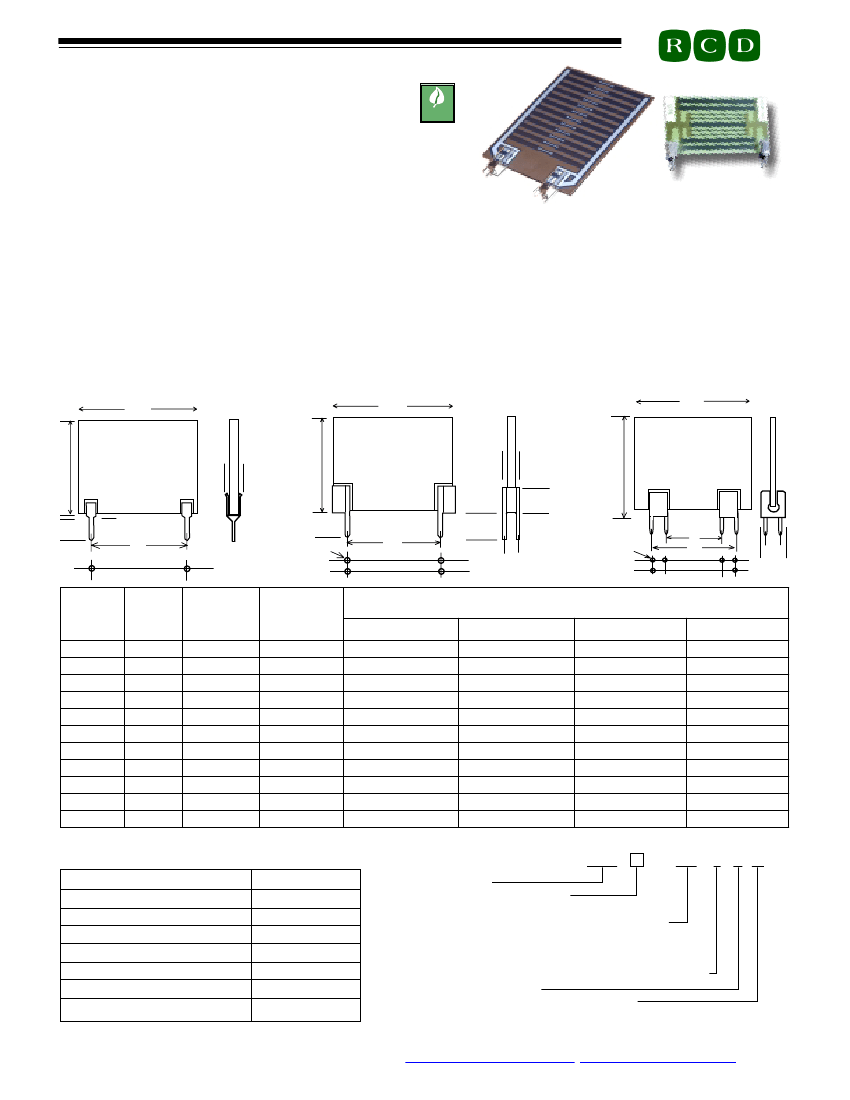

HIGH POWER PLANAR RESISTORS
625-41-5
CERAMIC SUBSTRATE
6255-41-5
STEEL SUBSTRATE
H
Space saving flame retardant design
H
High power density
H
Thin profile, and lightweight
H
Low Inductance: 50nh typ at 1MHz
H
Wide resistance range: 1Ω to 1MΩ
H
Excellent transient withstanding capabilities
H
Standard tolerances: as tight as ±0.5%
RESISTORSMCAPACITORSMCOILSMDELAY LINES
RoHS
Term.W
is RoHS
compliant
SPACE SAVING THICK FILM PLANAR RESISTORS!
Series TP/TPS offer high power density in a lightweight design. Designed for
switch mode power supplies, snubber circuits, heaters, in-rush limiters,
dynamic braking, and other power applications, the planar construction offers
significant PCB real estate savings over conventional resistors, especially in
forced air applications. The unique design enables very low inductance and
excellent surge capabilities. Series TP utilize alumina substrates for excellent
heat dissipation. Series TPS utilize stainless steel substrates for even greater
dissipation and durability. A special hi-temp/hi-voltage dielectric insulates the
resistor and terminals from the metal substrate, enabling greater voltage and
insulation compared to porcelain enameled models.
OPTIONS
H
Special marking, extended value range, custom
sizes and shapes, burn-in and military screening,
insulated leads, quick-disconnect terminals, multiple
resistor circuits, etc. Consult factory for assistance.
|
B
Series TP 3W - 10W
2 Pins, Ceramic
|
|
B
Series TP 15W-100W
4 Pins, Ceramic
|
|
B
Series TPS
Steel Substrate
25W - 100W 6 Pins
|
A
→
←
0.1
[2.54]
A
→
↓
.150 min
[3.8]
←
0.24±.01
[.61±.25]
A
0.120 [3]
min
.028”
Dia.
.07[1.8]
↓
↑
0.30 typ.
[7.6]
→ ←.04
[1.02]
.04” Dia.
.20”
.02[.51]
C
→← →←
.012 [.3]
0.120 [3]
min
.050”
Dia.
.024 [.6]
→←
.20”
C
↑ → ←
C
D
.20”
.20 ±.01
[5.08 ±.25]
.20”
.20”
.37[9.4]
.20”
TPS100
1
Maximum Operating Voltage is DC or AC peak
TYPICAL PERFORMANCE CHARACTERISTICS
L o a d L i fe ( 1 0 0 0 ho urs )
M o i s ture Re s i s ta nc e
Te m p e ra ture C yc li ng
Ove rlo a d ( no t to e xc e e d m a x vo lta g e )
D i e le c tri c S tre ng th
Re s i s ta nc e to S o ld e r He a t ( 2 6 0 °C , 5 s e c )
Te m p . C o e ffi c i e nt ( p p m /°C )
Wa tta g e D e ra ti ng ( .4 % ra te d W /°C >2 5 °C )
↑
RCD
Type
TP03
TP05
TP07
TP10
TP15
TP25
TP50
TP100
TPS25
TPS50
Wattage
@ 25°C
3W
5W
7.5W
10W
15W
25W
50W
100W
25W
50W
100W
Max. Voltage
Rating
1
500V
500V
500V
500V
500V
500V
500V
500V
200V
250V
300V
±2 %
±1 %
±1 %
± 0 .5 %
FA048D
Standard
Resistance
Range
2
1Ω to 500K
Ω
1Ω to1M
Ω
1Ω to 1M
Ω
1Ω to1M
Ω
1Ω to 1M
Ω
1Ω to 1M
Ω
1Ω to 1M
Ω
1Ω to 1M
Ω
0.5
Ω
to 25K
Ω
0.5
Ω
to 50K
Ω
0.5
Ω
to 100K
Ω
DIMENSIONS Inch [mm]
A Max
.787 [20]
1.015 [25.8]
1.015 [25.8]
1.015 [25.8]
1.22 [31]
1.18 [30]
2.27 [57.66]
2.27 [57.66]
1.55 [39.37]
2.80 [71.1]
3.65 [92.7]
B Max
.512 [13]
.512 [13]
.765 [19.4]
1.015 [25.8]
1.27 [32.26]
2.22 [56.39]
2.22 [56.39]
4.42 [112.27]
1.62 [41.15]
1.77 [44.96]
2.59 [65.8]
C
.200±.01
3
[5.08±.25]
3
.200±.01
3
[5.08±.25]
3
[12.7±.25]
.500±.01
3,4
D
-
-
-
-
-
-
-
-
1.40±.02 [35.56±.5]
1.40±.02 [35.56±.5]
1.70±.02 [43.18±.5]
.800±.01
3
[20.3±.25]
1.00±.02 [25.4±.5]
1.90±.02 [48.26±.5]
1.90±.02 [48.26±.5]
4.10±.02 [104.14±.5]
1.00±.02 [25.4±.5]
1.00±.02 [25.4±.5]
1.30±.02 [33.02±.5]
2
Expanded range available
3
Available with 0.300” [7.62mm] pin spacing, specify opt.78
4 Available with 0.200” [5.08mm] pin spacing, specify opt.80
P/N DESIGNATION:
TP05
-
102 - J
B W
5 x ra te d W, 2 0 0 m S
5 0 0 V D C ( 7 5 0 V a va i l)
1 0 0 p p m°C (
≥
2 % =2 0 0 )
F ull p o we r a t 2 5 °C
to ze ro a t 2 7 5 °C
RCD Type
Options:
assigned by RCD
(leave blank for standard)
Resis.Code 0.5%, 1%:
3 signif. figures & multiplier,
e.g. 1R00=1Ω,10R0=10Ω,1000=100Ω,1001=1K, etc.
Resis.Code 2%-10%:
2 signif. figures & multiplier,
e.g. R50=.5Ω, 1R0=1Ω, 100=10Ω,101=100Ω,102=1K, etc.
Tol. Code:
D=0.5%, F=1%, G=2%, J=5%, K=10%, M=20%
Packaging:
B = Bulk
Termination:
W= Lead-free, Q= Tin/Lead
(leave blank if either is acceptable)
RCD Components Inc.,
520 E. Industrial Park Dr., Manchester, NH, USA 03109
Tel: (603) 669-0054 Fax:(603) 669-5455 E-mail:
sales@rcdcomponents.com www.rcdcomponents.com
Sale of this product is in accordance with GF-061. Specifications subject to change without notice.
