ISL6411
Data Sheet
January 2003
FN9081.1
Triple Output, Low-Noise LDO Regulator
with Integrated Reset Circuit
The ISL6411 is an ultra low noise triple output LDO regulator
with microprocessor reset circuit and is optimized for
powering wireless chip sets. The IC accepts an input voltage
range of 3.0V to 3.6V and provides three regulated output
voltages: 1.8V (LDO1), 2.84V (LDO2), and another ultra
clean 2.84V (LDO3). On chip logic provides sequencing
between LDO1 and LDO2 for BBP/MAC and I/O supply
voltage outputs. LDO3 features ultra low noise that does not
typically exceed 30µV RMS to aid VCO stability. High
integration and the thin Quad Flat No-lead (QFN) package
makes ISL6411 an ideal choice to power many of today’s
small form factor industry standard wireless cards, such as
PCMCIA, mini-PCI and Cardbus-32.
The ISL6411 uses an internal PMOS transistor as the pass
device. The SHDN pin controls LDO1 and LDO2 outputs
whereas SHDN3 controls LDO3 output. Internal voltage
sequencing insures that LDO1 output (1.8V supply) is
always stabilized before LDO2 is turned on. When powering
down, power to the LDO2 is removed before the LDO1
output goes off. The ISL6411 also integrates RESET
function, which eliminates the need for additional RESET IC
required in WLAN applications. The IC asserts a RESET
signal whenever the VIN supply voltage drops below a
preset threshold, keeping it asserted for at least 25msec
after Vin has risen above the reset threshold. An output fault
detection circuit indicates loss of regulation on any of the
three outputs. Other features include an over current
protection, thermal shutdown and reverse battery protection.
Features
• Small DC-DC Converter Size
- Three LDOs and RESET Circuitry in a Low-Profile
4x4mm QFN Package
• High Output Current
- LDO1, 1.8V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
- LDO2, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
• Ultra-Low Dropout Voltage
- LDO2, 2.84V. . . . . . . . . . . . . . . 125mV (typ.) at 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . 100mV (typ.) at 200mA
• Ultra-Low Output Voltage Noise
- <30µV
RMS
(typ.) for LDO3 (VCO Supply)
• Stable with Smaller Ceramic Output Capacitors
• Voltage Sequencing for BBP/MAC and Analog Supplies
• Extensive Protection and Monitoring Features
- Over current protection
- Short circuit protection
- Thermal shutdown
- Reverse battery protection
- FAULT indicator
• Logic-Controlled Dual Shutdown Pins
• Integrated Microprocessor Reset Circuit
- Programmable Reset Delay
- Complimentary Reset Outputs
• Proven Reference Design for Total WLAN System
Solution
• QFN Package
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat
No Leads - Product Outline
- Near Chip-Scale Package Footprint Improves PCB
Efficiency and Is Thinner in Profile
Pinout
ISL6411 (QFN)
TOP VIEW
RESET
FAULT
VIN
VIN
Applications
• PRISM® 3 Chipsets – ISL37106P
12 OUT1
11 CC1
10 OUT2
9
CC2
16
RESET
CT
SHDN
SHDN3
1
2
3
4
5
OUT3
15
14
13
• WLAN Cards
- PCMCIA, Cardbus32, MiniPCI Cards
- Compact Flash Cards
• Liberty Chipset
• Hand-Held Instruments
6
CC3
7
GND3
8
GND
Ordering Information
PART NUMBER
ISL6411IR
TEMP. RANGE
(
o
C)
-40 to +85
PACKAGE
16 Ld QFN
PKG. NO.
L16.4x4
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
PRISM® is a registered trademark of Intersil Americas Inc. Copyright © Intersil Americas Inc. 2003. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
ISL6411
Quad Flat No-Lead Plastic Package (QFN)
Micro Lead Frame Plastic Package (MLFP)

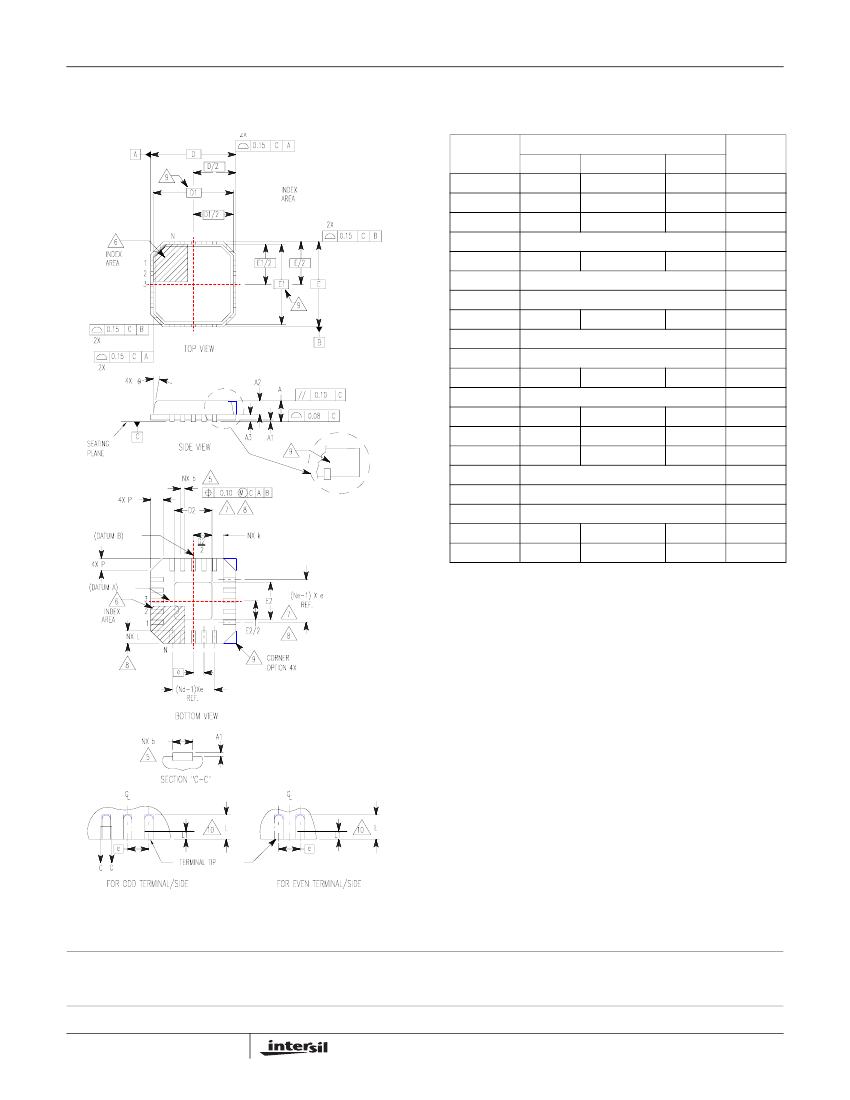

L16.4x4
16 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
(COMPLIANT TO JEDEC MO-220-VGGC ISSUE C)
MILLIMETERS
SYMBOL
A
A1
A2
A3
b
D
D1
D2
E
E1
E2
e
k
L
L1
N
Nd
Ne
P
θ
-
-
0.25
0.35
-
1.95
1.95
0.23
MIN
0.80
-
-
NOMINAL
0.90
-
-
0.20 REF
0.28
4.00 BSC
3.75 BSC
2.10
4.00 BSC
3.75 BSC
2.10
0.65 BSC
-
0.60
-
16
4
4
-
-
0.60
12
-
0.75
0.15
2.25
2.25
0.38
MAX
1.00
0.05
1.00
NOTES
-
-
9
9
5, 8
-
9
7, 8
-
9
7, 8
-
-
8
10
2
3
3
9
9
Rev. 4 10/02
NOTES:
1. Dimensioning and tolerancing conform to ASME Y14.5-1994.
2. N is the number of terminals.
3. Nd and Ne refer to the number of terminals on each D and E.
4. All dimensions are in millimeters. Angles are in degrees.
5. Dimension b applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip.
6. The configuration of the pin #1 identifier is optional, but must be
located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature.
7. Dimensions D2 and E2 are for the exposed pads which provide
improved electrical and thermal performance.
8. Nominal dimensions are provided to assist with PCB Land Pattern
Design efforts, see Intersil Technical Brief TB389.
9. Features and dimensions A2, A3, D1, E1, P &
θ
are present when
Anvil singulation method is used and not present for saw
singulation.
10. Depending on the method of lead termination at the edge of the
package, a maximum 0.15mm pull back (L1) maybe present. L
minus L1 to be equal to or greater than 0.3mm.
All Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems.
Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.
Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable.
However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its
use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see www.intersil.com
