PHOTOCOUPLER
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
−NEPOC
Series−
DESCRIPTION
The PS2561A-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon
phototransistor to realize an excellent cost performance.
The PS2561A-1 is in a plastic DIP (Dual In-line Package) and the PS2561AL-1 is lead bending type (Gull-wing) for
surface mount.
The PS2561AL1-1 is lead bending L1 type and the PS2561AL2-1 is lead bending L2 type (Gull-wing).
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• Ordering number of taping product: PS2561AL-1-E3, E4, F3, F4
: PS2561AL2-1-E3, E4
• Pb-Free product
• Safety standards
•
•
UL, BSI, CSA, NEMKO, DEMKO, SEMKO, FIMKO, approved
DIN EN60747-5-2 (VDE0884 Part2) approved (option)
1
2
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
PIN CONNECTION
(Top View)
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
Document No. PN10222EJ03V0DS (3rd edition)
Date Published November 2004 CP(K)
The mark
shows major revised points.
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1

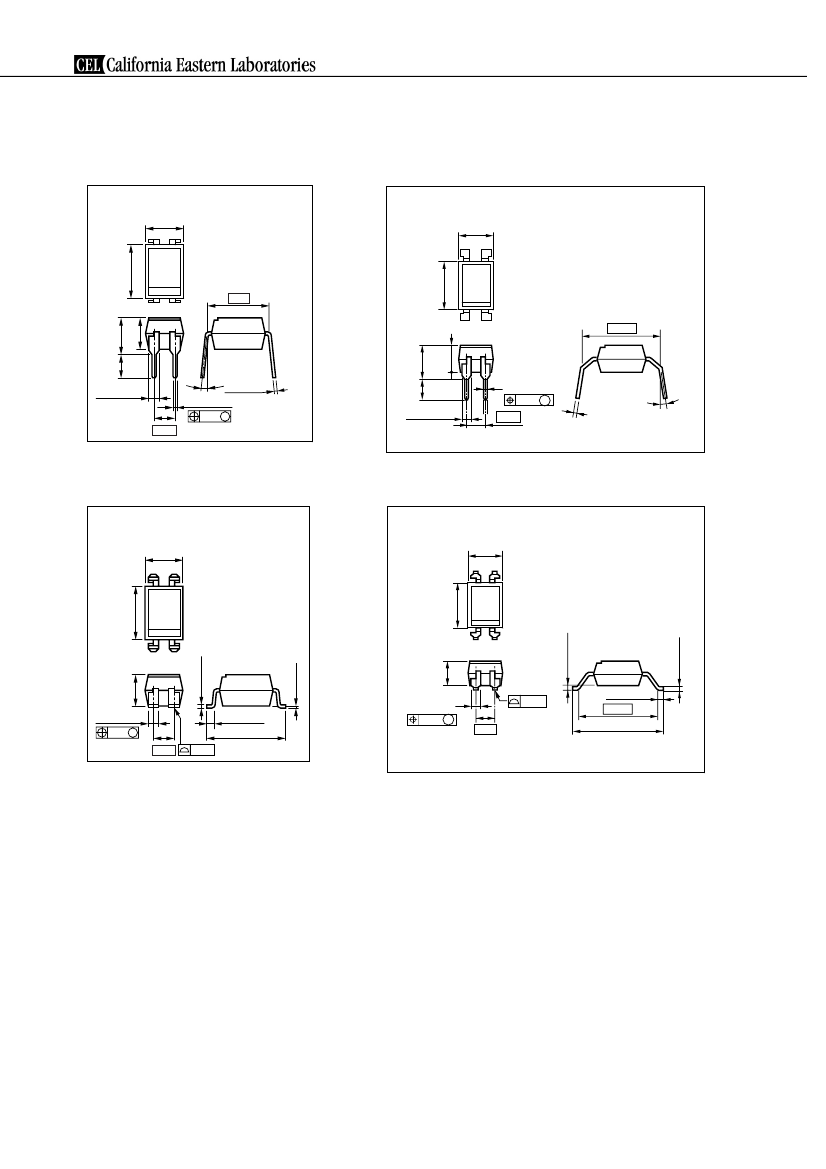

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type
PS2561A-1
4.6±0.35
Long Creepage Distance
PS2561AL1-1
4.6±0.35
4 3
6.5±0.5
4
6.5±0.5
3
7.62
3.2±0.4 4.15±0.4
1 2
3.5±0.3
1
3.15 3.85
±0.35 ±0.4
3.5
±0.3
2
10.16
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
0.50±0.1
0.25 M
2.54
0.25
–0.05
+0.1
1.25±0.15
0 to 15˚
Lead Bending Type (Gull-Wing)
PS2561AL-1
4.6±0.35
Long Creepage Distance (Gull-Wing)
PS2561AL2-1
4.6±0.35
4
6.5±0.5
3
6.5±0.5
4
3
0.25±0.2
0.25
+0.1
–0.05
3.5±0.3
0.1
+0.1
–0.05
3.5±0.3
1
2
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25 M
2.54
0.25
0.9±0.25
10.16
11.8
–0.5
+0.2
2
Data Sheet PN10222EJ03V0DS
+0.1
1
2
0.25
–0.05
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
MARKING EXAMPLE
No. 1 pin
Mark
2561A
N 301
Assembly Lot
N
3 01
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Package
New PKG
Solder Plating
Specification
Solder contains lead
Pb-Free
Made in Japan Made in Taiwan
E
J
H
K
Data Sheet PN10222EJ03V0DS
3
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
ORDERING INFORMATION (1/2)
Part Number
Order Number
Solder Plating
Specification
Solder
contains lead
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
NEMKO, DEMKO,
SEMKO, FIMKO
Embossed Tape 1 000 pcs/reel
approved)
Application Part
*1
Number
PS2561A-1
PS2561A-1
PS2561AL-1
PS2561AL1-1
PS2561AL2-1
PS2561AL-1-E3
PS2561AL-1-E4
PS2561AL2-1-E3
PS2561AL2-1-E4
PS2561AL-1-F3
PS2561AL-1-F4
PS2561A-1-V
PS2561AL-1-V
PS2561AL1-1-V
PS2561AL2-1-V
PS2561AL-1-V-E3
PS2561AL-1-V-E4
PS2561AL2-1-V-E3
PS2561AL2-1-V-E4
PS2561AL-1-V-F3
PS2561AL-1-V-F4
PS2561A-1
PS2561AL-1
PS2561AL1-1
PS2561AL2-1
PS2561AL-1-E3
PS2561AL-1-E4
PS2561AL2-1-E3
PS2561AL2-1-E4
PS2561AL-1-F3
PS2561AL-1-F4
PS2561A-1
PS2561AL-1
PS2561AL1-1
PS2561AL2-1
PS2561AL-1-E3
PS2561AL-1-E4
PS2561AL2-1-E3
PS2561AL2-1-E4
PS2561AL-1-F3
PS2561AL-1-F4
PS2561A-1-V
PS2561AL-1-V
PS2561AL1-1-V
PS2561AL2-1-V
PS2561AL-1-V-E3
PS2561AL-1-V-E4
PS2561AL2-1-V-E3
PS2561AL2-1-V-E4
PS2561AL-1-V-F3
PS2561AL-1-V-F4
PS2561A-1-A
PS2561AL-1-A
PS2561AL1-1-A
PS2561AL2-1-A
PS2561AL-1-E3-A
PS2561AL-1-E4-A
PS2561AL2-1-E3-A
PS2561AL2-1-E4-A
PS2561AL-1-F3-A
PS2561AL-1-F4-A
Magazine case 100 pcs
Embossed Tape 1 000 pcs/reel
Embossed Tape 2 000 pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
Approved products
(option)
Embossed Tape 1 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Embossed Tape 2 000 pcs/reel
Pb-Free
Magazine case 100 pcs
Standard products
(UL, CSA, BSI,
NEMKO, DEMKO,
SEMKO, FIMKO
Embossed Tape 1 000 pcs/reel
approved)
Embossed Tape 1 000 pcs/reel
Embossed Tape 2 000 pcs/reel
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10222EJ03V0DS
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
ORDERING INFORMATION (2/2)
Part Number
Order Number
Solder
Plating
Specification
PS2561A-1-V
PS2561AL-1-V
PS2561AL1-1-V
PS2561AL2-1-V
PS2561AL-1-V-E3
PS2561AL-1-V-E4
PS2561AL2-1-V-E3
PS2561AL2-1-V-E4
PS2561AL-1-V-F3
PS2561AL-1-V-F4
PS2561A-1-V-A
PS2561AL-1-V-A
PS2561AL1-1-V-A
PS2561AL2-1-V-A
PS2561AL-1-V-E3-A
PS2561AL-1-V-E4-A
PS2561AL2-1-V-E3-A
PS2561AL2-1-V-E4-A
PS2561AL-1-V-F3-A
PS2561AL-1-V-F4-A
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Pb-Free
Magazine case 100 pcs
Packing Style
Safety Standard
Approval
Application Part
*1
Number
DIN EN60747-5-2
(VDE0884 Part2)
Approved products
(option)
PS2561A-1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10222EJ03V0DS
5
