UPD71051GB-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD71051GB-8

UPD71051GB-8: Description1 CHANNEL(S), 300Kbps, SERIAL COMM CONTROLLER, PQFP44, 2.70 MM HEIGHT, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，20 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD71051GB-8 Overview

1 CHANNEL(S), 300Kbps, SERIAL COMM CONTROLLER, PQFP44, 2.70 MM HEIGHT, PLASTIC, QFP-44

UPD71051GB-8 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknow
maximum clock frequency	8 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE
Maximum data transfer rate	0.24 MBps
External data bus width	8
JESD-30 code	S-PQFP-G44
low power mode	YES
Number of serial I/Os	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

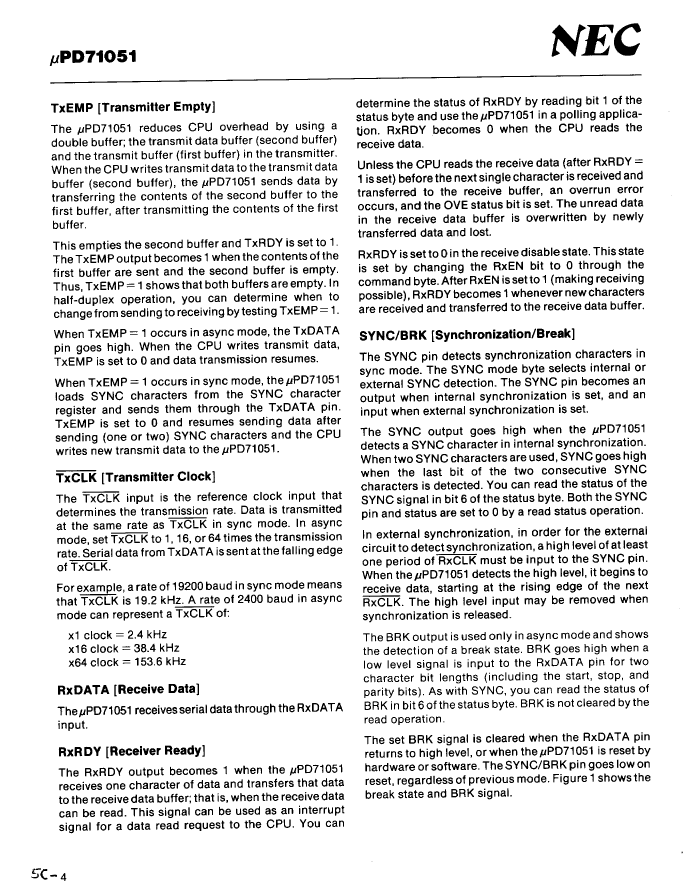

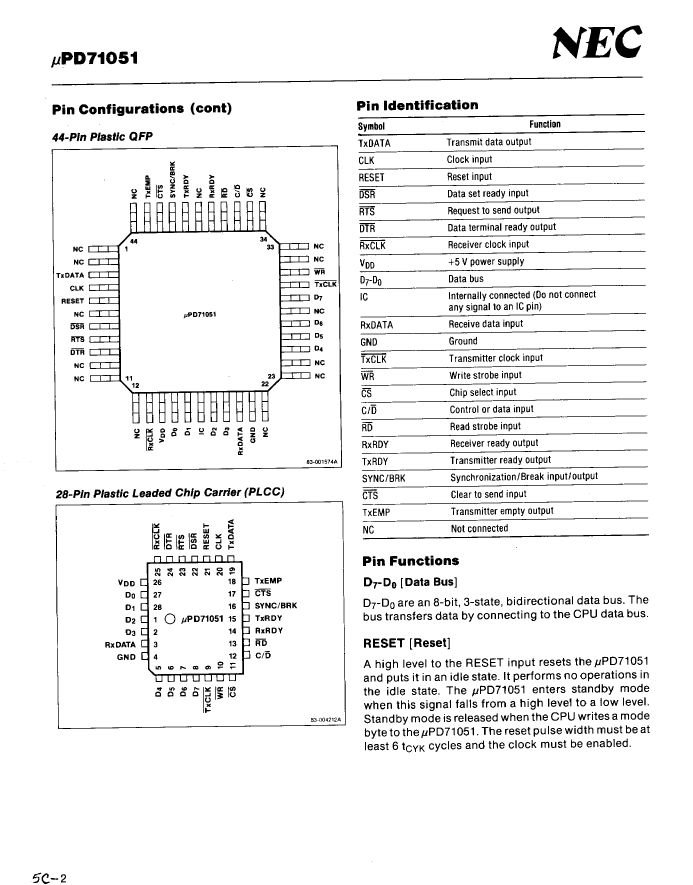

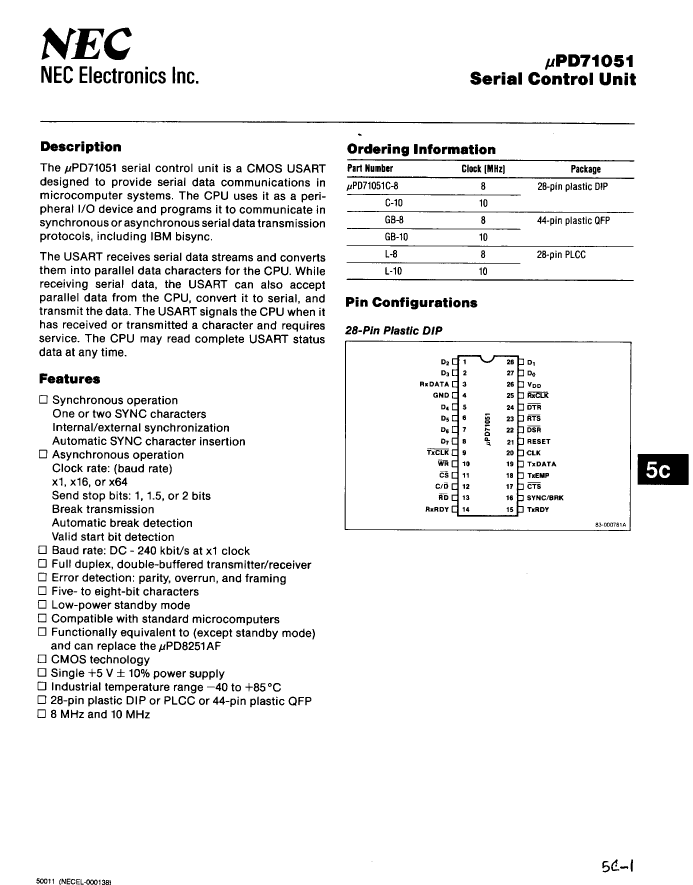

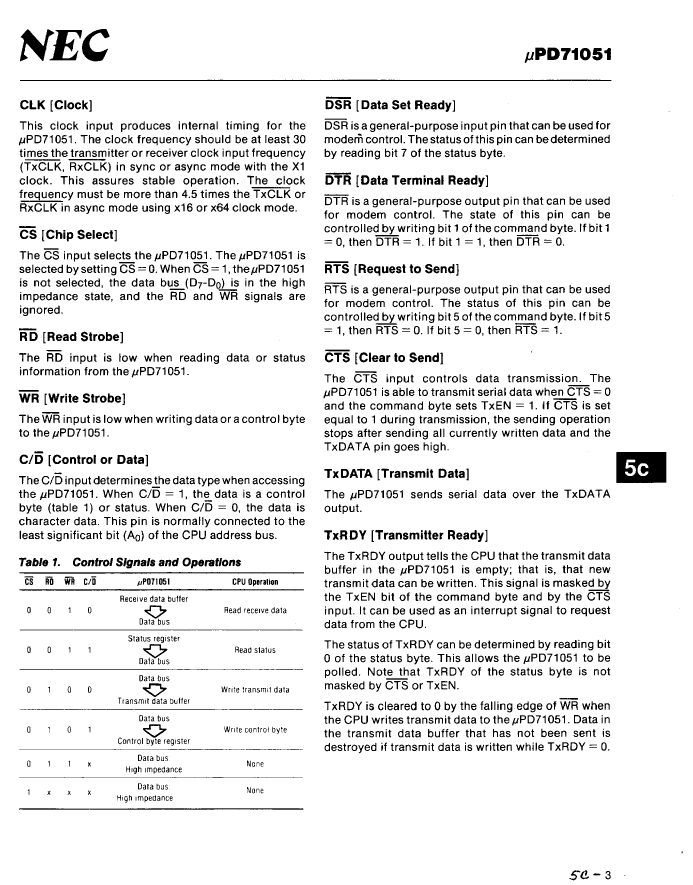

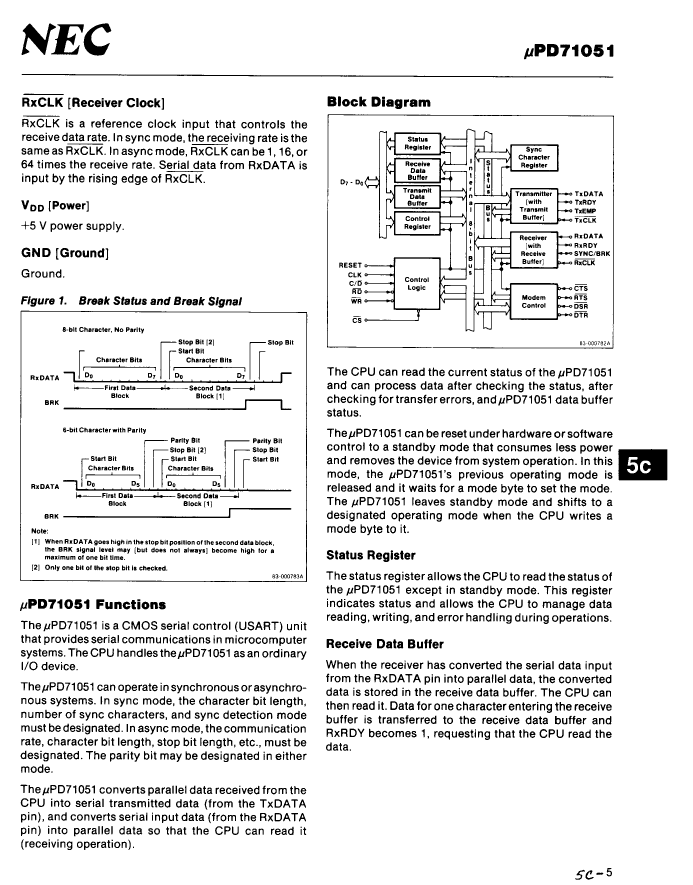

Preview

Download Datasheet

View All

UPD71051GB-8 Related Products

	UPD71051GB-8	UPD71051L-8	UPD71051C-8	UPD71051C-10	UPD71051L-10
Description	1 CHANNEL(S), 300Kbps, SERIAL COMM CONTROLLER, PQFP44, 2.70 MM HEIGHT, PLASTIC, QFP-44	1 CHANNEL(S), 300Kbps, SERIAL COMM CONTROLLER, PQCC28, PLASTIC, LCC-28	1 CHANNEL(S), 300Kbps, SERIAL COMM CONTROLLER, PDIP28, 0.600 INCH, PLASTIC, DIP-28	SERIAL COMM CONTROLLER	SERIAL COMM CONTROLLER
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	QFP,	QCCJ,	DIP,	DIP-28	PLCC-28
Reach Compliance Code	unknow	compliant	compliant	unknown	unknow
maximum clock frequency	8 MHz	8 MHz	8 MHz	10 MHz	10 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE	ASYNC, BIT; SYNC, BYTE	ASYNC, BIT; SYNC, BYTE	ASYNC, BIT; SYNC, BYTE; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; BISYNC; EXT SYNC
Maximum data transfer rate	0.24 MBps	0.24 MBps	0.24 MBps	0.03662109375 MBps	0.03662109375 MBps
External data bus width	8	8	8	8	8
JESD-30 code	S-PQFP-G44	R-PQCC-J28	R-PDIP-T28	R-PDIP-T28	S-PQCC-J28
low power mode	YES	YES	YES	YES	YES
Number of serial I/Os	1	1	1	1	1
Number of terminals	44	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	DIP	DIP	QCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal location	QUAD	QUAD	DUAL	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Parts packaging code	QFP	QLCC	DIP	DIP	-
Contacts	44	28	28	28	-
