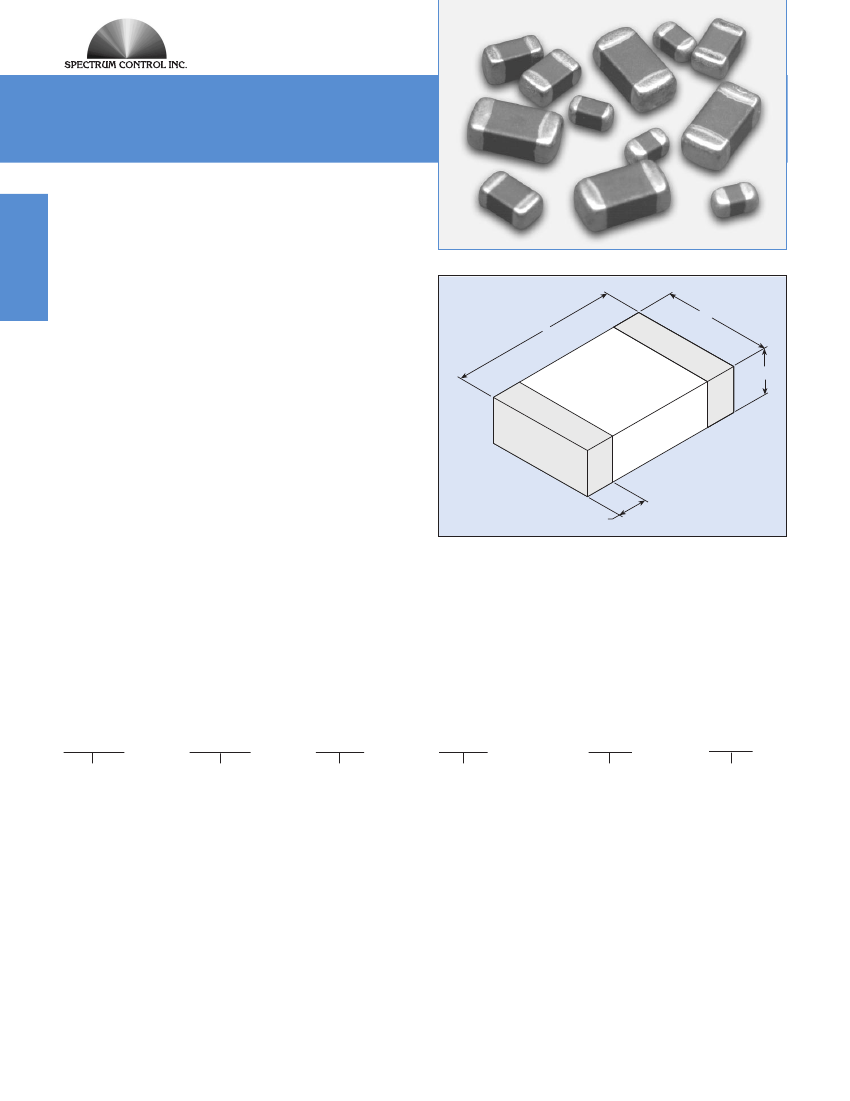

Surface Mount High Current EMI Filters
Ferrite Power Beads
Features
I
I
I
I
Surface Mount Filters & Inductors
I
I
I
I
I
Rated up to 6 Amps
Broad range of impedance values available
(Standard line has values of 7
Ω
to 600
Ω)
Available in standard EIA/EIAJ chip sizes
(0603/1608, 0805/2012, 1206/3216, etc.)
Excellent solderability is achieved from a nickel barrier
with a solder overplate
Provides EMI attenuation without grounding
Closed magnetic circuit
Parts are suitable for flow or re-flow soldering
Available in tape and reel for easy placement
Operational temperature range of -55°C to +125°C
W
L
H
Applications
I
I
I
I
I
I
I
Telecommunications equipment (cellular phones,
cordless phones, faxes and ISDN’s)
Digital audio/visual equipment (TV, HDTV, VTR,
DVD, CATV tuners and etc.)
GPS and car navigation equipment
High speed clocks
Consumer electronics
Signal lines
LAN and WAN hardware
B
Part Numbering System
Example:
FPB-0805-A301P7
FPB
Series
Ferrite
Power
Beads
-
0805
Part Size
EIA Size
(Length x Width)
-
A
Material
Characteristic
Determined
by the desired
electrical
characteristic
301
Impedance Value
30(1)
(1) = the # of zeros
that will follow the first
two digits
Example: 30(1)
= 30 followed by 1 zero
= 300 Ohms
P
Tolerance Code
Standard Value is P
P
= ±25%
M
= ±20%
7
Packaging
7
= 7 inch reel
3
= 13 inch reel
Land Patterns and Soldering
Temperature Profiles
I
Packaging Specifications
and Storage Requirements
I
See page 45.
See page 46.
30
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Surface Mount High Current EMI Filters
Ferrite Power Beads
Physical Characteristics
Size
EIA
0603
0805
1206
1806
1812
EIAJ
1608
2012
3216
4516
4532
Length (L)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.177 ± 0.010
(4.50 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
Physical Dimensions
Width (W)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
Height (H)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
0.055 ± 0.010
(1.40 ± 0.25)
0.055 ± 0.010
(1.40 ± 0.25)
Termination Band (B)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
Dimensions in inches
(mm)
Electrical Characteristics
Standard FPB-0603 and FPB-0805 Sizes
Part
Number
FPB-0603-A300P*
FPB-0603-A600P*
FPB-0805-A070P*
FPB-0805-A100P*
FPB-0805-A110P*
FPB-0805-A150P*
FPB-0805-A300P*
FPB-0805-A600P*
FPB-0805-A450P*
FPB-0805-A800P*
FPB-0805-A201P*
FPB-0805-A301P*
FPB-0805-A601P*
Impedance
Ω
at 100 MHz
30
60
7
10
11
15
30
40
45
80
200
300
600
Max. DCR
Ω
0.06
0.10
0.02
Max. Current
mA
1,000
500
3,000
Standard FPB-1206 Sizes
Part
Number
FPB-1206-A190P*
FPB-1206-A260P*
FPB-1206-A300P*
FPB-1206-A310P*
FPB-1206-A500P*
FPB-1206-A700P*
FPB-1206-A800P*
FPB-1206-A900P*
FPB-1206-A121P*
FPB-1206-A601P*
FPB-1206-E101P*
FPB-1206-E121P*
FPB-1206-E601P*
Impedance
Ω
at 100 MHz
19
26
30
31
50
70
80
90
120
600
100
120
600
Max. DCR
Ω
Max. Current
mA
0.02
3,000
0.025
0.03
0.10
0.20
0.03
0.04
0.10
3,000
2,000
1,000
1,000
3,000
1,500
0.025
3,000
0.03
0.10
0.15
0.20
2,000
1,000
1,000
1,000
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 0603 and
0805 footprint that are available from Spectrum Control.
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 1206 footprint
that are available from Spectrum Control.
Standard FPB-1806 and FPB-1812 Sizes
Part
Number
FPB-1806-B600P*
FPB-1806-B750P*
FPB-1806-B800P*
FPB-1806-B151P*
FPB-1812-A700P*
FPB-1812-B121P*
Impedance
Ω
at 100 MHz
60
75
80
150
70
120
Max. DCR
Ω
0.01
0.03
0.03
0.07
0.03
0.05
Max. Current
mA
6,000
4,000
4,000
2,000
6,000
3,000
Notes: *
Please add packaging code at the end of part.
To change Tolerance Code, replace P with other tolerance values.
Consult factory for other impedance values of the 1806 and
1812 footprint that are available from Spectrum Control.
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
31
Surface Mount Filters & Inductors
0.020 ± 0.010
(0.51 ± 0.25)
Surface Mount High Current EMI Filters
Ferrite Power Beads

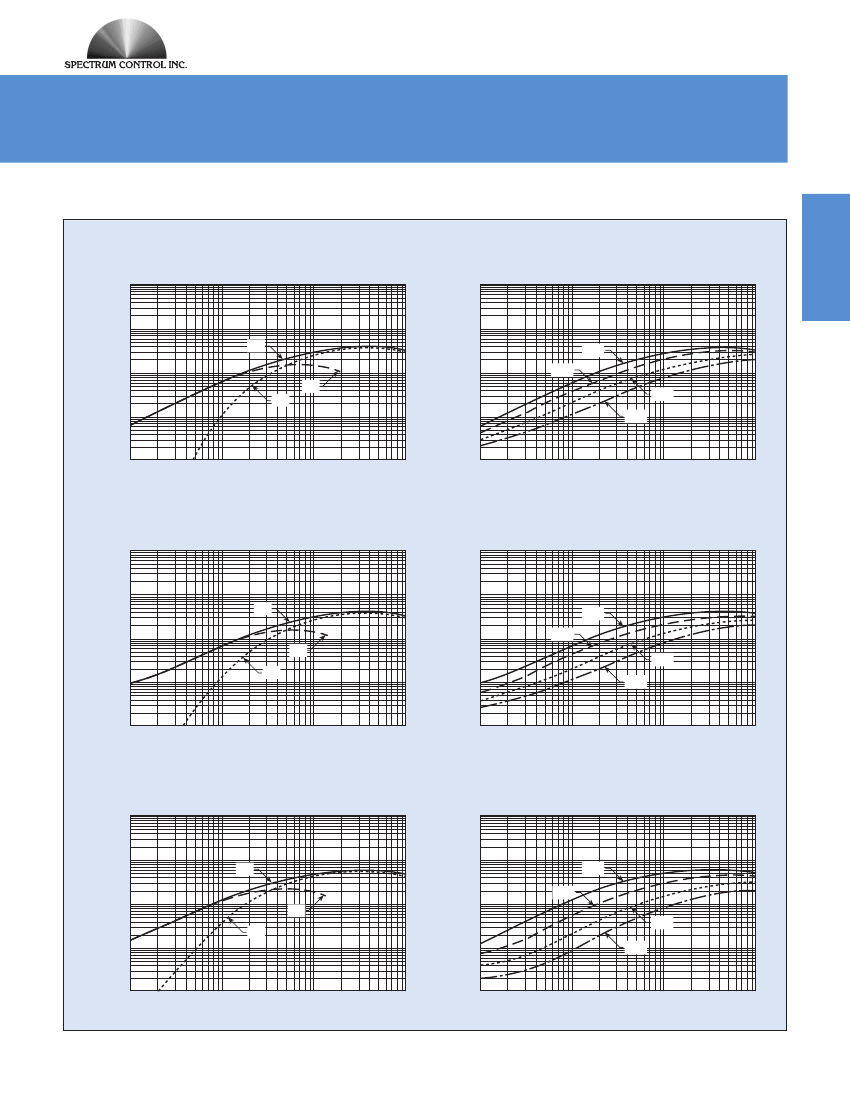

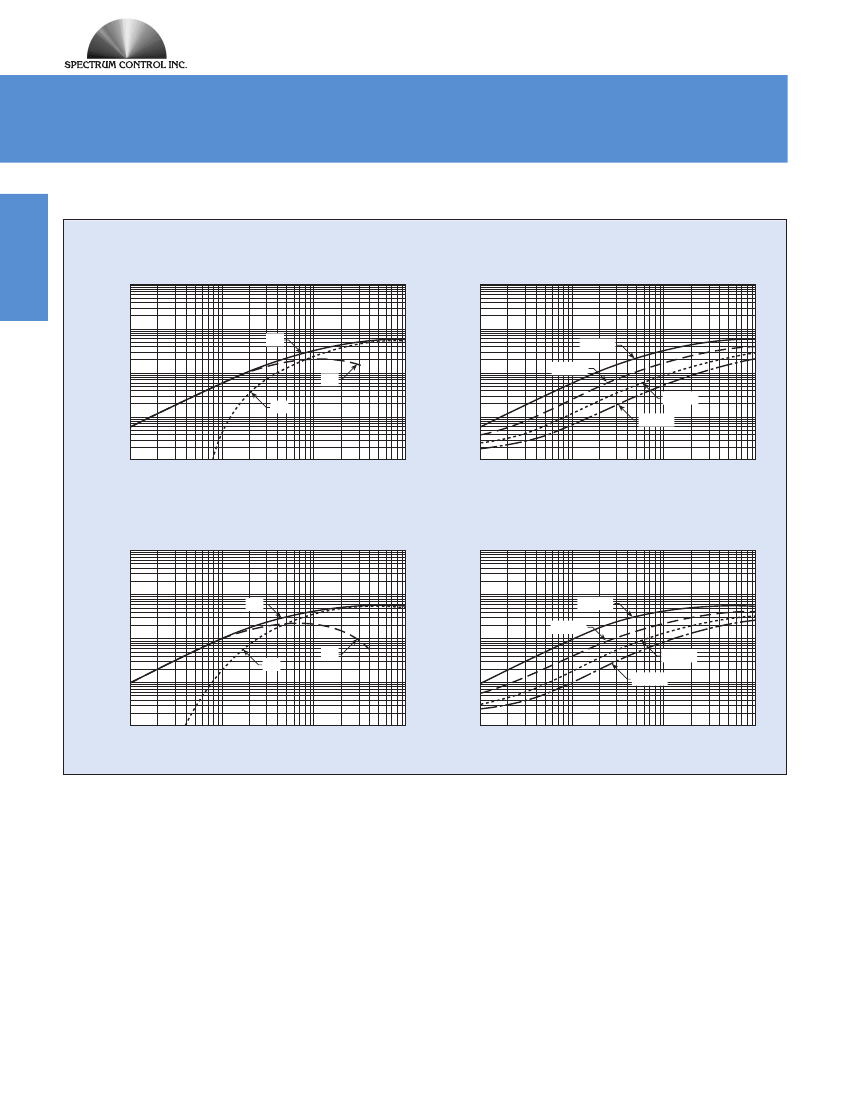

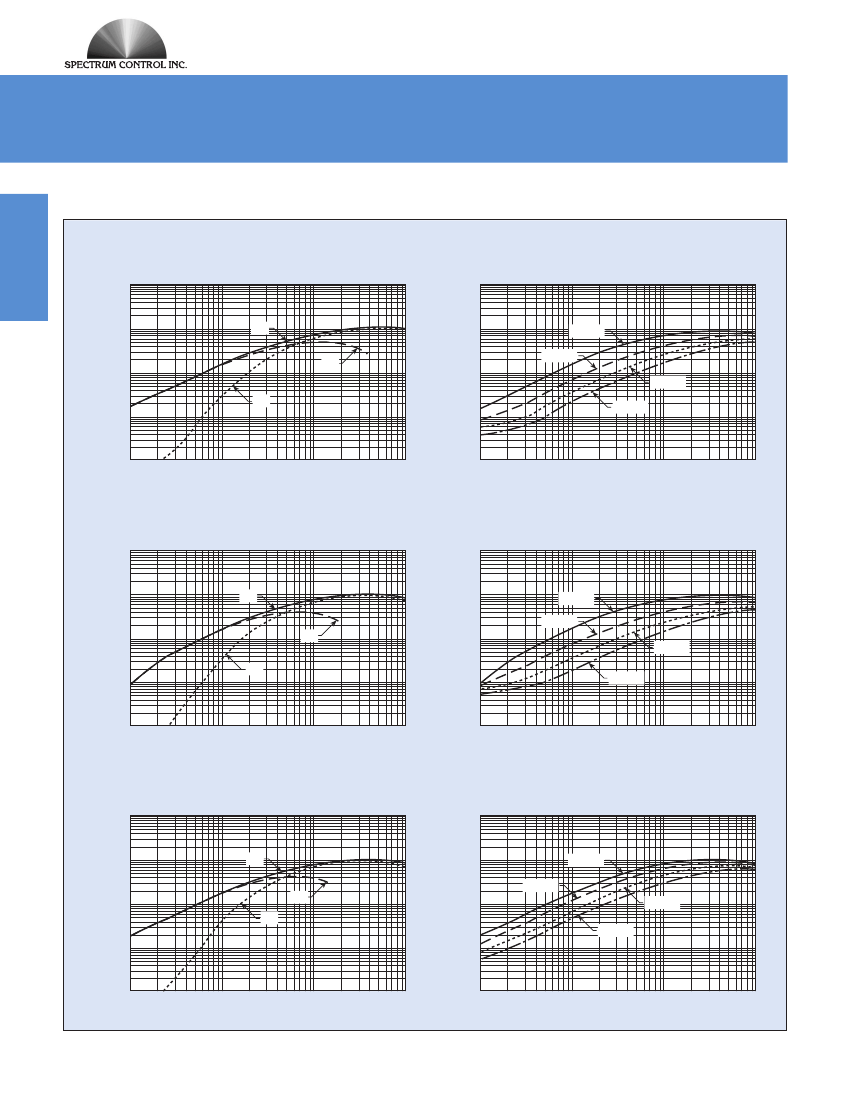

Typical Impedance Characteristics
(Curves not listed are available upon request or at our website.)
0805 Size
FPB-0805-A300
1000
1000
FPB-0805-A300
Surface Mount Filters & Inductors
|Z|, XL, R (Ohm)
|Z|
10
R
|Z|, XL, R (Ohm)
100
100
0.00 A
10
0.67 A
1.33 A
1
2.00 A
XL
1
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-0805-A450
1000
1000
FPB-0805-A450
|Z|, XL, R (Ohm)
|Z|
10
R
1
XL
|Z|, XL, R (Ohm)
100
100
0.00 A
0.67 A
10
1.33 A
1
2.00 A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
32
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Surface Mount High Current EMI Filters
Ferrite Power Beads
Typical Impedance Characteristics
(Curves not listed are available upon request or at our website.)
1206 Size
FPB-1206-A260
1000
1000
FPB-1206-A260
|Z|
10
XL
R
1
0A
10
1A
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-1206-A300
1000
1000
FPB-1206-A300
|Z|, XL, R (Ohm)
|Z|
10
XL
1
R
|Z|, XL, R (Ohm)
100
100
0A
10
1A
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-1206-A500
1000
1000
FPB-1206-A500
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
|Z|
100
1A
10
0A
10
R
1
XL
2A
1
3A
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
33
Surface Mount Filters & Inductors
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
100
Surface Mount High Current EMI Filters
Ferrite Power Beads
Typical Impedance Characteristics
(Curves not listed are available upon request or at our website.)
1206 Size
continued
FPB-1206-A700
1000
1000
FPB-1206-A700
Surface Mount Filters & Inductors
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
|Z|
XL
R
100
0.00 A
0.67 A
10
10
2.00 A
1.33 A
1
1
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-1206-A800
1000
1000
FPB-1206-A800
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
|Z|
100
0.00 A
0.67 A
10
R
1
XL
10
1.33 A
2.00 A
1
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
FPB-1206-A900
1000
1000
FPB-1206-A900
|Z|, XL, R (Ohm)
|Z|, XL, R (Ohm)
100
|Z|
100
0.33 A
10
0.00 A
10
R
1
XL
0.67 A
1.00 A
1
0.1
1
10
100
Frequency (MHz)
1000
0.1
1
10
100
Frequency (MHz)
1000
34
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
