UV2B253F: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size102KB，3 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

UV2B253F Overview

Film Capacitor,

UV2B253F Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	,
Reach Compliance Code	unknow
Capacitor type	FILM CAPACITOR
Number of terminals	2

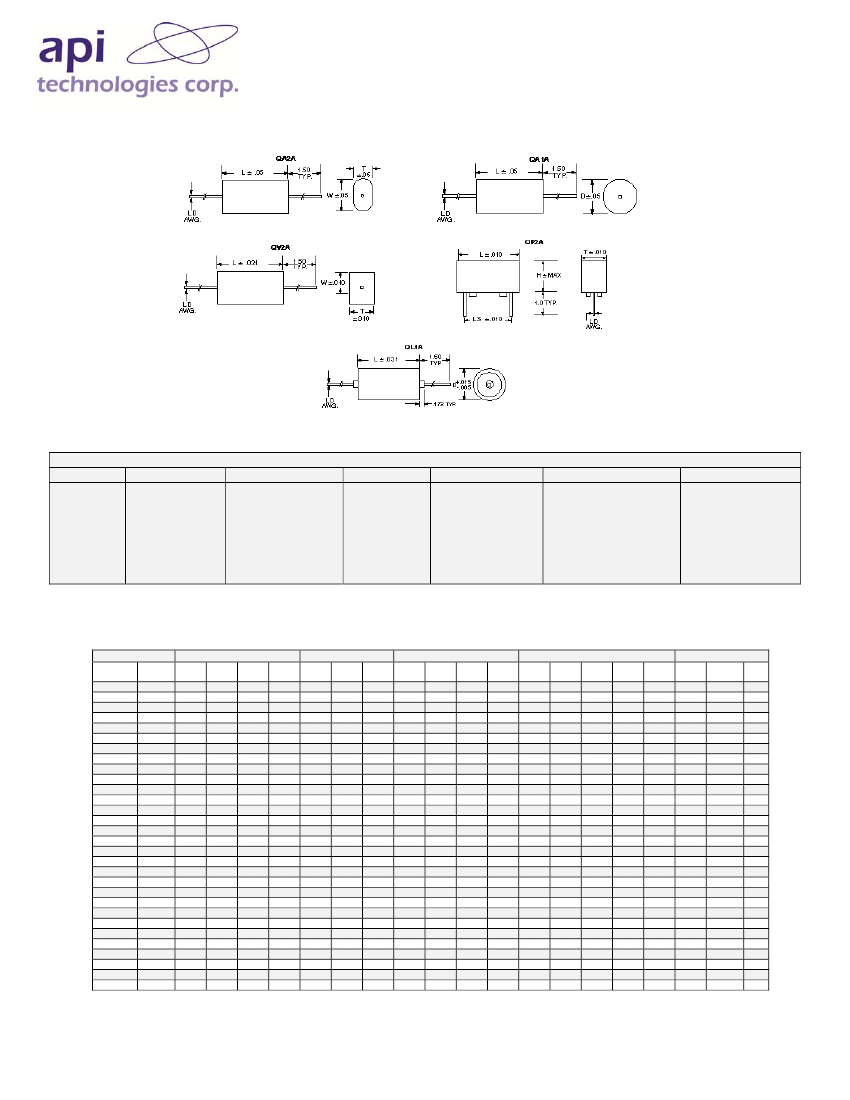

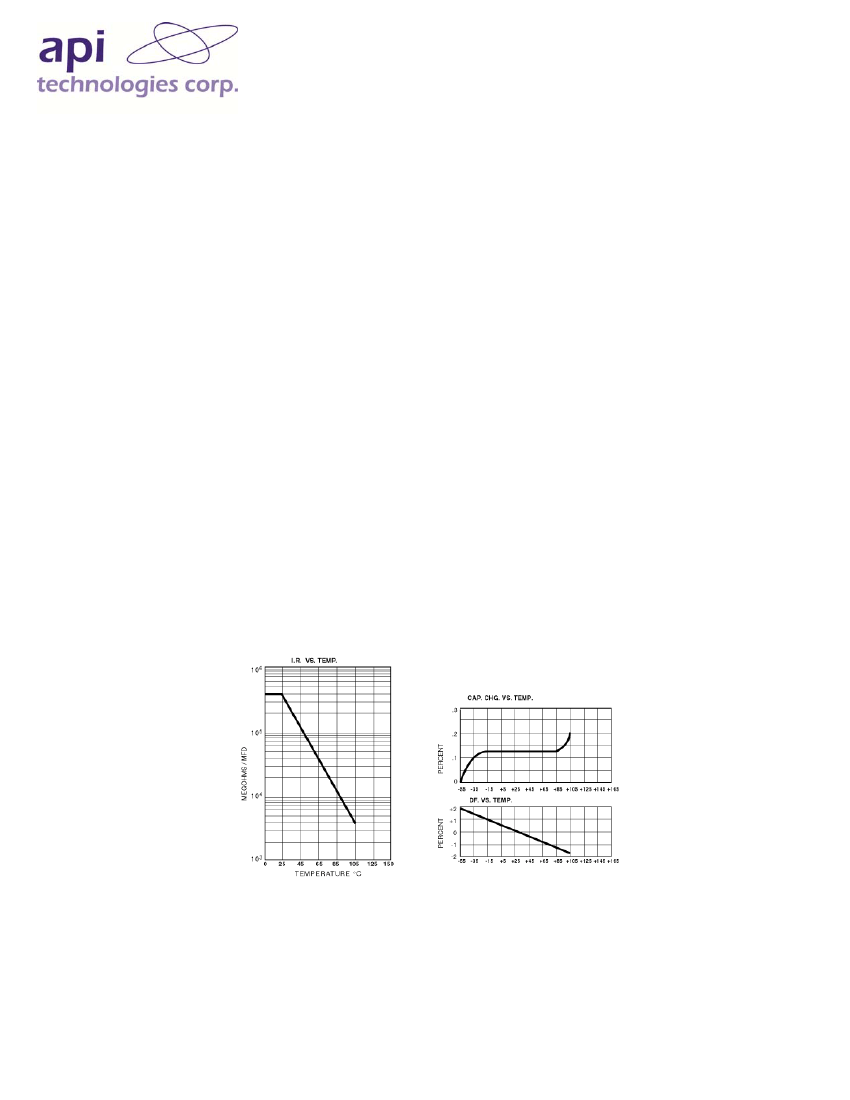

UV2B253F Preview

METALLIZED POLYPROPYLENE CAPACITOR - FIXED

VARIOUS CASE DESIGN

SPECIFICATIONS:

1. CAPACITY: AS TABULATED

2. TOLERANCE: SHALL BE INDICATED BY ONE OF THE FOLLOWINGING SUFFIXS; NONE

±20%, K ± 10%, J ± 5%, H±3%, G±2% AND F±1%

3. WORKING VOLTAGE: 50V and 100V

4. DISSIPATION FACTOR: LESS THAN 0.2% AT 1KHz AND 25°C

5. INSULATION RESISTANCE: SHALL EXCEED 250,000 MEG/MFD, AFTER TWO MINUTE

CHARGE AT THE RATED VOLATAGE AND 25°C, NEED NOT EXCEED 400,000 MEGOHMS

6. DIELECTRIC STRENGTH: SHALL WITHSTAND A SURGE OF 150% OF THE RATED VOLTAGE

FOR ONE MINUTE THRU A LIMITING RESISTANCE OF 1 OHM PER VOLT

7. TEMPERATURE RANGE: -55°C TO +85°C AT FULL RATING TO 105°C DERATE 50%

8. LEAD MATERIAL: TINNED COPPERWELD WIRE

9. CASE MATERIAL/STYLE ARE AS FOLLOWS:

QA2A - Polyester pressure tape wrap with epoxy endfills and of a pressed oval configuration and axial leads

QA1A - Polyester pressure tape wrap with epoxy endfills and of a cylindrical configuration and axial leads.

QV2A - Pre-molded epoxy case with epoxy potting material of a rectangular configuration and axial lead.

QP2A - Pre-molded epoxy case with epoxy potting material of a rectangular configuration and radial lead.

QL1A - Tinned brass tube with glass to metal endseals and axial leads. This type is hermetically sealed.

*CONSULT FACTORY FOR TOLERANCE ±1% thru 3% ON STYLE UA2B, UV2B, AND UP2B.THIS

SPECIFICATION IS ISSUED AS PRELIMINARY ONLY AND THE DIMENSIONS ARE SUBJECT TO

SLIGHT CHANGE IF PRODUCTION SO INDICATES.

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

Q Series - Specifications

PART NUMBER KEY

EXAMPLE

U

Code

Metallized

Polypropylene

A

Case Style

A-Wrap & Fill

B-Plastic case-

radial

V-Plastic case-

axial

L-Hermetic Seal

1

Shape

1-Round

2- Oval

Rectangular

A

Voltage

A-50

B-100

104

Capacity

In Picofarads the first

2 digits indicate

significant figures, the

3

rd

indicates number

of zeroes to follow

K

Tolerance

± 20% = Bank

± 10% = K

± 5% = J

± 3% = H

± 2% = G

± 1% = F

Dimensions: (in.)

Style

CAP

CODE

102

123

153

183

203

223

253

273

333

393

473

503

563

683

753

823

104

124

154

184

204

224

257

274

334

394

474

504

564

684

CAP

MFD

.001

.012

.015

.018

.020

.022

.025

.027

.033

.039

.047

.050

.056

.068

.075

.082

.10

.12

.15

.18

.20

.22

.25

.27

.33

.39

.47

.50

.56

.68

T

.09

.12

.13

.14

.10

.11

.12

.13

.14

.15

.16

.18

.20

.22

.23

.25

.21

.22

.24

.23

.25

.30

.31

UA2B

W

.18

.21

22

.23

.19

.20

.21

.22

.23

.24

.26

.27

.29

.31

.32

.34

.30

.31

.33

.32

.34

.39

.40

L

.40

.53

.65

.78

LD

24

22

D

.15

.16

.17

.18

.19

.15

.16

.17

.18

.19

.20

.21

.23

.25

.27

.29

.30

.26

.27

.30

.29

.31

.32

.34

.36

UA1B

L

.40

.53

.65

.78

LD

24

22

T

.16

.17

.16

.17

.23

.29

.39

UV2B

W

.24

.29

.24

.29

.36

.42

.54

L

.42

.55

.67

.82

LD

24

22

20

T

.16

.18

.24

.30

.40

W

.33

.40

.46

.58

UP2B

L

.42

.55

.67

.82

LD

.22

LS

.30

.40

.50

.60

D

1.95

2.35

1.95

2.35

.312

.400

.500

UL1B

L

.625

.750

.875

1.000

L

D

24

22

20

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

754

824

105

155

205

305

405

505

605

805

.75

.82

1.00

1.50

2.00

3.00

4.00

5.00

6.00

8.00

.32

.34

.31

.32

.37

.46

.54

.61

.56

.59

.41

.43

.46

.52

.61

.69

.76

.79

.78

.90

1.17

1.42

1.68

22

20

.38

.40

.41

.46

.56

.64

.70

.72

.78

.90

1.17

1.42

1.68

22

20

.39

.56

.76

.54

.72

.96

.82

1.04

1.24

1.45

1.75

1.95

20

.40

.57

.50

.57

.75

.58

.76

.80

.82

1.04

1.24

1.45

1.75

1.95

22

20

.60

.80

1.10

1.30

1.60

1.80

.500

.562

.670

.750

1.000

1.130

1.380

1.630

1.880

2.130

20

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com
