LD8749H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LD8749H

LD8749H: DescriptionMicrocontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

LD8749H Overview

Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40

LD8749H Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	CERDIP-40
Reach Compliance Code	unknow
Has ADC	NO
Address bus width	12
bit size	8
maximum clock frequency	11 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T40
length	52.325 mm
Number of I/O lines	24
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
ROM programmability	UVPROM
Maximum seat height	5.72 mm
speed	3.67 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

REI Datasheet

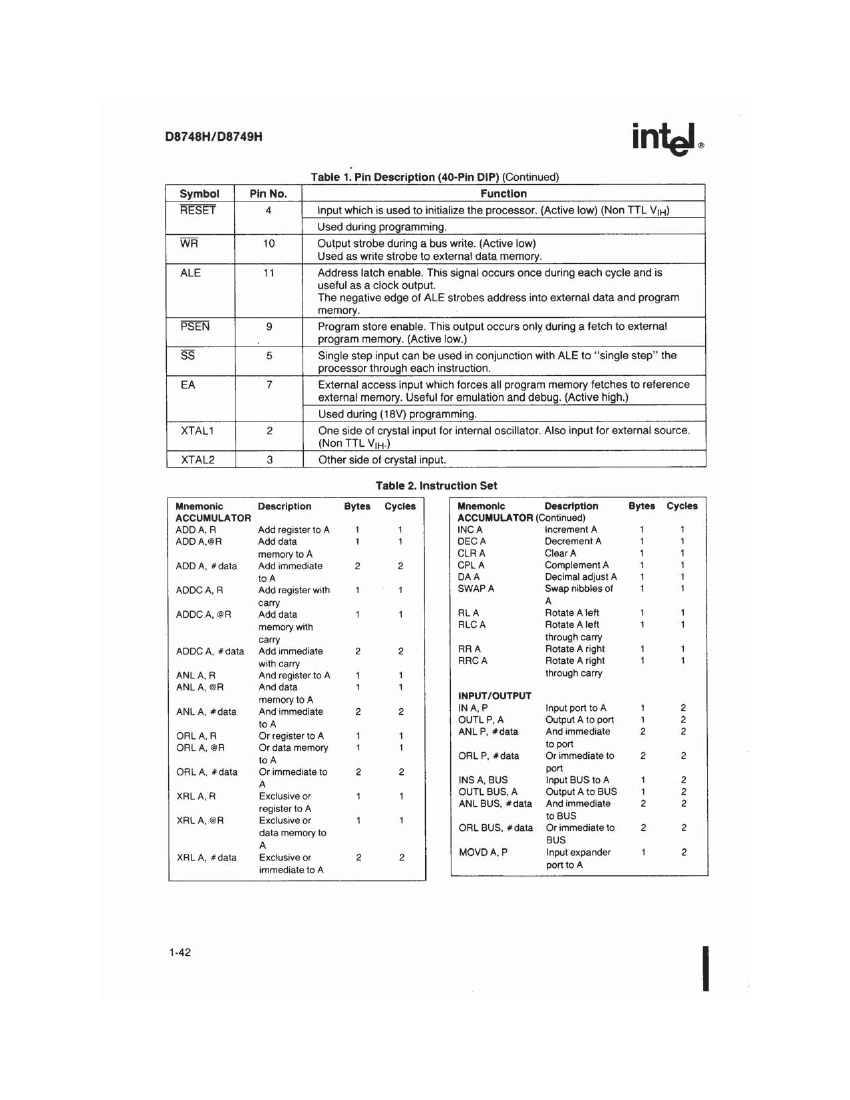

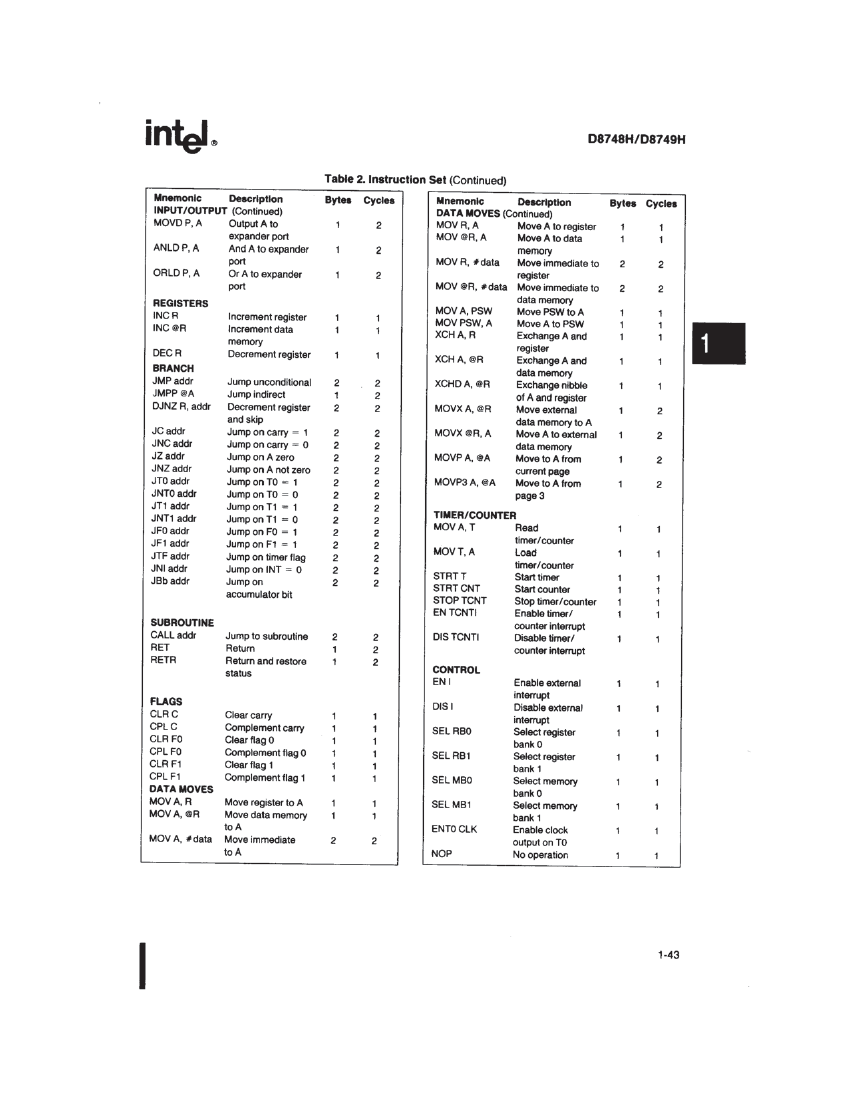

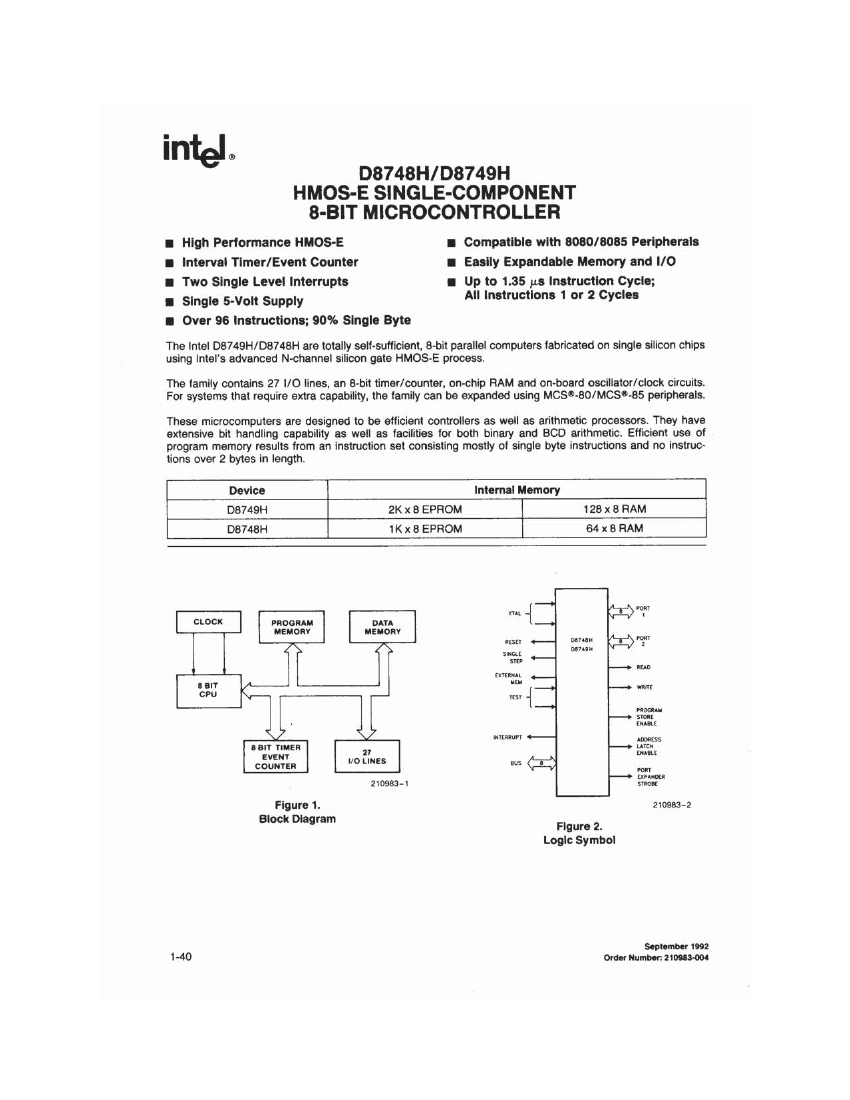

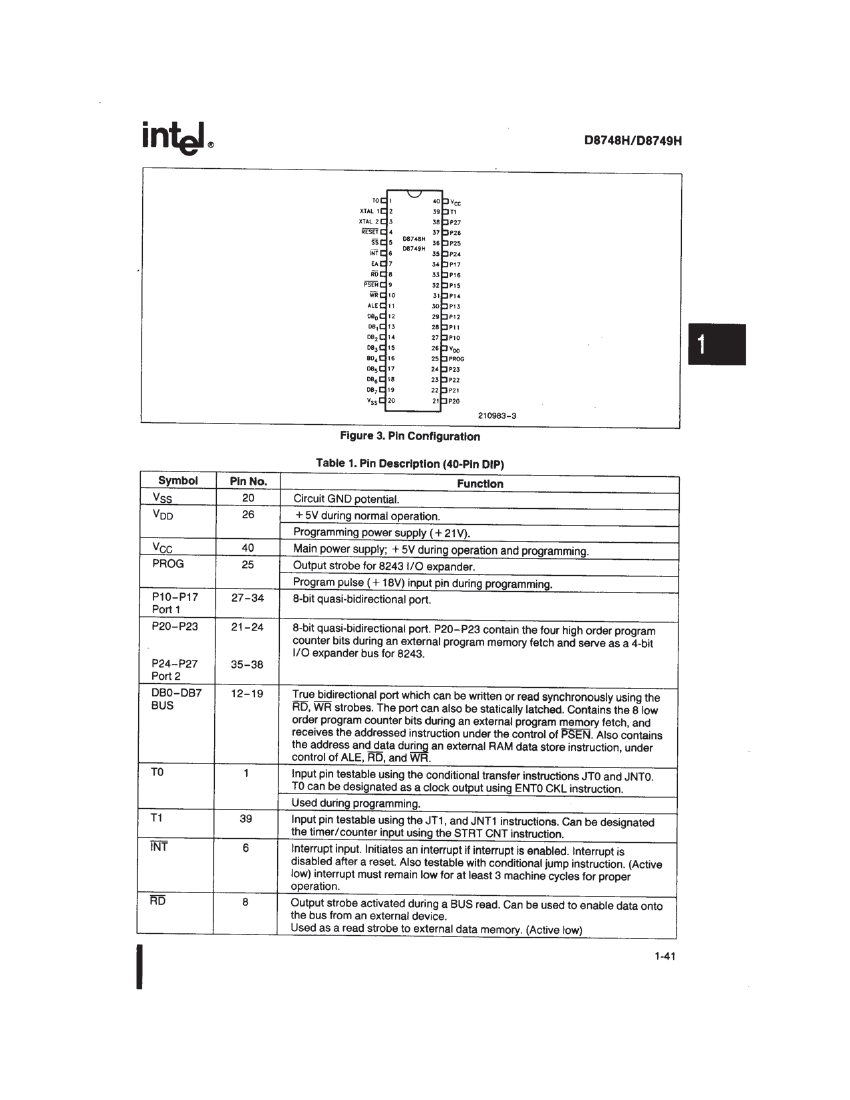

D8748H, D8749H

HMOS-E Single-Component 8-Bit Microcontroller

The Intel D8749H/D8748H are totally self-sufficient, 8-bit parallel computers fabricated on single silicon

chips using Intel’s advanced N-channel silicon gate HMOS-E process.

The family contains 27 I/O lines, an 8-bit timer/counter, on-chip RAM and on-board oscillator/clock circuits.

For systems that require extra capability, the family can be expanded using MCS-80/MCS-85 peripherals.

These microcomputers are designed to be efficient as well as arithmetic processors. They have extensive

bit handling capability as well as facilities for both binary and BCD arithmetic. Efficient use of program

memory results from an instruction set consisting mostly of single byte instructions and no instructions over

2 bytes in length.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

LD8749H Related Products

	LD8749H	TD8749H	D8748H	D8749H	LD8748H	QD8748H	TD8748H
Description	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, UVPROM, 3.67MHz, NMOS, CDIP40, CERDIP-40
package instruction	CERDIP-40	DIP,	CERDIP-40	CERDIP-40	DIP,	CERDIP-40	CERDIP-40
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow	unknow
Has ADC	NO	NO	NO	NO	NO	NO	NO
Address bus width	12	12	12	12	12	12	12
bit size	8	8	8	8	8	8	8
maximum clock frequency	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40
length	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm
Number of I/O lines	24	24	24	24	24	24	24
Number of terminals	40	40	40	40	40	40	40
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-	-40 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
ROM programmability	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
Maximum seat height	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm
speed	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Rochester Electronics	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
