µA78L00
SERIES
POSITIVE VOLTAGE REGULATORS
SLVS010S − JANUARY 1976 − REVISED FEBRUARY 2004
D
D
D
D
D
3-Terminal Regulators
Output Current Up To 100 mA
No External Components
Internal Thermal-Overload Protection
Internal Short-Circuit Current Limiting
D PACKAGE
(TOP VIEW)
OUTPUT
COMMON
COMMON
NC
1
2
3
4
8
7
6
5
INPUT
COMMON
COMMON
NC
description/ordering information
This series of fixed-voltage integrated-circuit
voltage regulators is designed for a wide range of
applications. These applications include on-card
regulation for elimination of noise and distribution
problems associated with single-point regulation.
In addition, they can be used with power-pass
elements to make high-current voltage regulators.
One of these regulators can deliver up to 100 mA
of output current. The internal limiting and
thermal-shutdown features of these regulators
essentially make them immune to overload. When
used as a replacement for a Zener diode-resistor
combination, an effective improvement in output
impedance can be obtained, together with lower
bias current.
The
µA78L00C
and
µA78L00AC
series are
characterized for operation over the virtual
junction temperature range of 0°C to 125°C. The
µA78L05AI
is characterized for operation over the
virtual junction temperature range of −40°C to
125°C.
NC − No internal connection
LP PACKAGE
(TO-92, TO-226AA)
(TOP VIEW)
INPUT
COMMON
OUTPUT
PK PACKAGE
(TOP VIEW)
INPUT
COMMON
OUTPUT
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
2004, Texas Instruments Incorporated
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
1
µA78L00
SERIES
POSITIVE VOLTAGE REGULATORS
SLVS010S − JANUARY 1976 − REVISED FEBRUARY 2004
description/ordering information (continued)
ORDERING INFORMATION
TJ
VO(NOM)
(V)
2.6 V
OUTPUT
VOLTAGE
TOLERANCE
SOIC (D)
5%
TO-226/TO-92 (LP)
SOIC (D)
SOT-89 (PK)
5%
TO-92 (LP)
TO-226AA (LP)
5V
SOIC (D)
10%
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
SOT-89 (PK)
6.2 V
5%
TO-92 (LP)
TO-226AA (LP)
SOIC (D)
5%
0 C 125 C
0°C to 125°C
8V
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
10%
SOIC (D)
SOIC (D)
9V
5%
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
SOIC (D)
10 V
5%
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
SOIC (D)
SOT-89 (PK)
12 V
5%
TO-92 (LP)
TO-226AA (LP)
PACKAGE†
Tube of 75
Bulk of 1000
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Pack of 2000
Reel of 2000
Tube of 75
Reel of 2500
Tube of
Bulk of 1000
Reel of 2000
Reel of 1000
Bulk of 1000
Reel of 2000
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Reel of 2000
Tube of 75
Reel of 2500
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Reel of 2000
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Reel of 2000
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Pack of 2000
Reel of 2000
ORDERABLE
PART NUMBER
µA78L02ACD
µA78L02ACLP
µA78L05ACD
µA78L05ACDR
µA78L05ACPK
µA78L05ACLP
µA78L05ACLPM
µA78L05ACLPR
µA78L05CD
µA78L05CDR
µA78L05CPK
µA78L05CLP
µA78L05CLPR
µA78L06ACPK
µA78L06ACLP
µA78L06ACLPR
µA78L08ACD
µA78L08ACDR
µA78L08ACPK
µA78L08ACLP
µA78L08ACLPR
µA78L08CD
µA78L08CDR
µA78L09ACD
µA78L09ACDR
µA78L09ACPK
µA78L09ACLP
µA78L09ACLPR
µA78L10ACD
µA78L10ACDR
µA78L10ACPK
µA78L10ACLP
µA78L10ACLPR
µA78L12ACD
µA78L12ACDR
µA78L12ACPK
µA78L12ACLP
µA78L12ACLPM
µA78L12ACLPR
78L12AC
78L05C
B5
78L05C
F6
78L06AC
78L08A
78L08A
F8
78L08AC
78L05AC
TOP-SIDE
MARKING
78L02A
78L02AC
78L05A
F5
78L08C
78L09A
F9
78L09AC
78L10A
FA
78L10AC
78L12A
FC
† Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
2
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
µA78L00
SERIES
POSITIVE VOLTAGE REGULATORS
SLVS010S − JANUARY 1976 − REVISED FEBRUARY 2004
description/ordering information (continued)
ORDERING INFORMATION (continued)
TJ
VO(NOM)
(V)
OUTPUT
VOLTAGE
TOLERANCE
SOIC (D)
0 C 125°C
0°C to 125 C
15 V
5%
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
SOIC (D)
−40 C 125°C
−40°C to 125 C
5V
5%
SOT-89 (PK)
TO-92 (LP)
TO-226AA (LP)
PACKAGE†
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Reel of 2000
Tube of 75
Reel of 2500
Reel of 1000
Bulk of 1000
Reel of 2000
ORDERABLE
PART NUMBER
µA78L15ACD
µA78L15ACDR
µA78L15ACPK
µA78L15ACLP
µA78L15ACLPR
µA78L05AID
µA78L05AIDR
µA78L05AIPK
µA78L05AILP
µA78L05AILPR
TOP-SIDE
MARKING
78L15A
FF
78L15AC
78L15AI
J5
78L05AI
† Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.

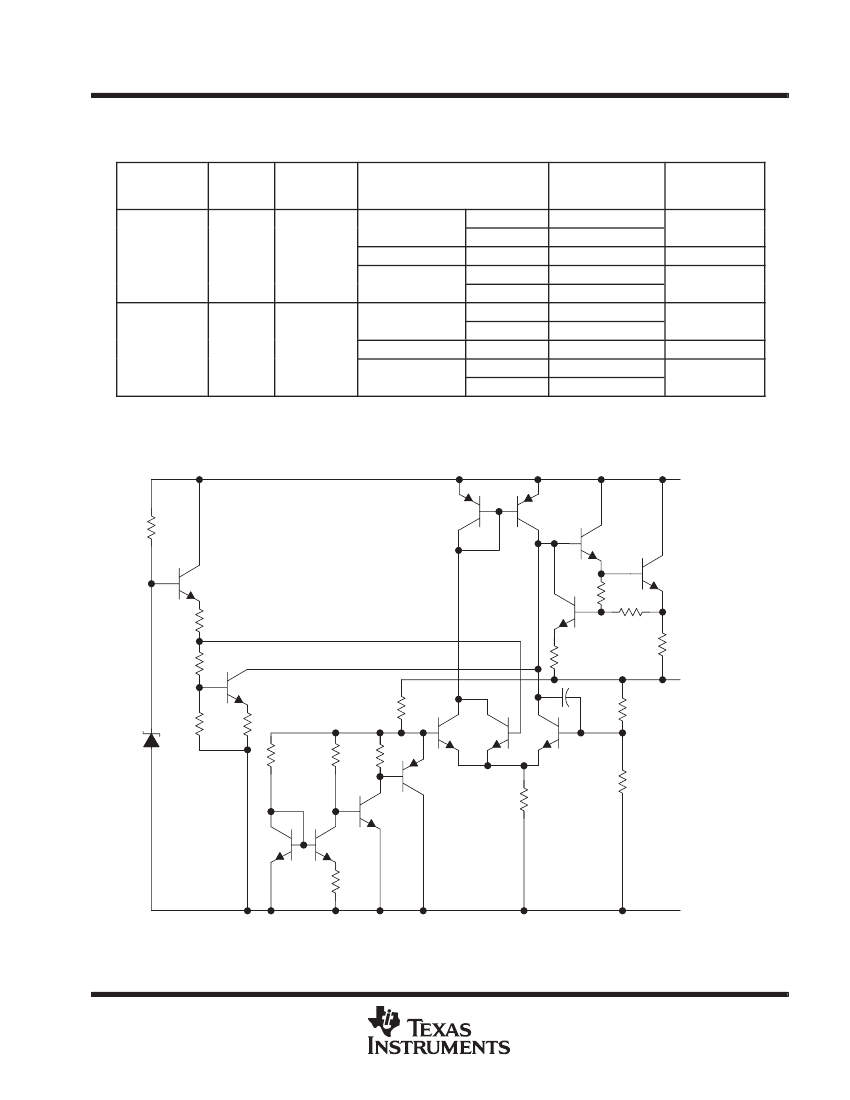

schematic
INPUT
20 kΩ
OUTPUT
1 kΩ to 14 kΩ
1.4 kΩ
COMMON
NOTE A: Resistor values shown are nominal.
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
3
µA78L00
SERIES
POSITIVE VOLTAGE REGULATORS
SLVS010S − JANUARY 1976 − REVISED FEBRUARY 2004
absolute maximum ratings over virtual junction temperature range (unless otherwise noted)
†
Input voltage, V
I
:
µA78L02AC, µA78L05C−µA78L09C, µA78L10AC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
µA78L12C, µA78L12AC, µA78L15C, µA78L15AC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 V
Virtual junction temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
package thermal data (see Note 1)
PACKAGE
SOIC (D)
TO-92/TO-226AA (LP)
SOT-89 (PK)
BOARD
High K, JESD 51-7
High K, JESD 51-7
High K, JESD 51-7
θ
JC
39°C/W
55°C/W
9°C/W
θ
JA
97°C/W
140°C/W
52°C/W
NOTE 1: Maximum power dissipation is a function of TJ(max),
θ
JA, and TA. The maximum allowable power dissipation at any allowable ambient
temperature is PD = (TJ(max) − TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability. Due to variations in
individual device electrical characteristics and thermal resistance, the built-in thermal-overload protection may be activated at power
levels slightly above or below the rated dissipation.
recommended operating conditions
MIN
µA78L02AC
µA78L05C, µA78L05AC
µA78L06C, µA78L06AC
VI
Input voltage
µA78L08C, µA78L08AC
µA78L09C, µA78L09AC
µA78L10AC
µA78L12C, µA78L12AC
µA78L15C, µA78L15AC
IO
TJ
Output current
Operating virtual junction temperature range
µA78LxxC
and
µA78LxxAC
series
µA78L05AI
0
−40
4.75
7
8.5
10.5
11.5
12.5
14.5
17.5
MAX
20
20
20
23
24
25
27
30
100
125
125
mA
°C
V
UNIT
4
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
