51S201-015N4 Overview

RF BNC Connector, Male, Cable Mount, Clamp Terminal, Plug,

51S201-015N4 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compli
Other features	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 213; RG 214, INSERTION LOSS MAX AT 1 GHZ
subject depth	1.496 inch
Body diameter	0.59 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	YES
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP
Total number of contacts	1
voltage standing wave ratio	1.25

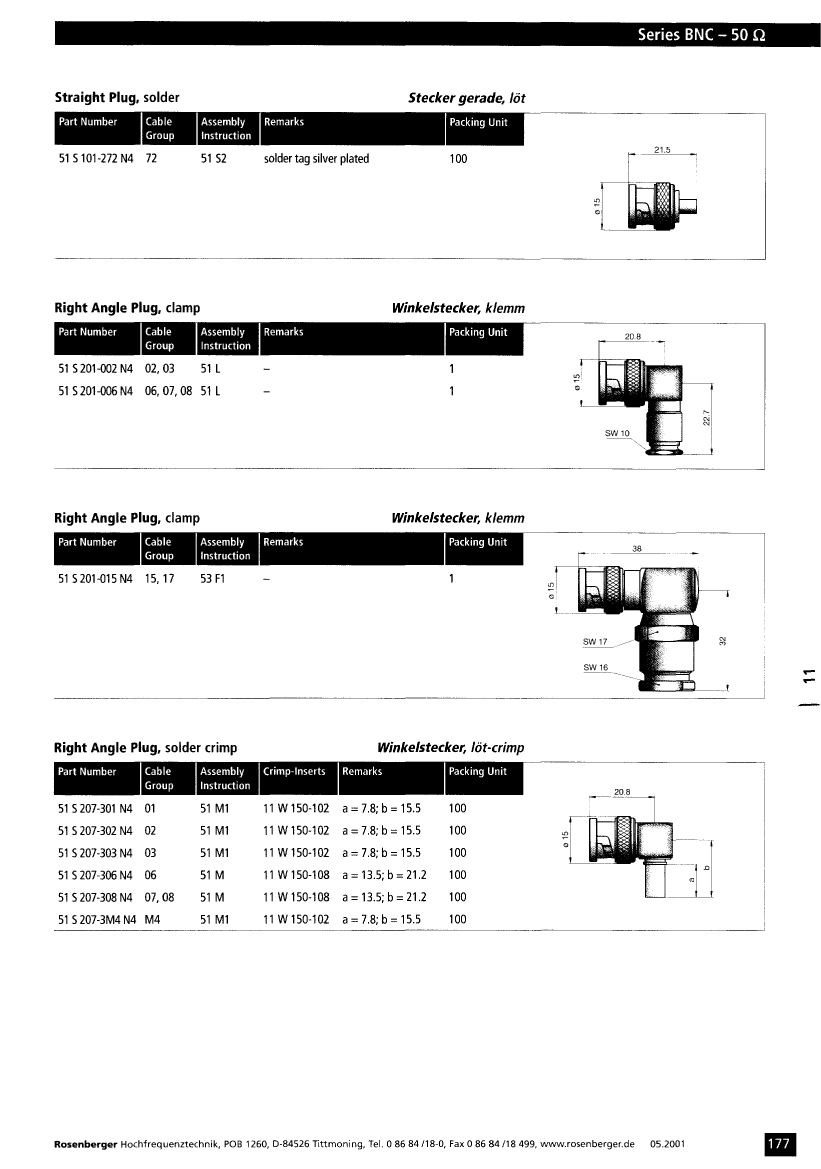

51S201-015N4 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

51S201-015N4 Related Products

	51S201-015N4	51S201-006N4	51S101-272N4	51S207-303N4	51S207-306N4	51S207-301N4	51S207-308N4
Description	RF BNC Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Solder Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF BNC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,
Maker	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
Reach Compliance Code	compli	compliant	compli	compli	compli	compli	compli
Other features	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 213; RG 214, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 58; RG 142, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLE: RG 402, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLE: RG 316-D, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 58; RG 141, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 178; RG 196, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC: 169-8, APPLICABLE CABLES: RG 142; RG 223, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	10 GHz	10 GHz	10 GHz	10 GHz	10 GHz	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO
Termination type	CLAMP	CLAMP	SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.25	1.25	1.2	1.25	1.25	1.25	1.25
Manufacturer's serial number	-	BNC	BNC	BNC	BNC	BNC	-
