200RX305R6MKC8X11.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 200RX305R6MKC8X11.5

200RX305R6MKC8X11.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size148KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

200RX305R6MKC8X11.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

200RX305R6MKC8X11.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	5.6 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.1448 mA
length	11.5 mm
Manufacturer's serial number	RX30
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	26 mA
series	RX30
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

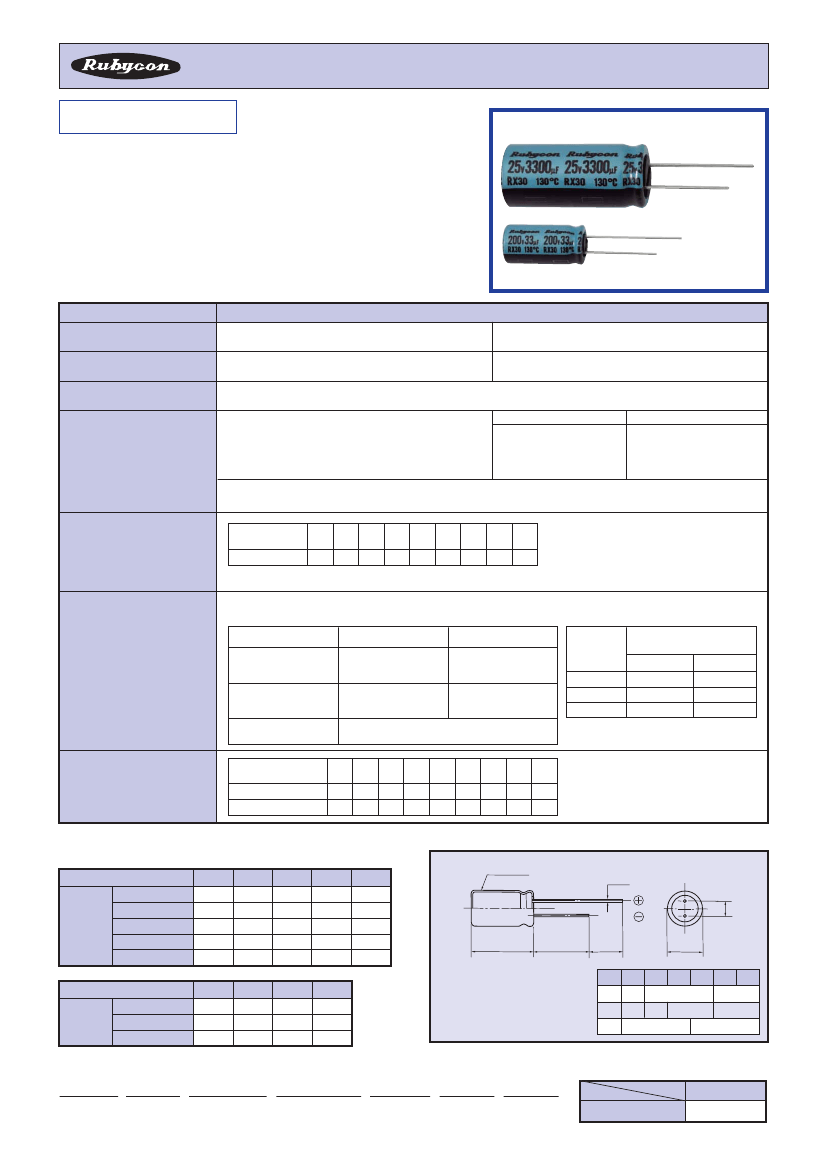

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

RX30

SERIES

Load Life : 130℃ 1000∼4000 hours.

◆FEATURES

・

Electronic Ballast of CFL, For Power Supply.

For

・

RoHS compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋130℃

10∼100V.DC

±20％

（20℃，

120Hz）

−25∼＋130℃

200,400V.DC

CV≦1000

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

I=0.1CV+40μA

(1 minute)

CV＞1000

I=0.04CV+100μA

(1 minute)

Leakage Current(MAX)

I=0.03CV+15μA

(5 minutes)

I=0.02CV+25μA

(5 minutes)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

120Hz）

10 16 25 35 50 63 100 200 400

（20℃，

(V)

tanδ

0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below at 130℃,

the capacitors shall meet the following requirements.

Dissipation Factor(MAX)

(tanδ)

10∼100WV

Endurance

Capacitance Change

Within ±30％ of the

initial value.

200,400WV

Within ±20％ of the

initial value.

Case Size

φD=6.3

φD=8, 10

φD≧12.5

−

Life Time

（hrs）

10∼100WV 200,400WV

1000

2000

−

2000

4000

Dissipation Factor

Leakage Current

Not more than 300％ Not more than 200％

of the speciﬁed value. of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

（−25℃）（20℃） 3

（−40℃）（20℃） 6

63 100 200 400

−

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

10WV∼100WV

Frequency

（Hz）

4.7μF

10∼33μF

Coeﬃcient

47∼330μF

470∼1500μF

2200∼4700μF

200WV,400WV

Frequency

（Hz）

1∼5.6μF

Coeﬃcient

6.8∼15μF

22∼33μF

60 50） 120

（

0.35 0.42

0.45 0.55

0.60 0.70

0.65 0.75

0.75 0.80

120

0.20

0.30

0.50

0.40

0.60

0.80

0.60

0.75

0.85

0.90

0.95

10k 100k≦

0.80 1.00

0.90 1.00

0.95 1.00

0.98 1.00

1.00 1.00

◆DIMENSIONS

SLEEVE(PET)

（mm）

φd

L＋2MAX

15MIN

4MIN

φD＋ MAX

±0.5

φD

6.3

0.5

2.5

10 12.5 16

0.6

10k 100k≦

0.80 1.00

0.90 1.00

φd

0.8

7.5

1.0

3.5

0.5

5.0

◆PART NUMBER

□□□

Rated Voltage

◆OPTION

□□□□□

Capacitance

RX30

Series

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

PET Sleeve

Code

Blank
