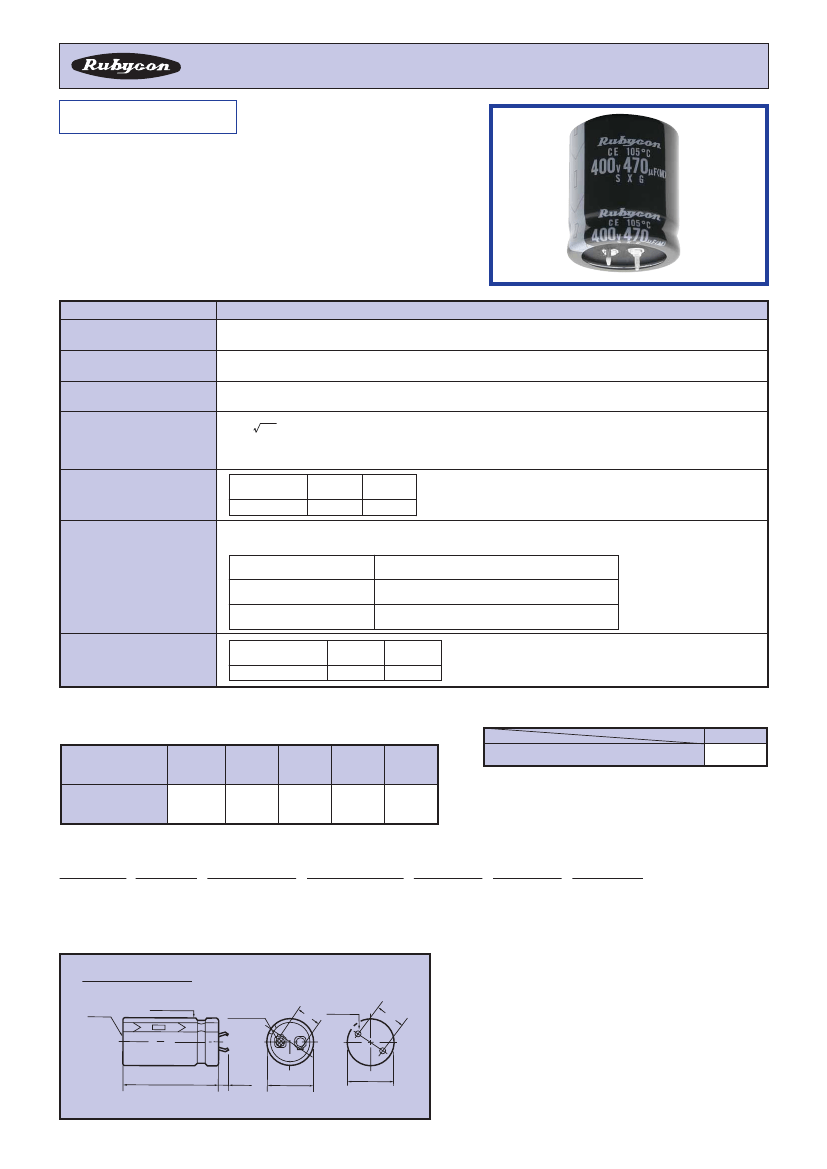

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
SXG
SXG
SERIES
105℃ Miniaturized,Overvoltage Vent Operation Facility,
Snap-in Terminal Type
◆FEATURES
・
This series has specification of vent operation in overvoltage situation.
Please consult us for any further details
・
Smaller size than SXC series.
・
RoHS compliance.
◆SPECIFICATIONS
Items
Category Temperature Range
Rated Voltage Range
Capacitance Tolerance
I＝3
CV
Leakage Current(MAX)
Characteristics
−25∼＋105℃
200, 400, 450V.DC
±20％
（20℃，
120Hz）
(After 5 minutes application of rated voltage)
I＝(μA)
Leakage Current
200,400
0.15
C＝(μF)
450
0.20
V＝(V)
Rated Voltage
Rated Capacitance
(tanδ)
Dissipation Factor(MAX)
Rated Voltage
tanδ
（20℃，
120Hz）
After applying rated voltage with rated ripple current for 2000 hours at 105℃,
the capacitors shall meet the following requirements.
Capacitance Change
Endurance
Dissipation Factor
Leakage Current
Low Temperature Stability
Impedance Ration(MAX)
Rated Voltage
Z
（−25℃） （20℃）
/Z
Not more than 200％ of the specified value.
Not more than the specified value.
200
3
400,450
8
Within ±20％ of the initial value.
（120Hz）
◆MULTIPLIER FOR RIPPLE CURRENT
Frequency Coefficient
Frequency
Coefficient
◆OPTION
Code
（Hz）
60(50)
0.77
120
1.00
500
1.17
1k
1.22
10k≦
1.40
PET Sleeve without plate
EFC
◆PART NUMBER
□□□
Rated Voltage
SXG
Series
□□□□□
Rated Capacitance
M
Capacitance Tolerance
□□□
Option
SN
Terminal Code
D×L
Case Size
◆DIMENSIONS
●
SN
［4(3.5)mm½
terminal type
SLEEVE(Ｐ Ｔ)
Ｅ
VENT
NEGATIVE
10
（mm）
Terminal code : SN(Tin plating)
2-φ2
10
±0.1
L±2
※
4±0.5
φD±1
φD±1
MOUNTING HOLES
※ For φ35,3.5±0.5
LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
SXG
◆STANDARD SIZE
Cap
(μF)
150
180
220
270
330
390
470
560
680
820
1000
1200
Cap
(μF)
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Cap
(μF)
47
56
68
82
100
120
150
180
220
270
330
390
470
Ripple Current(A r.m.s./120Hz, 105℃)
Case Size φD×L(mm)
WV
φD
200
φ20
20×20
20×25
20×25
20×30
20×35
20×40
0.66
0.82
0.95
1.10
1.20
1.31
22×20
22×25
22×25
22×30
22×30
22×35
22×40
0.80
1.00
1.10
1.25
1.31
1.45
1.60
25×20
25×20
25×25
25×25
25×30
25×30
25×35
25×40
0.87
0.95
1.20
1.31
1.45
1.60
1.78
1.95
30×20
30×20
30×25
30×25
30×30
30×35
30×35
30×40
1.15
1.25
1.45
1.60
1.78
2.11
2.40
2.65
φ22
φ25
φ30
WV
φD
400
φ20
20×20
20×20
20×25
20×25
20×30
20×35
20×40
0.34
0.40
0.45
0.49
0.64
0.70
0.75
22×20
22×25
22×25
22×30
22×30
22×35
22×40
0.40
0.52
0.64
0.70
0.75
0.88
0.95
25×20
25×20
25×25
25×25
25×30
25×30
25×35
25×40
0.49
0.60
0.70
0.75
0.88
0.95
1.10
1.22
30×20
30×20
30×25
30×25
30×30
30×30
30×35
30×40
0.60
0.70
0.85
0.95
1.10
1.22
1.44
1.55
35×20
35×25
35×25
35×25
35×30
35×35
35×40
0.80
0.95
1.10
1.22
1.44
1.60
1.90
φ22
φ25
φ30
φ35
WV
φD
450
φ22
22×25
22×25
22×30
22×35
22×40
22×45
22×50
0.35
0.44
0.53
0.64
0.69
0.75
0.88
25×25
25×25
25×30
25×35
25×40
25×45
25×50
0.53
0.64
0.69
0.75
0.88
0.98
1.10
30×25
30×25
30×30
30×30
30×35
30×40
30×50
0.69
0.75
0.88
0.98
1.10
1.28
1.45
35×25
35×25
35×30
35×35
35×40
35×40
35×50
0.80
0.98
1.10
1.28
1.45
1.60
1.85
φ25
φ30
φ35
