250WA22MKC12.5X16 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 250WA22MKC12.5X16

250WA22MKC12.5X16: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size229KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

250WA22MKC12.5X16 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

250WA22MKC12.5X16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.32 mA
Manufacturer's serial number	WA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	156 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

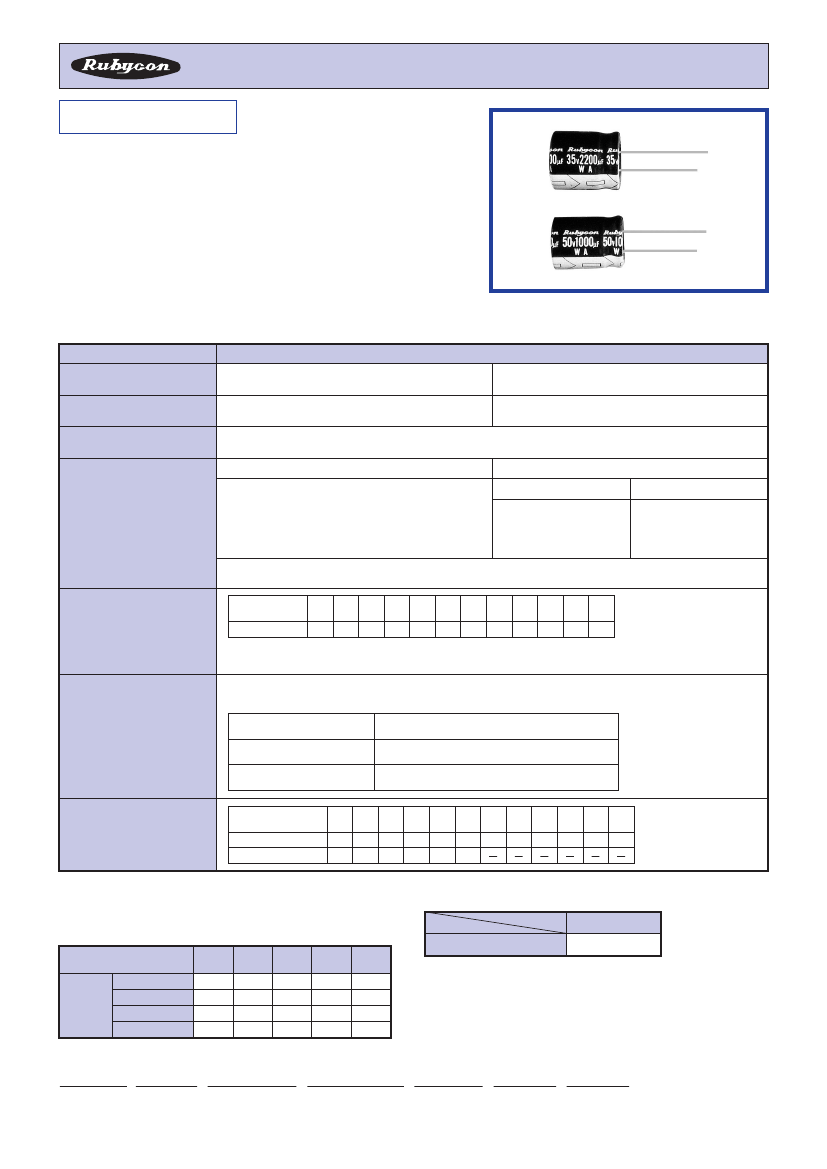

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

SERIES

85℃ Low proﬁle.

◆FEATURES

・

9∼25mm height.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋85℃

6.3∼250V.DC

±20%(20℃, 120Hz)

6.3∼50V.DC

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

−25∼＋85℃

350∼450V.DC

160∼450V.DC

CV≦1000

CV＞1000

Leakage Current(MAX)

I=0.04CV＋100

A (1minute)

I=0.1CV＋40

A (1minute)

I=0.03CV＋15

A (5minutes)

I=0.02CV＋25

A (5minutes)

I＝(μA)

Leakage Current

Rated Voltage 6.3

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

50 160 200 250 350 400 450

(20℃, 120Hz)

(tanδ)

Dissipation Factor(MAX)

tanδ

0.26 0.22 0.18 0.16 0.14 0.12 0.20 0.20 0.20 0.20 0.20 0.20

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for 2000 hours at 85℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

Z(−25℃)/Z(20℃)

6.3

50 160 200 250 350 400 450

(120Hz)

Z(−40℃)/Z(20℃) 12

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

（Hz）

◆OPTION

Code

PET Sleeve

EFC

Frequency

60 50） 120

（

1.0

500

1.20

1.10

1.05

1.30

1.15

1.10

10k≦

1.50

1.20

1.15

1.5∼6.8μF 0.65

10∼68μF

0.8

Coeﬃcient

100∼1000μF 0.8

2200∼10000μF 0.8

◆PART NUMBER

□□□

Rated Voltage

Series

□□□□□

Rated Capacitance

Ｍ

Capacitance Tolerance

□□□
