25YXG1500MCA12.X25 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 25YXG1500MCA12.X25

25YXG1500MCA12.X25: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size91KB，5 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

25YXG1500MCA12.X25 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

25YXG1500MCA12.X25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.375 mA
Manufacturer's serial number	YXG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	1338 mA
surface mount	NO
Delta tangent	0.14
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

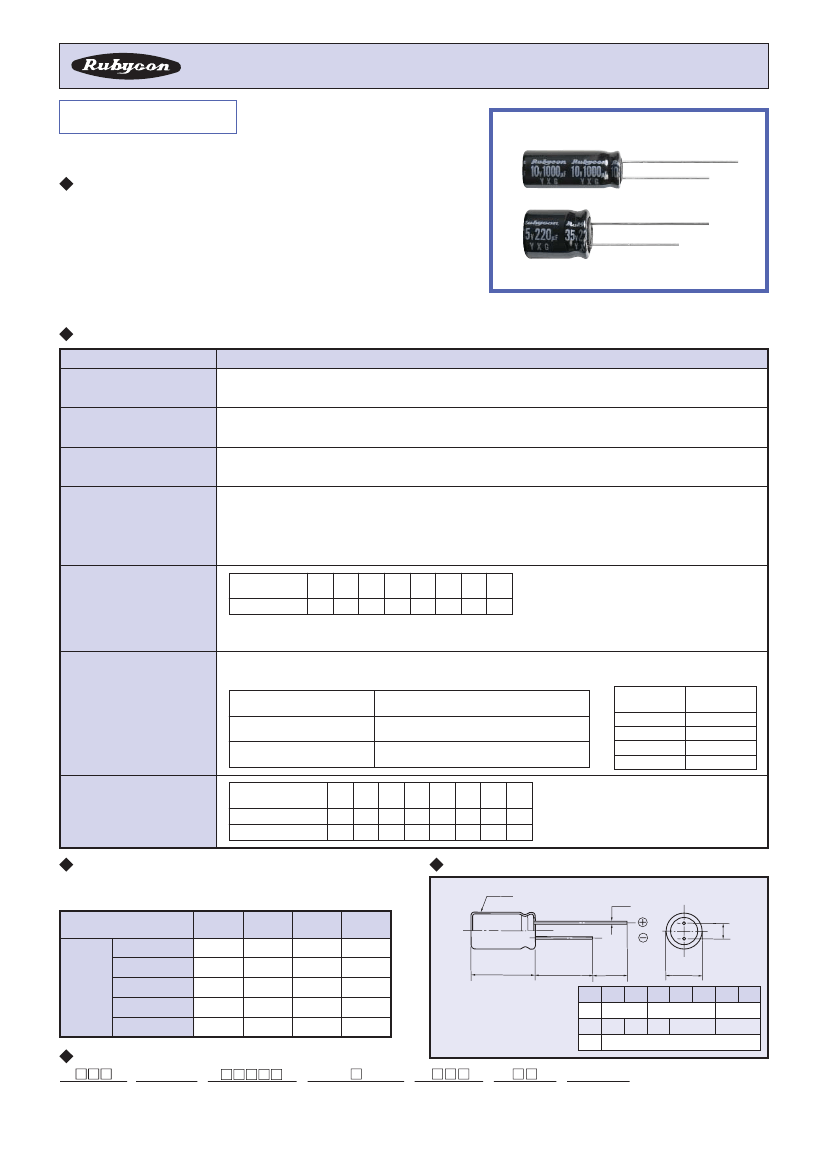

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXG

SERIES

105

C High ripple current. Long Life.

FEATURES

•

Low impedance at 100kHz with selected materials.

•

Load Life : 105

C 3000

∼

6000hours.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-40

∼

+105

6.3∼100V.DC

20%(20

C,120Hz)

0.01CV or 3

A whichever is greater.

(After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Leakage Current

(µA)

Rated Capacitance

(µF)

Rated Voltage

(V)

(20

C,120Hz)

Dissipation Factor(MAX)

(tan

)

Rated Voltage

6.3 10 16 25 35 50 63 100

(V)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

When rated capacitance is over 1000

F, tanδ shall be added 0.02 to the listed value with increase of every 1000

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

Within - 25% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Case Size

6.3

12.5

Life Time

(hrs)

3000

4000

5000

6000

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

C)/Z(20

Z(-25

Z(-40

C)/Z(20

Low Temperature Stability

Impedance Ratio(MAX)

6.3

100

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

DIMENSIONS

SLEEVE

(mm)

(Hz)

6.8∼ 33µF

39∼ 270µF

330∼ 680µF

820∼ 1800µF

2200∼ 18000µF

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

0.90

0.92

0.94

0.96

0.98

1.00

L+

MAX

15MIN

4MIN

D+0.5MAX

Coefficient

6.3

0.5

0.6

12.5

120

10k

100k <

0.5

0.8

7.5

2.0

2.5

3.5

5.0

L<16 :

α=1.5

L=20 :

α=2.0

PART NUMBER

YXG

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

Case Size

25YXG1500MCA12.X25 Related Products

	25YXG1500MCA12.X25	25YXG1500MCC12.X25	25YXG1500MCE12.X25	25YXG1500MKC12.X25	35YXG1500MCA12.X35	35YXG1500MCC12.X35	35YXG1500MCE12.X35	35YXG1500MKC12.X35	100YXG180MCE12.X25
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	1500 µF	1500 µF	1500 µF	1500 µF	1500 µF	1500 µF	1500 µF	1500 µF	180 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	0.375 mA	0.375 mA	0.375 mA	0.375 mA	0.525 mA	0.525 mA	0.525 mA	0.525 mA	0.18 mA
Manufacturer's serial number	YXG	YXG	YXG	YXG	YXG	YXG	YXG	YXG	YXG
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	25 V	25 V	25 V	25 V	35 V	35 V	35 V	35 V	100 V
ripple current	1338 mA	1338 mA	1338 mA	1338 mA	1728 mA	1728 mA	1728 mA	1728 mA	392 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.14	0.14	0.14	0.14	0.12	0.12	0.12	0.12	0.08
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	-
