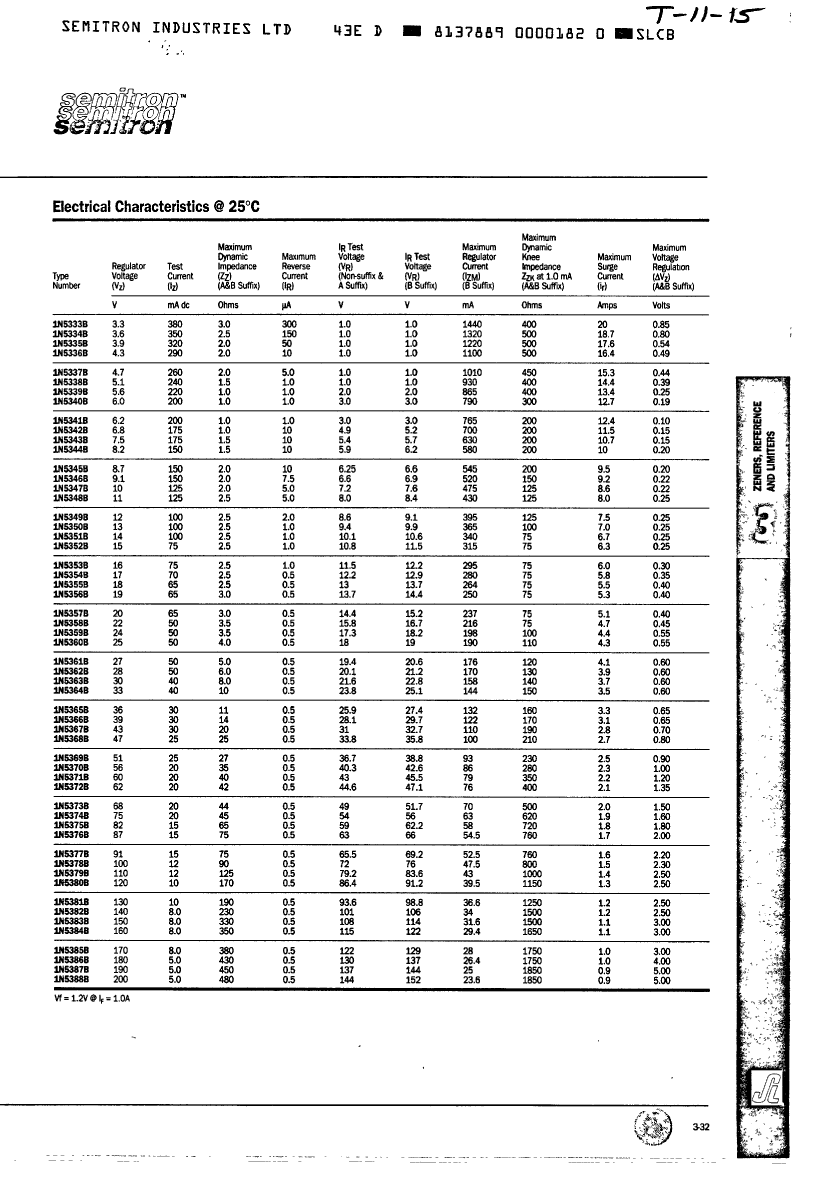

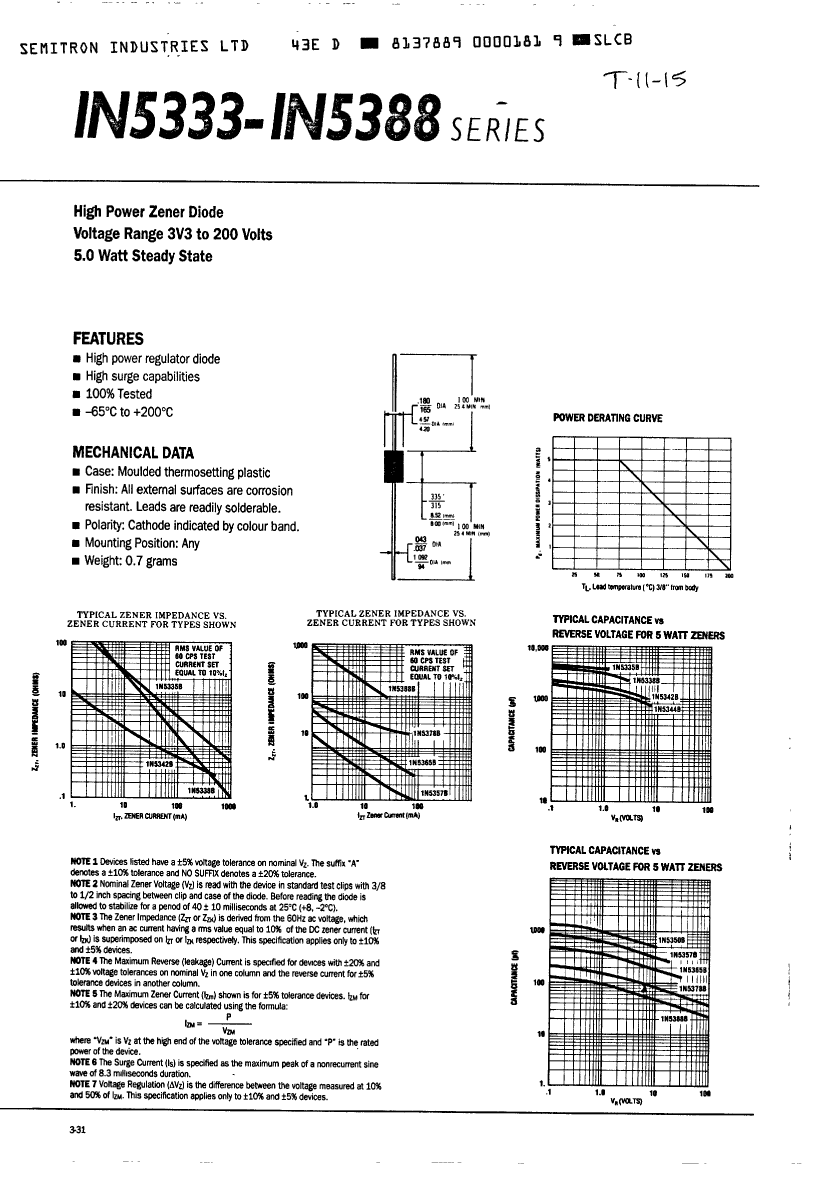

1N5380 Overview

Zener Diode, 120V V(Z), 20%, 5W, Silicon, Unidirectional, DO-27, 2 PIN

Parameter Name	Attribute value
Maker	Semitronics Corp.
Parts packaging code	DO-27
package instruction	DO-27, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-XALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Nominal reference voltage	120 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	20%
Working test current	10 mA
Base Number Matches	1
