35YXM47M6.3X11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 35YXM47M6.3X11

35YXM47M6.3X11: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size53KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35YXM47M6.3X11 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

35YXM47M6.3X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.01645 mA
length	11 mm
Manufacturer's serial number	YXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	147 mA
series	YXM
surface mount	NO
Delta tangent	0.22
Terminal surface	Tin (Sn)
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

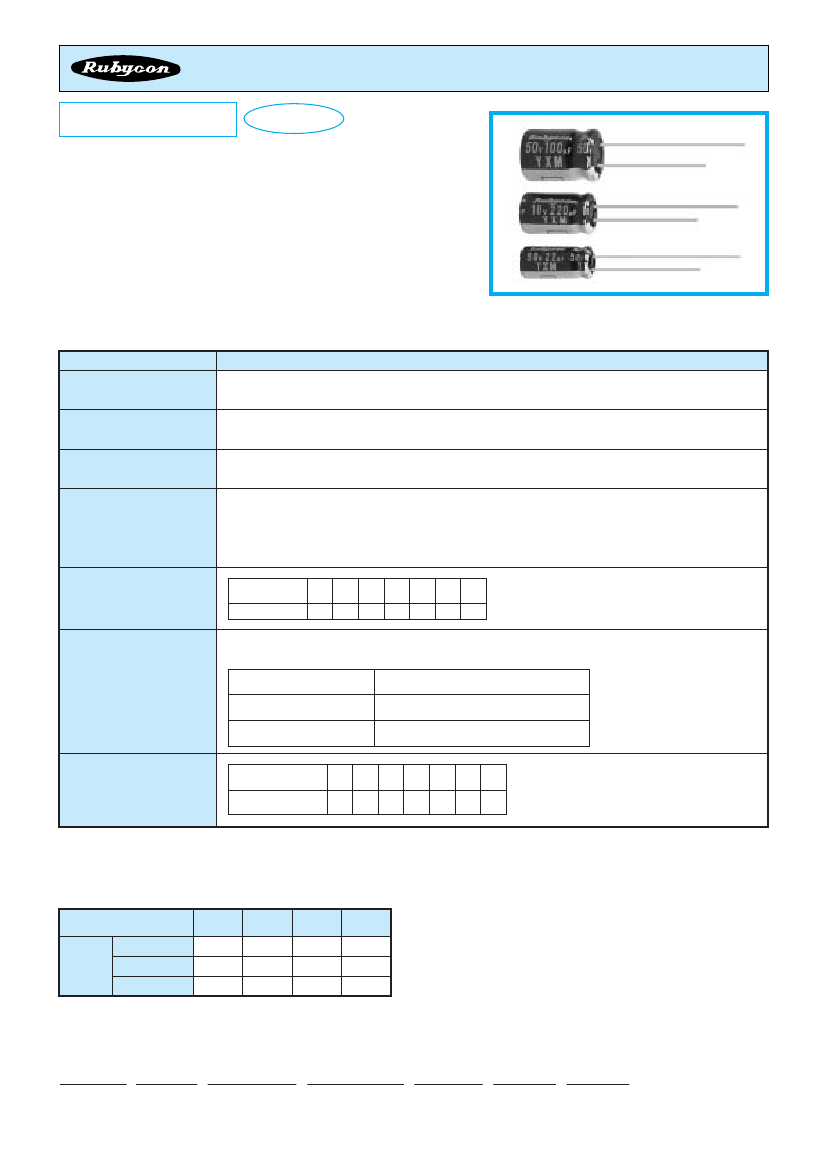

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXM

SERIES

NEW

Load Life : 105℃ 10,000 hours. Miniaturized.

◆FEATURES

•

Miniaturized Long Life.

•

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

10∼100V.DC

±20％（20℃，120Hz）

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Rated Capacitance

(μF) V＝

Rated Voltage

(V)

Dissipation Factor(MAX)

(tanδ)

Rated Voltage

10 16 25 35 50 63 100

(V)

tanδ

0.45 0.35 0.30 0.22 0.19 0.17 0.15

（20℃，120Hz）

After applying rated voltage with rated ripple current for 10000 hrs at 105℃, the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 300％ of the specified value.

Not more than the specified value.

Endurance

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

100

（120Hz）

（−25℃）（20℃） 8

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

（Hz）

0.47∼10μF

22∼33μF

47∼330μF

120

0.42

0.55

0.70

0.60

0.75

0.85

10k

0.80

0.90

0.95

100k≦

1.00

Coefficient

◆PART NUMBER

□□□

Rated Voltage

YXM

Series

□□□□□

Rated Capacitance

□

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

Recommended Resources
