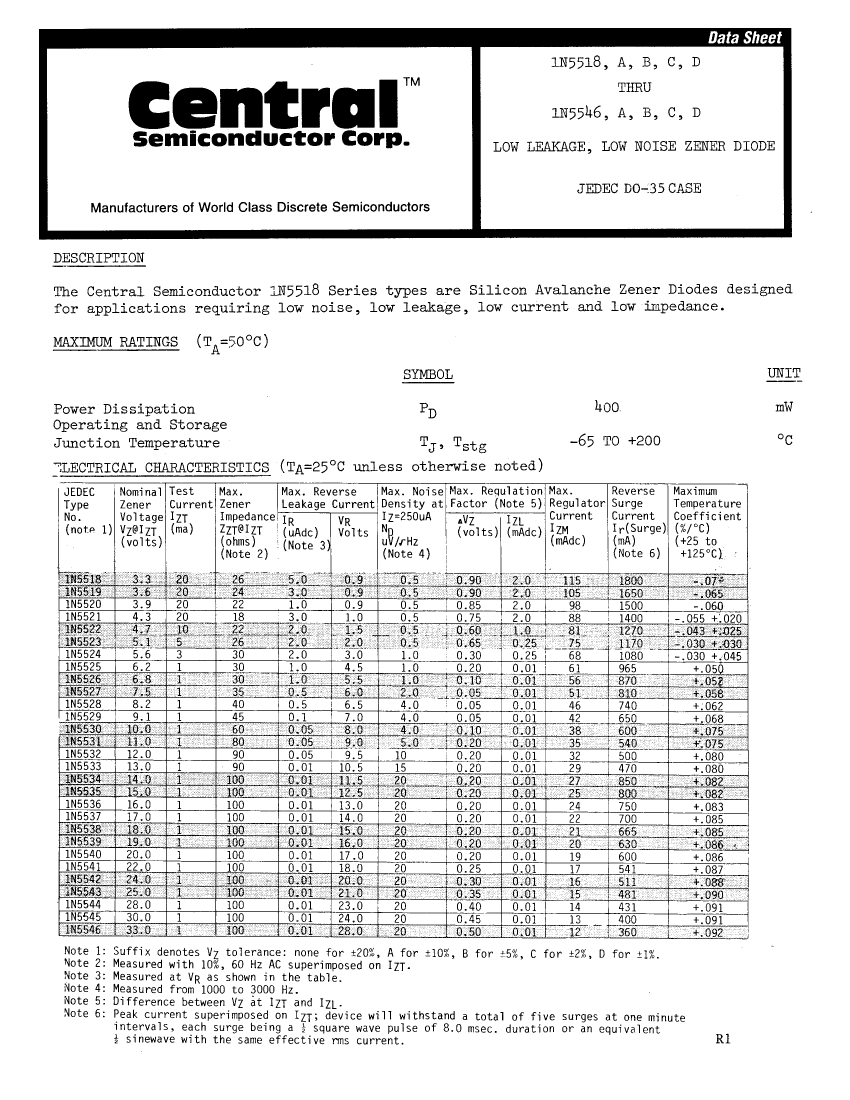

Zener Diode, 16V V(Z), 2%, 0.4W, Silicon, Unidirectional, DO-35,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Central Semiconductor |
| package instruction | O-XALF-W2 |
| Reach Compliance Code | _compli |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| Maximum dynamic impedance | 100 Ω |
| JEDEC-95 code | DO-35 |
| JESD-30 code | O-XALF-W2 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -65 °C |
| Package body material | UNSPECIFIED |
| Package shape | ROUND |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 0.4 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 16 V |
| surface mount | NO |
| technology | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage tolerance | 2% |
| Working test current | 1 mA |
| Base Number Matches | 1 |
| 1N5536C | 1N5520D | 1N5534A | 2225B183K102LBR | 1N5534D | 1N5535D | 1N5536D | 1N5537C | 1N5544D | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Zener Diode, 16V V(Z), 2%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 3.9V V(Z), 1%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 14V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-35, | Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.018uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | Zener Diode, 14V V(Z), 1%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 15V V(Z), 1%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 16V V(Z), 1%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 17V V(Z), 2%, 0.4W, Silicon, Unidirectional, DO-35, | Zener Diode, 28V V(Z), 1%, 0.4W, Silicon, Unidirectional, DO-35, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | conform to | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | _compli | _compli | not_compliant | compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 125 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -55 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Package shape | ROUND | ROUND | ROUND | RECTANGULAR PACKAGE | ROUND | ROUND | ROUND | ROUND | ROUND |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Maker | Central Semiconductor | Central Semiconductor | - | - | Central Semiconductor | Central Semiconductor | Central Semiconductor | Central Semiconductor | Central Semiconductor |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | - | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | - | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | - | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| Maximum dynamic impedance | 100 Ω | 22 Ω | 100 Ω | - | 100 Ω | 100 Ω | 100 Ω | 100 Ω | 100 Ω |
| JEDEC-95 code | DO-35 | DO-35 | DO-35 | - | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 |
| JESD-30 code | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | - | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 |
| JESD-609 code | e0 | e0 | e0 | - | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package form | LONG FORM | LONG FORM | LONG FORM | - | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | - | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 0.4 W | 0.4 W | 0.4 W | - | 0.4 W | 0.4 W | 0.4 W | 0.4 W | 0.4 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 16 V | 3.9 V | 14 V | - | 14 V | 15 V | 16 V | 17 V | 28 V |
| technology | ZENER | ZENER | ZENER | - | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | - | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | - | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage tolerance | 2% | 1% | 10% | - | 1% | 1% | 1% | 2% | 1% |
| Working test current | 1 mA | 20 mA | 1 mA | - | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA |
