DF2L158V35055LF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> DF2L158V35055LF

DF2L158V35055LF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 330V, 20% +Tol, 10% -Tol, 1500uF, Chassis Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size36KB，2 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

DF2L158V35055LF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 330V, 20% +Tol, 10% -Tol, 1500uF, Chassis Mount, RADIAL LEADED

DF2L158V35055LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.5 mA
Manufacturer's serial number	DF
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	330 V
surface mount	NO
Delta tangent	0.1
Terminal surface	Tin (Sn)
Terminal shape	LUG

Preview

Download Datasheet

View All

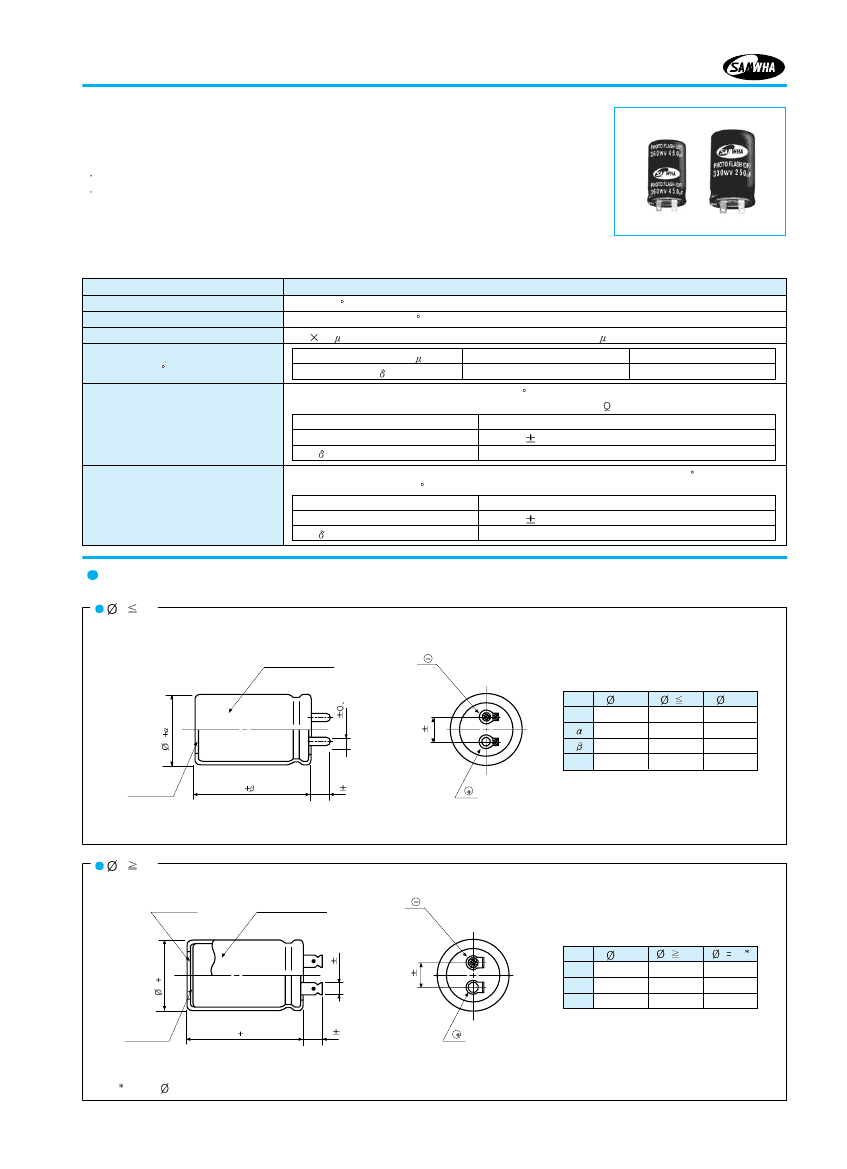

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

For Photo Flash

Series

For photo flash applications with lug terminal

Low dissipation factor, low leakage current and high stability

during the repetition of charge and discharge

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20 C)

Characteristics

-20 ~ +55 C

-10 ~ +20% at 120Hz, 20 C

I=1 C ( A) (after 5 minutes), where C=Nominal capacitance ( F)

Capacitance range( F)

tan

150~600

0.07

601~1500

0.10

Charge and discharge

characteristics

Charge and discharge at rated voltage at 5~35 C with a switch sequence of 30 seconds for 5000

times via xenon flash tube with discharge resistance of 0.7~1.0

Less than 150% of specified value

Leakage current

Within 10% of initial value

Capacitance change

Less than 150% of specified value

tan

This following specifications shall be satisfied when capacitors are restored to 20 C after exposing

them for 1000 hours at 55 C without voltage applied.

Less than 300% of specified value

Leakage current

Within 10% of initial value

Capacitance change

Less than 150% of specified value

tan

Shelf life

DRAWING

Unit : mm

Insulating sleeve

Safety vent

max.

A 1

D=14

1.5

0.5

1.0

5.0

D 18

2.5

0.5

1.0

4.0

D=20

2.5

1.0

2.0

4.0

Bottom plate

Insulating sleeve

max.

D=22

3.5

6.0

8.0

D 25.4

4.5

8.0

10.0

D 40

4.5

11.0

18.0

D 1 max.

A 1

Safety vent

L 2 max.

B 1

Note :

40 is available upon request. Please check with us individual size and dimensions.
