3404.2323.33: DescriptionElectric Fuse, Time Lag Blow, 0.75A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size368KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

3404.2323.33 Overview

Electric Fuse, Time Lag Blow, 0.75A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT

3404.2323.33 Parametric

Parameter Name	Attribute value
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99

Preview

Download Datasheet

View All

Non resettable fuses

www.schurter.com/pg0_2

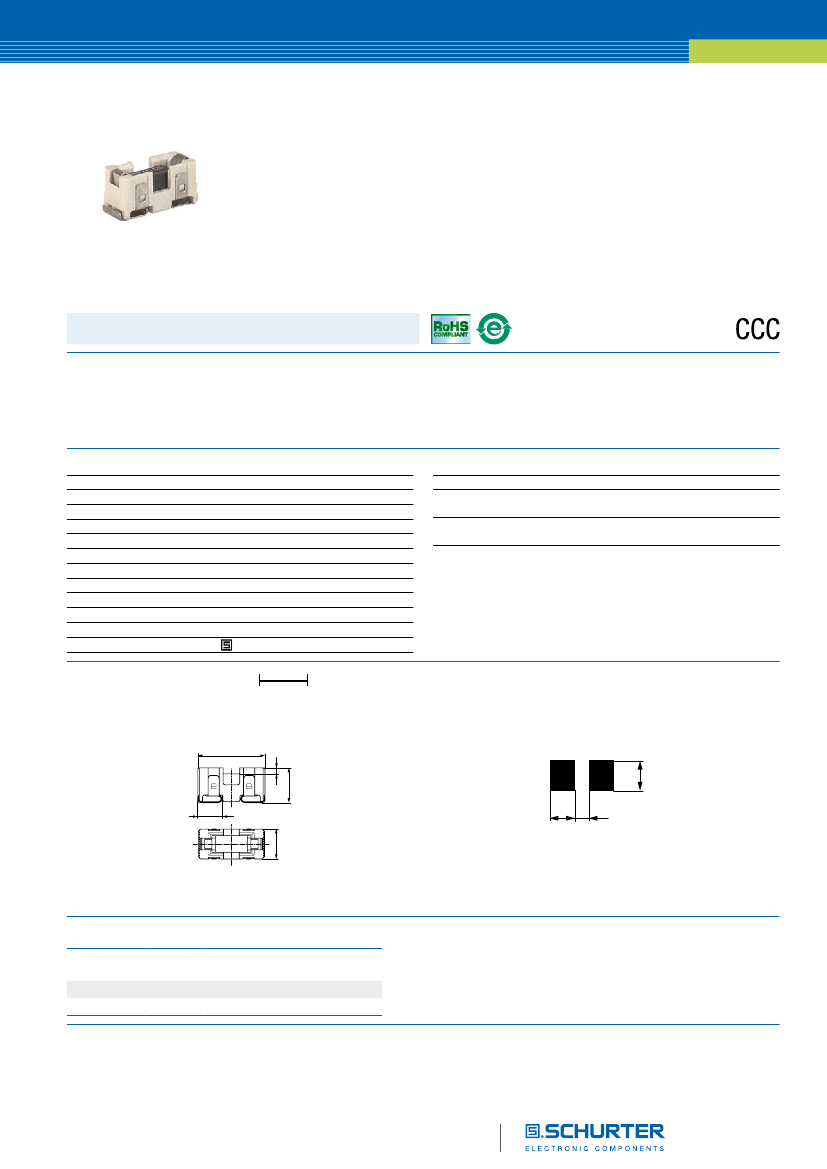

Surface Mount Fuse with Holder, 12 x 5.2 mm, Time-Lag T, 125 VAC, 125 VDC

OMZ 25

UL 248-14 · 125 VAC · 125 VDC · Time-Lag T

Description

Standards

- Directly solderable on printed circuit boards

- OMZ 125 = OMT 125 + OMH 125

- UL 248-14

- CSA C22.2 no. 248.14

References

Weblinks

Packaging Details

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

125 VAC, 125 VDC

0.25 - 5 A

100 A

Time-Lag T

PCB,SMT

-40 °C to 85 °C

40/085/21 acc. to IEC 60068-1

Thermoplastic, UL 94V-0

Tin-Plated Copper

0.47 g

0 °C to 60 °C, max. 70% r.h.

, Type, Current, Approvals

12 mm

Soldering Methods

Solderability

Resistance to Soldering Heat

Reflow

245 °C / 3 sec acc. to IEC 60068-2-58,

Test Td

260 °C / 10 sec acc. to IEC 60068-2-58,

Test Td

Dimensions

12

1.2

6

4.3

5

5.2

3

Soldering pads

Pre-Arcing Time

Rated Current In

0.25 A - 0.375 A

0.5 A - 6.3 A

.0 x In min.

4 h

2.0 x In max.

60 s

8.0 x In min.

2 ms

5 ms

8.0 x In max.

10 ms

100 ms

Fuses

6

3404.2323.33 Related Products

	3404.2323.33	3404.2326.33	3404.2320.33	3404.2321.33	3404.2322.33	3404.2327.33
Description	Electric Fuse, Time Lag Blow, 0.75A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.25A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.375A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.5A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2.5A, 125VAC, 125VDC, 100A (IR), Surface Mount, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	SCHURTER	-	SCHURTER	SCHURTER	SCHURTER	SCHURTER
