SBL30U100-C: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, TO-220AB, HALOGEN FREE, PLASTIC, TO-220, 3 PIN; CategoryDiscrete semiconductor diode; File Size194KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric View All

SBL30U100-C Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, TO-220AB, HALOGEN FREE, PLASTIC, TO-220, 3 PIN

SBL30U100-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SECOS
package instruction	R-PSFM-T3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.74 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	150 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SBL30U100

Elektronische Bauelemente

Voltage 100V 30.0 Amp

Low VF Trench Barrier Schottky Rectifier

RoHS Compliant Product

A suffix of “-C” specifies halogen free

TO-220

FEATURES



Trench

Barrier

Schottky technology

Low forward voltage drop, low power losses.

High current capability

High reliability

High surge current capability

Epitaxial construction

Millimeter

Min.

Max.

14.22

16.51

9.65

10.67

12.50

14.75

3.56

4.90

0.51

1.45

2.03

2.92

0.31

0.76

3.5

4.5

MECHANICAL DATA



REF.

Millimeter

Min.

Max.

0.7

1.78

0.38

1.02

2.39

2.69

2.50

3.43

3.10

4.09

8.38

9.65

0.89

1.45



Case: Molded plastic

Epoxy: UL94V-0 rate flame retardant

Lead: Lead solderable per MIL-STD-202

method 208 guaranteed

Polarity: As Marked

Mounting position: Any

Weight: 1.98 g (Approximate)

REF.







MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%.)

Parameter

Maximum Recurrent Peak Reverse Voltage

Working Peak Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified

Current

Voltage Rate of Chance (Rated V

)

Typical Thermal Resistance

Operating and Storage Temperature Range

(Per Leg)

(Per Device)

Symbol

RRM

RSM

FSM

dv/dt



STG

Rating

100

200

10000

-40~150

Unit

V /

μs

°C /W

°C

Peak Forward Surge Current, 8.3 ms single half sine-wave

ELECTRICAL CHARACTERISTICS

Parameter

Maximum Instantaneous Forward

Voltage

Maximum DC Reverse Current

at Rated DC Blocking Voltage

Typical Junction Capacitance

Symbol

Typ.

0.45

0.61

0.71

0.66

630

Max.

0.48

0.64

0.74

0.15

Unit

Test Condition

= 3A, T

= 25°C

= 10A, T

= 25°C

= 15 A, T

= 25°C

= 15 A, T

= 125°C

=25°C

=100°C

NOTES:

1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.

2. Pulse Test：Pulse Width = 300

μs,

Duty Cycle

≦

2.0%.

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

06-Nov-2013 Rev. B

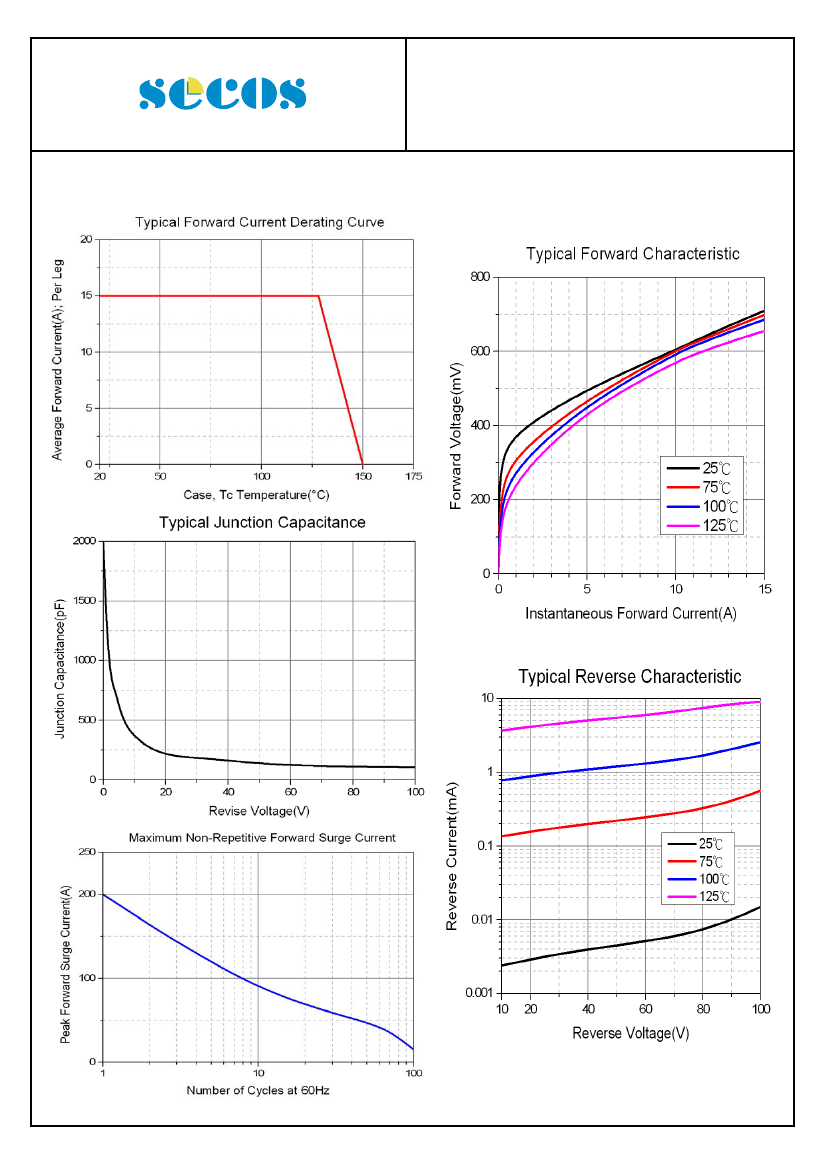

Page 1 of 2
