ZT95 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZT95

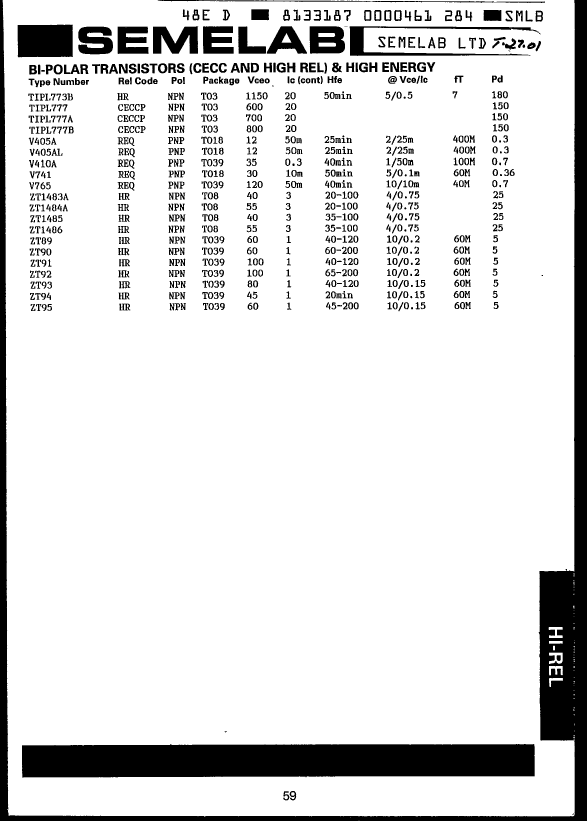

ZT95: Description1A, 60V, NPN, Si, POWER TRANSISTOR, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size20KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

ZT95 Overview

1A, 60V, NPN, Si, POWER TRANSISTOR, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN

ZT95 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	45
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz

Preview

Download Datasheet

View All

ZT95 Related Products

	ZT95	TIPL777	TIPL777B	TIPL777A	ZT91	V405AL	ZT1484A	ZT1483A	ZT92
Description	1A, 60V, NPN, Si, POWER TRANSISTOR, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN	TRANSISTOR,BJT,DARLINGTON,NPN,600V V(BR)CEO,20A I(C),TO-3	TIPL777B	TRANSISTOR,BJT,DARLINGTON,NPN,700V V(BR)CEO,20A I(C),TO-3	1000mA, 100V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-205AD, HERMETIC SEALED, TO-39, 3 PIN	50mA, 12V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-206AA, HERMETIC SEALED, METAL, TO-18, 3 PIN	3A, 55V, NPN, Si, POWER TRANSISTOR, TO-8, TO-8, 3 PIN	3A, 40V, NPN, Si, POWER TRANSISTOR, TO-8, TO-8, 3 PIN	1A, 100V, NPN, Si, POWER TRANSISTOR, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN
package instruction	CYLINDRICAL, O-MBCY-W3	,	,	,	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
Maximum collector current (IC)	1 A	20 A	20 A	20 A	1 A	0.05 A	3 A	3 A	1 A
Configuration	SINGLE	DARLINGTON	DARLINGTON	DARLINGTON	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	PNP	NPN	NPN	NPN
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Is it lead-free?	Contains lead	-	-	-	Contains lead	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	-	-	incompatible	-	incompatible	incompatible	incompatible
Maker	SEMELAB	-	-	-	SEMELAB	SEMELAB	SEMELAB	SEMELAB	SEMELAB
Parts packaging code	BCY	-	-	-	BCY	BCY	TO-8	TO-8	BCY
Contacts	2	-	-	-	2	3	3	3	2
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Collector-emitter maximum voltage	60 V	-	-	-	100 V	12 V	55 V	40 V	100 V
Minimum DC current gain (hFE)	45	-	-	-	40	25	20	20	65
JEDEC-95 code	TO-205AD	-	-	-	TO-205AD	TO-206AA	TO-8	TO-8	TO-205AD
JESD-30 code	O-MBCY-W3	-	-	-	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	-	-	-	1	1	1	1	1
Number of terminals	3	-	-	-	3	3	3	3	3
Package body material	METAL	-	-	-	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	-	-	-	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	-	-	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Terminal form	WIRE	-	-	-	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	-	-	-	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Transistor component materials	SILICON	-	-	-	SILICON	SILICON	SILICON	SILICON	SILICON
