BZW04-273B datasheet, PDF - EEWORLD Datasheet

BZW04-273B: DescriptionTrans Voltage Suppressor Diode, 400W, 273V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN; CategoryDiscrete semiconductor diode; File Size151KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

BZW04-273B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZW04-273B	-	-	View	Buy Now

Trans Voltage Suppressor Diode, 400W, 273V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum breakdown voltage	336 V
Minimum breakdown voltage	304 V
Breakdown voltage nominal value	320 V
Shell connection	ISOLATED
Maximum clamping voltage	438 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AC
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	273 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

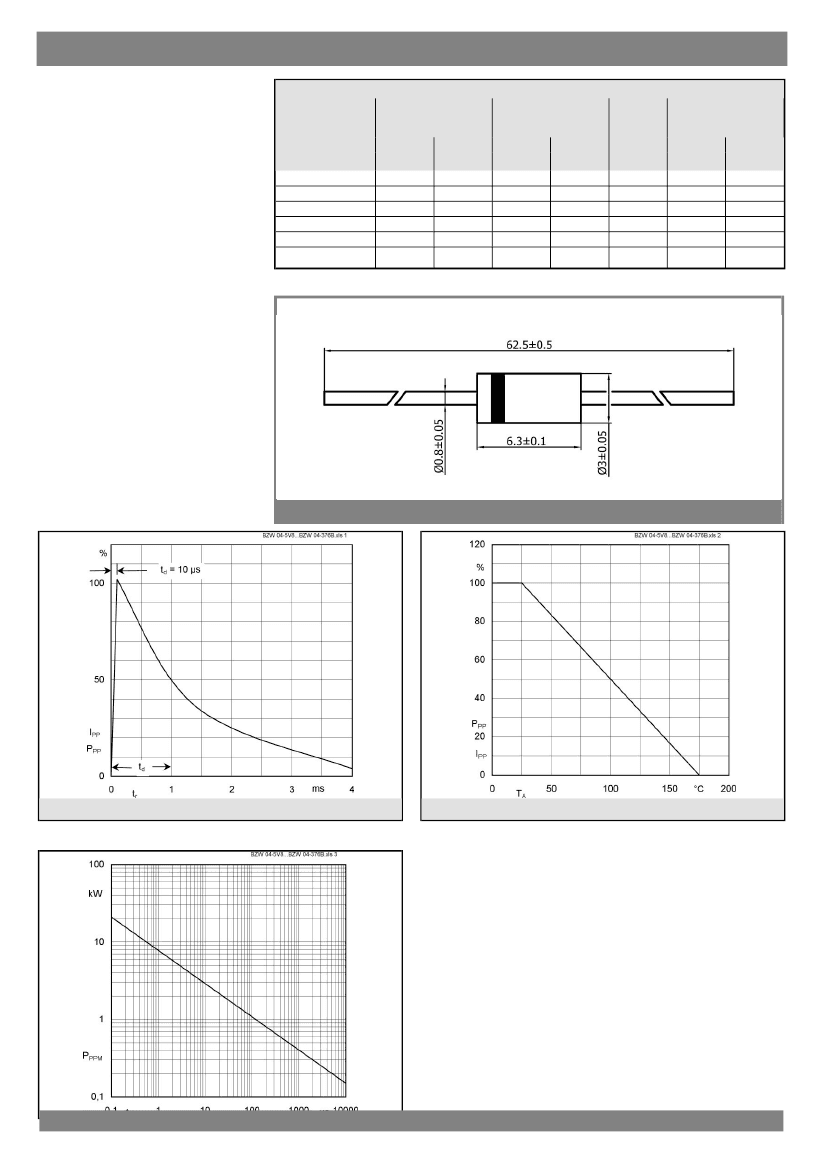

BZW 04-5V8 ... BZW 04-376B

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Axial lead diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

BZW 04-5V8...BZW 04-376B

Pulse Power

Dissipation: 400 W

Stand-off

voltage: 5,8...376 V

Features

Mechanical Data

1)

2)

3)

1

09-03-2007 MAM
