S30R / A30R, S30V / A30V
Vishay Thin Film
Center Tap Chip Resistor
FEATURES
• 30 Mil Square Size.
• Resistance Range:
(Silicon Substrate)
Equal value - 4.7 ohms to 1M total
Unequal value - 4.7 ohms to 500K per resistor
(Alumina Substrate)
Equal value - 4.7 ohms to 52K total
Unequal value - 4.7 ohms to 26K per resistor
• Gold terminations with Tamelox
®
or Tantalum nitride resistor film.
• 4 digit custom marking available
• Low value indicator for unequal values
Actual Size
Center tap chip resistors allow for greater flexibility of hybrid
layout design by utilizing the smallest area for two resistors.
Since both resistors are from the same film system, excellent
tracking is inherent in the chip. Connecting to the center tap
yields half the value: connecting the two resistors in parallel
results in one quarter value on equal value resistor styles.
TYPICAL PERFORMANCE
ABS
TCR
TOL
50
1

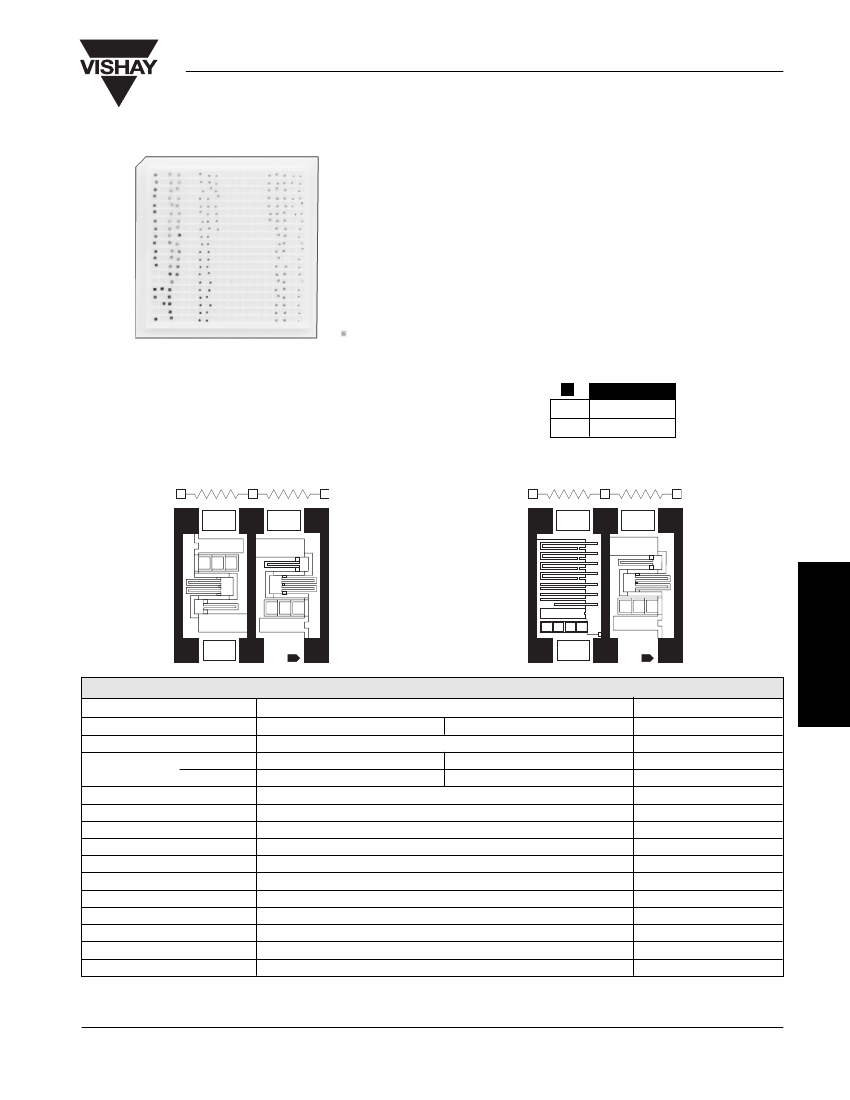

CHIP DIAGRAM
Equal Value (S30R, A30R series)
Unequal value (S30V, A30V series)
HYBRID
STANDARD ELECTRICAL SPECIFICATIONS
TEST
MATERIAL
Resistance Range
TCR:
Tracking
Absolute
Absolute Tolerance:
Resistance Ratio Accuracy
Power Rating:
Stability (
∆
R Ratio)
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability
TAMELOX®
4.7 - 1M ohm Silicon
±
2ppm/°C
±
50ppm/°C
±
20% to
±
0.1%
±
2% Standard
250mW
Less than 0.1% Max.
∆R/R
> 5ppm/Volt
100V Max. all styles
- 55°C to + 125°C
- 55°C to + 125°C
- 35dB
0.08µV/°C
100ppm
1 Year @ +25°C
(0.05% typical)
@ + 70°C
2,000 hrs. @ +70°C
SPECIFICATIONS
TANTALUM NITRIDE
4.7 - 52K ohms alumina
±5ppm/°C
±100ppm/°C
- 55°C to +125°C
- 55°C to +125°C
CONDITIONS
VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121
• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988
• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081
Document Number: 60073
Revision 01-May-03
www.vishay.com
165
S30R / A30R, S30V / A30V
Vishay Thin Film
DIMENSIONS
SUBSTRATE
Thickness (Mils)
ALUMINA
1
10
±
2
None
Gold (15,000 Å)
30 x 30
±
3 MIL
4 Mils Square Min.
SILICON
14
±
2
SiO
2
(10,000 Å Min.)
Gold (15,000 Å)
30 x 30
±
3 MIL
4 Mils Square Min.
Center Tap Chip Resistor
X
X
T
Isolation Layer
Metallization
Die Size (X)
Terminations
Packaging Standard 2" Square Waffle Pack (400 Max. per Package)
1
Alumina has the benefit of the higher thermal conductivity
and superior high frequency characteristics, however the
resistance range is limited by the poorer line resolution
versus silicon, because of the surface finish.
MECHANICAL SPECIFICATIONS
Resistive Element
Termination Pads
Substrate Material
Tamelox®
Gold
Silicon or Alumina
HYBRID
FULL LOT TRACEABILITY TO WAFER LEVEL
Visual Criteria
Thermal Shock (MIL-STD-202, Method 107, Test Condition C)
High Temperature Exposure (125°C, 100 Hours in Air)
Low Temperature Operation (MIL-PRF-55342 Paragraph 4.7.4)
Moisture Resistance (MIL-STD-202 Method 106)
Short Time Overload (5 x Rated Power 25°C, 5 sec.)
Resistance Ratio Accuracy
MIL-STD-833 Method 2032 Class H
0.05% Max.
∆R/R
(0.02% Typical)
0.10% Max.
∆R/R
(0.07% Typical)
0.05% Max.
∆R/R
(0.025% Typical)
0.25% Max.
∆R/R
(0.05% Typical)
0.25% Max.
∆R/R
(0.05% Typical)
±
2% Standard or
±
0.1 ohm whichever is greater (0.05% available)
VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121
• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988
• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081
www.vishay.com
166
Document Number: 60073
Revision 01-May-03
S30R / A30R, S30V / A30V
Center Tap Chip Resistor
How to Order
Substrate
S
= Silicon
(Si0
2
)
Chip
Type/Size
Center Tap
Chip Resistors
30R
= (0.030 x 0.030),
Equal value
A
= Alumina
Al
2
O
3
(99.6%
purity)
30V
= (0.030 x 0.030)
Unequal Value
Ratio
Tolerance
S
=
±2.0%
(Standard)
A
=
±1.0%
D
=
±0.5%
C
=
±0.2%
B
=
±0.1%
N
=
Not Applicable
TCR
Characteristic
Ohmic
Value
The first three digits
are significant figures
and the last digit
specifies the number
of zeros to follow.
Example:
1R00
= 1 ohm
10R0
= 10 ohms
12R5
= 12.5 ohms
1000
= 100 ohms
1001
= 1000 ohms
NOTE:
For Unequal values
(S30V, S30I Styles)
List Both Nominals
Example:
25K/10K = 2502/1002
Max. Value/Resistor
on Alumina is:
A30 26K/26K
Tamelox
®
Film
Absolute
Tolerance
Element
Technology
Vishay Thin Film
E
=
±25
ppm/°C
C
=
±50
ppm/°C
K =
±
100ppm/°C
NOTES:
Best available
under 100 ohms
±100
ppm/°C
B
=
±0.1%
N
= Tamelox
®
C
=
±0.2%
Gold Pads
D
=
±0.5%
T
= Ta
2
N with
F
=
±1.0%
Gold Pads
G
=
±2.0%
J
=
±5.0%
M
= Values
less than 10
ohms use
±1
ohm
X
= Special
Example: S3ORSC1002FN
is a 30 mil square center tap chip resistor on silicon with a TCR of
±50
ppm/°C, resistance value
of 10K ohms, and absolute tolerance of
±1%,
Tamelox
®
Resistor Film. Gold pads.
HYBRID
VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121
• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988
• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081
Document Number: 60073
Revision 01-May-03
www.vishay.com
167
