SAW Components
SAW filter
Short range devices
Series/type:
Ordering code:
Date:
Version:
B3909
B39431B3909U410
December 11, 2012
2.1
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW filter
Data sheet
Application
s
Low-loss RF filter for remote control receivers
s
No matching network required for operation at 50
Ω
B3909
429.45 MHz
Features
s
s
s
s
s
s
s
s
s
s

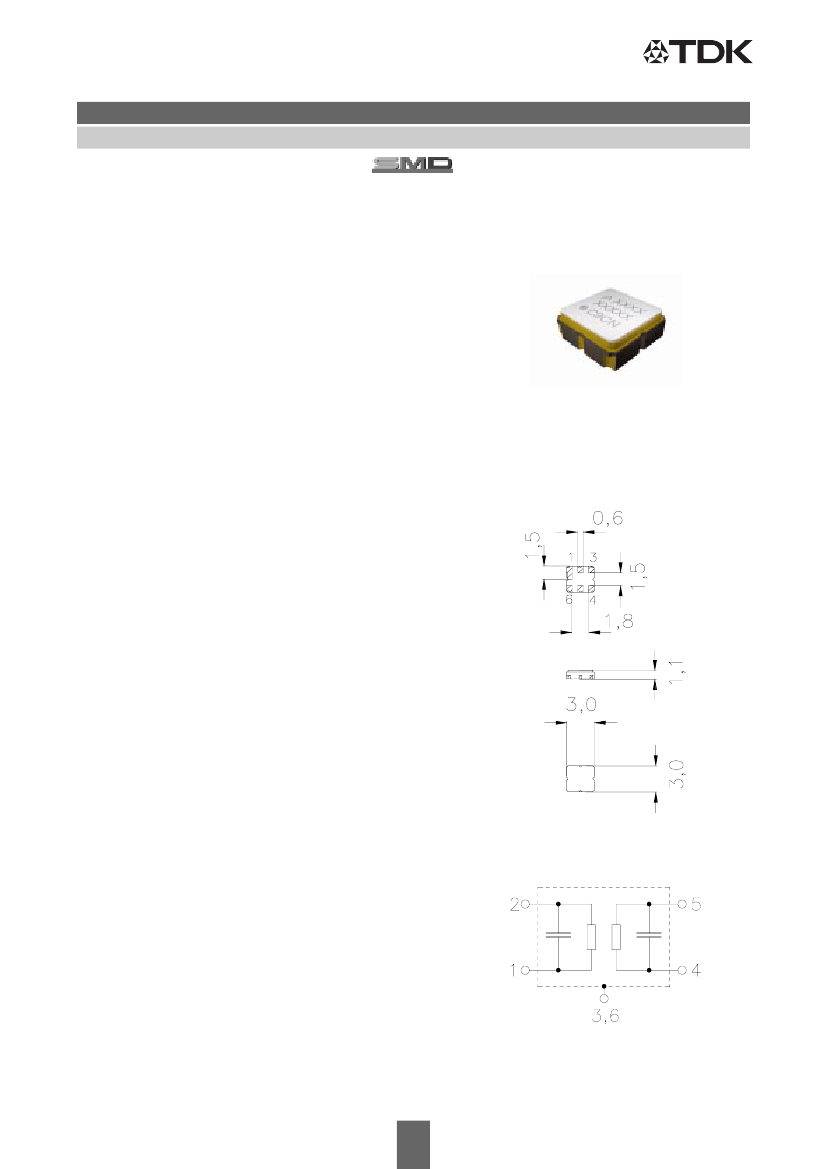

Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer Elpas
AEC-Q200 qualified component family
Electrostactic Sensitive Device
(ESD)
Pin configuration
s
2
s
5
s
1, 3, 4, 6
Input
Output
Ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 11, 2012
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
429.45
max.
—
B3909
429.45 MHz
MHz
Maximum insertion attenuation
α
max
429.15 ... 429.75 MHz
Amplitude ripple
(p-p)
∆α
429.15 ... 429.75 MHz
Input VSWR
429.15 ... 429.75 MHz
Output VSWR
429.15 ... 429.75 MHz
Attenuation
10.00
380.00
408.50
418.00
422.50
435.00
440.00
460.00
700.00
1000.00
2000.00
...
...
...
...
...
...
...
...
...
...
...
380.00
408.50
418.00
422.50
424.50
440.00
460.00
700.00
1000.00
2000.00
2500.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
2.2
2.7
dB
—
0.4
1.0
dB
—
—
1.4
1.4
1.8
1.8
60
50
46
30
8
10
30
52
46
33
18
65
55
51
34
15
19
35
57
50
38
21
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 11, 2012
SAW Components
SAW filter
Data sheet
B3909
429.45 MHz
Maximum ratings
Operable temperature range T
Storage temperature range
DC voltage
Source power
T
stg
V
DC
P
S
–45/+125 ˚C
–45/+125 ˚C
6
V
13
dBm
source impedance 50
Ω
Please read
cautions and warnings and
important notes
at the end of this document.
4
December 11, 2012
SAW Components
SAW filter
Data sheet

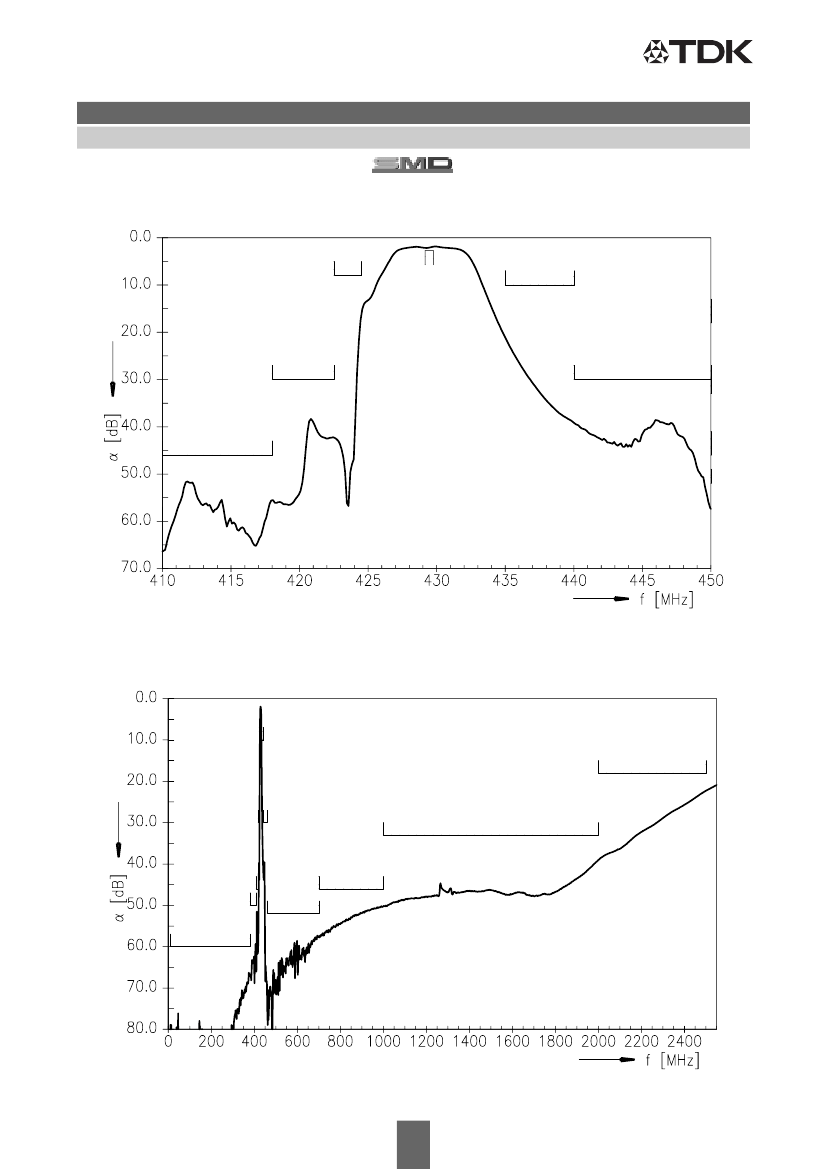

Transfer function
B3909
429.45 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
December 11, 2012
