SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for remote control receivers
s
No matching network required for operation at 50
Ω
B3402
433.92 MHz
Features
s
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.0 mm
3
Package code DCC6E
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer Elpas
AEC-Q200 qualified component family
Electrostactic Sensitive Device
(ESD)
Pin configuration
1)
s
s
s
s
s
1
2
4
5
3,6
Input (recommended) or input ground
Input ground (recommended) or input
Output (recommended) or output ground
Output ground (recommended) or output
Ground (case)
1) The recommended pin configuration usually offers best
suppression of electrical crosstalk. The filter characteris-
tics refer to this configuration.
Please read
cautions and warnings and
important notes
at the end of this document.
2
January 17, 2014
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +110 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
433.92
max.
—
B3402
433.92 MHz
MHz
Maximum insertion attenuation
α
max
433.77 ... 434.07 MHz
Amplitude ripple
(p-p)
∆α
433.77 ... 434.07 MHz
VSWR
Input
Output
Attenuation
10.00
350.00
390.00
415.00
443.92
460.00
500.00
710.00
770.00
1000.00
1500.00
2000.00
1)
—
1.7
2.1
1)
dB
—
0.2
0.6
dB
433.77 ... 434.07 MHz
433.77 ... 434.07 MHz
α
...
...
...
...
...
...
...
...
...
...
...
...
350.00
390.00
415.00
423.92
460.00
500.00
710.00
770.00
1000.00
1500.00
2000.00
2500.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
—
—
1.3
1.3
1.8
1.8
65
58
46
35
28
48
49
46
42
35
34
36
74
65
55
50
36
58
55
53
48
43
42
45
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
2.0dB max. at -40 to +85
˚C
Maximum ratings
Operable temperature range T
Storage temperature range T
stg
DC voltage
V
DC
Source power
P
S
–45/+125 ˚C
–45/+125 ˚C
6
V
13
dBm
source impedance 50
Ω
Please read
cautions and warnings and
important notes
at the end of this document.
3
January 17, 2014
SAW Components
SAW RF filter
Data sheet

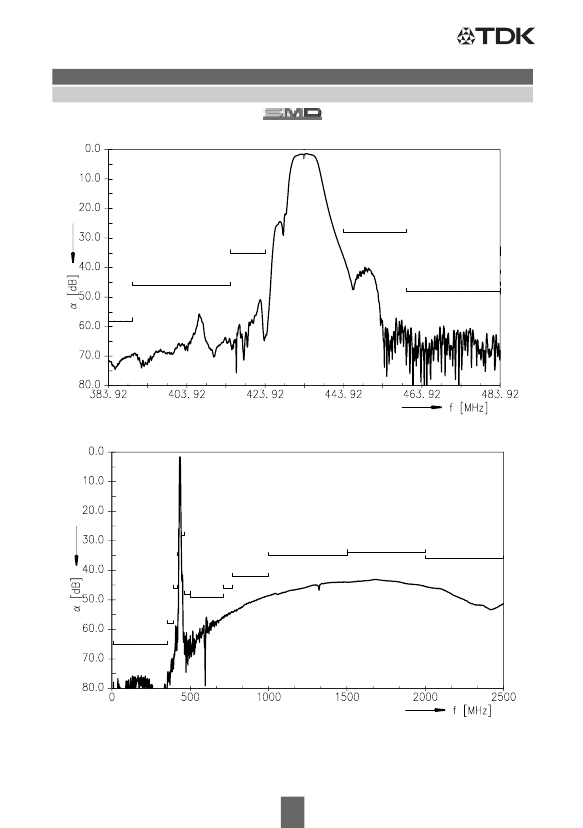

Transfer function
B3402
433.92 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
4
January 17, 2014
SAW Components
SAW RF filter
Data sheet
ESD protection of SAW filters
B3402
433.92 MHz
SAW filters are
Electro Static Discharge
sensitive devices. To reduce the probability of damages
caused by ESD, special matching topologies have to be applied.
In general, “ESD matching” has to be ensured at that filter port, where electrostatic discharge is
expected.
Electrostatic discharges predominantly appear at the antenna input of RF receivers. Therefore
only the input matching of the SAW filter has to be designed to short circuit or to block the ESD
pulse.
Below three figures show recommended “ESD matching” topologies.
For wideband filters the high-pass ESD matching structure needs to be at least of 3
rd
order to
ensure a proper matching for any impedance value of antenna and SAW filter input. The required
component values have to be determined from case to case.
Cs1
Cs3
Cs1
Cs3
MLC1
Dp1
Lp2
to output
matching
Lp2
to output
matching
Fig. 1 MLC varistor plus ESD matching
Fig. 2 Suppressor diode plus ESD matching
In cases where minor ESD occur, following simplified “ESD matching” topologies can be used
alternatively.
Cs1
Cs3
Lp2
to output
matching
Fig. 3 3
rd
order high-pass structure for basic ESD protection
In all three figures the shunt inductor Lp2 could be replaced by a shorted microstrip with proper
length and width. If this configuration is possible depends on the operating frequency and
available pcb space.
Effectiveness of the applied ESD protection has to be checked according to relevant industry
standards or customer specific requirements
For further information, please refer to EPCOS Application report:
“ESD
protection for SAW filters”.
This report can be found under www.epcos.com/rke.Click on “Applications Notes”.
Please read
cautions and warnings and
important notes
at the end of this document.
5
January 17, 2014
