C A P A C I T O R S

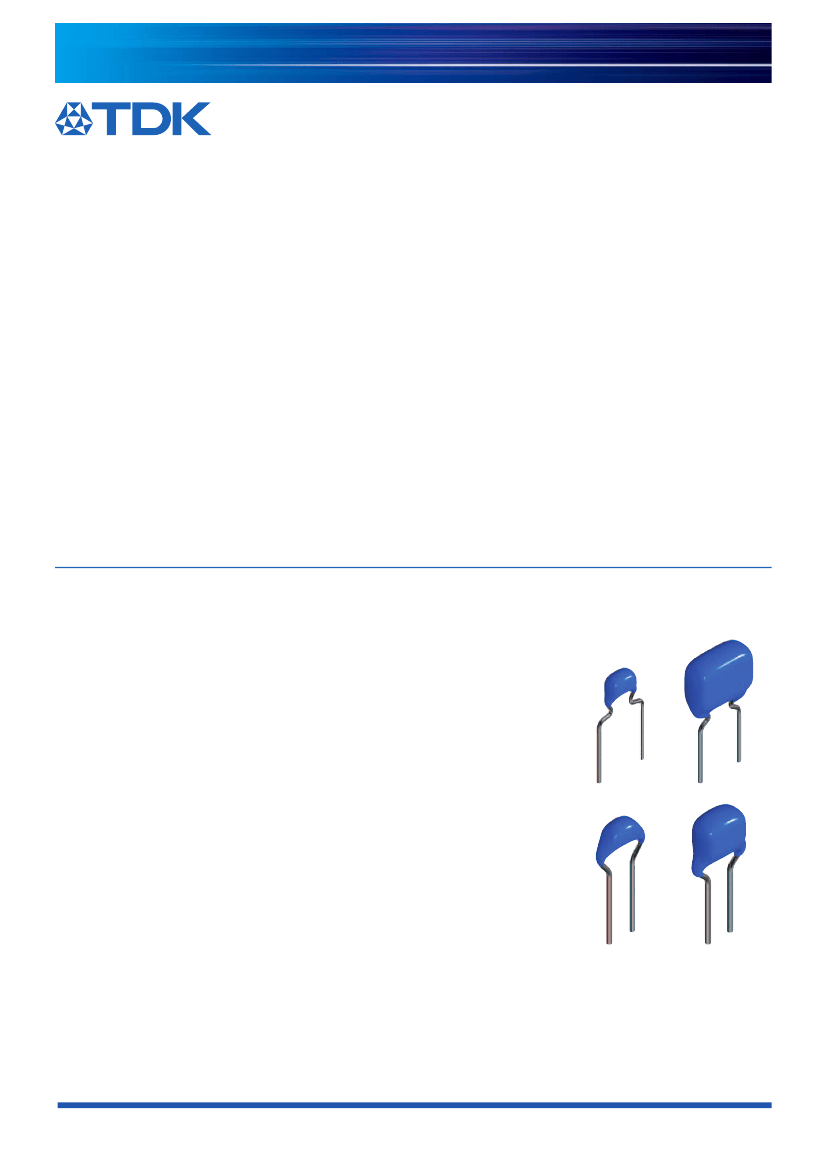

MLCC with dipped radial lead
Product compatible with RoHS directive
Halogen-free
Halogen-free, automotive grade, high temperature application
Overview of the FA series
FEATURES
A lineup with a rated voltage of 25V to 630V.
Compatible with a wide capacitance range of 10pF to 4.7µF.
For guaranteed applications withstanding rigorous temperature environments of up to 150°C.
The FA series for automotive use is AEC-Q200 compliant.
APPLICATION
Noise reduction measures for various motors for automotive use
Resonant circuits in areas such as keyless entry systems
Bypass capacitors such as for switching power sources, smoothing capacitors, etc.
Snubber circuits
PFC input filters
PART NUMBER CONSTRUCTION
FA
Series
name
2
Lead pitch
(mm)
1
2
2.5
5.0
8
4
6
0
1
2
3
8
LxWxT
dimensions
(mm)
4.0x5.5x2.5
4.5x5.5x3.0
5.5x6.0x3.5
5.5x7.0x4.0
5.5x7.0x4.0
7.5x8.5x4.5
8.5x11.0x5.5
NP0
Capacitance
temperature
characteristics
NP0 0±30ppm/°C
X8R
±15%
1H
Rated
voltage
(V)
1E
25
1H
50
2A 100
2E 250
2W 450
2J 630
100
Nominal
capacitance
100 10pF
101 100pF
102 1,000pF
105
1uF
D
Capacitance
tolerance
D
J
K
±0.5pF
±5%
±10%
□□□
Internal
code
□
Packaging
style
0
6
Bulk
Taping
Applicable capacitance range: Max. 10 pF for D, over 10 pF for J and K.
Applied
to the TDK’s standard specification products.
OPERATING TEMPERATURE RANGE
Temperature range
Operating temperature
Storage temperature
(°C)
(°C)
NP0, X8R
–55 to +150
–55 to +150
The maximum operating temperature includes capacitor self-generated heat of up to 20°C.
The storage temperature range is for after the circuit board is mounted.
Capacitance temperature
characteristics
RoHS Directive Compliant Product: See the following for more details. https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180301 / leadmlcc_halogenfree_fa150_en.fm
