8D011W99BA

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size349KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric View All

8D011W99BA Overview

MIL Series Connector,

8D011W99BA Parametric

Parameter NameAttribute value
MakerSOURIAU
Reach Compliance Codeunknow

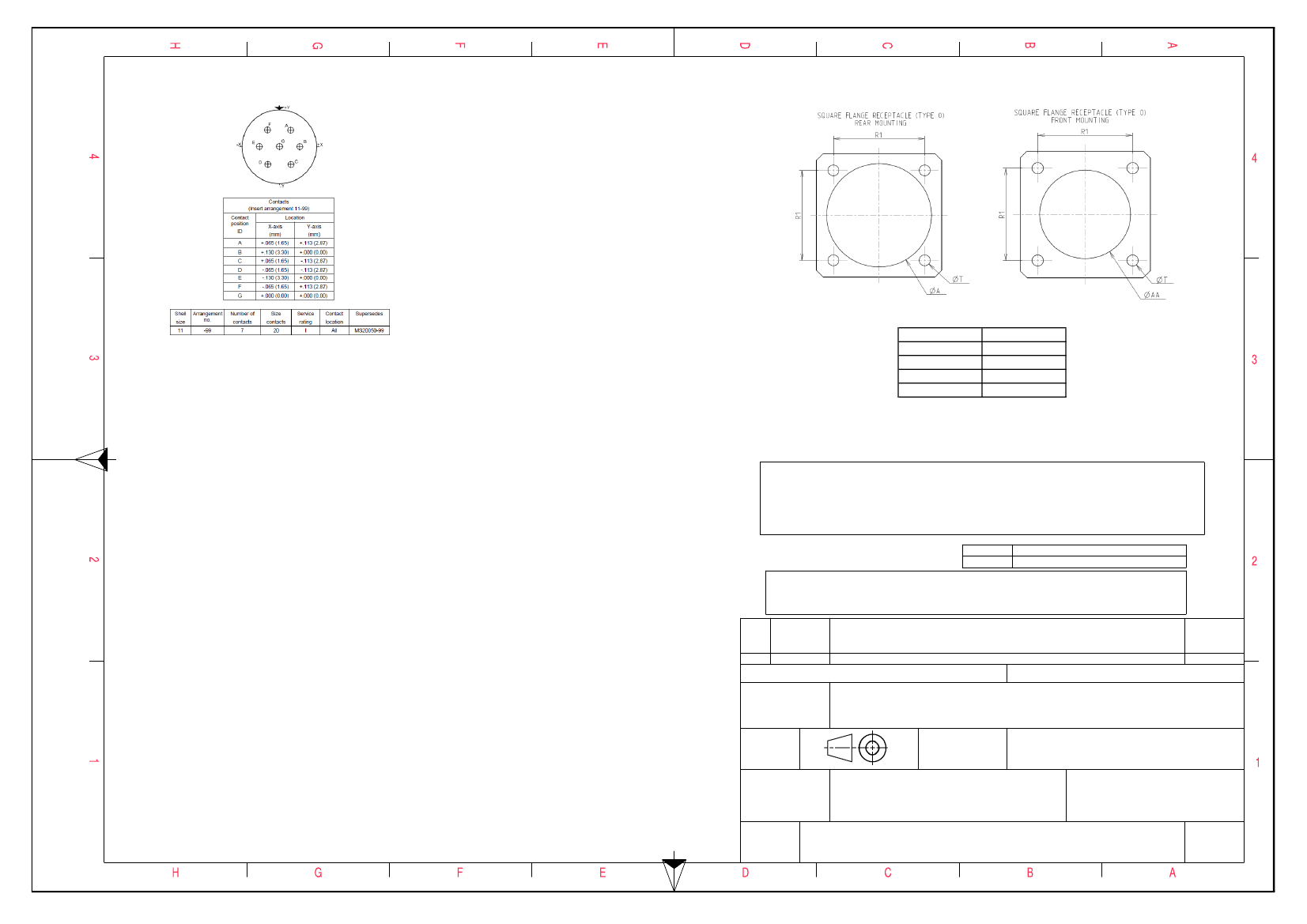

LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Olive drab Cadmium
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
P
3.25±0.2
PP
4.93±0.2
R1
20.62
R2
18.26
S
26.2±0.3
V
20.83+0/-1.25
W
2.1/2.5
Z
31.5 Max
VV THREAD
M15x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +175°C
: 500 hours
: 15.12 g ± 10%
PN: 8D011W99BA
A
ISS
08-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°

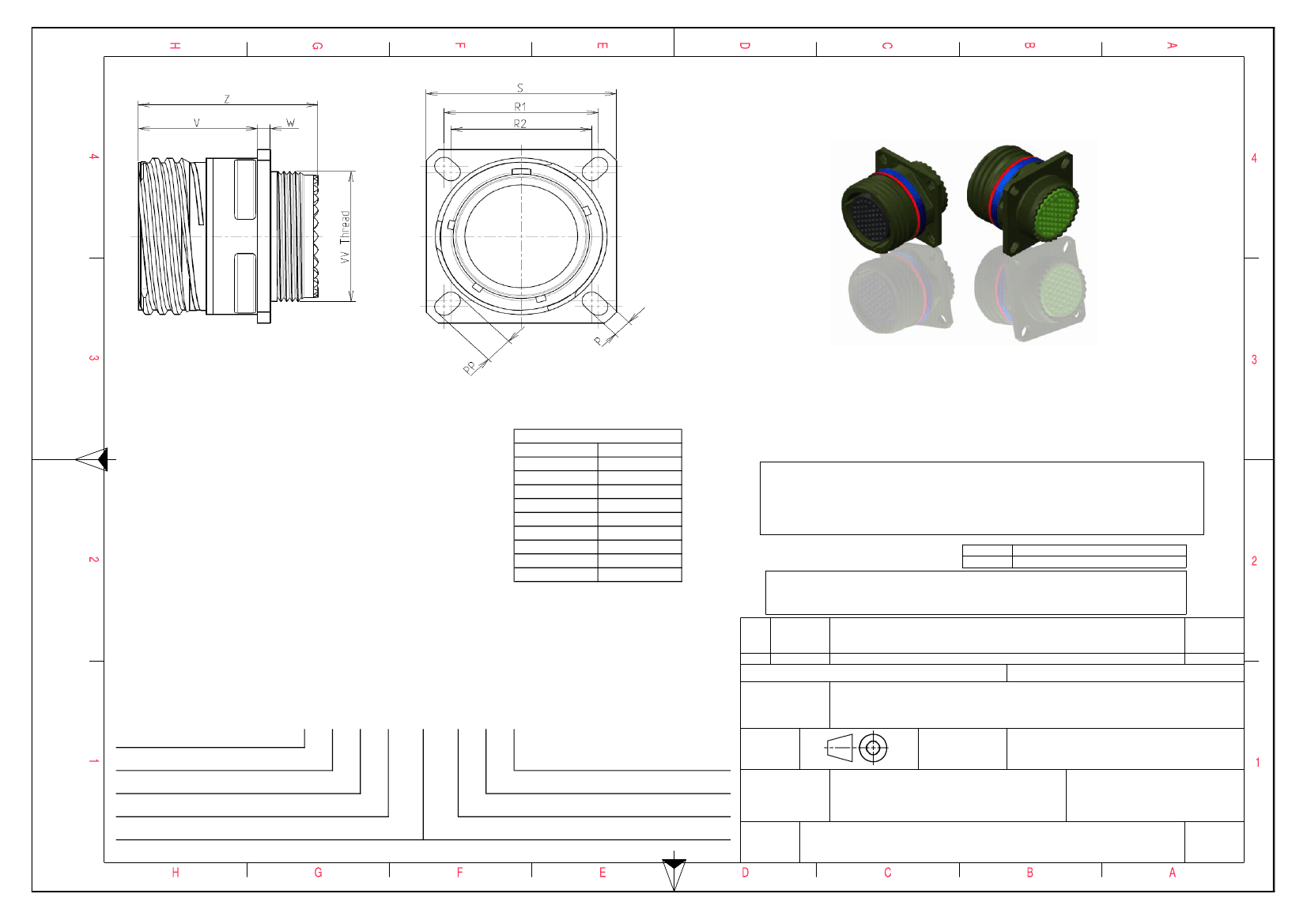

CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
8D
0
-
11
W
99
B
A
SCALE
Aluminium Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
SHELL TYPE : Square Flange Receptacle
CONTACT TYPE
SHELL SIZE : 11
PLATING
:
W =
Olive drab Cadmium
: Standard Crimp Contact
ORIENTATION : A
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 11-99
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D011W99BA-C
SHEET
1/2
