8D017W26PN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D017W26PN

8D017W26PN: DescriptionMIL Series Connector, 26 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size392KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D017W26PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8D017W26PN	-	-	View	Buy Now

8D017W26PN Overview

MIL Series Connector, 26 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

8D017W26PN Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknow
ECCN code	EAR99

Preview

Download Datasheet

View All

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Olive drab Cadmium

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

3.25±0.2

4.39±0.2

26.97

24.61

33.3±0.3

20.83+0/-1.25

2.1/2.5

31.5 Max

VV THREAD

M25x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +175°C

: 500 hours

: 27.78 g ± 10%

PN: 8D017W26PN

ISS

24-09-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

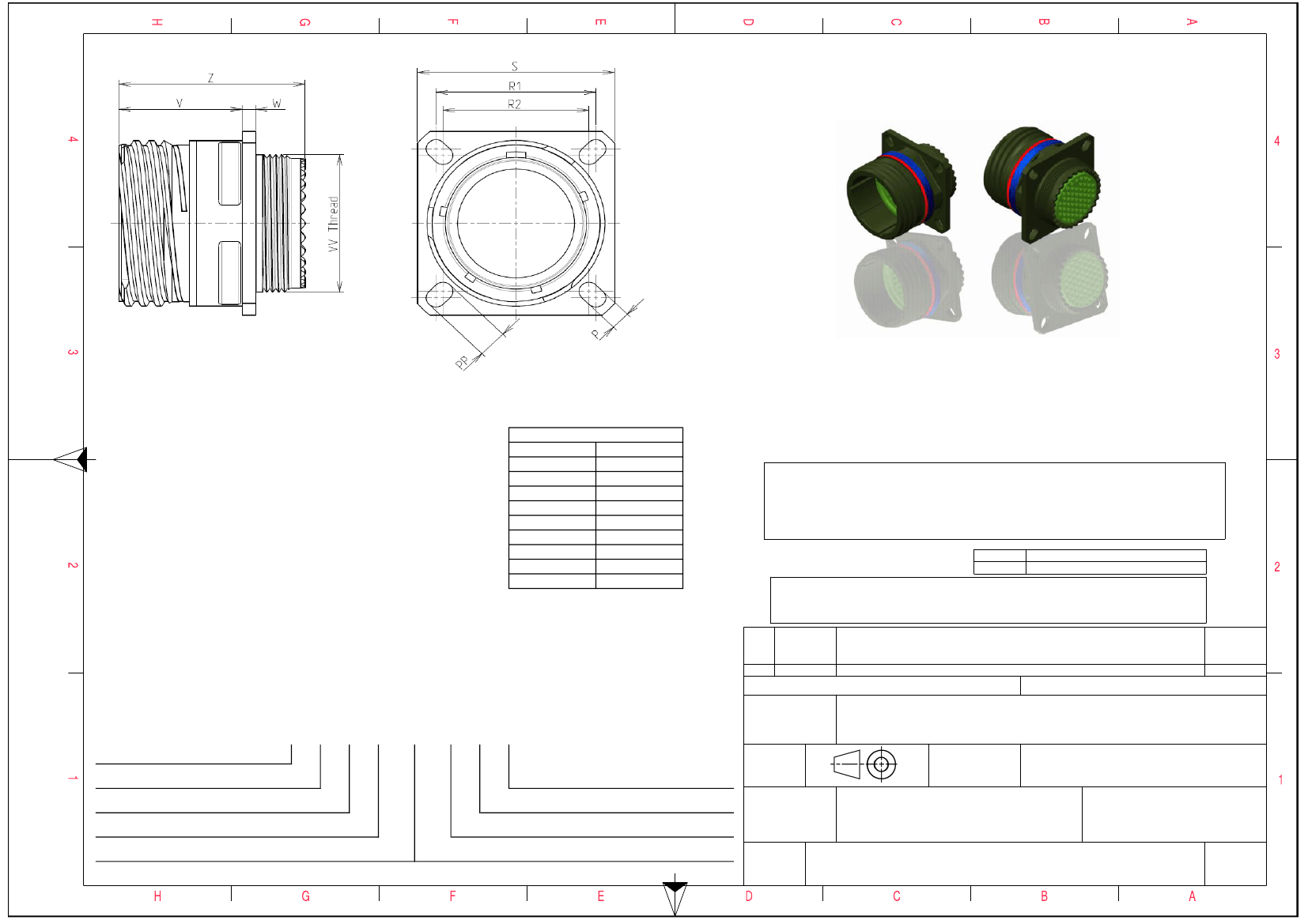

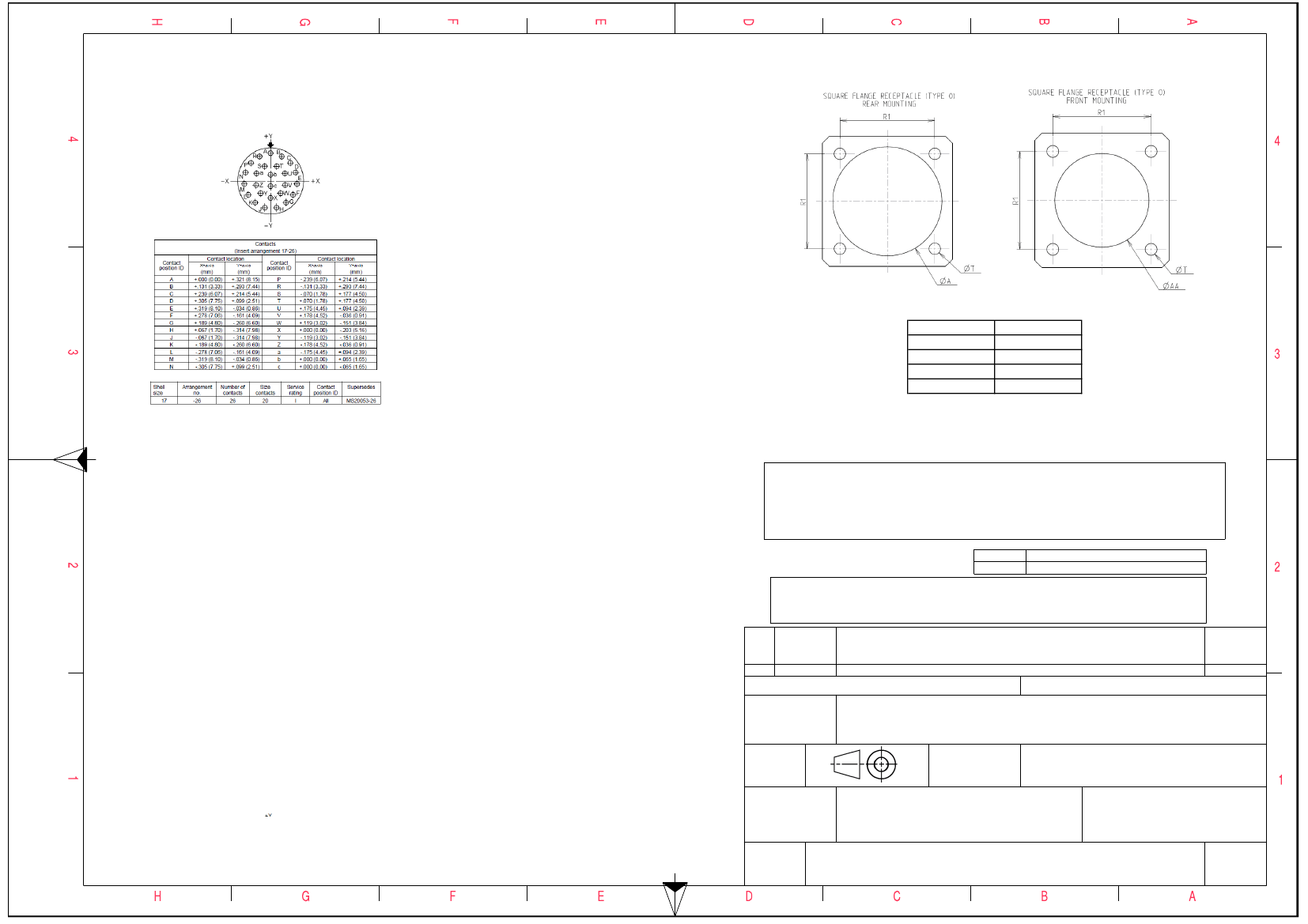

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SCALE

Aluminium Receptacle 8D series

General linear

Tolerances:

±--

NPRDS / PROJECT

SHELL TYPE : Square Flange Receptacle

CONTACT TYPE

SHELL SIZE : 17

PLATING

W =

Olive drab Cadmium

: Standard Crimp Contact

ORIENTATION : N

CONTACT TYPE : PIN(500 Matings)

CONTACT LAYOUT : 17-26

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

FORMAT

WWW.SOURIAU.COM

SOURIAU DRG N°

8D017W26PN-C

SHEET

1/2
