8D019M11SDL

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size352KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric View All

8D019M11SDL Overview

MIL Series Connector,

8D019M11SDL Parametric

Parameter NameAttribute value
MakerSOURIAU
Reach Compliance Codeunknow
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Composite
: Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
P
3.25±0.2
PP
4.93±0.2
R1
29.36
R2
26.97
S
36.5±0.3
V'
19.5+1.4/-0
W'
2.1/3.65
Z'
32 Max
VV THREAD
M28x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered without Souriau contacts
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 2000 hours
: 31.1 g ± 10%
PN: 8D019M11SDL
A
ISS
08-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°

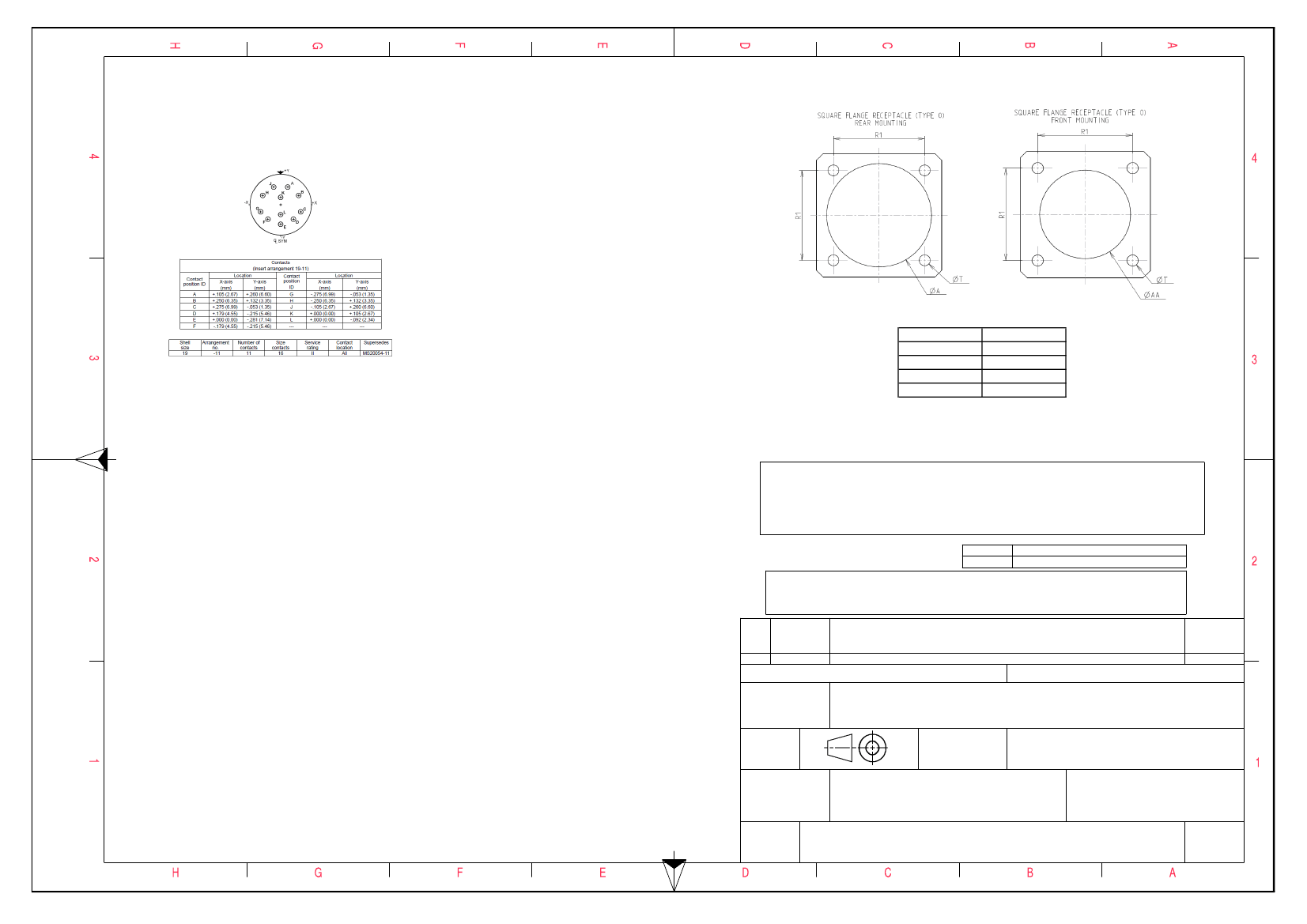

CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
8D
0
-
19
M
11
S
D
L
Delivered W/O Contacts
ORIENTATION : D
CONTACT TYPE : SOCKET(500 Matings)
Nickel
CONTACT LAYOUT : 19-11
FORMAT
Composite Receptacle 8D series
General linear
Tolerances:
±--
SCALE
NPRDS / PROJECT
SHELL TYPE : Square Flange Receptacle
CONTACT TYPE
SHELL SIZE : 19
PLATING
:
M =
: Standard Crimp Contact
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D019M11SDL-C
SHEET
1/2
