8D021W41AA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D021W41AA

8D021W41AA: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size355KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D021W41AA Overview

MIL Series Connector,

8D021W41AA Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

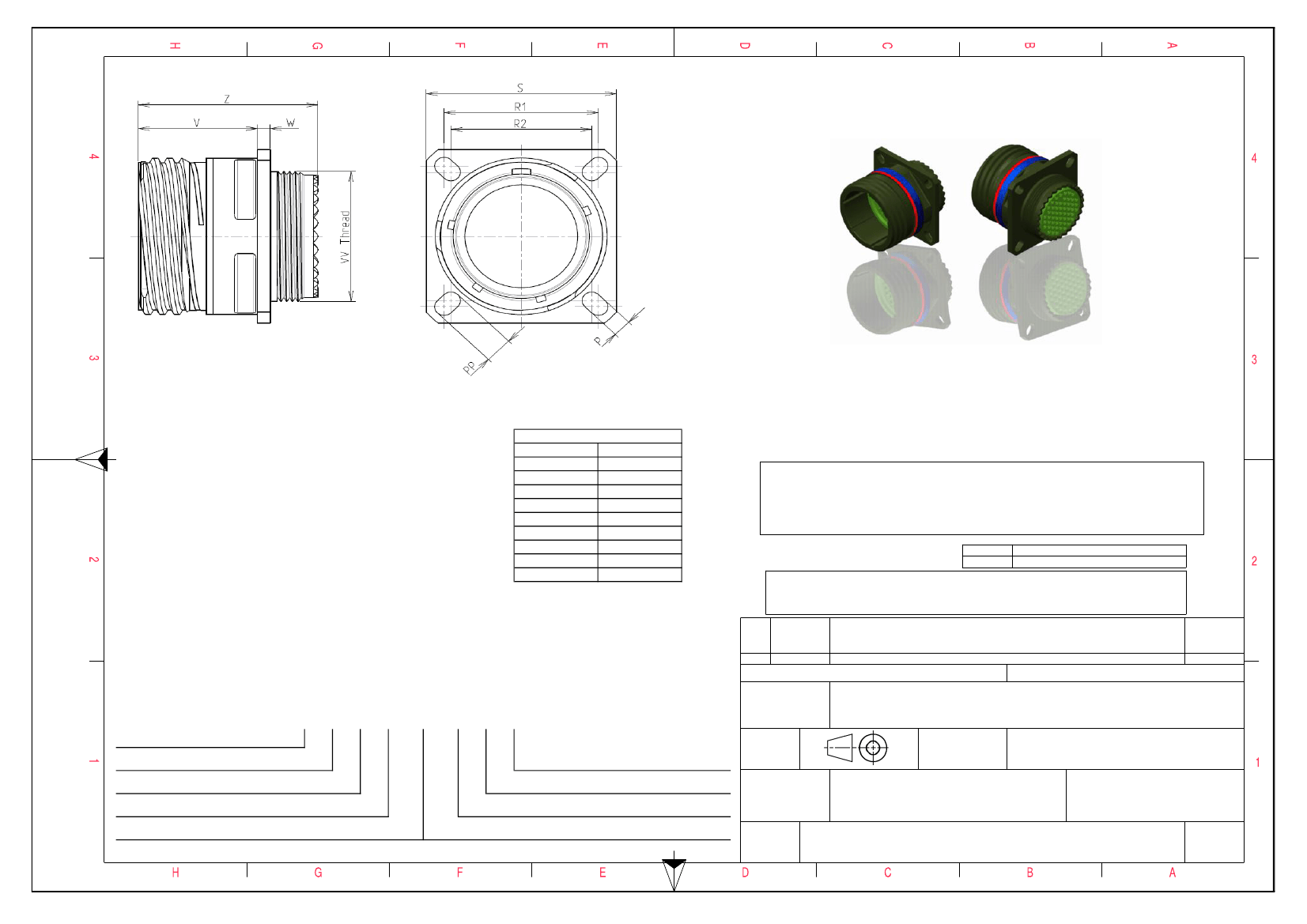

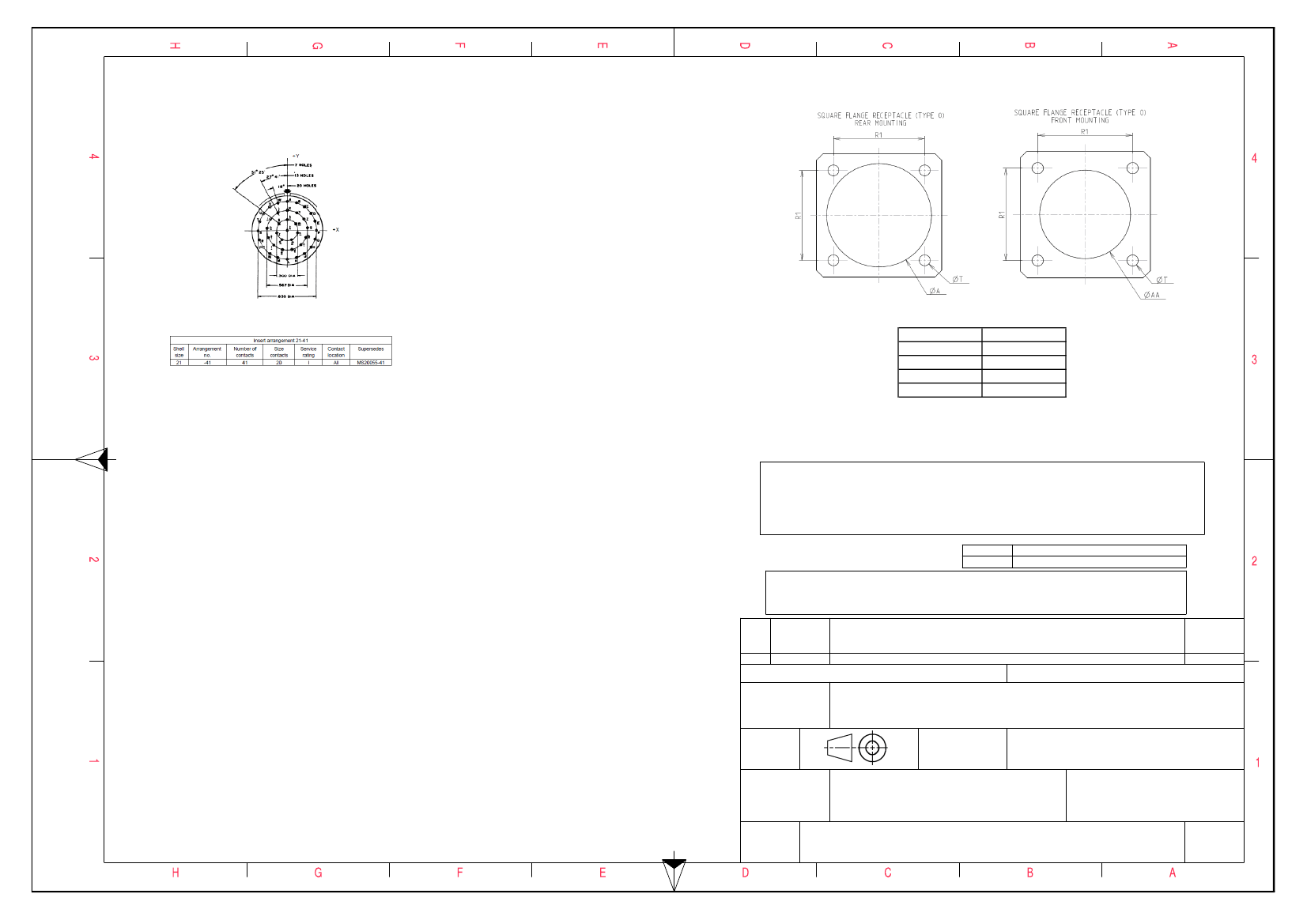

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Olive drab Cadmium

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

3.25±0.2

4.93±0.2

31.75

29.36

39.7±0.3

20.07+0/-1.25

2.1/3.2

31.5 Max

VV THREAD

M31x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +175°C

: 500 hours

: 36.61 g ± 10%

PN: 8D021W41AA

ISS

03-11-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SCALE

Aluminium Receptacle 8D series

General linear

Tolerances:

±--

NPRDS / PROJECT

SHELL TYPE : Square Flange Receptacle

CONTACT TYPE

SHELL SIZE : 21

PLATING

W =

Olive drab Cadmium

: Standard Crimp Contact

ORIENTATION : A

CONTACT TYPE : PIN(500 Matings)

CONTACT LAYOUT : 21-41

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

FORMAT

WWW.SOURIAU.COM

SOURIAU DRG N°

8D021W41AA-C

SHEET

1/2
