8D511S99BN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D511S99BN

8D511S99BN: DescriptionMIL Series Connector, 7 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size348KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D511S99BN Overview

MIL Series Connector, 7 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug,

8D511S99BN Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

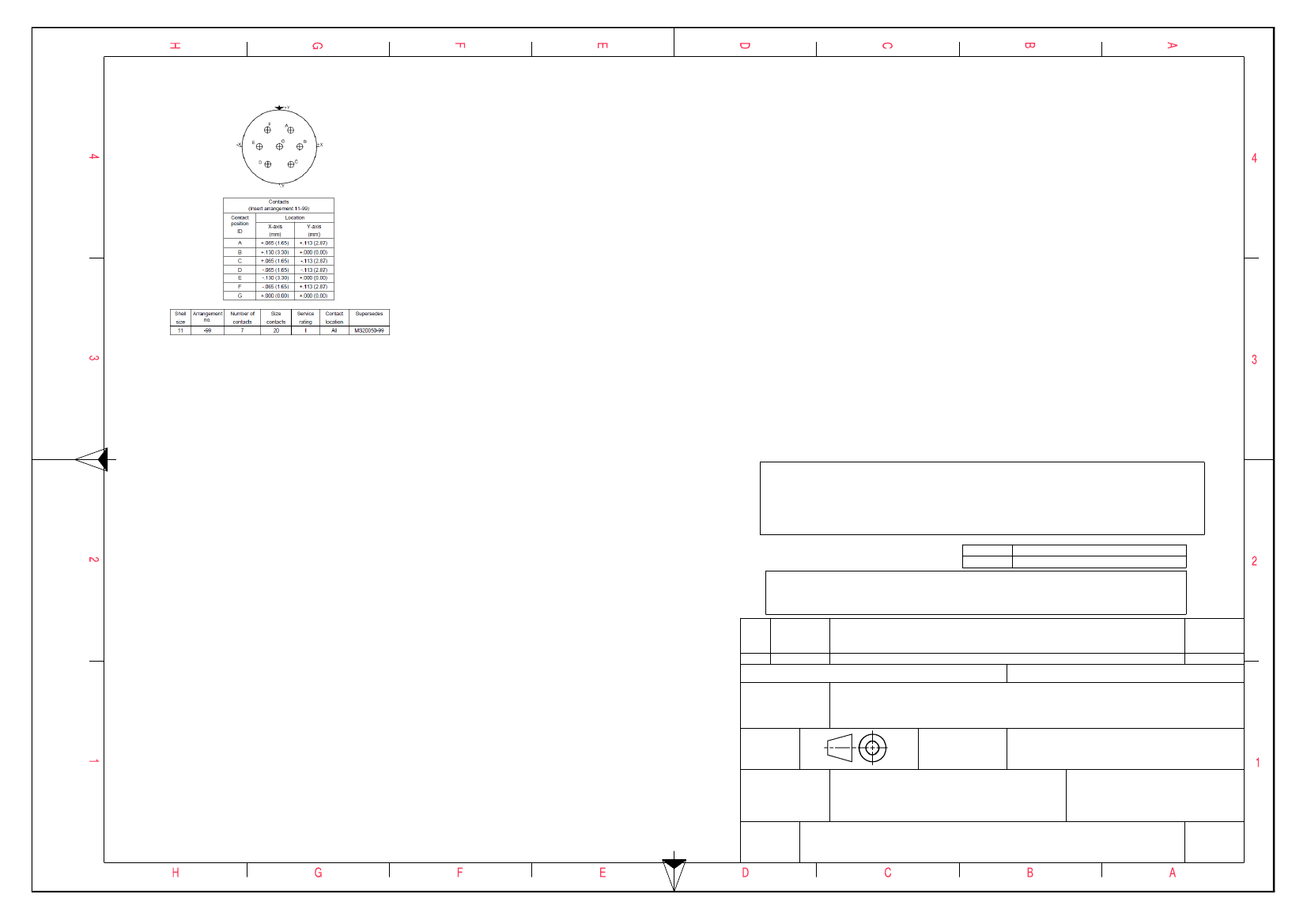

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Stainless Steel

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

ØS

25 Max

31 Max

VV THREAD

M15x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +200°C

: 500 hours

: 41.24 g ± 10%

PN: 8D511S99BN

ISS

17-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Plug with RFI Shielding

CONTACT TYPE

SHELL SIZE : 11

PLATING

S =

Nickel

: Standard Crimp Contact

ORIENTATION : N

CONTACT TYPE : SOCKET(500 Matings)

CONTACT LAYOUT : 11-99

FORMAT

Stainless Steel Plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D511S99BN-C

SHEET

1/2
