SDR626CAMU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SDR626CAMU

SDR626CAMU: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, TO-254AA, HERMETIC SEALED, TO-254, 3 PIN; CategoryDiscrete semiconductor diode; File Size79KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SDR626CAMU Overview

Rectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, TO-254AA, HERMETIC SEALED, TO-254, 3 PIN

SDR626CAMU Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254AA
package instruction	HERMETIC SEALED, TO-254, 3 PIN
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
application	HYPER FAST RECOVERY
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	40 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE

Preview

Download Datasheet

View All

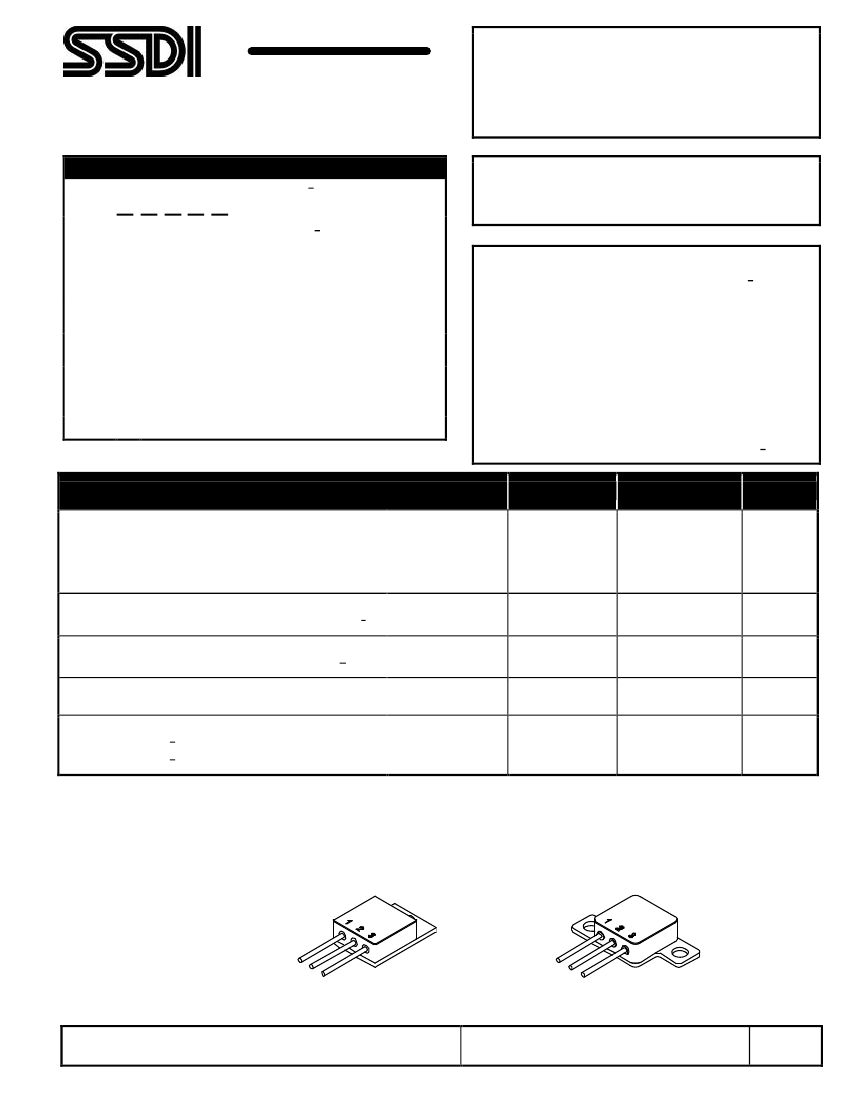

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

SDR623CTM & Z

Thru

SDR626DRM & Z

40A 35nsec 300-600 V

Hyper Fast Centertap Rectifier

Features

•

Hyper Fast Recovery: 35nsec Maximum

High Surge Rating

Low Reverse Leakage Current

Low Junction Capacitance

Hermetically Sealed Package

Gold Eutectic Die Attach

Ultrasonic Aluminum Wire Bonds

Available in Common Anode, Common Cathode,

Doubler, and Doubler Reverse Configurations

Ceramic Seal for Improved Hermeticity Available

TX, TXV, and S-Level Screening Available

Designer’s Data Sheet

Part Number/Ordering Information

SDR62

__ __ __ __ __

¦¦ ¦

Screening

= Not Screened

TX = TX Level

¦ ¦

TXV = TXV Level

¦ ¦

S = S Level

¦ ¦

Leg Bend Option

(See Figure 1)

Package

M = TO-254, Z = TO-254Z

Configuration

CT = Common Cathode,

CA = Common Anode, D = Doubler,

DR = Doubler Reverse

Voltage

3 = 300V, 4 = 400V, 5 = 500V, 6 = 600V

Maximum Ratings

SDR623__M & Z

SDR624__M & Z

SDR625__M & Z

SDR626__M & Z

Symbol

RRM

RWM

FSM

& T

STG

Value

300

400

500

600

200

-65 to +200

1.0

2.0

Units

Peak Repetitive Reverse Voltage

Volts

Average Rectified Forward Current

(Resistive Load, 60 Hz Sine Wave, T

= 25 °C)

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, T

= 25 °C)

Operating & Storage Temperature

Maximum Total Thermal Resistance

Junction to Case

Amps

ºC

ºC/W

Notes:

1/ For ordering information, Price, Operating Curves, and Availability- Contact Factory.

2/ Screened to MIL-PRF-19500.

3/ Recovery Conditions: I

= 0.5 Amp, I

= 1.0 Amp, rec. to .25 Amp.

4/ Both Legs Tied Together.

5/ Per Leg.

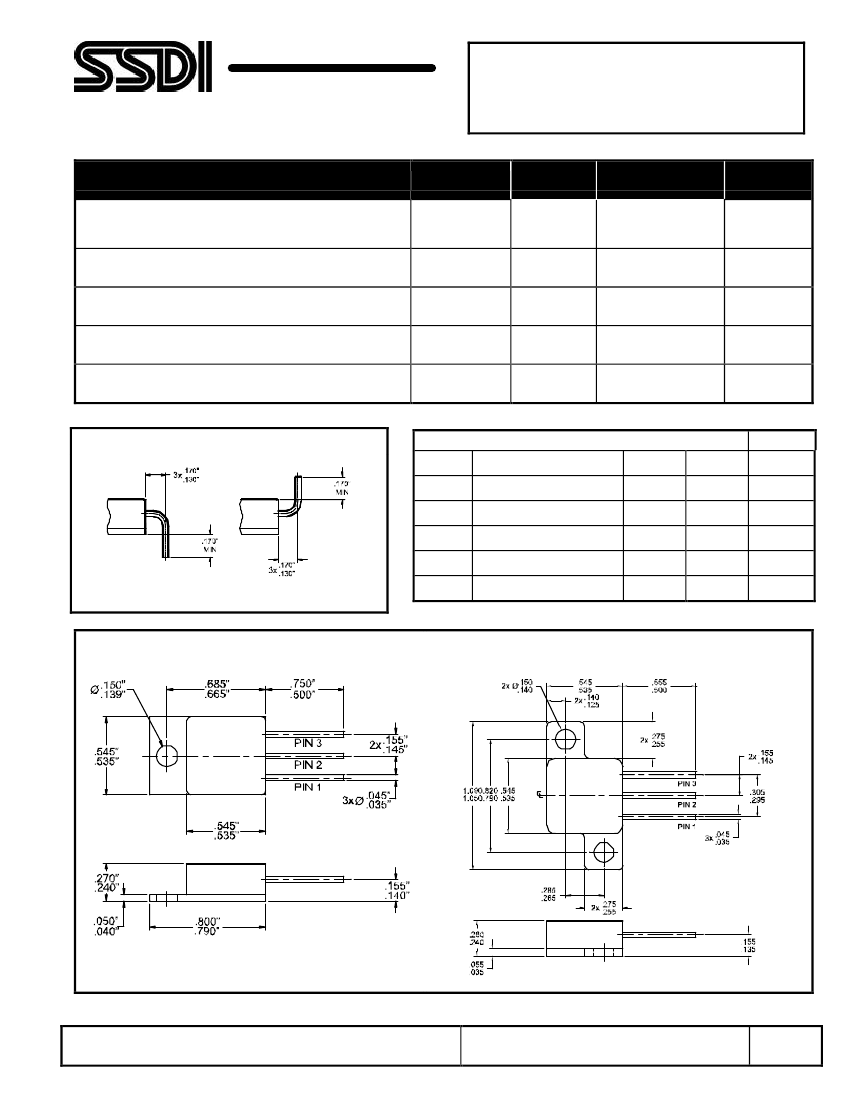

TO-254 (M)

TO-254Z (Z)

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RH0049C
