Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> MC1558H

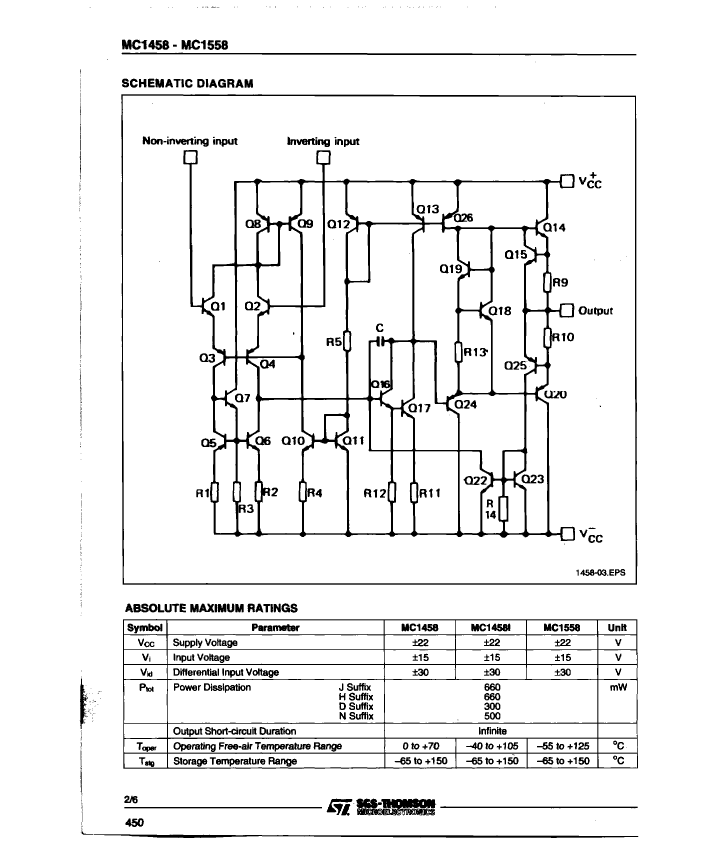

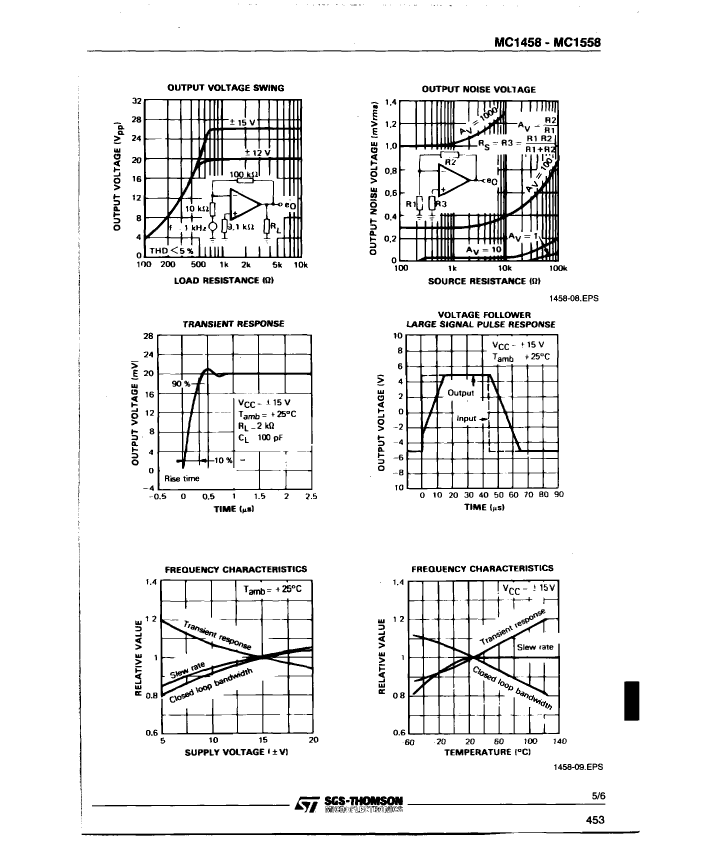

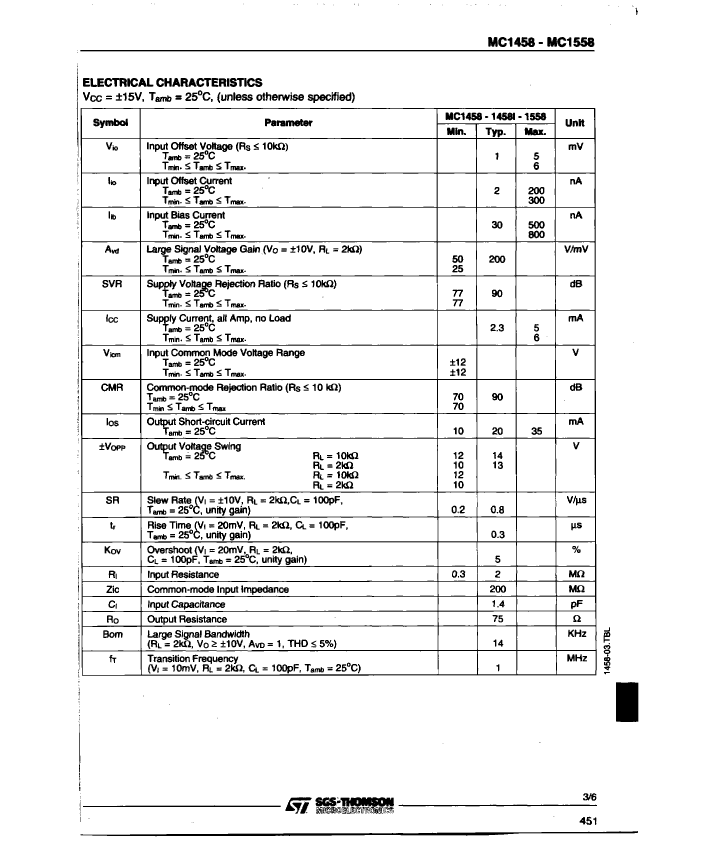

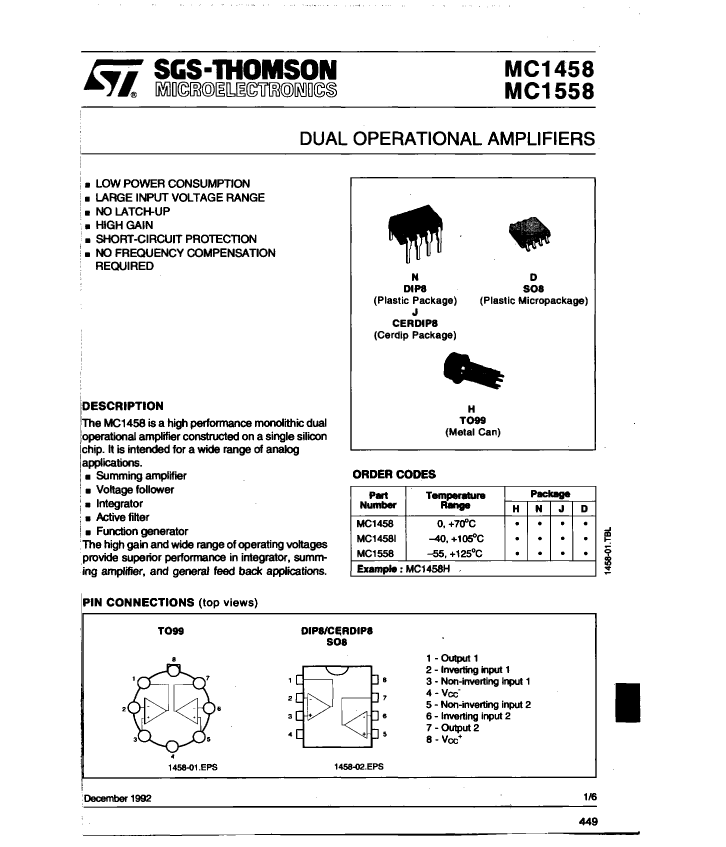

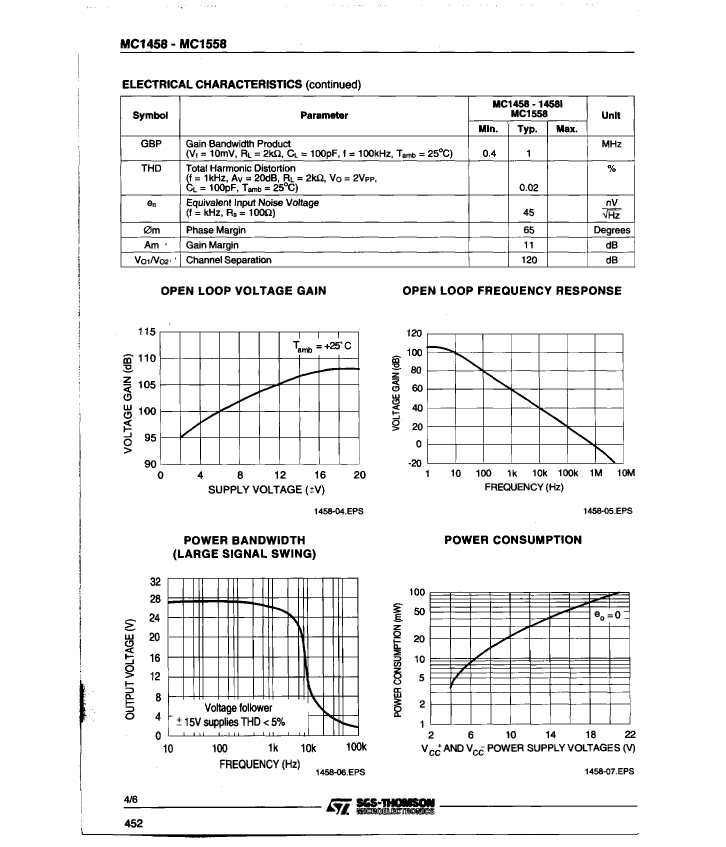

Preview

MC1558H: DescriptionDUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size147KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

MC1558H Overview

DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN

MC1558H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	TO-99
package instruction	TO-99, CAN8,.2
Contacts	8
Reach Compliance Code	_compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.8 µA
Maximum bias current (IIB) at 25C	0.1 µA
Nominal Common Mode Rejection Ratio	70 dB
frequency compensation	YES
Maximum input offset voltage	6000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	TO-99
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.2 V/us
Nominal slew rate	0.8 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	25000

Preview

Download Datasheet

View All

MC1558H Related Products

	MC1558H	MC1558J	MC1458J	MC1458IH	MC1458H
Description	DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN	DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8	DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8	DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN	DUAL OP-AMP, 6000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TO-99	DIP	DIP	TO-99	TO-99
package instruction	TO-99, CAN8,.2	DIP, DIP8,.3	CERDIP-8	TO-99, CAN8,.2	TO-99, CAN8,.2
Contacts	8	8	8	8	8
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.8 µA	0.8 µA	0.8 µA	0.8 µA	0.8 µA
Maximum bias current (IIB) at 25C	0.1 µA	0.5 µA	0.5 µA	0.1 µA	0.1 µA
Nominal Common Mode Rejection Ratio	70 dB	70 dB	70 dB	70 dB	70 dB
frequency compensation	YES	YES	YES	YES	YES
Maximum input offset voltage	6000 µV	6000 µV	6000 µV	6000 µV	6000 µV
JESD-30 code	O-MBCY-W8	R-CDIP-T8	R-CDIP-T8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2
Number of terminals	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	70 °C	105 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-	-40 °C	-
Package body material	METAL	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	METAL	METAL
encapsulated code	TO-99	DIP	DIP	TO-99	TO-99
Encapsulate equivalent code	CAN8,.2	DIP8,.3	DIP8,.3	CAN8,.2	CAN8,.2
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND
Package form	CYLINDRICAL	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.2 V/us	0.2 V/us	0.2 V/us	0.2 V/us	0.2 V/us
Nominal slew rate	0.8 V/us	0.8 V/us	0.8 V/us	0.8 V/us	0.8 V/us
Maximum slew rate	6 mA	6 mA	6 mA	6 mA	6 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE
Terminal location	BOTTOM	DUAL	DUAL	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz
Minimum voltage gain	25000	25000	25000	25000	25000
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	-
Negative supply voltage upper limit	-22 V	-	-	-22 V	-22 V
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead
