Z8470BD1 datasheet, PDF - EEWORLD Datasheet

Z8470BD1: Description2 CHANNEL(S), 1200Kbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size494KB，14 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

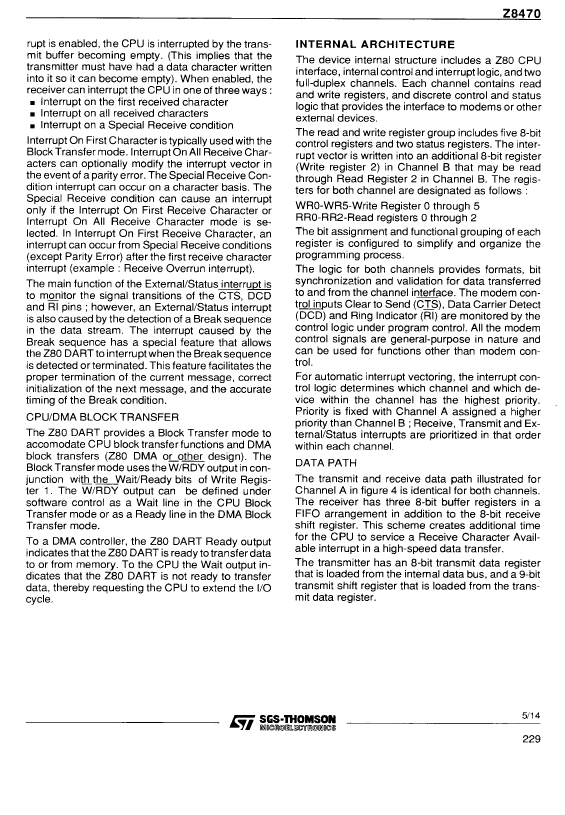

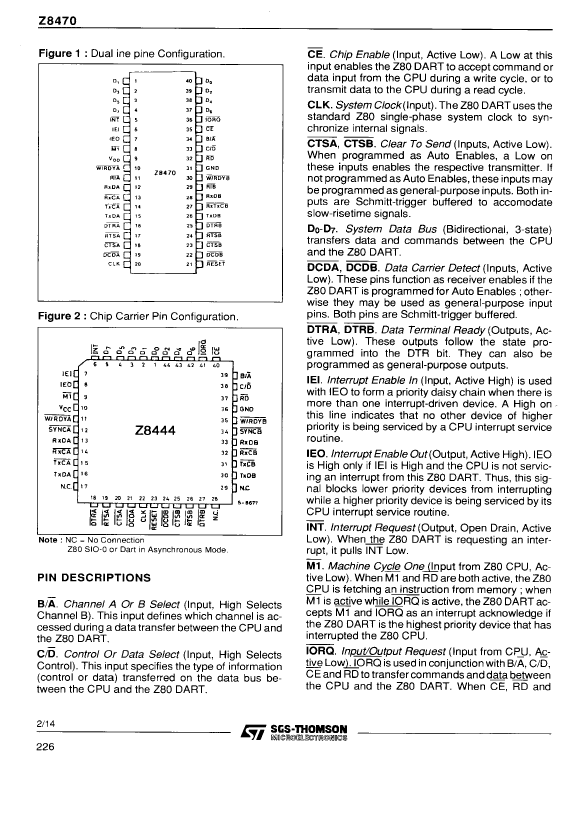

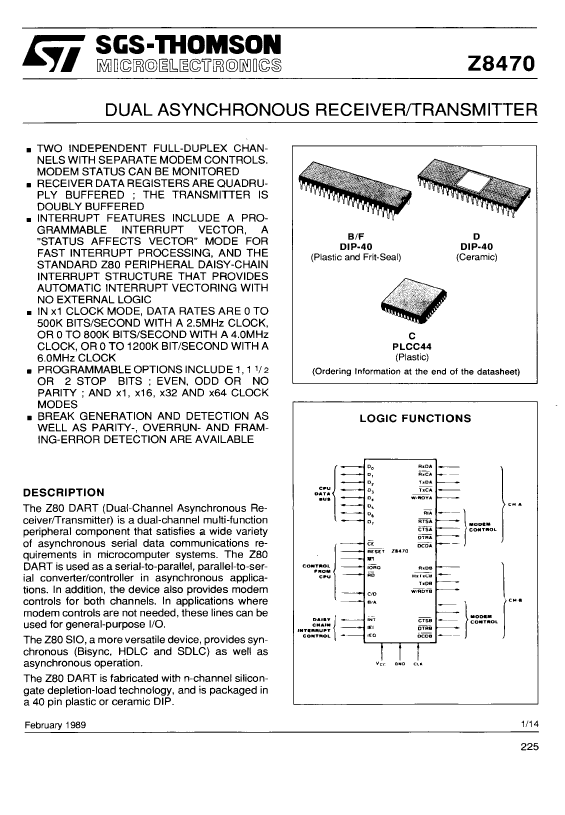

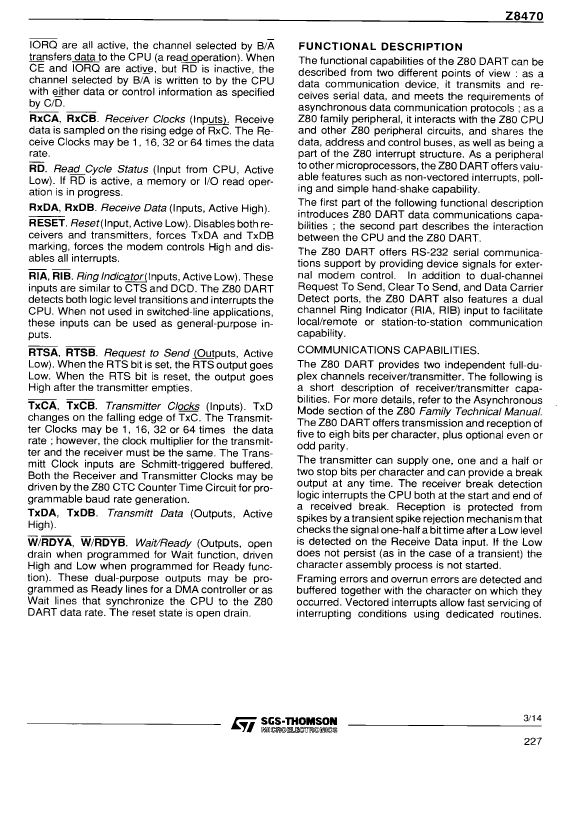

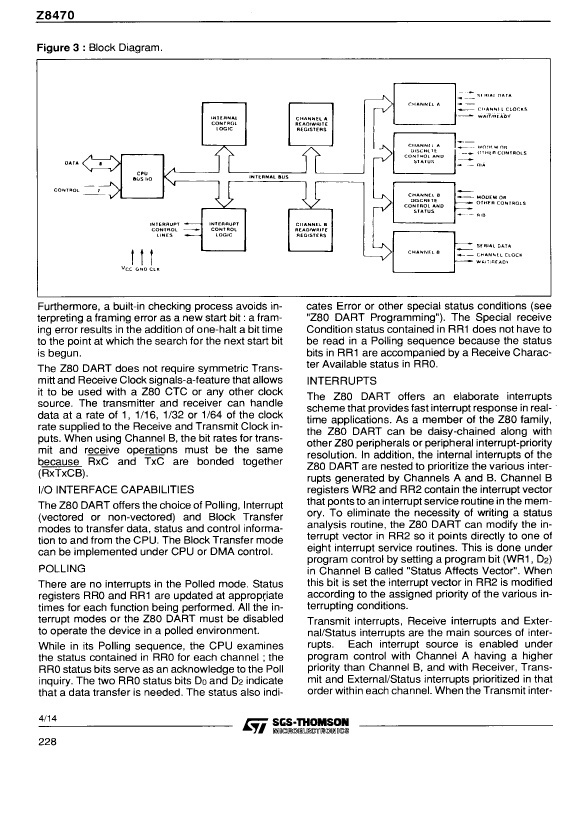

Z8470BD1 Overview

2 CHANNEL(S), 1200Kbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	CERAMIC, DIP-40
Contacts	40
Reach Compliance Code	_compli
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	6 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.146484375 MBps
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum slew rate	100 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
