RG1608N-1501-B-T1 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RG1608N-1501-B-T1

RG1608N-1501-B-T1: DescriptionFixed Resistor, Metal Film, 0.1W, 1500ohm, 75V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size1MB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RG1608N-1501-B-T1 Overview

Fixed Resistor, Metal Film, 0.1W, 1500ohm, 75V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

RG1608N-1501-B-T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ULTRA PRECISION
structure	Chi
JESD-609 code	e3
Manufacturer's serial number	RG
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	1.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.8 mm
method of packing	TR
Rated power dissipation(P)	0.1 W
Rated temperature	85 °C
resistance	1500 Ω
Resistor type	FIXED RESISTOR
series	RG
size code	0603
surface mount	YES
technology	METAL FILM
Temperature Coefficient	10 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	75 V

Preview

Download Datasheet

View All

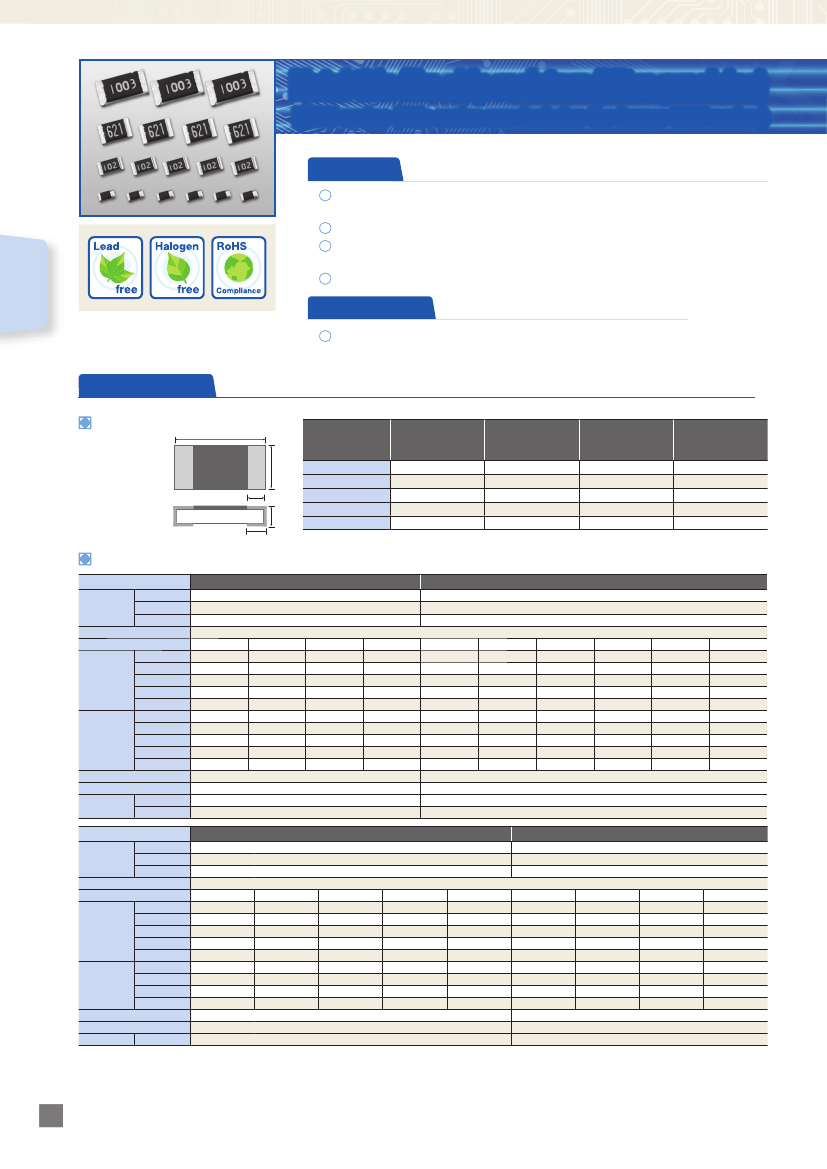

Metal thin film chip resistors (Ultra-precision)

■

RG series (This series now includes the former RGH series.)

Features

●

Ultimate chip resistors: the result of all of our thin film technology

expertise including inorganic passivation

●

Resistance drift: less than +/-0.1% after 10000 hour accelerated reliability test

●

+/-0.02% of resistance tolerance and +/-5ppm/°C of temperature

coefficient of resistance

●

Excellent tolerance to power surges

Thin film surface

mount resistors

Applications

●

Any applications that require precision resistors such as automotive electronics,

industrial test and measurement equipment, and consumer electronics

RG series (This series now includes the former RGH series.)

Specifications

Dimensions

＊Standard stock item: E-24 series with TCR P, Q, and R grades, as well as tolerance D and B grades. Other

E-24 grades and E-96 series are made to order

unit：mm

Dimension

（inch）

RG1608

RG2012

RG1005

(0603)

(0805)

(0402)

OLD:RGH1005 included OLD:RGH1608 included OLD:RGH2012 included

1.0±0.05

0.5±0.05

0.2±0.10

0.25±0.05

0.35±0.05

1.6±0.2

0.8±0.2

0.3±0.2

0.4±0.1

2.0±0.2

1.25±0.2

0.4±0.2

0.4±0.1

RG3216

(1206)

3.2±0.2

1.6±0.2

0.5±0.25

0.5±0.2

0.4±0.1

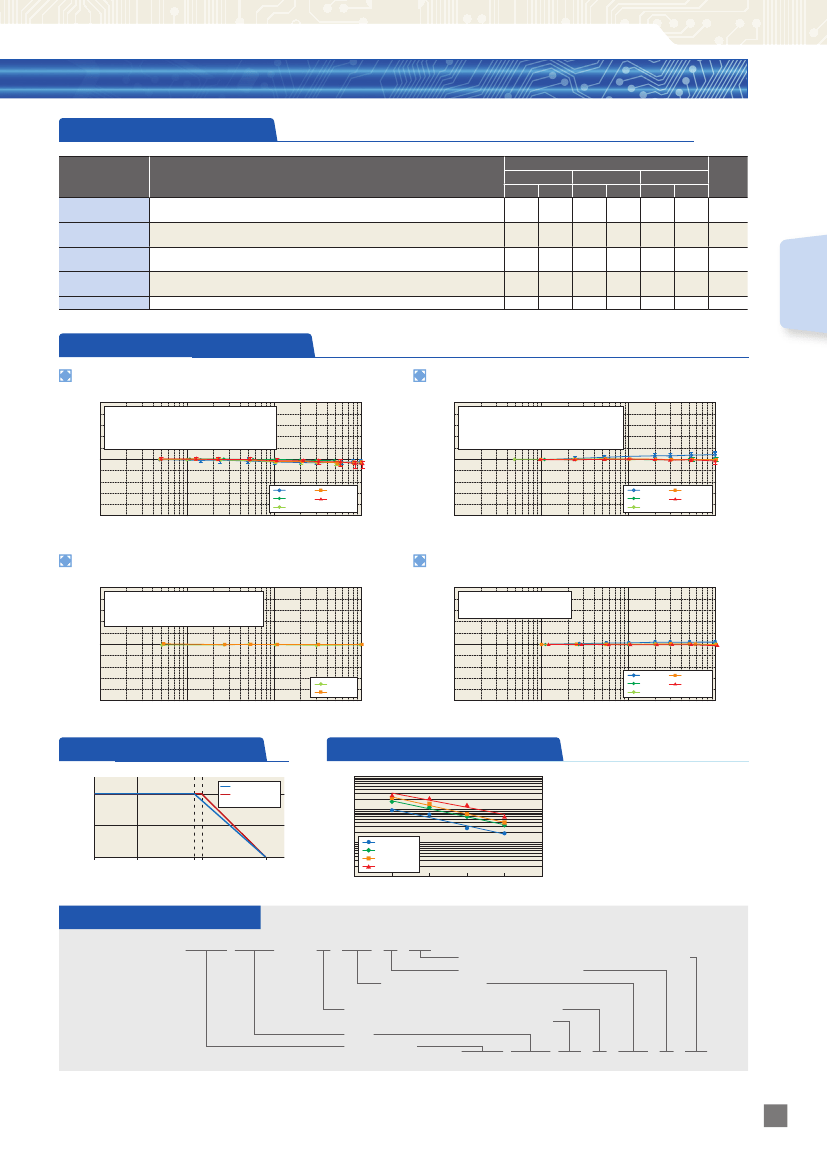

Electrical characteristics

Series name

NOTE

O b s o l e t e d : RGH1005 (0402) RGH:1608-2C (0603) RGH2012 (0805)

Alternative P/N : RG1005 (0402)

RG1608(0603)

RG2012 (0805)

RG1005

RG1608

1/6W

（OLD：RGH1608-2C）

1/10W

1/16W

100 〜4.99k 5.1k〜270k

○

ー

○

ー

○

ー

75V

−55 ℃〜 155℃

CodeT5

ー

274 〜332k

ー

○

ー

○

ー

340 〜360k

ー

○

ー

○

ー

High power application

1/8W

（OLD：RGH1005-2B）

Rated

Regular power application

1/16W

power

＊1

High precision

1/32W

E series offered

Resistance range

（Ω）

10 〜46.4

47 〜97.6 100 〜 2.94k 3k〜 100k

±0.02％

（P）

ー

○

ー

（W）

ー

○

Resistance ±0.05％

tolerance

±0.1％

（B）

ー

○

（％）

±0.25％

（C）

ー

○

±0.5％

（D）

○

±5

（V）

ー

○

ー

Temperature

±10

（N）

ー

○

coefficient of

±25

（P）

ー

○

resistance

±50

（Q）

ー

（ppm/℃）

±100

（R）

○

ー

Maximum voltage

25V

Operating temperature

−55 ℃〜155℃

5,000pcs

CodeT5

Packaging

10,000pcs

CodeT10

E-24, E-96

10 〜46.4

47 〜 97.6

ー

○

ー

○

ー

○

ー

○

ー

○

ー

Series name

High power application

Rated

Regular power application

power

＊1

High precision

E series offered

Resistance range

（Ω）

±0.02％

（P）

（W）

Resistance ±0.05％

tolerance

±0.1％

（B）

（％）

±0.25％

（C）

±0.5％

（D）

（V）

Temperature ±5

（N）

coefficient of ±10

resistance

±25

（P）

（ppm/℃） ±50

（Q）

Maximum voltage

Operating temperature

Packaging

5,000pcs

＊1

RG2012

1/4W

（OLD：RGH2012-2E）

1/8W

1/10W

10 〜 46.4

ー

○

ー

○

47 〜97.6

ー

○

ー

○

ー

100 〜 10k 10.2k〜475k

○

ー

○

ー

○

ー

100V

−55 ℃〜 155 ℃

CodeT5

RG3216

ー

1/4W

1/8W

10 〜46.4

ー

○

ー

○

47 〜 97.6

100 〜 33.2k

ー

○

ー

○

ー

150V

−55 ℃〜155℃

CodeT5

34k〜 1M

ー

○

ー

○

ー

E-24, E-96

487k〜1M

ー

○

ー

○

ー

Depending on customer’ reliability requirements, power rating between high power and regular power can be selected.

・Contact us for RG3225 with 1/2W rated power.
