BZT52B2V4S
THRU
BZT52B39S
Technical Data
Data Sheet N1748, Rev.-
Green Products
BZT52B2V4S-BZT52B39S
ZENER DIODES
Features:
•
•
•
•
Planar Die Construction
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Available in Lead Free Version

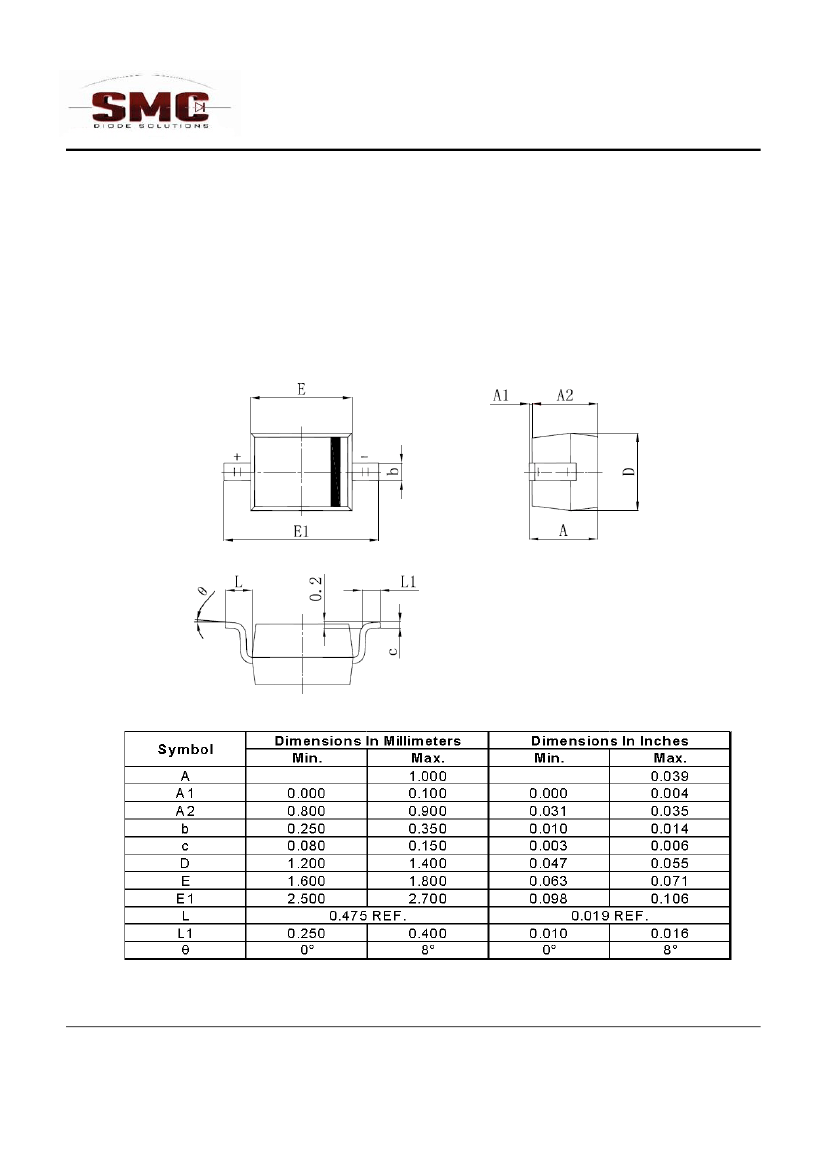

Mechanical Dimensions: In mm/ Inches
SOD - 323
•
China - Germany - Korea - Singapore - United States
•
•
http://www.smc-diodes.com - sales@ smc-diodes.com
•
BZT52B2V4S
THRU
BZT52B39S
Technical Data
Data Sheet N1748, Rev.-
Green Products

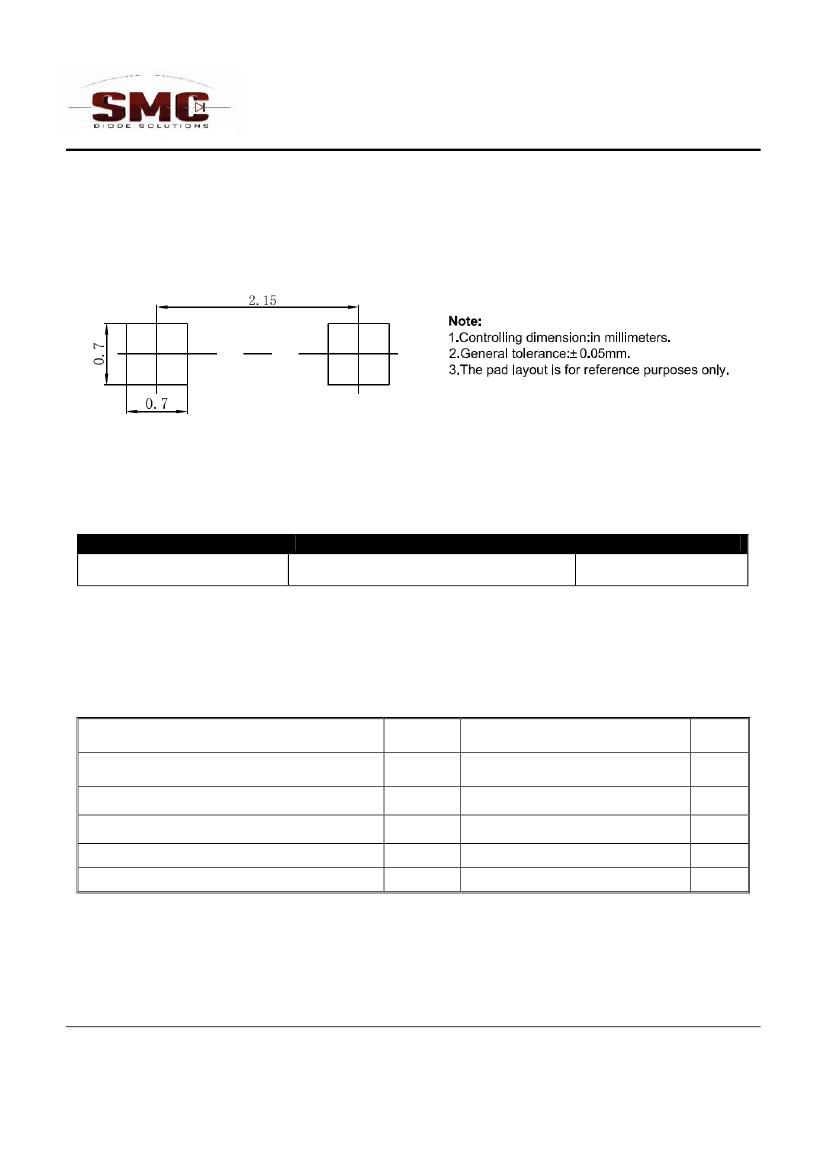

SOD-323 Suggested Pad Layout
Ordering Information:
Device
BZT52B2V4S - BZT52B39S
Package
SOD-323
(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings
(T
a
=25℃, Unless otherwise specified)
Characteristic
Forward Voltage (Note 2) @ I
F
= 10mA
Power Dissipation (Note 1)
Thermal Resistance from Junction to Ambient
Junction Temperature
Storage Temperature Range
Symbol
V
F
P
D
R
ΘJA
T
J
T
STG
Value
0.9
200
625
150
-55 to +150
Unit
V
mW
°C/W
°C
°C
•
China - Germany - Korea - Singapore - United States
•
•
http://www.smc-diodes.com - sales@ smc-diodes.com
•
BZT52B2V4S
THRU
BZT52B39S
Technical Data
Data Sheet N1748, Rev.-
Green Products

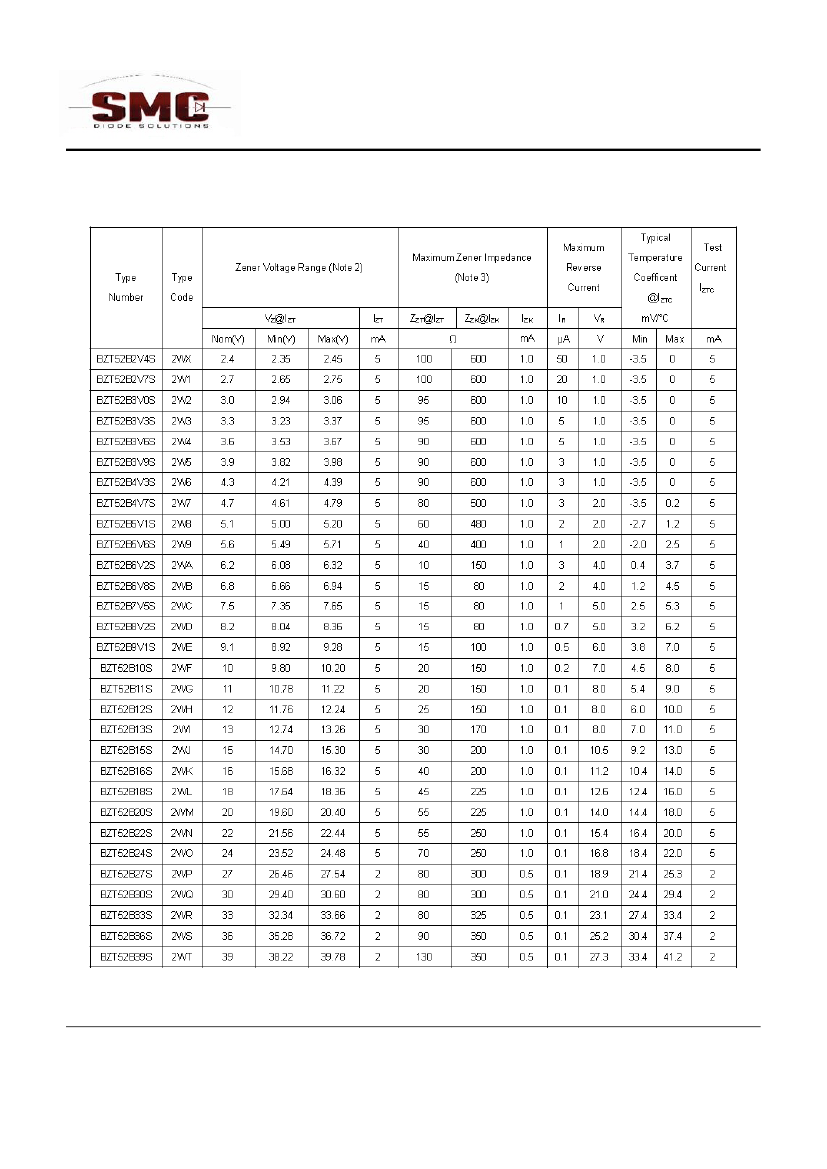

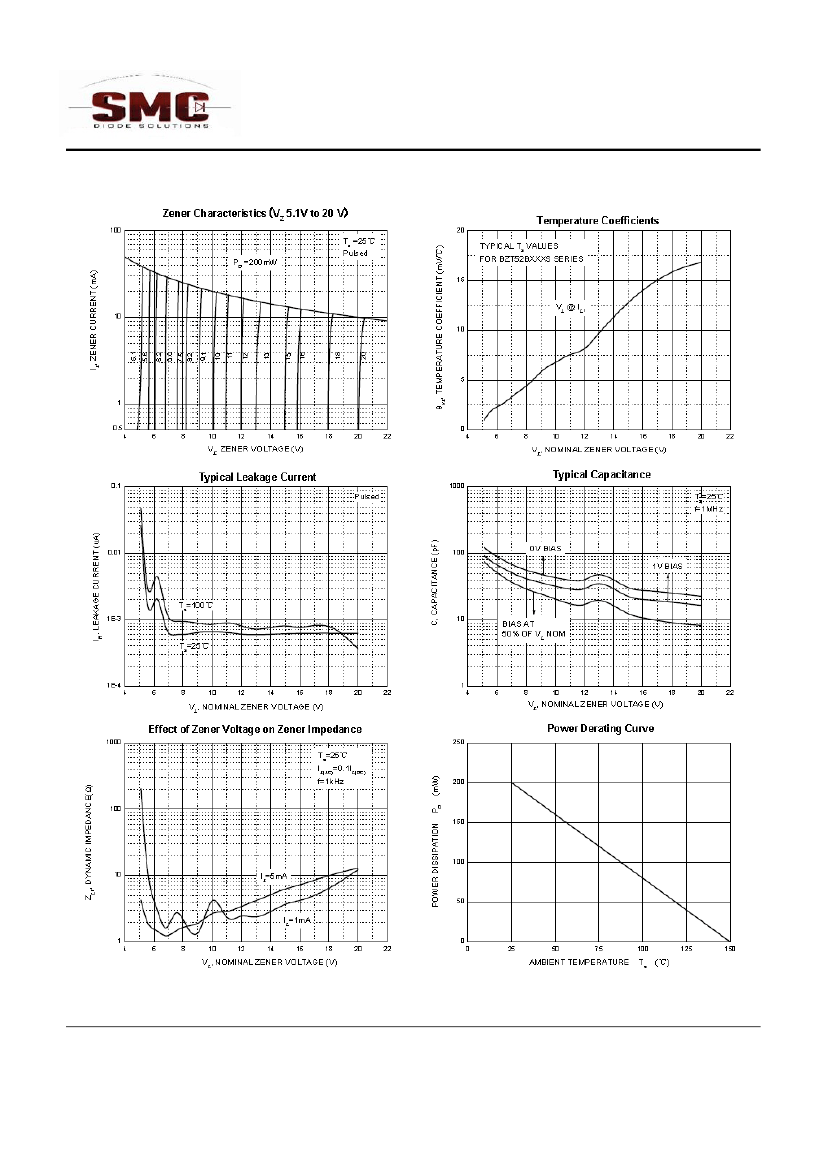

Electrical Characteristics
@TA=25°C unless otherwise specified
Notes: 1. Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm
2
.
2. Short duration test pulse used to minimize self-heating effect.
3. f = 1kHz.
•
