100A130MW150XC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 100A130MW150XC

100A130MW150XC: DescriptionCeramic Capacitor, Multilayer, Ceramic, 150V, 20% +Tol, 20% -Tol, 90+/-20ppm/Cel TC, 0.000013uF, Surface Mount, 0606, CHIP; CategoryPassive components capacitor; File Size235KB，6 Pages; ManufacturerATC [American Technical Ceramics]

Download Datasheet Parametric View All

100A130MW150XC Overview

Ceramic Capacitor, Multilayer, Ceramic, 150V, 20% +Tol, 20% -Tol, 90+/-20ppm/Cel TC, 0.000013uF, Surface Mount, 0606, CHIP

100A130MW150XC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ATC [American Technical Ceramics]
package instruction	, 0606
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance	0.000013 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.45 mm
JESD-609 code	e0
length	1.4 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	20%
Rated (DC) voltage (URdc)	150 V
Guideline	MIL-PRF-55681
size code	0606
surface mount	YES
Temperature Coefficient	90+/-20ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	1.4 mm

Preview

Download Datasheet

View All

ATC 100 A Series

Porcelain Superchip

Multilayer Capacitors

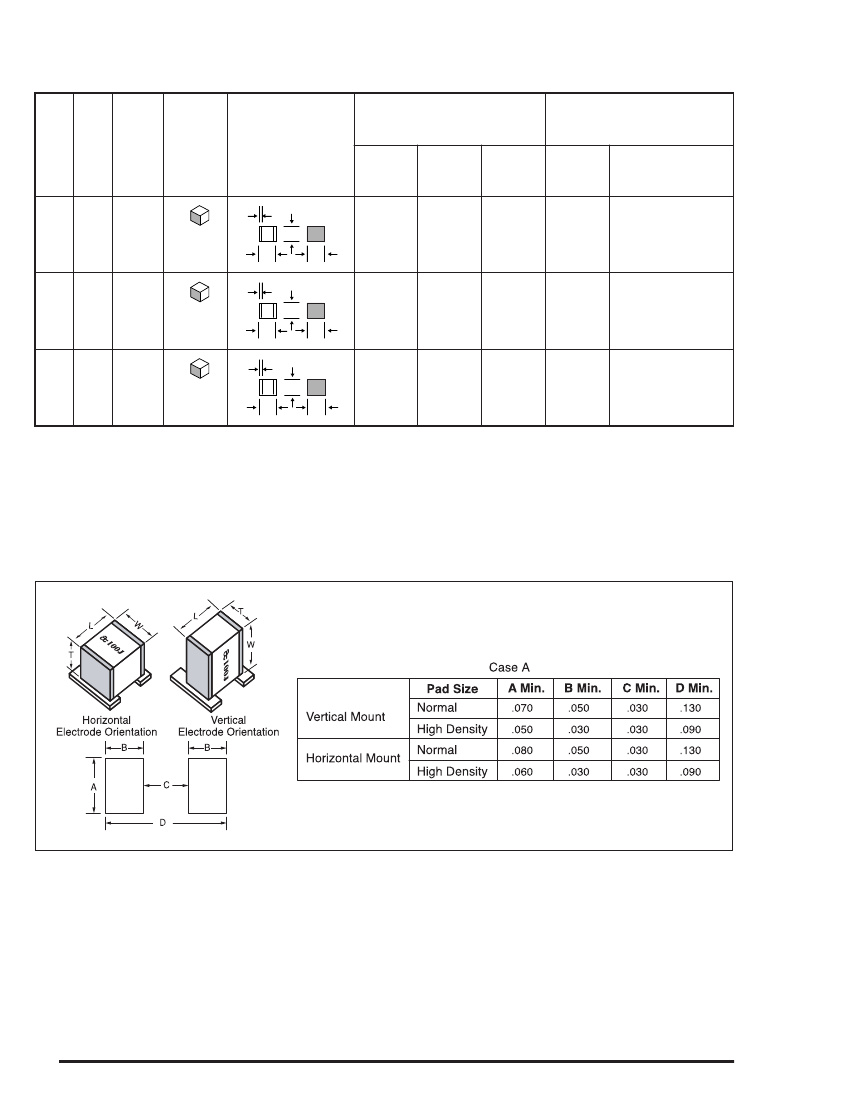

• Case A Size

(.055" x .055")

• High Q

• Low ESR/ESL

• Low Noise

• Extended WVDC

up to 250 VDC

ATC, the industry leader, offers new improved ESR/ESL performance

for the 100 A Series RF/Microwave Capacitors. This is ATC's most

versatile high Q, high self resonant multilayer capacitor. High density

porcelain construction provides a rugged, hermetic package.

Typical functional applications: Bypass, Coupling, Tuning, Feedback,

Impedance Matching and DC Blocking.

Typical circuit applications: Microwave/RF/IF Amplifiers, Mixers,

Oscillators, Low Noise Amplifiers, Filter Networks, Timing Circuits and

Delay Lines.

• Capacitance Range

0.1 pF to 100 pF

• Ultra-Stable Performance

• High Self-Resonance

• Established Reliability (QPL)

ELECTRICAL AND MECHANICAL

SPECIFICATIONS

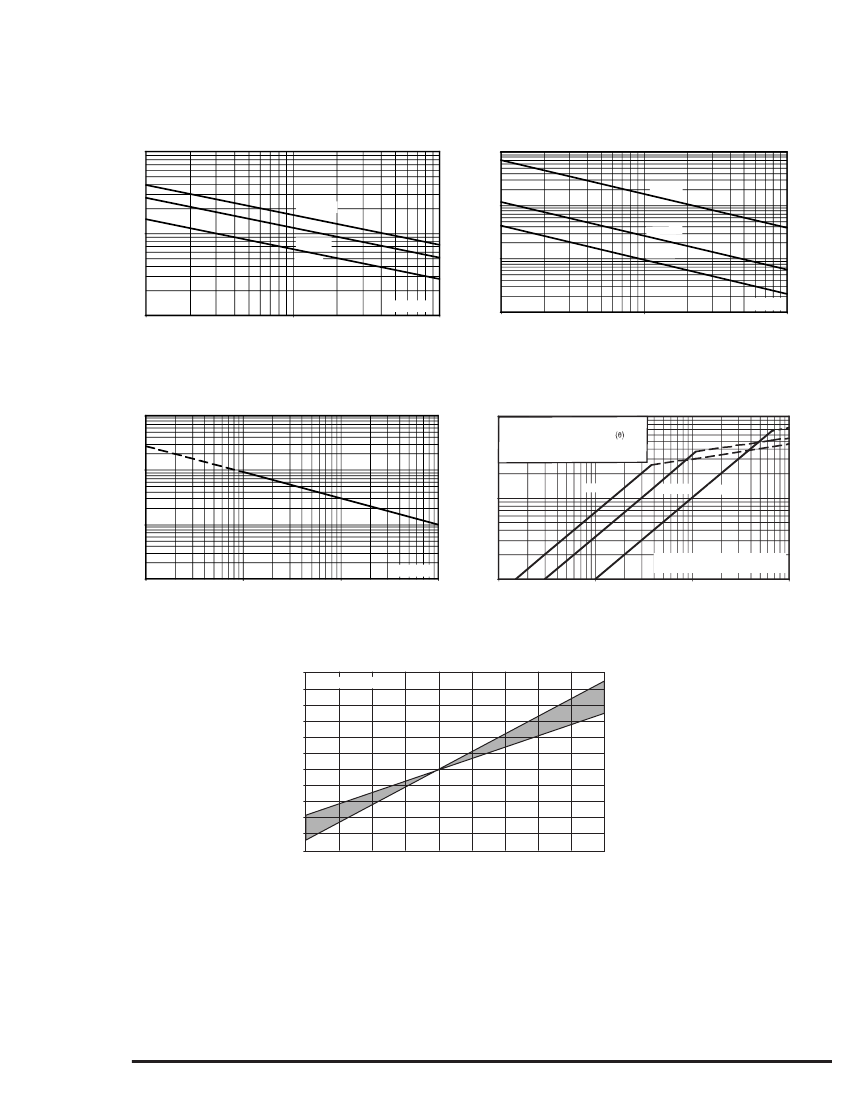

QUALITY FACTOR (Q):

greater than 10,000 at 1 MHz.

TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):

+90 ±20 PPM/°C (-55°C to +125°C)

INSULATION RESISTANCE (IR):

0.1 pF to 100 pF:

Megohms min. @ +25°C at rated WVDC.

Megohms min. @ +125°C at rated WVDC.

WORKING VOLTAGE (WVDC):

See Capacitance Values Table, page 2.

DIELECTRIC WITHSTANDING VOLTAGE (DWV):

250% of rated WVDC for 5 secs.

ENVIRONMENTAL TESTS

ATC 100 A Series Capacitors are designed and manufactured to

meet and exceed the requirements of EIA-198, MIL-PRF-55681 and

MIL-PRF-123.

RETRACE:

Less than ±(0.02% or 0.02 pF), whichever is greater.

AGING EFFECTS:

None

PIEZOELECTRIC EFFECTS:

None

(No capacitance variation with voltage or pressure).

THERMAL SHOCK:

MIL-STD-202, Method 107, Condition A.

CAPACITANCE DRIFT:

±(0.02% or 0.02 pF), whichever is

greater.

MOISTURE RESISTANCE:

MIL-STD-202, Method 106.

OPERATING TEMPERATURE RANGE:

From -55°C to +125°C (No derating of working voltage).

LOW VOLTAGE HUMIDITY:

MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied

while subjected to an environment of 85°C with 85% relative humidi-

ty for 240 hours min.

TERMINATION STYLES:

Available in various surface mount

styles. See Mechanical Configurations, page 3.

TERMINAL STRENGTH:

Terminations for chips and pellets

withstand a pull of 5 lbs. min., 10 lbs. typical, for 5 seconds in direc-

tion perpendicular to the termination surface of the capacitor. Test

per MIL-STD-202, method 211.

LIFE TEST:

MIL-STD-202, Method 108, for 2000 hours, at 125°C.

200% WVDC applied.

ATC # 001-806 Rev. K 7/08
